Week-7 Challenge: DC Motor Control

Traffic Jam Assistant Feature Introduction to the Feature: Traffic Jam Assistant is one of the most common feature in Advanced Driver Assistance System. Traffic Jam Assistant helps the driver arrive more relaxed at their destination, even in dense traffic or in traffic jams. As a partially automated comfort function, the…

Q) Design and Develop a simulink model to understand Energy analysis of EVs on different driving cycles.... SOLUTION;  OBJECTIVE; To design and develop a simulink model to understand energy analysis of EVs on driving cycles   BLOCKS ARE USED IN MODEL; Driving cycle;That is the driving cycle will be applied at…

Q)For a 10 cell series, calculate the voltage, current and SOC. Also simulate the aging and thermal effects at different charge and discharge rates. Comment on the battery pack’s capacity. SOLUTION; OBJECTIVE; For a 10 cell series, calculate the voltage, current and SOC. Also simulate the aging and thermal effects…

Q) For a vehicle of gross weight 300 kg, the motor ratings are 1200Wh, 65V. The range is 225km and the maximum speed is 60kmph. Calculate the capacity of the battery pack required and the number of series-parallel connections. Give a stepwise discussion on how a battery pack is built.Note: Choose any relevant lithium ion…

Design and simulation of Buck converter for Auxiliary load in EV. Input voltage is 48V, Output voltage is 12 V Load current is 10A Calculate Duty ratio and Load(use Resistor as Load) Calculate L,C  SOLUTION; DUTY RATIO(D); Duty Ratio = Output voltage / Input voltage  Duty Ratio = 12/48 = 0.25 Duty Ratio = 25%…

PWM controlled fan load with DC motor Objective; To Model a fan type load in simulink and to control its speed by using the PWM Method This works to model a DC motor driven by an input signal that approximates a pulse-width modulated signal  these signals are fed to the motor using an H bridge circuit  We assume that the…

REQUIREMNT MODEL:

Mini Project - Vehicle Direction Determination General Overview: TOPIC: Requirement - 1: Requirement – 2: Signals & Calibration Data List:

                                                                    EV LIVE BATCH -16 :                  …

                                                          EV LIVE BATCH -16 Battery pack capacity: 18 kWh Cell: ANR26650M1-B  Prepare a detailed battery pack drawing along with its enclosure. State your assumptions..,,??   SOLUTION : TO MAKE THE BATTERY PACK, WE HAVE TO FIRST FINALIZE THE NOMINAL VOLTAGE AND CAPACITY OF…

                                                           EV LIVE BATCH -16:   1.Simulate the 3 test cases from harness dashboard and write a detailed report on the…

                                                  EV LIVE BATCH -16:     1.Prepare a table which includes materials & chemical reactions occurring at the anode and cathode of LCO,…

                                                                              EV LIVE BATCH -16        …

                .............. EV LIVE BATCH -16.......   Q)Create a MATLAB model of electric car which uses a battery and a DC motor. Choose suitable blocks from Powertrain block set. Prepare a report about your model including following: Objectives:     …

                                                        EV LIVE BATCH -16:   1)For a defined driving cycle, calculate the energy required for braking.? SOLUTION: We required…

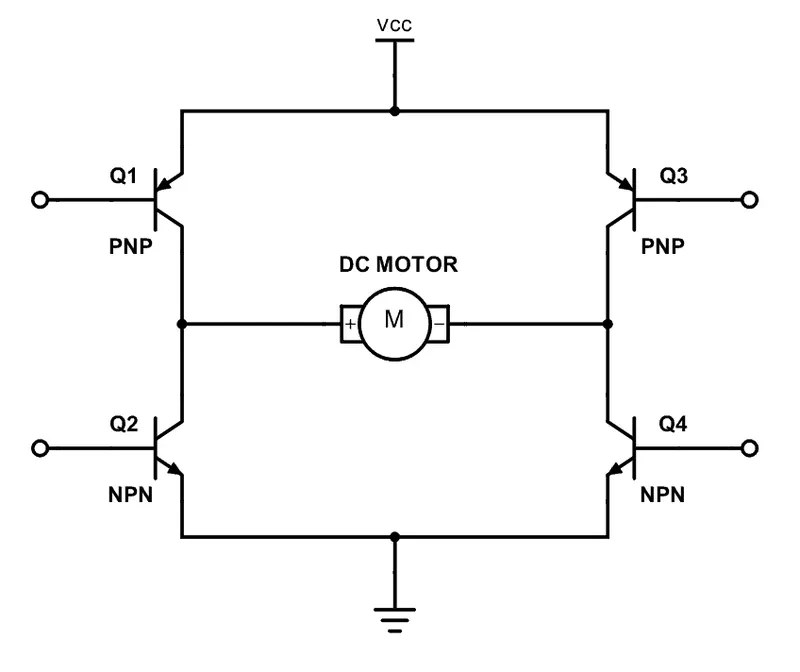

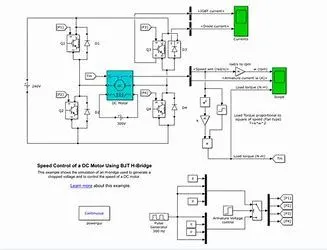

                                                       EV LIVE BATCH - 16   1). Explain a MATLAB demo model named ‘Speed control of a DC motor using BJT H-bridge’.…

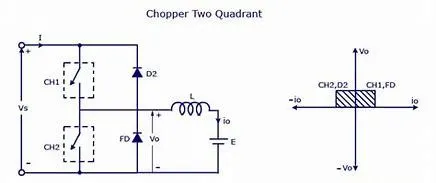

                   EV LIVE BATCH - 16   3. Develop a mathematical model of a DC Motor for the below equation using Simulink.          ω">ωω=   V/Kϕ">ϕϕ -Ra/Kϕ">ϕϕ^2    .T? SOLUTION:   2.  An Electric Vehicle's powertrain with 72V battery pack in shown in the diagram below. The duty ratio for acceleration operation is 'd1'…

Mapped model ; Advantages : if the detailed specifications \lookup table data is available with us the simulink becomes easier and it gives the result on the basics of data interpreted . Disadvantages; Move data has to be collected and some assuptions might also have to be taken .   Dynamic model; Advantages: If the operates…

ADVISOR: A model written in the widely used MATLAB\simulink software enviroment. This is a tool stands for Advanced vehicle simulator which is used to model different types of vehicles such as some ic engine ,hybrid vehicle ,this tool is very useful in case of user defined owertrain or vehicle dynamic    CASE -1 ln the…

Carry out a system-level simulation of an all-terrain vehicle: AIM; TO prapare a technical report of simulation of BAJA -all -Terrain vehicle (ATV) under different conditions. OBJECTIVES: Carry out a system-level simulation of an all-terrian vehicle and prepare a technical report explaining the model properties  ALL…

   To implement control logic of a washing machine using stateflow as per given sequence. Make a simulink chart for the gear shift logic as per given conditions. In simulink, implement control logic of a washing machine using stateflow as per input condition.create a model logic system and display the output…

Make a Simulink model of Doorbell using Soleniod Block MODEL EXPLAINATION;  A Pulse generator is given as input with the following specification.   the condition was that the bell is engaged for 02second and then released  same as implemented by giving period as 04second and pluse width as 50percent of 04second …
