Week-7 Challenge: DC Motor Control

1. A. Explain a MATLAB demo model named ‘Speed control of a DC motor using BJT H-bridge’.

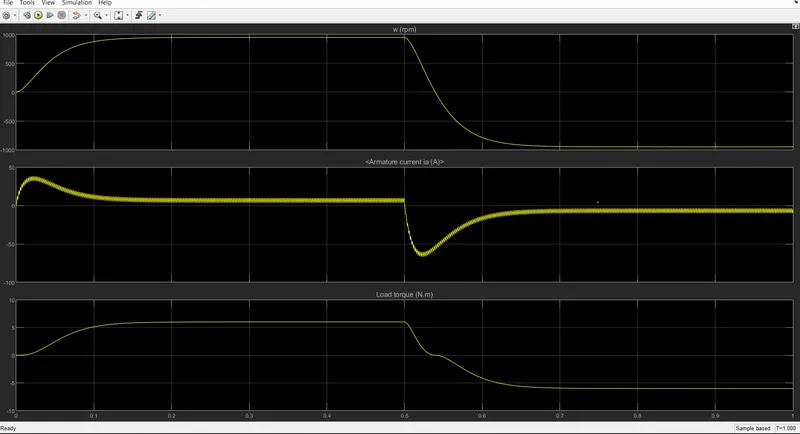

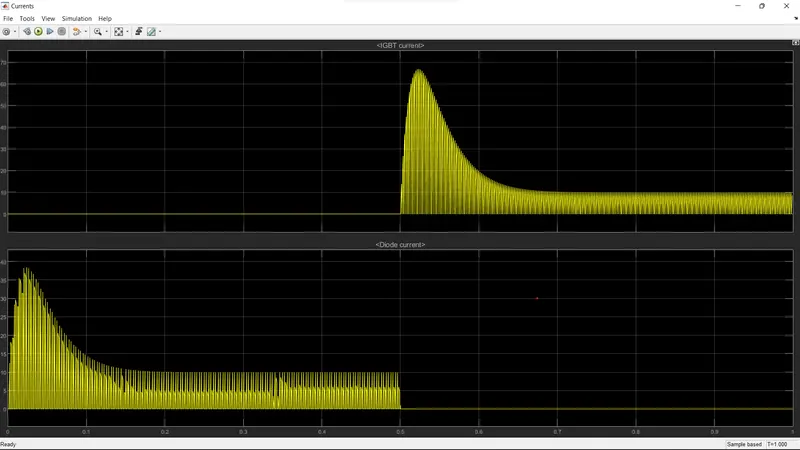

B. Comment on the armature current shoot-up from the scope results.

C. Refer to the help section of ‘The Four-Quadrant Chopper DC Drive (DC7) block’. Compare it with the H-bridge model.

BJT bipolar junction transistor is used for power switching apllications

While conduting BJT a forward voltage is developed vf between collector and emiter.so we use the igbt block to model bjt device.

there are 4 transistors present in an h bridge

Q1 Q2 Q3 Q4

At a time only 2 are active or switched on/off simultaneously

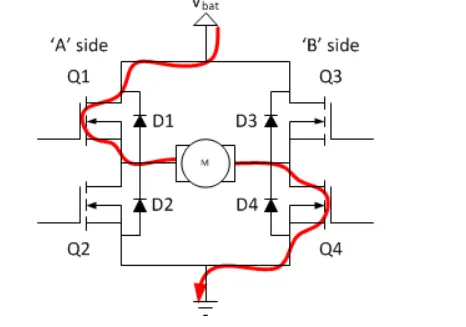

when q1 and q2 are fired ,positive voltage is applied to the motor and q3 and q4 are off

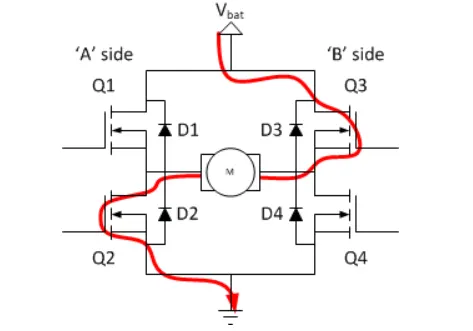

when q3 and q4 are fired ,negetive voltage is applied to motor and q1 and q2 are off

when in 1st case q2 and q3 are active motor will run in forward direction

while the reverse will occur in q2 andq4 and the motor will run or start spinning in reverse direction.

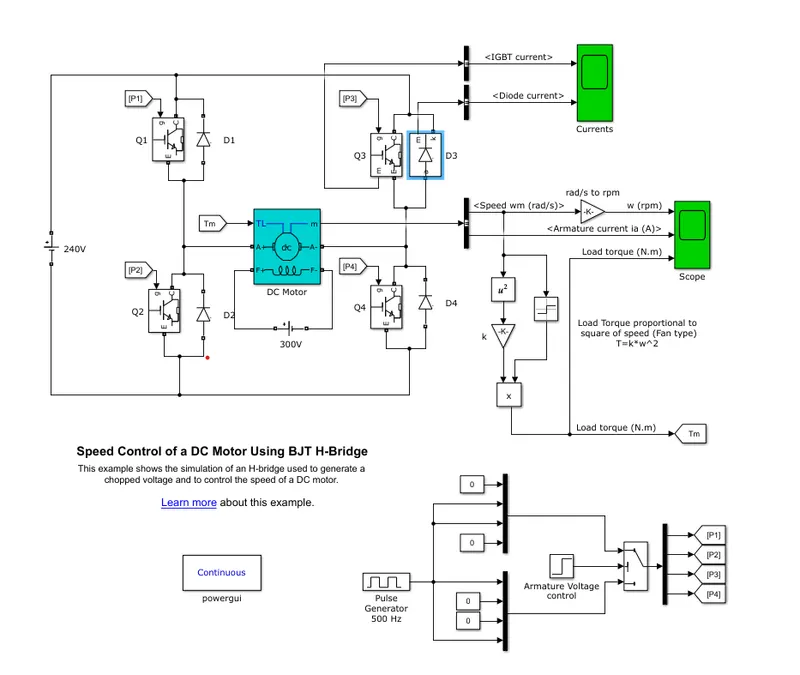

MODEL above shown is a speed control of a dc motor using bjt.

Explain in a brief about operation of BLDC motor.

A motor converts supplied electrical energy into mechanical energy. Various types of motors are in common use. Among these, brushless DC motors (BLDC) feature high efficiency and excellent controllability, and are widely used in many applications. The BLDC motor has power-saving advantages relative to other motor types.

Brushed DC motors, featuring simple design and easy control, are widely used to open and close disk trays. In cars, they are often used for retracting, extending, and positioning electrically-powered side windows. The low cost of these motors makes them suitable for many uses. One drawback, however, is that brushes and commutators tend to wear relatively quickly as a result of their continued contact, requiring frequent replacement and periodic maintenance.

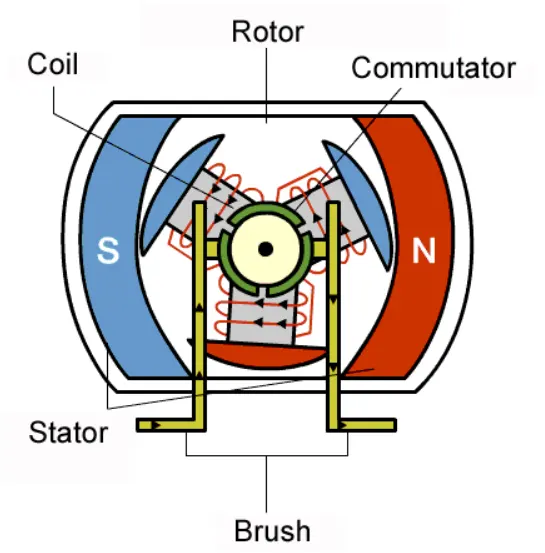

With the brushed motor, rotation is achieved by controlling the magnetic fields generated by the coils on the rotor, while the magnetic field generated by the stationary magnets remains fixed. To change the rotation speed, you change the voltage for the coils. With a BLDC motor, it is the permanent magnet that rotates; rotation is achieved by changing the direction of the magnetic fields generated by the surrounding stationary coils. To control the rotation, you adjust the magnitude and direction of the current into these coils.

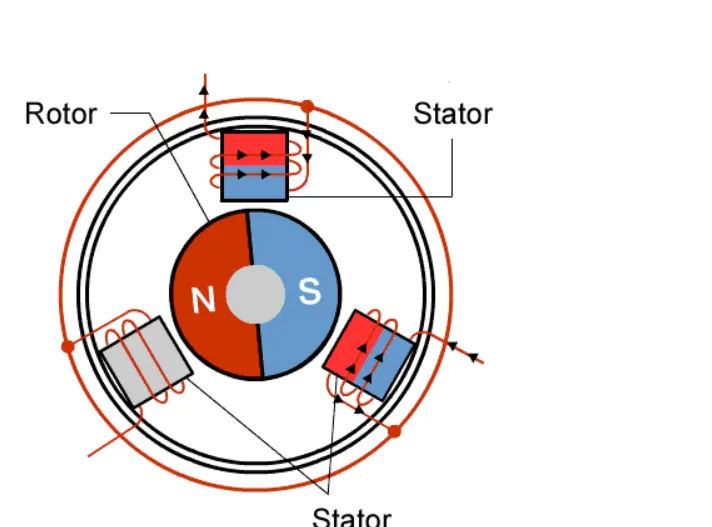

A BLDC motor with three coils on the stator will have six electrical wires (two to each coil) extending from these coils. In most implementations three of these wires will be connected internally, with the three remaining wires extending from the motor body (in contrast to the two wires extending from the brushed motor described earlier). Wiring in the BLDC motor case is more complicated than simply connecting the power cell’s positive and negative terminals; we will look more closely at how these motors work in the second session of this series. Below, we conclude by looking at the advantages of by BLDC motors.

One big advantage is efficiency, as these motors can control continuously at maximum rotational force (torque). Brushed motors, in contrast, reach maximum torque at only certain points in the rotation. For a brushed motor to deliver the same torque as a brushless model, it would need to use larger magnets. This is why even small BLDC motors can deliver considerable power.

The second big advantage—related to the first—is controllability. BLDC motors can be controlled, using feedback mechanisms, to delivery precisely the desired torque and rotation speed. Precision control in turn reduces energy consumption and heat generation, and—in cases where motors are battery powered—lengthens the battery life.

BLDC motors also offer high durability and low electric noise generation, thanks to the lack of brushes. With brushed motors, the brushes and commutator wear down as a result of continuous moving contact, and also produce sparks where contact is made. Electrical noise, in particular, is the result of the strong sparks that tend to occur at the areas where the brushes pass over the gaps in the commutator. This is why BLDC motors are often considered preferable in applications where it is important to avoid electrical noise

advantages of bldc over brushed motors

1)high power to weight ratio

2)high speed

3)high torque

4)higher efficiency

5)low maintainence

6)low noise

7)more lifespan
