Week-7 Challenge: DC Motor Control

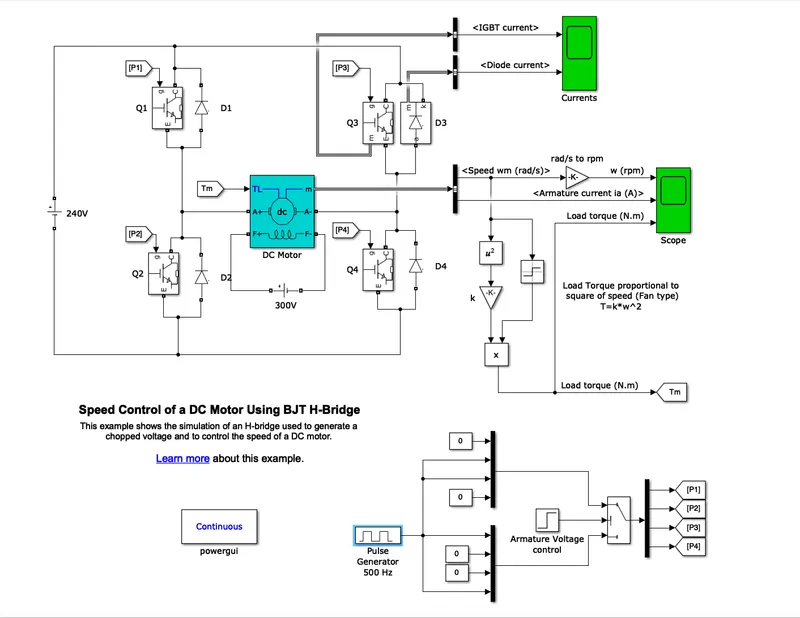

Q1. A. Explain a MATLAB demo model named ‘Speed control of a DC motor using BJT H-bridge’.

The Bipolar Junction Transistor (BJT) when used for power switching applications, operates as an IGBT. When it is conducting (BJT operating in the saturated region), a forward voltage Vf is developed between collector and emitter (in the range of 1 V). Therefore, the IGBT block can be used to model the BJT device.

The IGBT block does not simulate the gate current controlling the BJT or IGBT. The switch is controlled by a Simulink® signal (1/0). The DC motor uses the preset model (5 HP 24V 1750 rpm). It simulates a fan type load (where Load torque is proportional to square of speed). The armature mean voltage can be varied from 0 to 240 V when the duty cycle (specified in the Pulse Generator block) is varied from 0 to 100%.

The H-bridge consists of four BJT/Diode pairs (BJT simulated by IGBT models). Two transistors are switched simultaneously: Q1 and Q4 or Q2 and Q3. When Q1 and Q4 are fired, a positive voltage is applied to the motor and diodes D2-D3 operate as free-wheeling diodes when Q1 and Q4 are switched off. When Q2 and Q3 are fired, a negative voltage is applied to the motor and diodes D1-D4 operate as free-wheeling diodes when Q2 and Q3 are switched off.

Initially, We run MATLAB demo, ' Speed Control of a DC Motor using BJT H-Bridge' with all it's default value and different pulse width (duty cycle) 75%, 55%, and 45%.

From this we get results in scope as,

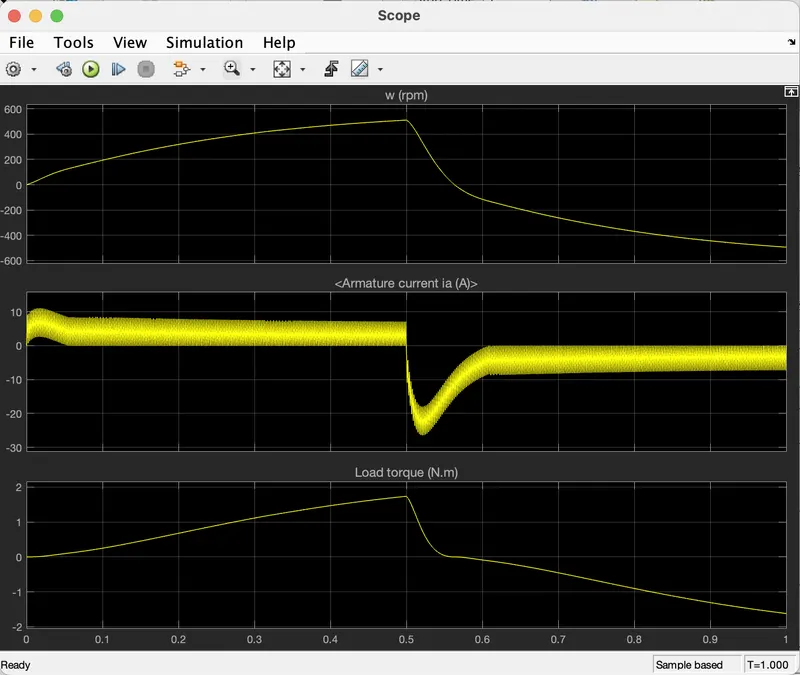

1. For 75% :

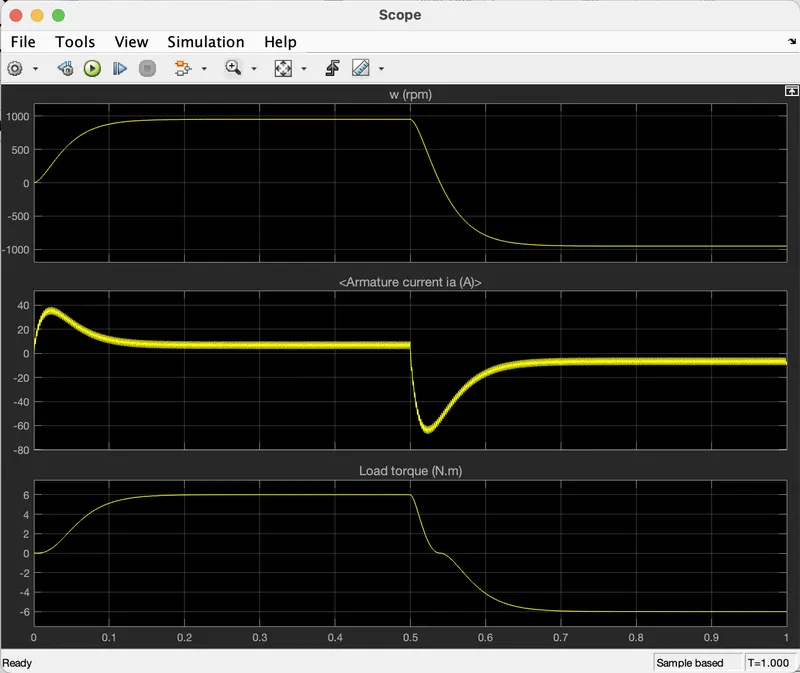

2. For 55% :

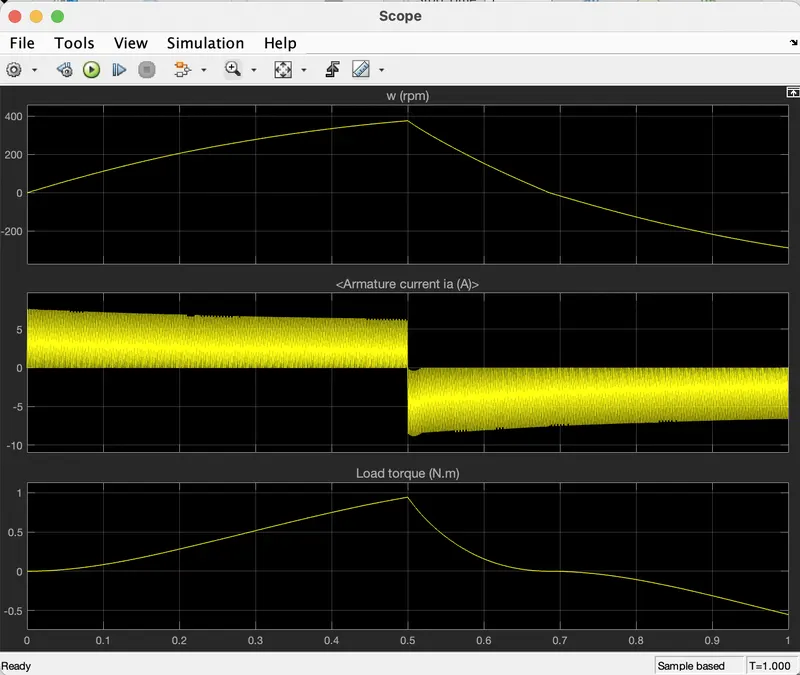

3. For 45% :

B. Comment on the armature current shoot-up from the scope results.

• From 1st Plot we can see that currrent plot has initially very high value and then becomes steady and after that shows same path in the -ve direction.
• In these three plots value of this current shoot up is decreasing and 3rd plot has almost smooth current flow.
• For getting smoother and steadier current flow, we need to decrease and changing the pulse width.
• During switching ON, Where shoot up happens because of heat losses during switching. To avoid that we use HEAT SINK materials, to dissipate heat.
• Because of this motor can change it's direction of rotation easily and very smothly.

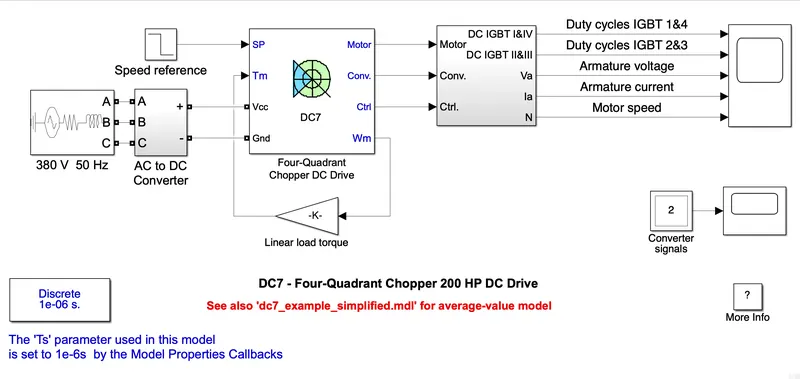

C. Refer to the help section of ‘The Four-Quadrant Chopper DC Drive (DC7) block’. Compare it with the H-bridge model.

Chopper is a DC - DC Converter circuit. It will convert a fixed DC into variable DC.

The 200 HP DC motor is separately excited with a constant 150 V DC field voltage source. The armature voltage is provided by an IGBT converter controlled by two PI regulators. The converter is fed by a 515 V DC bus obtained by rectification of a 380 V AC 50 Hz voltage source. In order to limit the DC bus voltage during dynamic braking mode, a braking chopper has been added between thediode rectifier and the DC7 block.

The first regulator is a speed regulator, followed by a current regulator. The speed regulator outputs the armature current reference (in p.u.) used by the current controller in order to obtain theelectromagnetic torque needed to reach the desired speed. The speed reference change rate follows acceleration and deceleration ramps in order to avoid sudden reference changes that could cause armature over-current and destabilize the system. The current regulator controls the armature current by computing the appropriate duty ratios of the 5 kHz pulses of the four IGBT devices (Pulse Width Modulation). For proper system behaviour, the instantaneous pulse values of IGBT devices 1 and 4 are opposite to those of IGBT devices 2 and 3. This generates the average armature voltage needed to obtain the desired armature current. In order to limit the amplitude of the current oscillations, a smoothing inductance is placed in series with the armature circuit.

Comparison :

Four-Quadrant Chopper DC Drive :

• To change motor direction polarity is changed.
• It has broader torque and Power output ranges.
• Up to 400V can be achived.
• In this Current has chopper values.
• Regenerative breaking is possible.

H-Bridge Model :

• To change motor direction current signal has to be intersupted.
• It uses single pulse generator which gives narrow torque and power output range.
• Up to 350V can be achived.
• In this current has continuous value.
• Regenerative braking is not possible.

Q3. Explain in a brief about operation of BLDC motor.

Brushless DC electric motors also known as electronically commutated motors (ECMs, EC motors). Primary efficiency is a most important feature for BLDC motors. Because the rotor is the sole bearer of the magnets and it doesn't require any power. i.e. no connections, no commutator and no brushes. In place of these, the motor employs control circuitry. To detect where the rotor is at certain times, BLDC motors employ along with controllers, rotary encoders or a Hall sensor.

Construction of Brushless DC motor :

In this motor, the permanent magnets attach to the rotor. The current-carrying conductors or armature windings are located on the stator. They use electrical commutation to convert electrical energy into mechanical energy.

The main design difference between a brushed and brushless motors is the replacement of mechanical commutator with an electric switch circuit. A BLDC Motor is a type of synchronous motor in the sense that the magnetic field generated by the stator and the rotor revolve at the same frequency.

Brushless motor does not have any current carrying commutators. The field inside a brushless motor is switched through an amplifier which is triggered by the commutating device like an optical encoder.

The layout of a DC brushless motor can vary depending on whether it is in “Out-runner” style or “In-runner” style.

• Out-runner – The field magnet is a drum rotor which rotates around the stator. This style is preferred for applications that require high torque and where high rpm isn’t a requirement.
• In-runner – The stator is a fixed drum in which the field magnet rotates. This motor is known for producing less torque than the out runner style, but is capable of spinning at very high rpm.

MUST READ BLOG POSTS ON DC MOTORS

• Different Types of DC Motor
• What is Brushed DC motor
• Difference between Brushed and Brushless DC motor
• Working Principle of DC Motor
• Difference Between AC and DC Motor
• Applications of Dc motor
• Speed control of DC motor

Working Principle of Brushless DC motor:

BLDC motor works on the principle similar to that of a Brushed DC motor. The Lorentz force law which states that whenever a current carrying conductor placed in a magnetic field it experiences a force. As a consequence of reaction force, the magnet will experience an equal and opposite force. In the BLDC motor, the current carrying conductor is stationary and the permanent magnet is moving.

When the stator coils get a supply from source, it becomes electromagnet and starts producing the uniform field in the air gap. Though the source of supply is DC, switching makes to generate an AC voltage waveform with trapezoidal shape. Due to the force of interaction between electromagnet stator and permanent magnet rotor, the rotor continues to rotate.

With the switching of windings as High and Low signals, corresponding winding energised as North and South poles. The permanent magnet rotor with North and South poles align with stator poles which causes the motor to rotate.

Advantages of Brushless DC motor :

• Less overall maintenance due to absence of brushes
• Reduced size with far superior thermal characteristics
• Higher speed range and lower electric noise generation.
• It has no mechanical commutator and associated problems
• High efficiency and high output power to size ratio due to the use of permanent magnet rotor
• High speed of operation even in loaded and unloaded conditions due to the absence of brushes that limits the speed
• Smaller motor geometry and lighter in weight than both brushed type DC and induction AC motors.
• Long life as no inspection and maintenance is required for commutator system
• Higher dynamic response due to low inertia and carrying windings in the stator
• Less electromagnetic interference
• Low noise due to absence of brushes

Limitations of Brushless DC motor:

• These motors are costly
• Electronic controller required control this motor is expensive
• Requires complex drive circuitry
• Need of additional sensors

Applications of Brushless DC motor :

Brushless DC motors (BLDC) use for a wide variety of application requirements such as varying loads, constant loads and positioning applications in the fields of industrial control, automotive, aviation, automation systems, health care equipments etc.

• Computer hard drives and DVD/CD players
• Electric vehicles, hybrid vehicles, and electric bicycles
• Industrial robots, CNC machine tools, and simple belt driven systems
• Washing machines, compressors and dryers
• Fans, pumps and blowers.
