Week 6-Meshing of Hood Challenge

Aim:- To mesh the inner panel hood component.

Objective:- Meshing of hood according to given criteria using Hypermseh.

Target Element Length = 5 Units

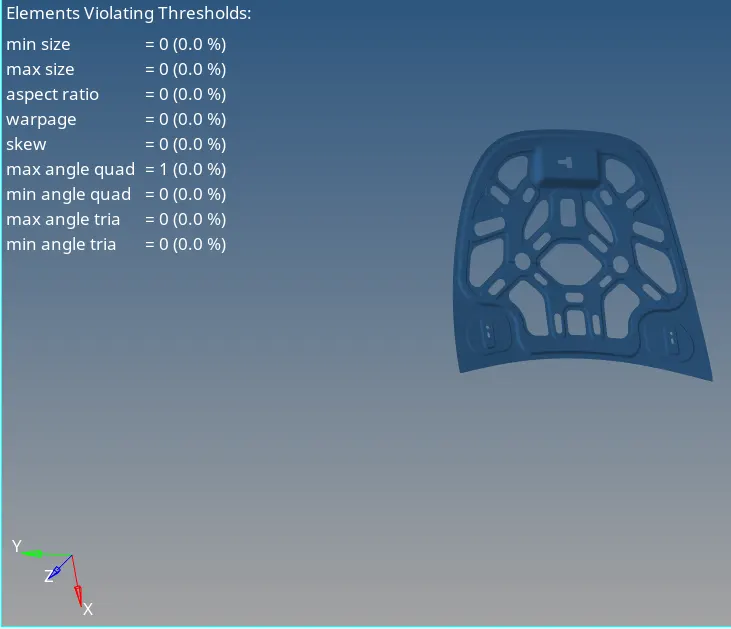

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	8 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

Procedure:-

1. Importing:-

Import the given CAD model into Hypermesh.given to the which file

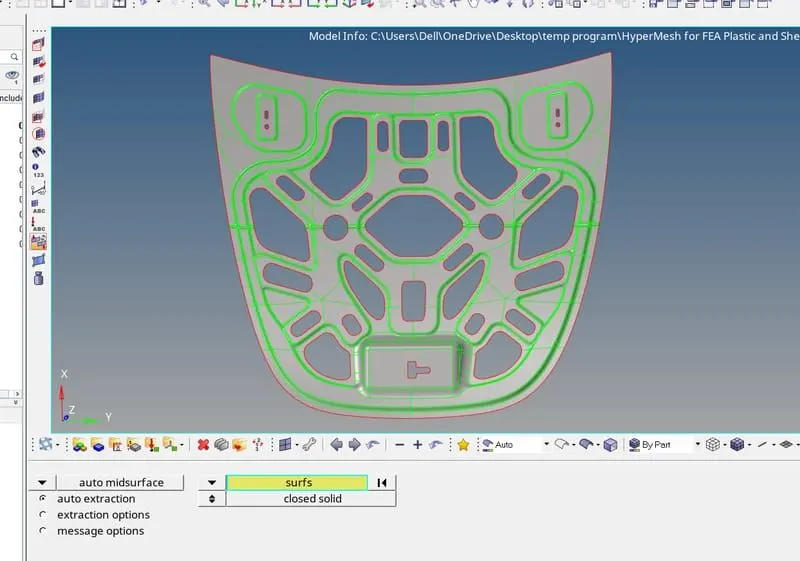

2. Extraction of Mid surface:-

* Extract given inner panel of hood model is done

* First we make Inner extract as a current component. so that whatever i do is save in inner mid surface component.

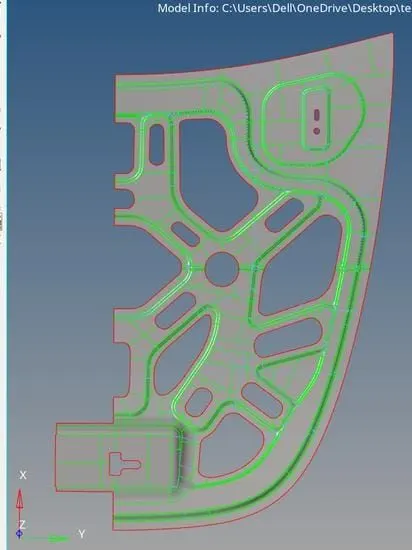

* For this part we take only one side part for meshing and at the end we reflect this to other side.

* Then we Clean the Hinge midsurface for getting a appropriate mesh according to given criteria.

* For cleaning we use quick edit tools such as toggle and node to node surface split and remove and add points and others as well.

* For smooth and proper meshing we use cut geometry method in which we divide the geometry in different section according to give proper mesh.

* For arrange and get proper mesh we use tools such as remesh, rebuilt mesh, smooth, quality index etc.

* In this part we face a problem many times which is warpage issue , so clear the warpage we use translate node tool to clear the warpage. also we use node optimization tool.

* After done meshing of one side we reflect this mesh to other side because the component is symmetric , for reflect we use tool reflect and select the elements and meke duplicate and reflect to desired direction. ( tool - reflect)

Conclusion:- In this challenge we clean the different part of hood geometry and mesh them individually. we learn many essential tool for cleaning and meshing the geometry.
