Week 6-Meshing of Hood Challenge

AIM - TO mesh the given model and passing the given quality criteria in the question
procedure
1. import the given model using import stp model in the import option
2.there are four components in the given model we need to extract 4 diffrent midsurfaces

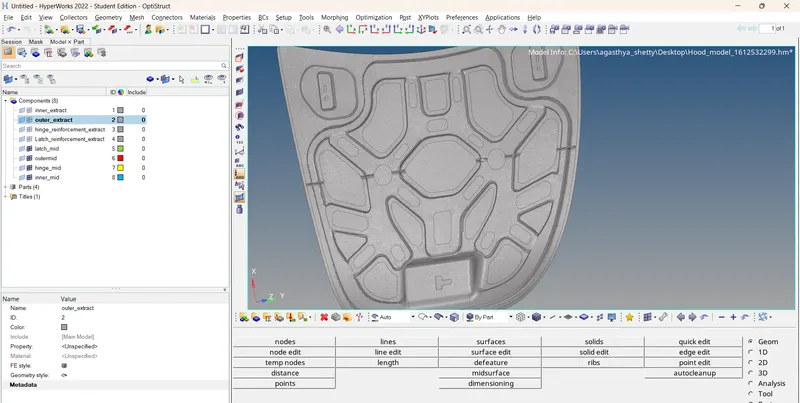

3.the mid surfaces can be extracted using geom - midsurface - extraction option offset+planes
select the srface seperatly and extract four diffrent midsurfaces and name them
four diffrent components are formed seperatly name them

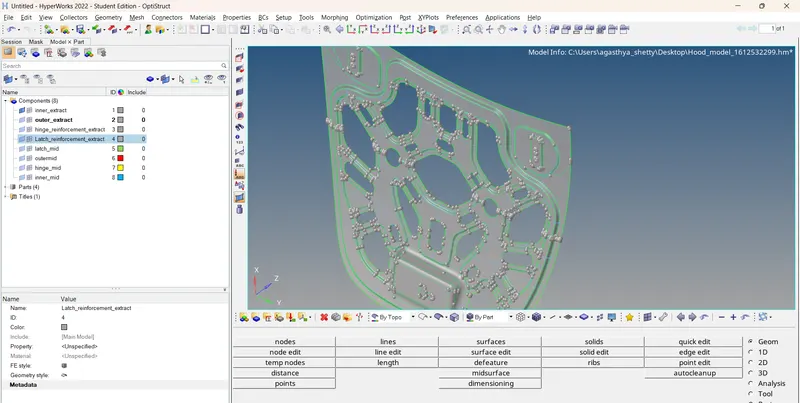

4.after extrcating the mid start with one surafce start checking the connecting lines and toggle
them where it is necessary and capture the fllet regions properly
5. start meshing from the center region to capture a proper meshflow
6 . check the mesh flow for no opposite tria and complete the mesh
7. to give in the quality go to preferences - criteria file settings
8. after the quality check for quality criteria in the 2D - quality check
and rectify them

conclusion -in the given assigment ive learnt the methods of extracting the mid surface and meshibng of a given component
and adding in the quality criteria
