Week 6-Meshing of Hood Challenge

Week 6-Meshing of Hood Challenge.

Aim;

To create mid surface for given component and make geometry clean then make good mesh flow as per given quality criteria.

Procedure:

1.make separate mid surface for given model and make rename as per model for that mid surface.

2.make new quality file for given quality criteria.

(Go to PREFERENCE in CRITERIA and PARAMETERS change value make new save as file.)

3.make new material card.

4.make new property for given sub model.

5.make set current work component for outer mid surface and make geometry clean.

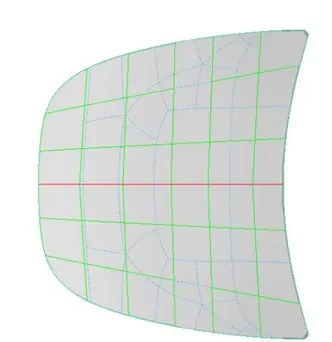

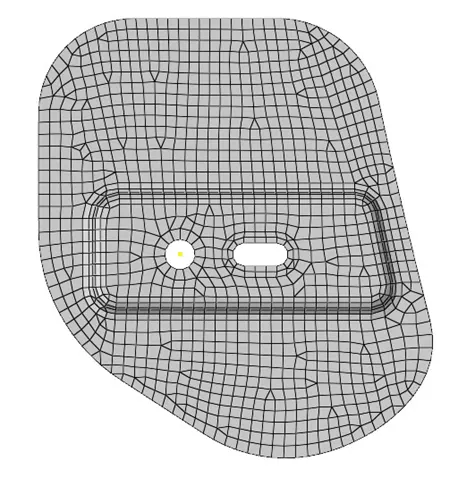

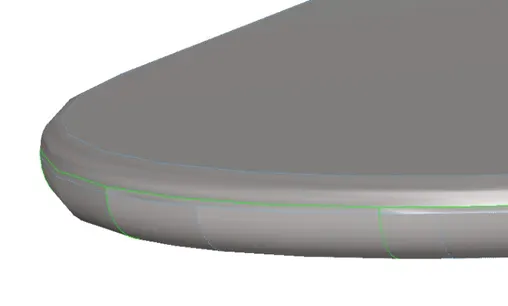

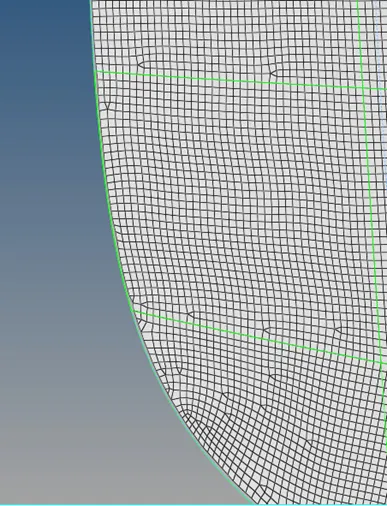

6.After that make 2D mesh(F12). Select auto mesh in that choose batch mesh in that set new criteria file and parameters file. Then make mesh for half side. clean field elements using quality index. Then make reflect for other side.

7.Assign material and property for current model.repeat for remaining model.

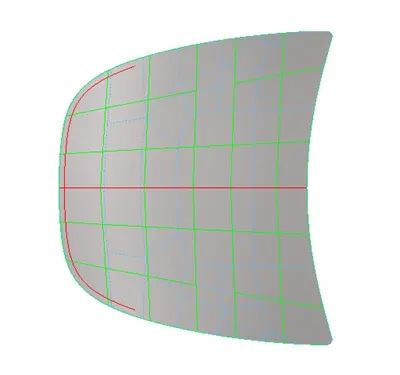

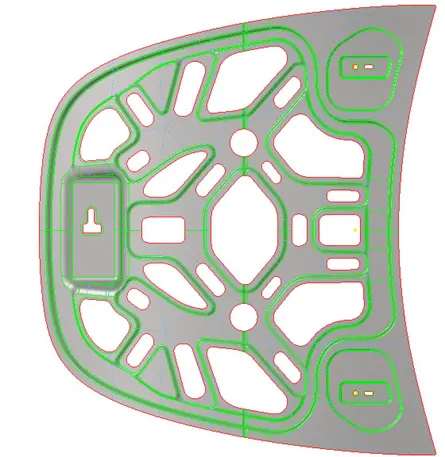

Inner _extract mid surface.

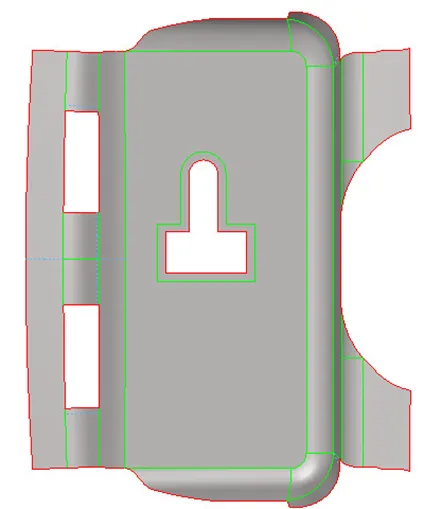

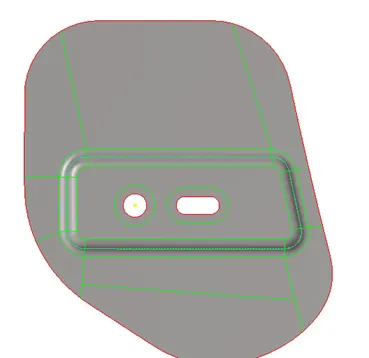

Latch:

Hinge:

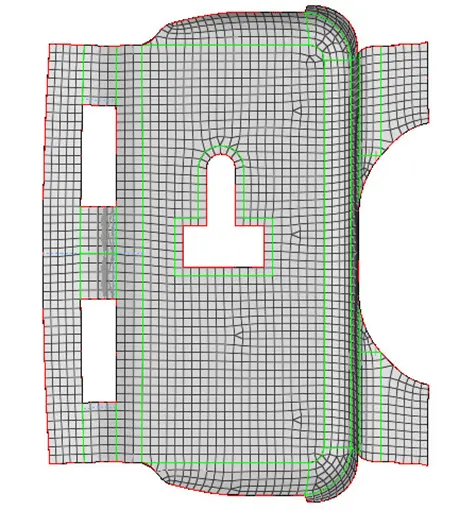

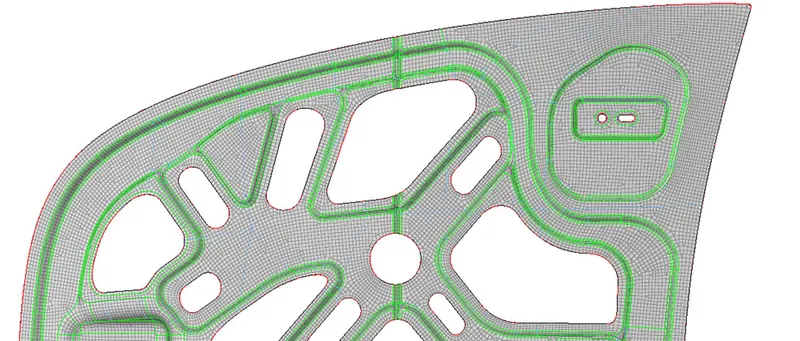

Result:

Given model did withou any quality field.
