Week 6-Meshing of Hood Challenge
AIM:
To Mesh the given "HOOD MODEL" by satisfying the given quality criteria and with a target element size of "5mm".
OBJECTIVE:
To Follow the mentioned quality criteria, mesh the component given with a target element size of "5mm" and assign thickness:
PROCEDURE:
STEP-1: EXTRACTING MID SURFACE FOR THE GIVEN COMPONENTS:

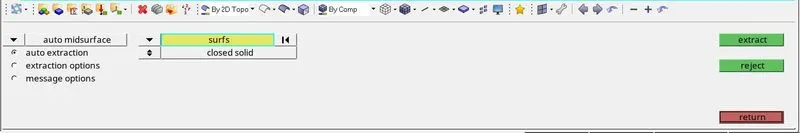

GOTO: 'Geom' >> 'Midsurface' >> 'Select auto extraction' >> 'Select the component of which the mid surface to be extracted' >> 'Hit extract'

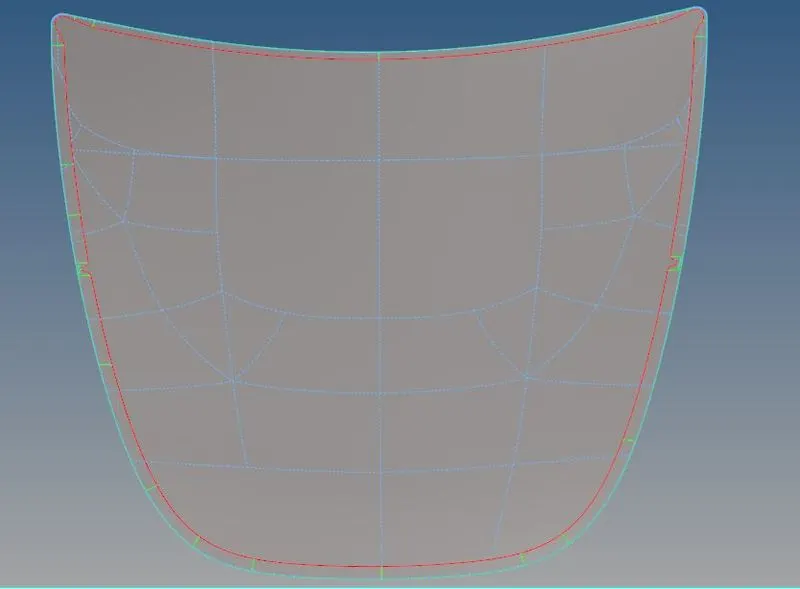

1. EXTRACTING MID SURFACE FOR OUTER PANEL:

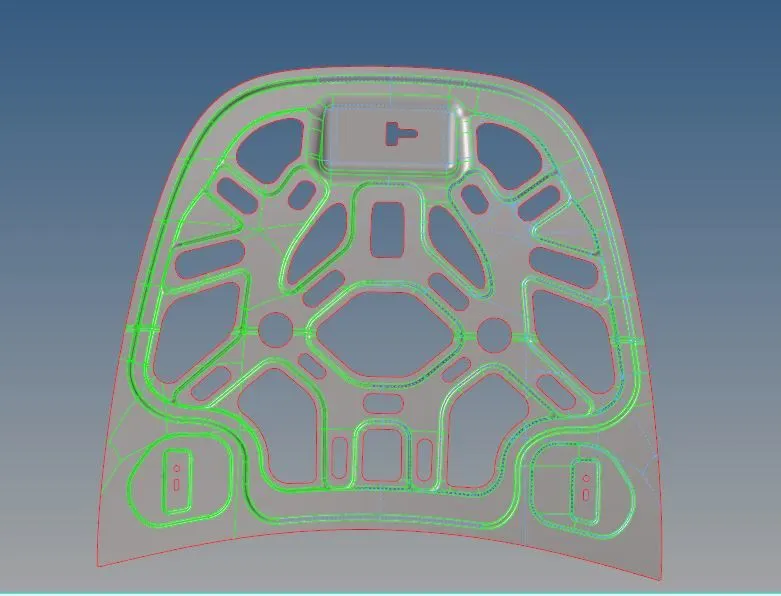

2. EXTRACTING MID SURFACE FOR INNER PANEL:

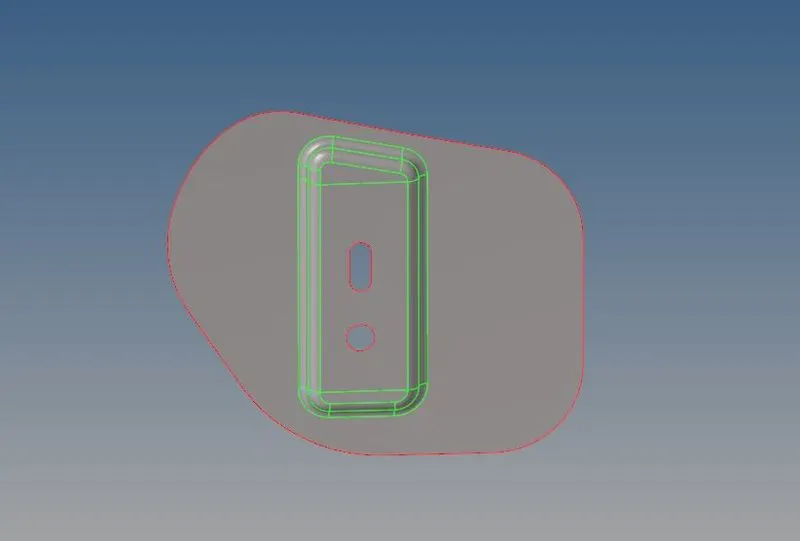

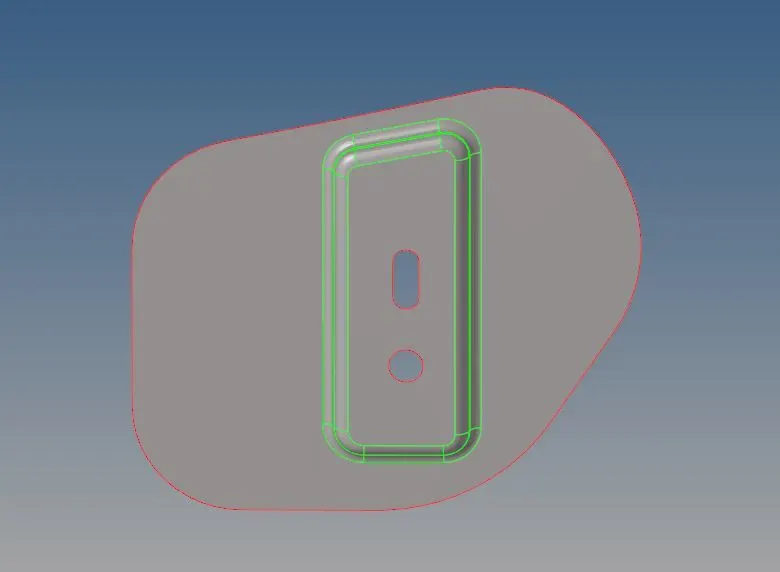

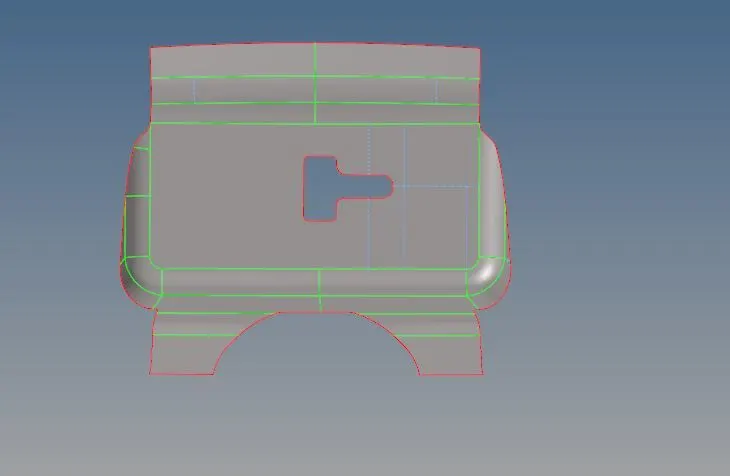

3. EXTRACTING MID SURFACE FOR LATCH REINFORCEMENT:
4. EXTRACTING MID SURFACE FOR RIGHT HINGE REINFORCEMENT:
5. EXTRACTING MID SURFACE FOR LEFT HINGE REINFORCEMENT:

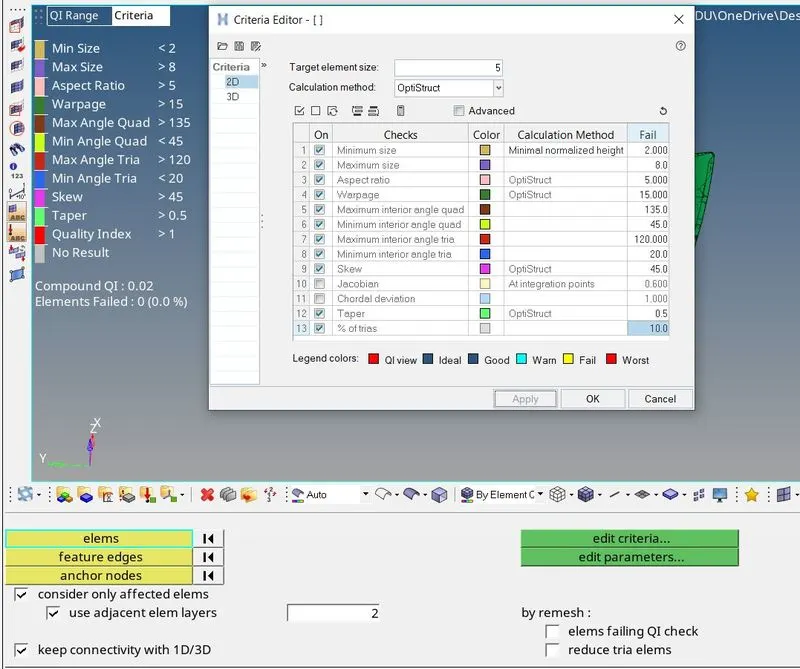

STEP-2: TO SET MESH QUALITY CRITERIA BEFORE STARTING MESHING AS SHOWN BELOW:
GOTO: '2D' >> 'Elem cleanup' >> 'Edit criteria' >> 'To apply all the above given quality criteria values in the tabulated window as shown below' >> 'Hit apply and OK'
STEP-3: TO START MESHING:

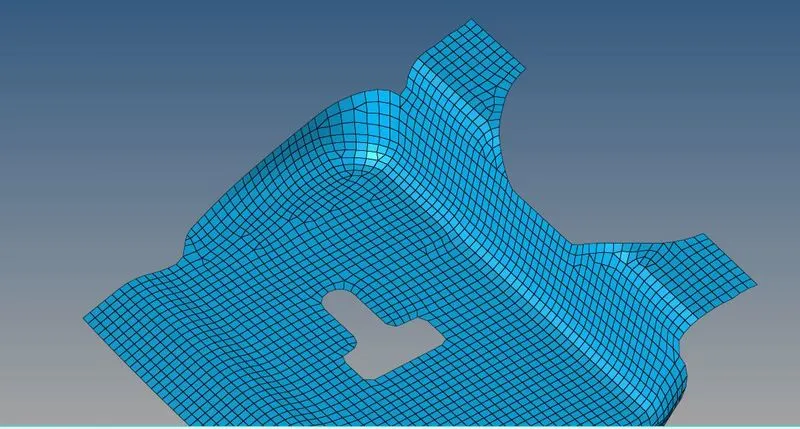

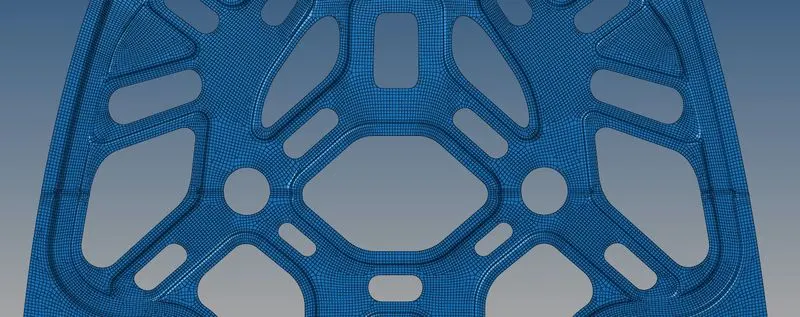

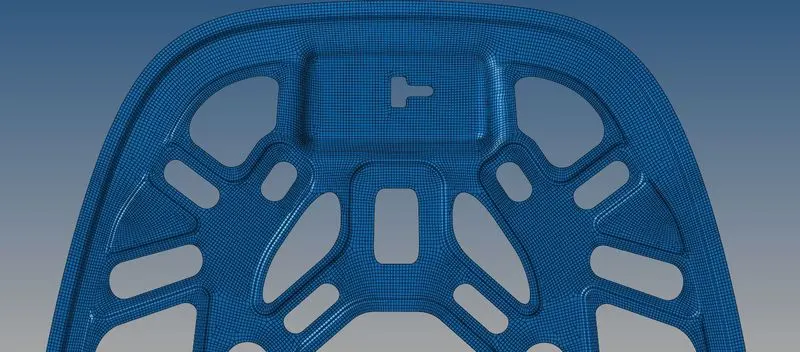

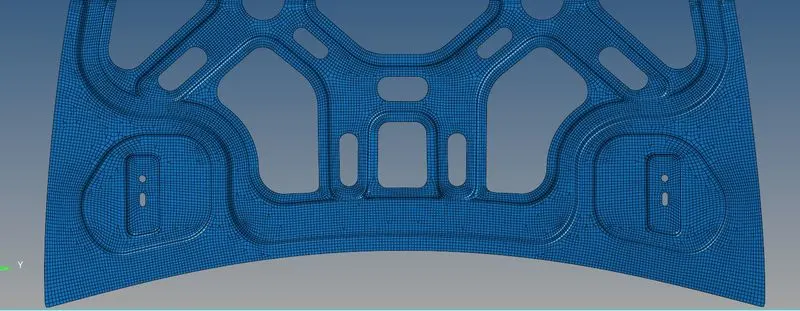

1. MESHING OF INNER PANEL:
IMAGE:1:
IMAGE:2:
IMAGE:3:

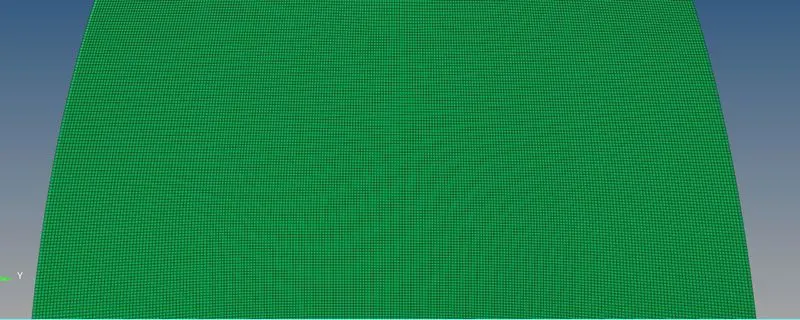

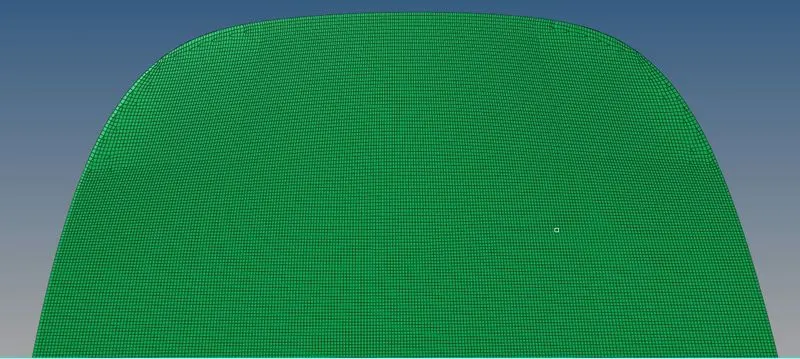

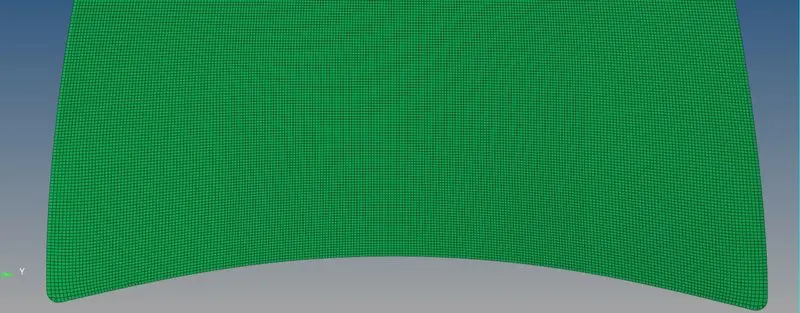

2. MESHING OF OUTER PANEL:
IMAGE:1:
IMAGE:2:
IMAGE:3:
3. MESHING OF LATCH REINFORCEMENT:
IMAGE:1:
IMAGE:2:

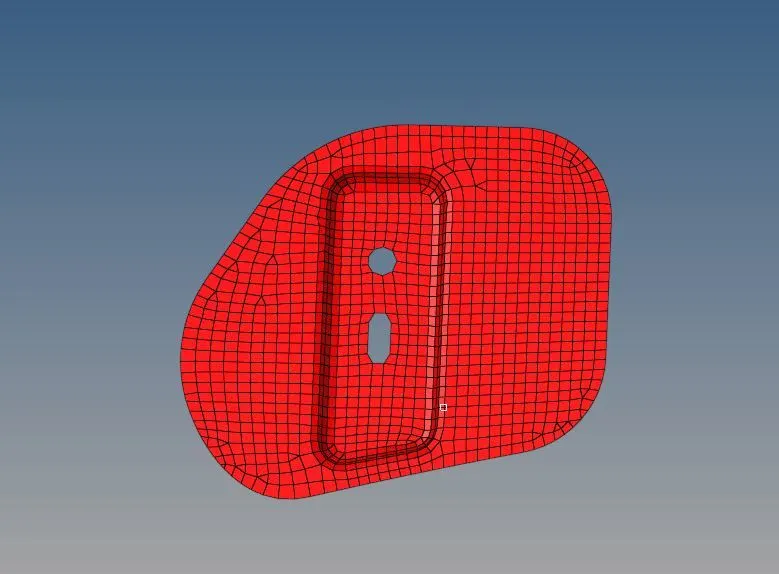

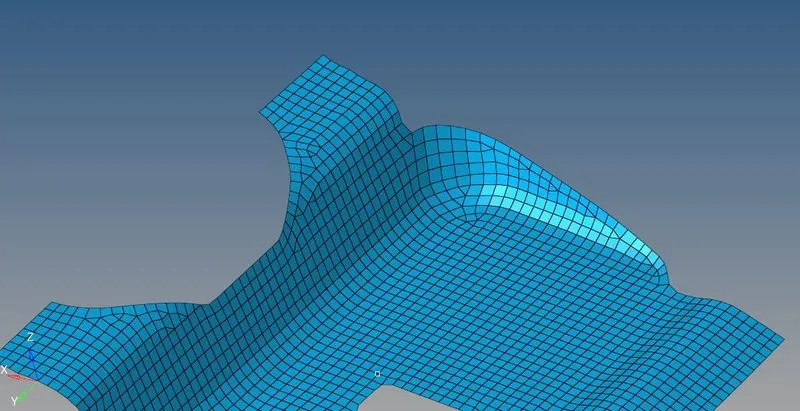

4. MESHING OF RIGHT HINGE REINFORCEMENT:

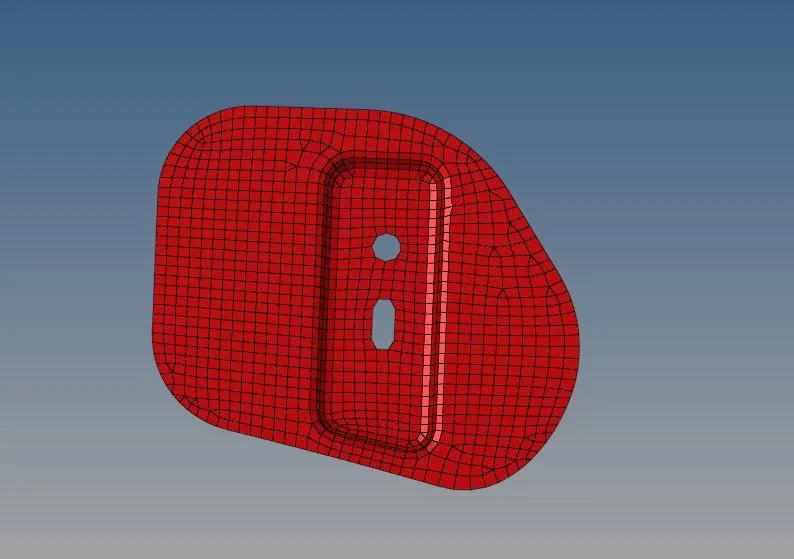

5. MESHING OF LEFT HINGE REINFORCEMENT:
TOOLS USED WHILE MESHING THE ABOVE COMPONENTS:

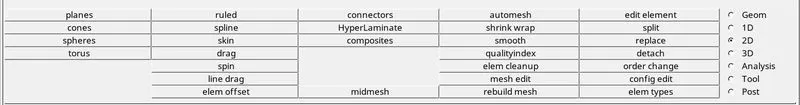

1.2D TOOLS:

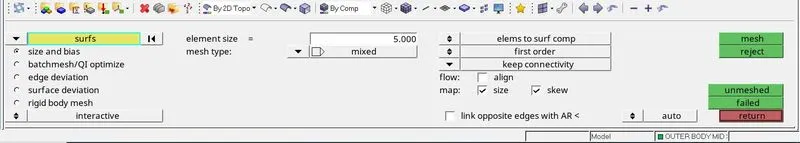

2. AUTOMESH TOOL:

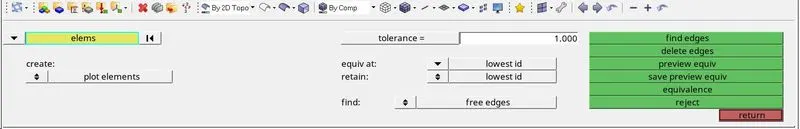

3. EDGES TOOL TO EQUIVALENCE THE NODES CONNECTIVITY:

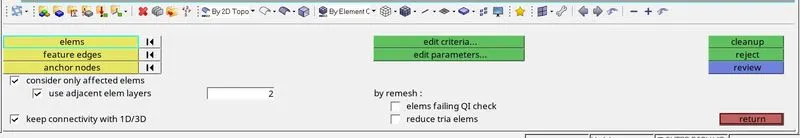

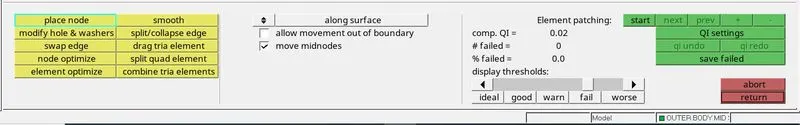

4. ELEMENT CLEAN UP TOOL:

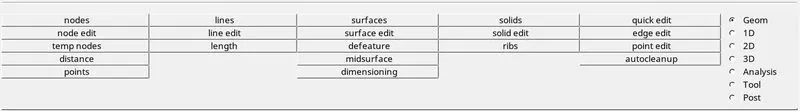

5. GEOM TOOLS:

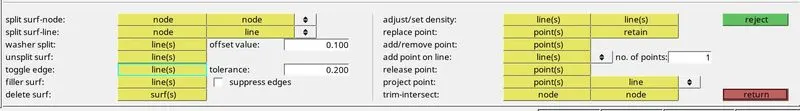

6. GEOMETRY CLEAN UP TOOLS:

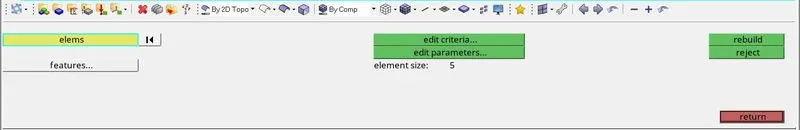

7. MESH REBUILD TOOL:

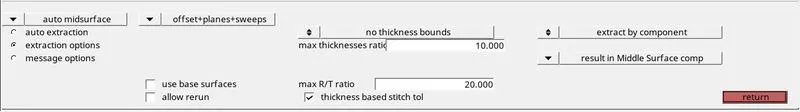

8. MID SURFACE TOOL 1:
9. MID SURFACE TOOL 2:

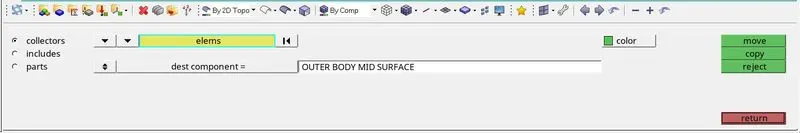

10. ORGANIZE TOOL:

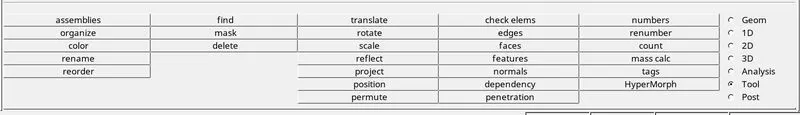

11. TRANSLATE, PROJECT, EDGES, REFLECT, CHECK ELEMS TOOLS:

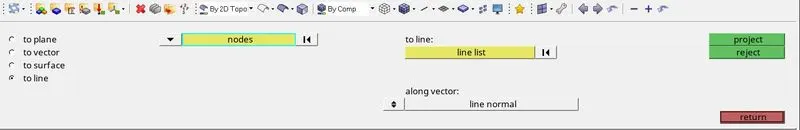

12. PROJECT TOOL: TO PROJECT NODES TO A SPECIFIC LINE:
13. QUALITY INDEX TOOL:

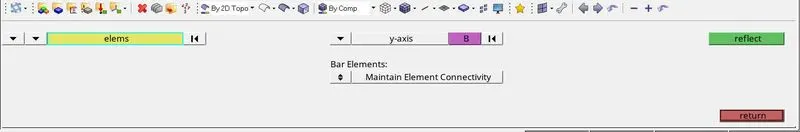

14. REFLECT TOOL USED TO REFLECT THE ELEMENTS:

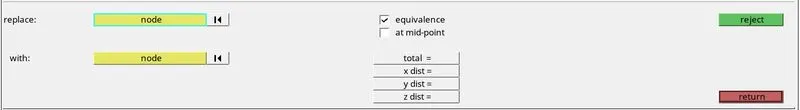

15. REPLACE TOOL:

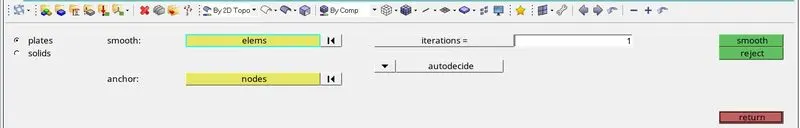

16. SMOOTH TOOL:

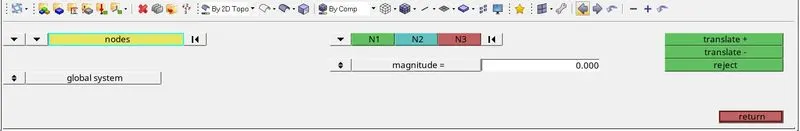

17. TRANSLATE TOOL:
