Week 6-Meshing of Hood Challenge
Meshing of Hood
Aim:
To create a mid-surface for the give component and then mesh it according to the given quality criteria with element size of 5 units.
Procedures:
The geometry file is imported as .hm file and The Hood model in the figure will undergo the following process given below,
- Geometry Cleanup

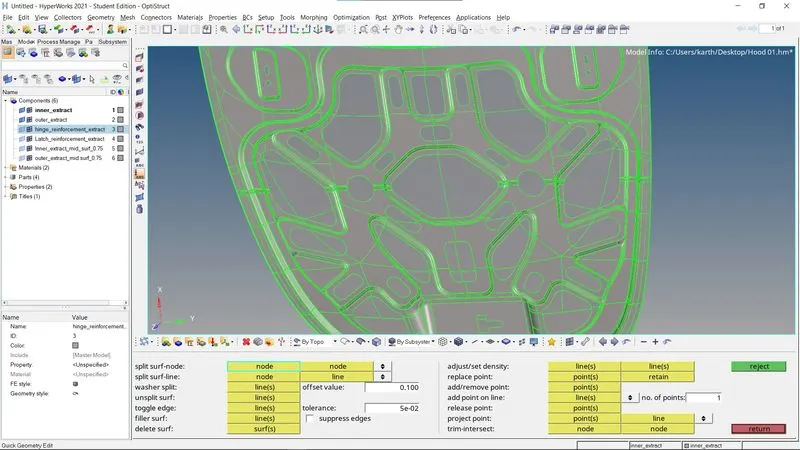

The model is checked for any geometry irregularities and corrected using quick edit, edge edit and autocleanup post which the geometry can be ready for creating a midsurface.
Inner extract and Outer extract,
- Mid-surface

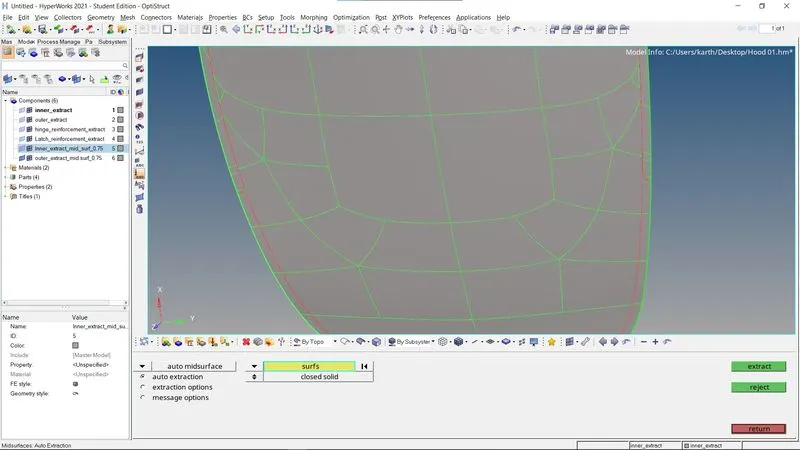

In geometry module the Command is as follows "Geometry>Midsurface> auto midsurface>extraction options.> offset+planes > Auto extraction> surfs> Displayed>create " thus the mid surface for both the inner and outer extract is created. The Washer split command is used to assign washer split for all the holes in the Mid surface.

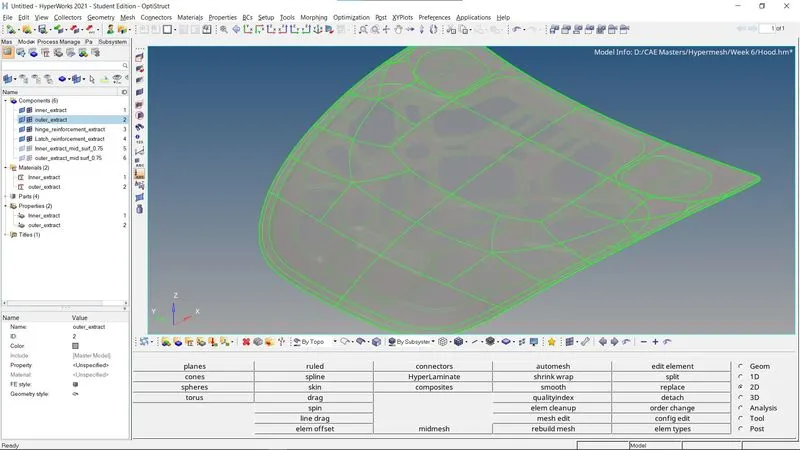

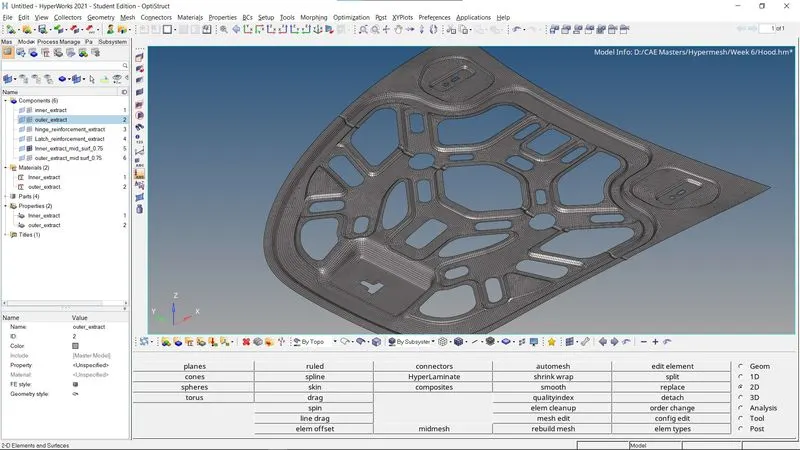

The figure below shows the midsurface created using the parent geometry,

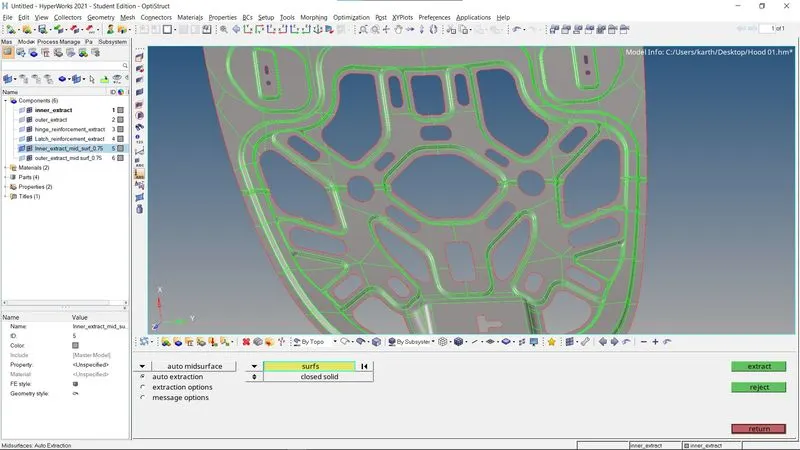

Inner extract midsurface,
Outer extract midsurface,
- Geometry Cleanup on mid-surface

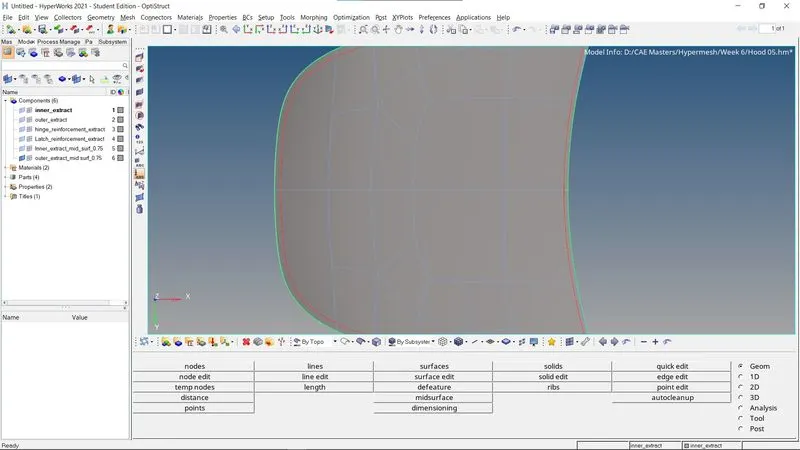

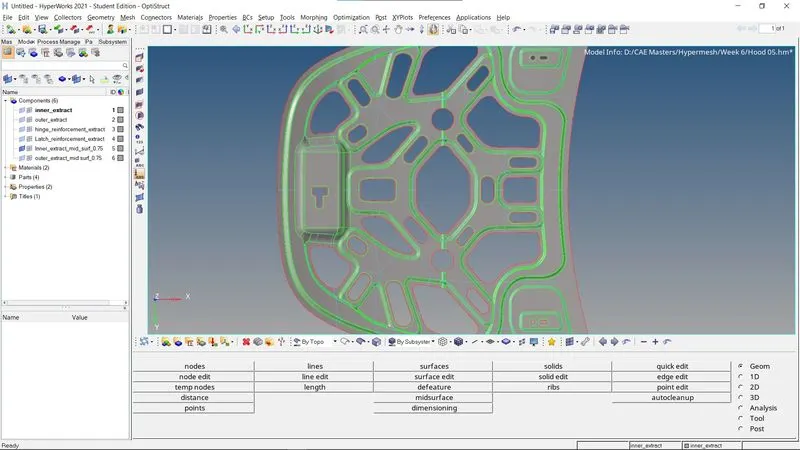

The outer and inner extract midsurface is checked for any geometry irregularities and corrected using quick edit, edge edit and autocleanup for creating a fine geometryas shown in the figure below,
inner geometry cleanup,
outer geometry cleanup,
- Material Assigning

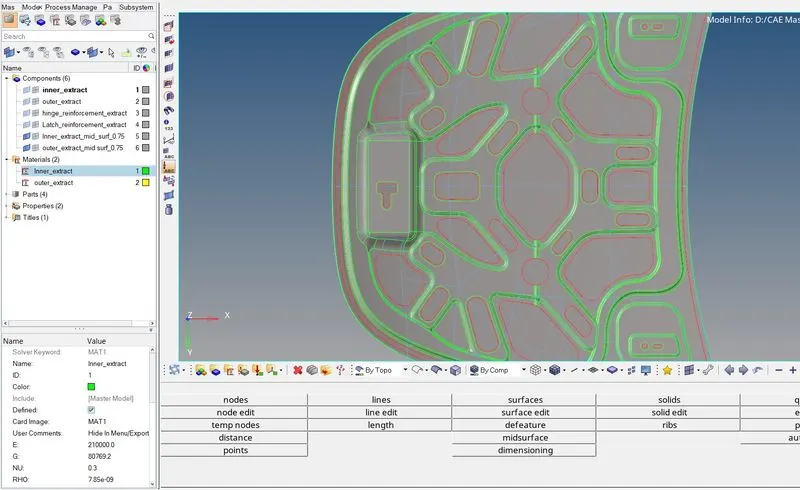

The material is created as steet and assigned for midsurface components as shown in the figure.
- Property Assigning

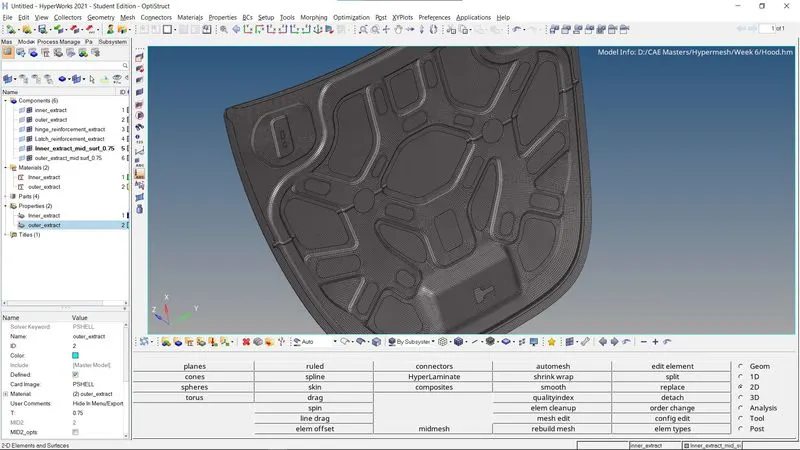

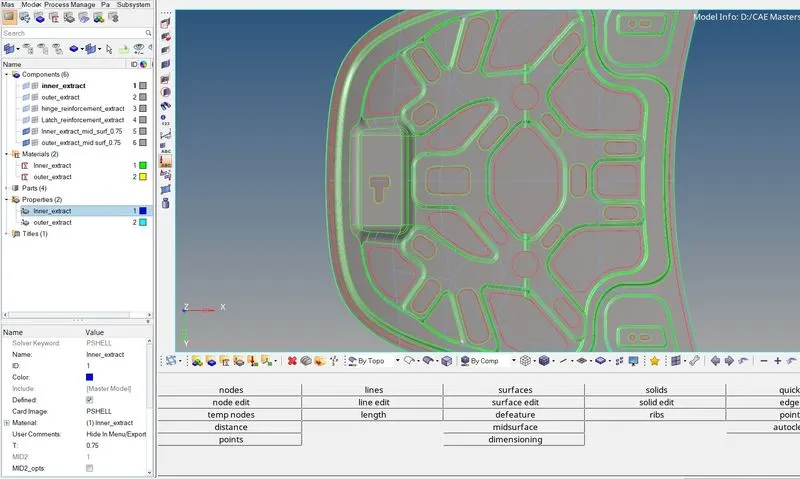

The property is created with 0.75 mm thickness and assigned for midsurface components as shown in the figure.
- Quality criteria

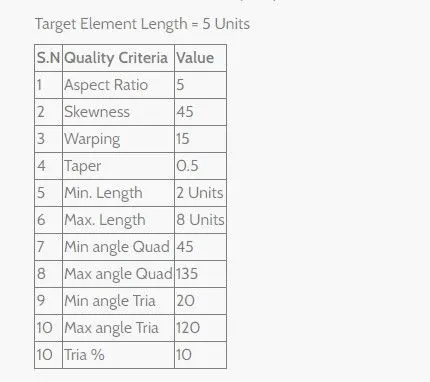

The quality for the model is as follows,
As per the requirements the quality of the mesh is set and corrected accordingly.

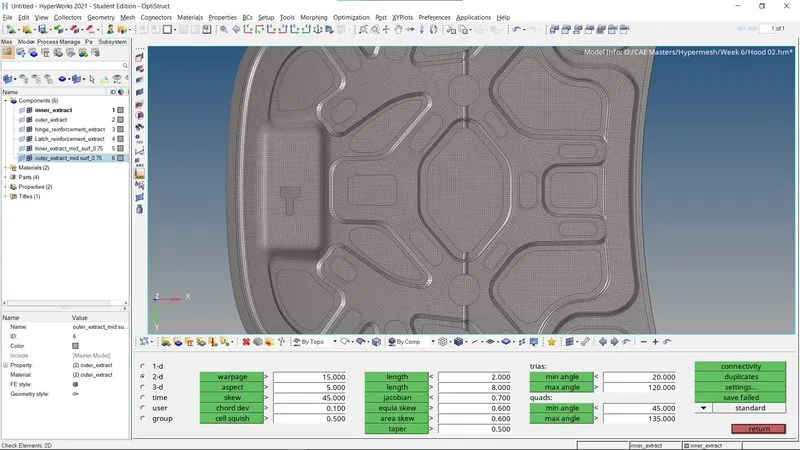

The figure illustrates the 2D mesh quality input,
- 2D automesh

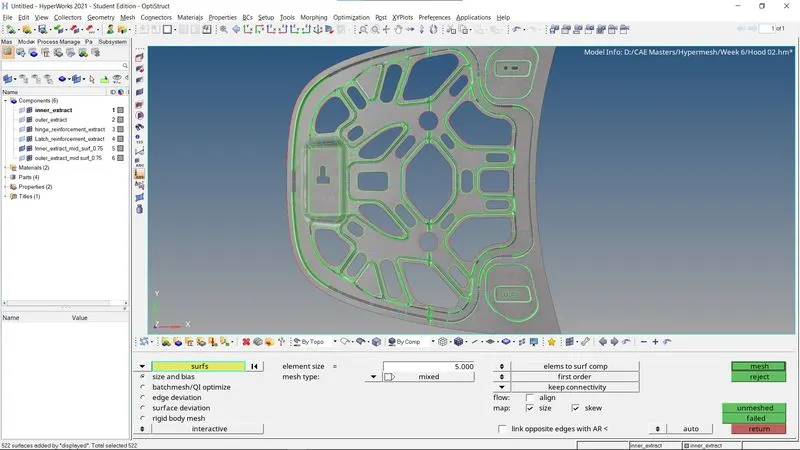

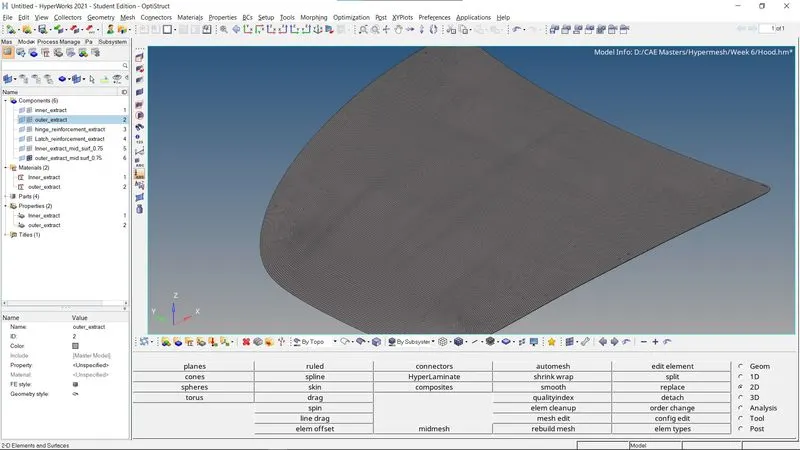

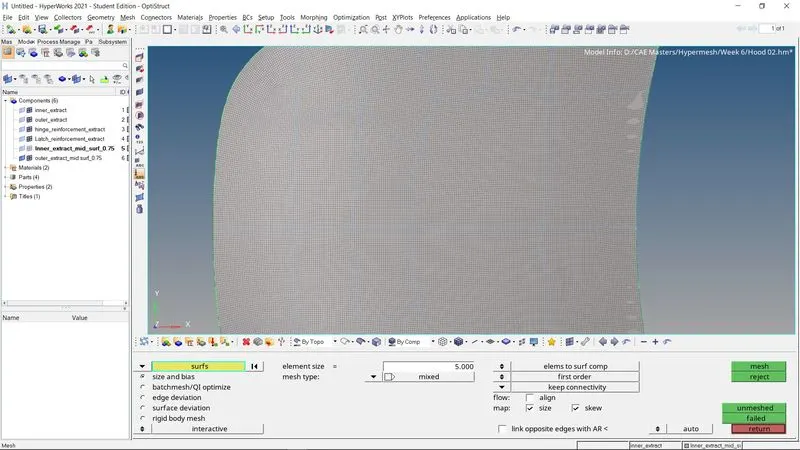

Aftet mid surfacing the model is meshed using the "automesh>surfs>size and bias>element size(5)>mesh type(mixed)>elemnt to surface>mesh" command in 2D module is used to mesh the surfaces with 5mm element size.
Outer mesh with respect to the surface,
Inner mesh with respect to the surface,
inner and outer mesh only
- Mesh Rebuild
Following that the mesh is rebuit using the "rebuild mesh>elems>dispalyed>rebuild" command in the 2D module.
- Elements Check

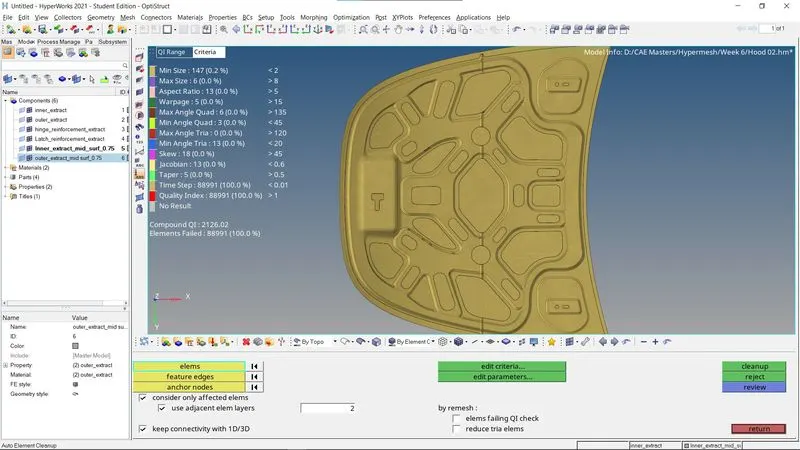

The element quality is checked by using the 'elem cleanup' and 'qualityindex' in the 2D module as shown in the figure,
- Elements Edit
In the 2D module the elements are edited according to the quality by using the cleanup tools in the 'qualityindex' with respect to the quality criteria.

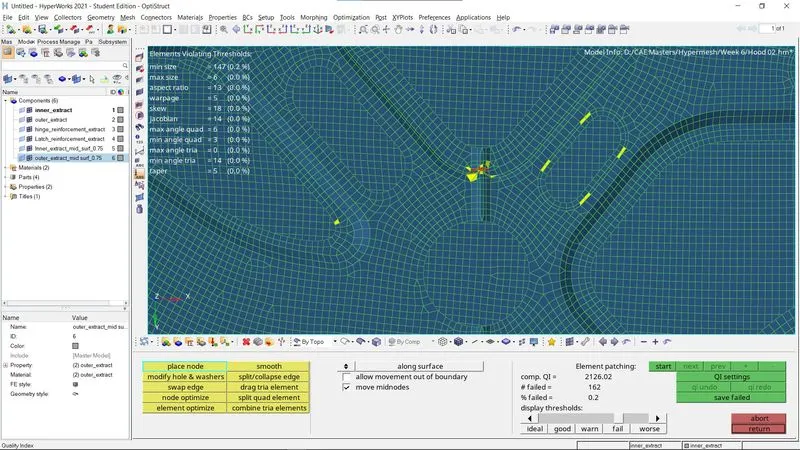

Figure below shows the elements editing procedure,
- Project

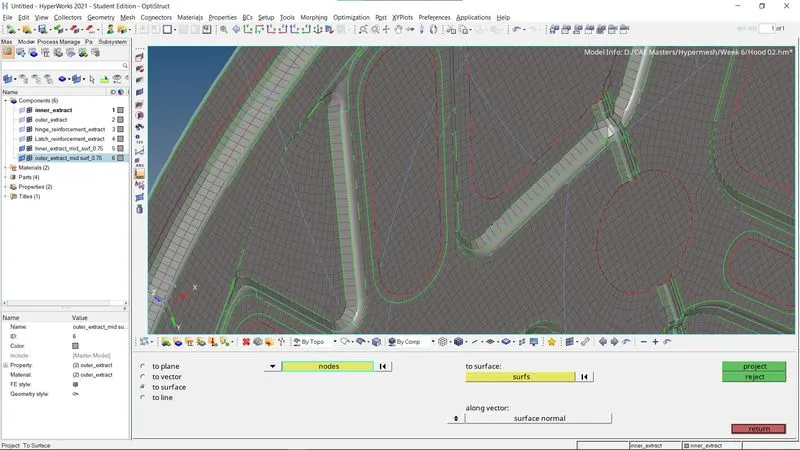

Once all the quality issues are fixed the elements at the fillets seem to ne not exactly captured so the 'Project' command is used to project at the fillets edge according to the surface geometry as shown in the figure below,
Final Component:
After completing process 1 to 11 in the procedures the final model’s appearance is illustrated in the figure below,
Learning Outcomes:
In the project I learned to create automatic mid-surface and mesh the mid-surface using 2D automesh with appropriate quality criteria and I learned the use the tools in the geometry and 2D module of the Hypermesh.
Conclusion:
The mid-surface for given Hood model is created and the mid-surface is messed with appropriate quality criteria as mentioned in the project.
