Week - 6 - Creating the GUI for final checks
OBJECTIVE:
Create a tk GUI for all the final checks/operations that include:
- Buttons to delete displayed geometric entities.
- Buttons to delete empty entities
- Button to re-order and re-number entities by name
- A master button in red that will execute all above scripts in proper order to keep only the fea entities.
PROCEDURE:
- First, we need to create a window with all the buttons and labels as shown below.
- We need to assign various operations to these buttons like checking for unused entities to remove the unwanted entities in the model and to keep the required fea entities alone.
- *hm_marklength is used to prevent the null cases.
- *deletemark command is used to delete the unwamted entities.
- *renumber command is used to renumber the entities and it is set to start from 10000 and to increment by 1.
- A master button is created to perform all the individual operations in the correct order at the click of a single button.
- At last, the program is tested on a bigger model and found all those buttons working correctly.
CODE:
set a .window
catch {destroy $a}
toplevel $a -class Toplevel
wm title $a "FINAL CHECKS"
wm geometry $a 600x650+300+150
wm resizable $a 0 0
wm deiconify $a
label $a.label1 -text "TO DELETE ENTITIES" -bg grey -font {times 12 bold}; place $a.label1 -x 25 -y 20 -width 550 -height 30
label $a.label2 -text "TO REMOVE EMPTY ENTITIES" -bg grey -font {times 12 bold}; place $a.label2 -x 25 -y 110 -width 550 -height 30
label $a.label3 -text "REORDER ENTITIES BY NAME" -bg grey -font {times 12 bold}; place $a.label3 -x 25 -y 290 -width 550 -height 30
label $a.label4 -text "REORDER ENTITIES BY ID" -bg grey -font {times 12 bold}; place $a.label4 -x 25 -y 390 -width 550 -height 30
label $a.label5 -text "RENUMBER ENTITIES" -bg grey -font {times 12 bold}; place $a.label5 -x 25 -y 480 -width 550 -height 30
label $a.label6 -text "***********************************************************************************************" -bg grey -font {times 8 bold}; place $a.label6 -x 25 -y 560 -width 550 -height 15
# DELETE SURFACES, POINTS, LINES AND SOLIDS ##########
button $a.11 -text "DELETE SURFACES" -command {set i surfaces; delete $i} -bg yellow -font {times 8 bold}; place $a.11 -x 25 -y 70 -width 130 -height 20
button $a.12 -text "DELETE POINTS" -command {set i points; delete $i} -bg yellow -font {times 8 bold}; place $a.12 -x 165 -y 70 -width 130 -height 20
button $a.13 -text "DELETE LINES" -command {set i lines; delete $i} -bg yellow -font {times 8 bold}; place $a.13 -x 305 -y 70 -width 130 -height 20
button $a.14 -text "DELETE S0LIDS" -command {set i solids; delete $i} -bg yellow -font {times 8 bold}; place $a.14 -x 445 -y 70 -width 130 -height 20
proc delete {i} {
*createmark $i 1 "displayed"
if {[hm_marklength $i 1!=0]} {*deletemark $i 1}
}
# REMOVE EMPTY ENTITIES ##########
button $a.21 -text "EMPTY COMPS" -command {set j comps; empty $j} -bg yellow -font {times 8 bold}; place $a.21 -x 25 -y 160 -width 135 -height 20
button $a.22 -text "EMPTY ASSEMBLY" -command {set j assembly; empty $j} -bg yellow -font {times 8 bold}; place $a.22 -x 165 -y 160 -width 135 -height 20
button $a.23 -text "EMPTY LOAD COLL" -command {set j loadcollectors; empty $j} -bg yellow -font {times 8 bold}; place $a.23 -x 305 -y 160 -width 135 -height 20
button $a.24 -text "EMPTY LOAD STEP" -command {set j loadsteps; empty $j} -bg yellow -font {times 8 bold}; place $a.24 -x 445 -y 160 -width 135 -height 20
button $a.31 -text "UNUSED GROUPS" -command {set c groups; unused $c} -bg yellow -font {times 8 bold}; place $a.31 -x 25 -y 200 -width 135 -height 20
button $a.32 -text "UNUSED CROSS SECTION" -command {set c crosssections; unused $c} -bg yellow -font {times 7 bold}; place $a.32 -x 165 -y 200 -width 135 -height 20
button $a.33 -text "UNUSED SET" -command {set c sets; unused $c} -bg yellow -font {times 8 bold}; place $a.33 -x 305 -y 200 -width 135 -height 20
button $a.34 -text "UNUSED CURVE" -command {set c curves; unused $c} -bg yellow -font {times 8 bold}; place $a.34 -x 445 -y 200 -width 135 -height 20
button $a.41 -text "UNUSED CONTACTS" -command {set c contacts; unused $c} -bg yellow -font {times 8 bold}; place $a.41 -x 25 -y 240 -width 135 -height 20
button $a.42 -text "UNUSED MATS" -command {set c materials; unused $c} -bg yellow -font {times 8 bold}; place $a.42 -x 165 -y 240 -width 135 -height 20
button $a.43 -text "UNUSED PROPERTIES" -command {set c properties; unused $c} -bg yellow -font {times 8 bold}; place $a.43 -x 305 -y 240 -width 135 -height 20
button $a.44 -text "UNUSED BEAM SEC" -command {set c beamsections; unused $c} -bg yellow -font {times 8 bold}; place $a.44 -x 445 -y 240 -width 135 -height 20
proc empty {j} {
*EntityPreviewEmpty $j 1
if {[hm_marklength $j 1!=0]} {*deletemark $j 1}
}
proc unused {c} {
*EntityPreviewUnused $c 1
if {[hm_marklength $c 1!=0]} {*deletemark $c 1}
}
# REORDER ##########
button $a.51 -text "REORDER COMPONENTS" -command {set k comps; reorder_name $k} -bg yellow -font {times 9 bold}; place $a.51 -x 80 -y 340 -width 200 -height 30
button $a.52 -text "REORDER PROPERTIES" -command {set k properties; reorder_name $k} -bg yellow -font {times 9 bold}; place $a.52 -x 310 -y 340 -width 200 -height 30
button $a.61 -text "REORDER COMPONENTS" -command {set l comps; reorder_id $l} -bg yellow -font {times 9 bold}; place $a.61 -x 80 -y 440 -width 200 -height 30
button $a.62 -text "REORDER PROPERTIES" -command {set l properties; reorder_id $l} -bg yellow -font {times 9 bold}; place $a.62 -x 310 -y 440 -width 200 -height 30
proc reorder_name {k} {
*clearmarkall 1
*createmark $k 1 "all"
if {[hm_marklength $k 1!=0]} {
*collectormarkmove $k 1 1 1}
}
proc reorder_id {l} {
*clearmarkall 1
*createmark $l 1 "all"
if {[hm_marklength $l 1!=0]} {
*collectormarkmove $l 1 1 2}
}
# RENUMBER ##########
button $a.71 -text "RENUMBER COMPONENTS" -command {set m comps; renumber $m} -bg yellow -font {times 9 bold}; place $a.71 -x 80 -y 520 -width 200 -height 25
button $a.72 -text "RENUMBER PROPERTIES" -command {set m properties; renumber $m} -bg yellow -font {times 9 bold}; place $a.72 -x 310 -y 520 -width 200 -height 25
proc renumber {m} {
*clearmarkall 1
*createmark $m 1 "all"
if {[hm_marklength $m 1!=0]} {
*renumber $m 1 10000 1 0 0}
}
# MASTER BUTTON ##########
button $a.82 -text "MASTER" -command { master} -bg red -font {times 11 bold}; place $a.82 -x 150 -y 590 -width 300 -height 25
proc master {} {
set b {surfaces poins lines solids}; foreach i $b {delete $i}
set b {comps assembly loadcollectors loadsteps}; foreach j $b {empty $j}
set b {groups crosssections curves contacts materials properties beamsections}; foreach c $b {unused $c}
set b {components properties}; foreach k $b {reorder_name $k}
set b {components properties}; foreach l $b {reorder_id $l}
set b {components properties}; foreach m $b {renumber $m}
}

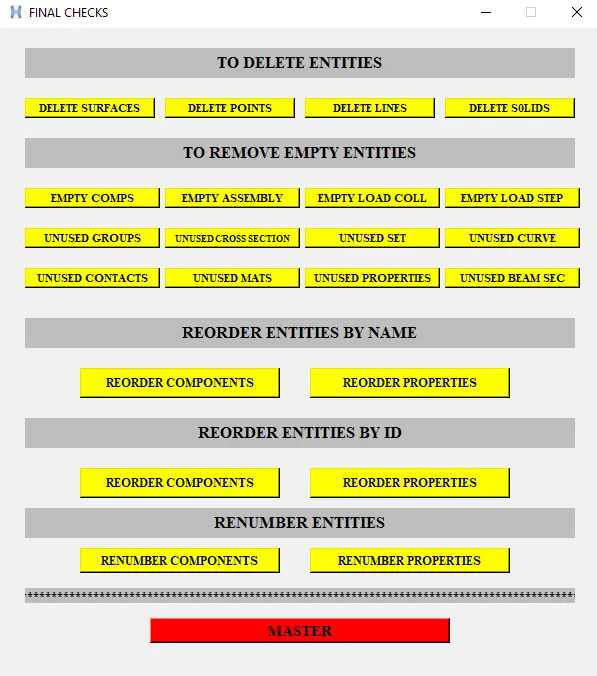

GRAPHICAL USER INTERFACE:
CONCLUSION:
- Learned to create a gui- based program that helps the user to conduct final checks/operations to remove/reorder/renumber all the unwanted entities and to keep only the fea entities in the model.
- Learned to reorder and renumber the entities.
- Created a master button to perform all the operations at the click of a single button.
