AIM:-
Perform a steady-state conjugate heat transfer analysis on a model of a graphics card. You can use appropriate materials of your choice for the simulation. Make sure to properly define the correct solid and fluid zones. Refer the video for further clarification and the model is provided below the video.
Run the simulation for best possible mesh with combination of coarse and refined mesh in different regions. Explain the reason for choosing the particular mesh settings.
Your Objectives:
Run the simulation by varying the velocity from 1m/sec to 5m/sec for at least 3 velocities and discuss the results.
Find out the maximum temperature and heat transfer coefficient attained by the processor.
Prove that the simulation has achieved convergence with appropriate images and plots.
Identify potential hotspots on the model.
l. OBJECTIVE
To perform steady-state conjugate heat transfer analysis on Graphics Card
To find the effect of different velocities on the temperature
INTRODUCTION
Conjugate Heat Transfer (CHT)
Conjugate heat transfer is defined as the heat transfer between two domains by exchange of thermal energy. For a system the thermal energy available is defined by its temperature and the movement of thermal energy is defined by its heat flux through the outer walls. Heat transfer in solid happens through conduction and walls by convection and in liquid phase through convection.
CHT provides the temperature prediction and the hotspot regions at the solid-fluid interface and we can also predict the heat transfer accurately for example- Conduction through solids, convection through fluid, and thermal radiation. It also provides the velocity and pressure distribution of fluid moving inside the solid. We can also use CHT in design optimization for improvement for heat transfer and cooling capacity.
A video card (also called a graphics card, display card, graphics adapter, or display adapter) is an expansion card that generates a feed of output images to a display device (such as a computer monitor). Most video cards are not limited to a 6-inch simple output. Their integrated graphics processor can perform additional processing, removing this task from the central processor of the computer.
PROBLEM STATEMENT
Simulate CHT analysis on a model of a graphics card and use appropriate materials of your choice for the simulation.
Simulate by varying the velocity from 1m/sec to 5m/sec for at least 3 velocities.
Find out the max temperature and heat transfer coefficient attained by the processor.

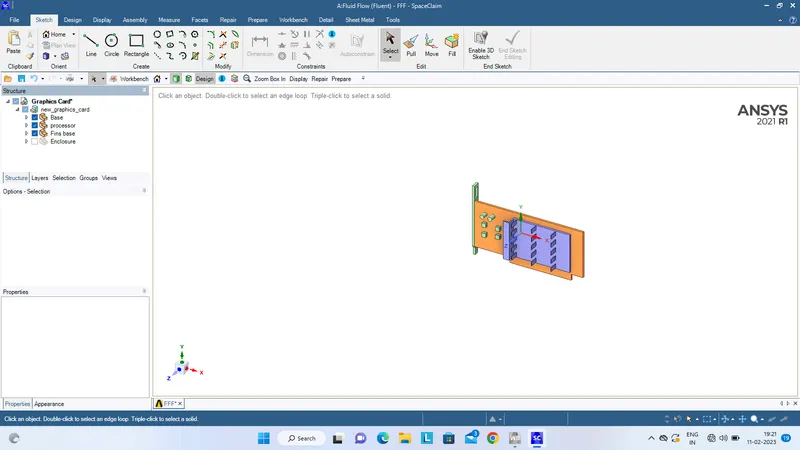

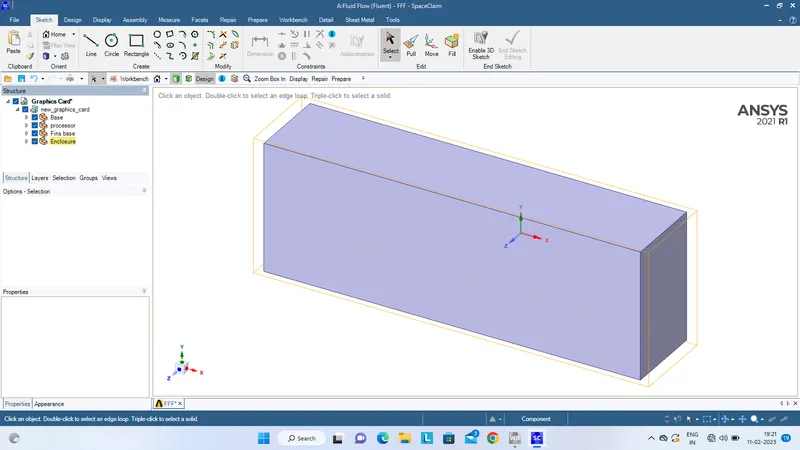

lV. SPACECLAIM GEOMERT
FINS
PROCESSOR
BASE
Topology is set to share such that the data could be shared between the different components of the graphics card.
V. INITIAL TEST - BASELINE SETUP
A. MESH
1. Named Selection
FINS
PROCESSOR
BASE
Encloser

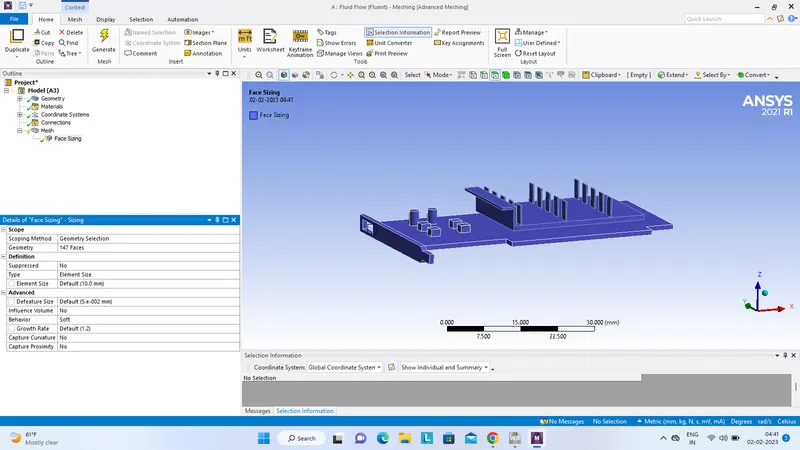

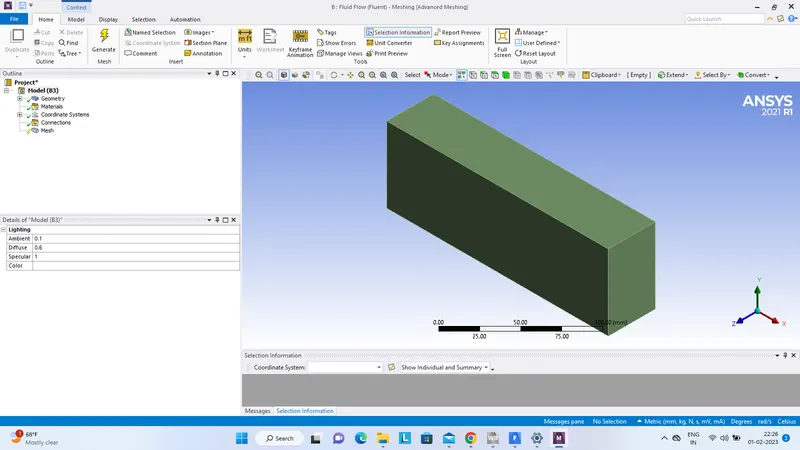

2.1 Base Mesh
A basic mesh is generated using the standard values recommended by Ansys. This mesh is used to obtain an initial solution which will help us to determine the location where mesh refinement is required.
1.Element Order: Linear
2.Element size: Default
3.Number of Nodes: 12627
4.Number of Elements: 52375
2.2 Element Quality
We have some elements with quality less than 10%
B. Simulation Setup

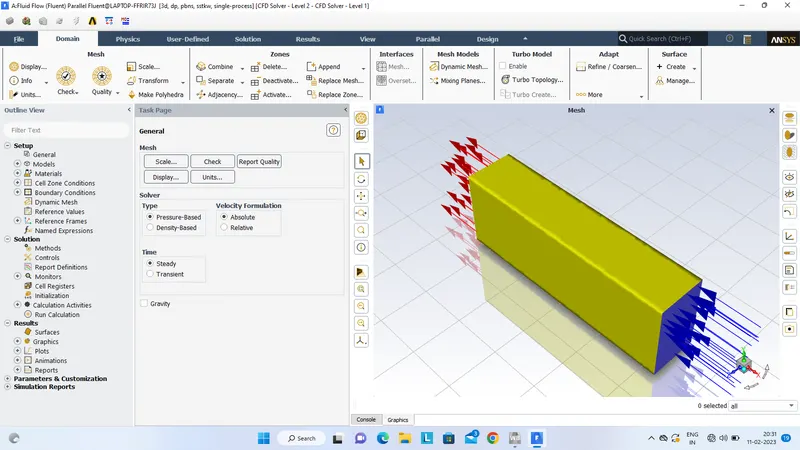

1.Solver: Steady
2.Type: Pressure Based
3.Turbulence Model: k-Omega(SST)
4.Materials: Different materials are used for each part, some of which are custom created
Parts Material
Base Polystyrene(Created)
Fin Aluminium
Processor Silicon(Created)
Encloser Air
(1) Polystyrene
(2) Aluminium
(3) Silicon
(4) Air
5.Boundaries:
Inlet:
Type: Velocity Inlet
Velocity: 5m/s
Temperature: 300 K
Outlet:
Type: Pressure Outlet
Pressure: 0 Pa(Gauge Pressure)
Temperature: 300 K
Symmetry: Symmetry
Wall: Wall
6. Cell Zone Conditions
The processor is assumed as the only source of heat. The heat generated by the processor is calculated as:-
Graphics Card Power = 1w
Volume of the card = 8 x 8 x 1
=
64
m
m
3
=
64
e
−
9
m
3
Heat Generated =
P
V
=
1
64
e
−
9
= 15625000
7. Solution
Method: Standard
Number of Iterations: 500
8. Simulation Output

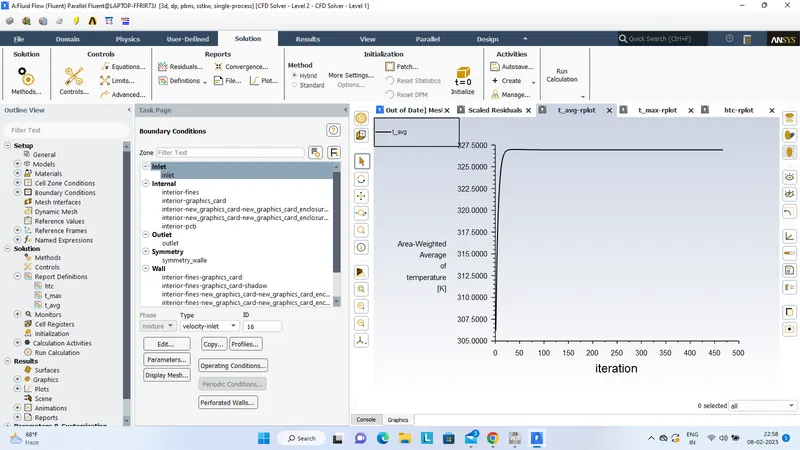

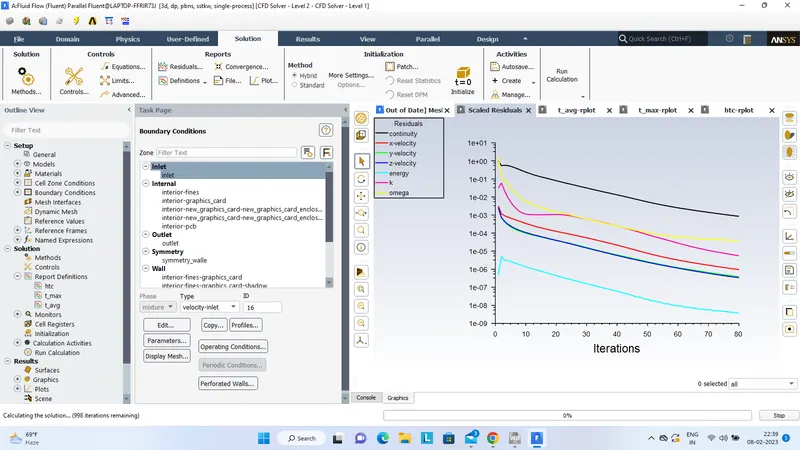

1. Residual
C. Post Processing

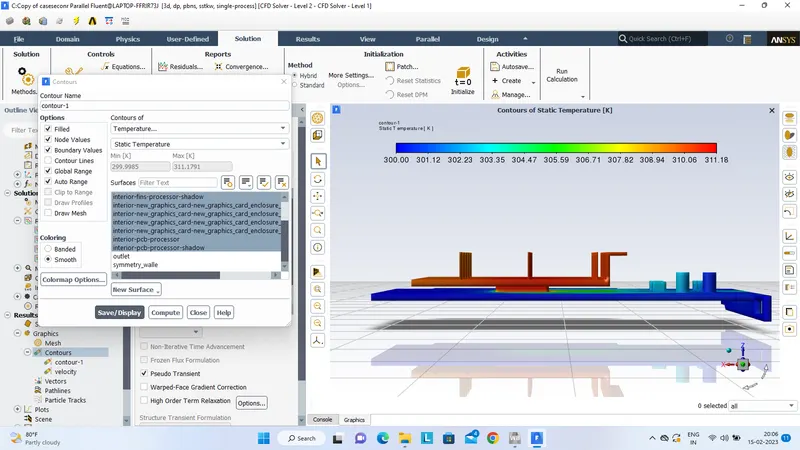

1. Global Hotspot Region

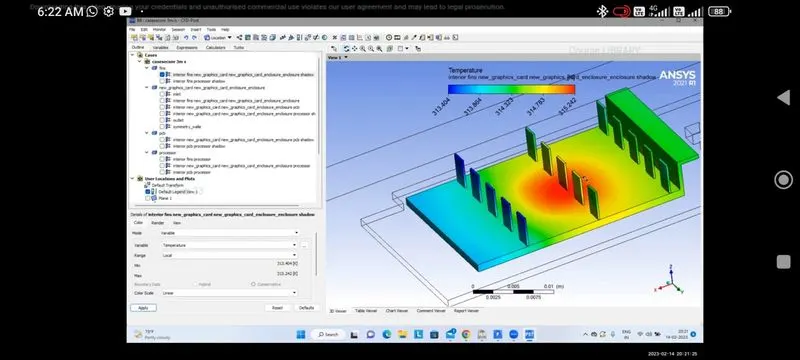

2. Hotspot Around the Processor

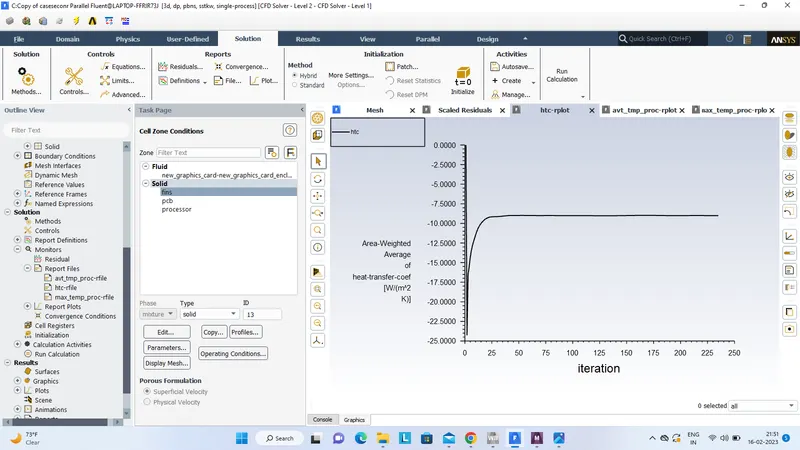

3. Wall Heat Transfer Coefficient

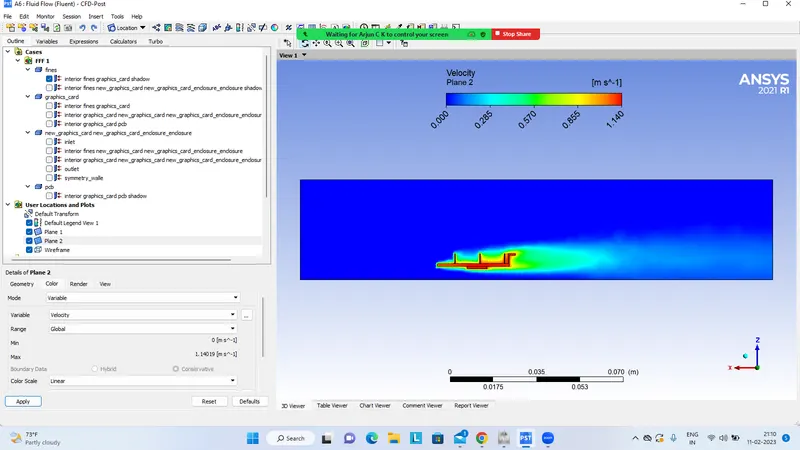

4. Velocity Contour

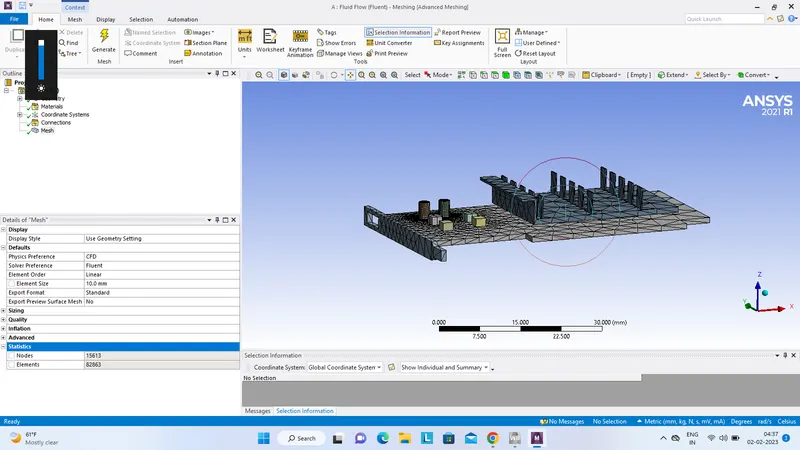

Vl. REFINED MESH
A. MESH
1.Element Order: Linear
2.Element size: 0.003 m
3. Body Sizing (Fin)
Element Size: 5.0mm
Curvature Capture: Yes
4. Body Sizing (Processor)
Element Size: 5.0mm
Curvature Capture: Yes
5. Body Sizing (Base)
Element Size: 0.003 m
Curvature Capture: Yes

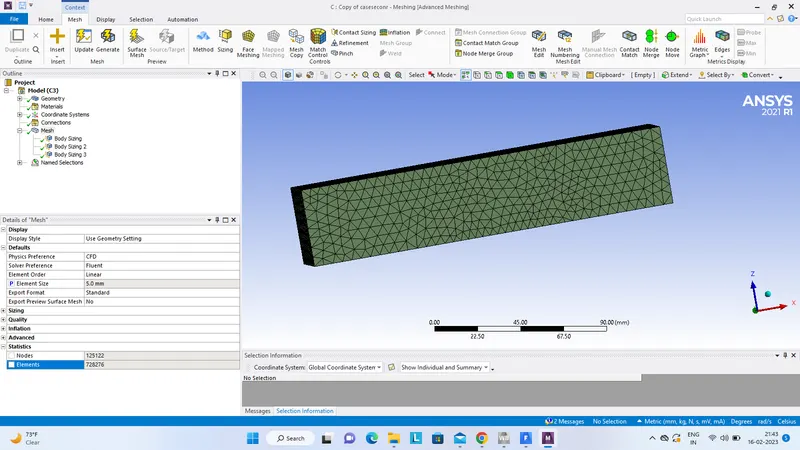

6.Number of Nodes:125122
7.Number of Elements: 728276
B. SIMULATION SETUP
The simulation setup is the same as that selected for the initial mesh. Only the output of the simulation will change because of the change in the inlet velocities.
C. SIMULATION OUTPUT
VELOCITY = 1m/s VELOCITY = 3m/s VELOCITY = 5m/s

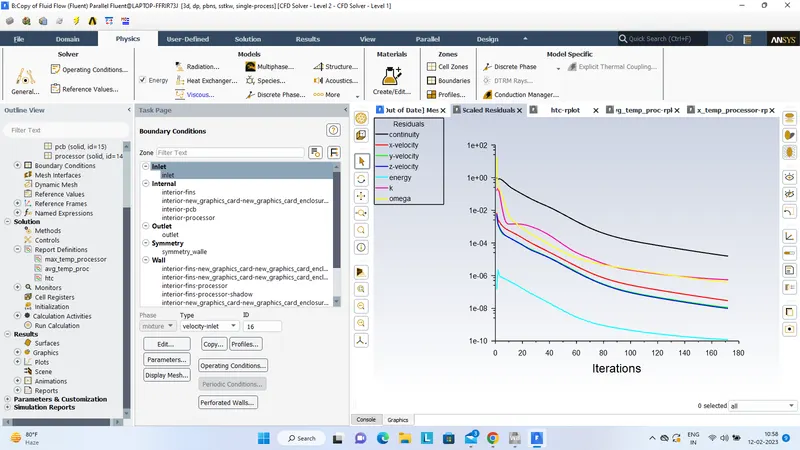

RESIDUALS
D. POST-PROCESSING
VELOCITY = 1m/s VELOCITY = 3m/s VELOCITY = 5m/s

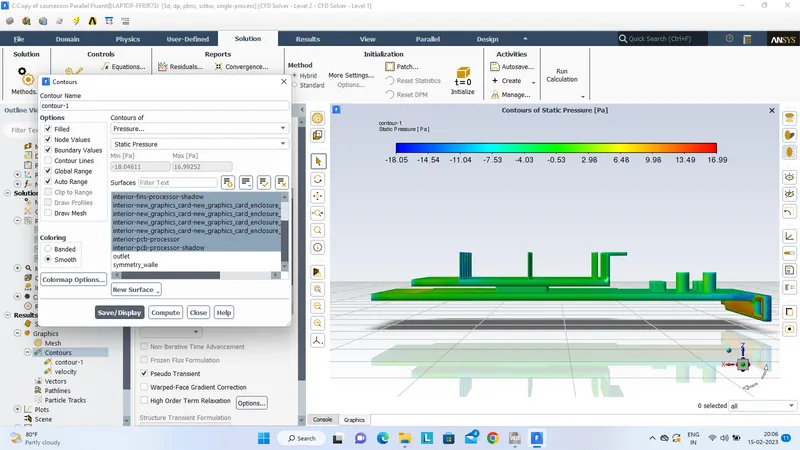

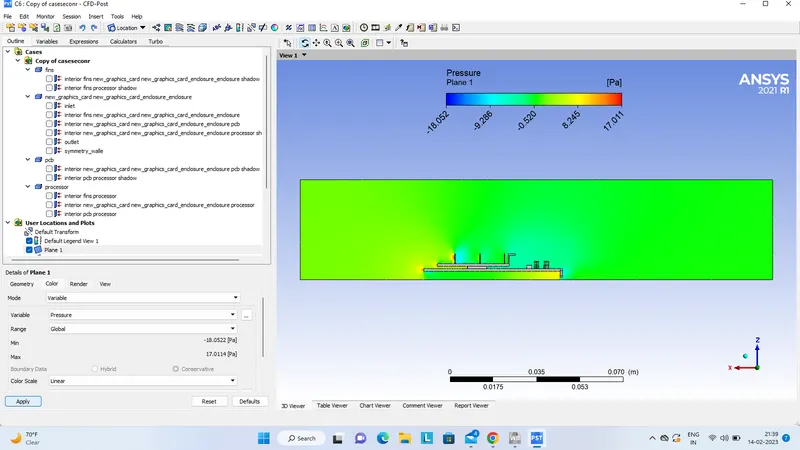

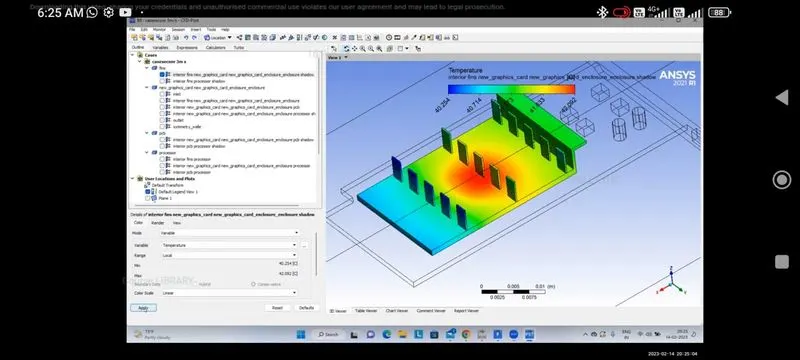

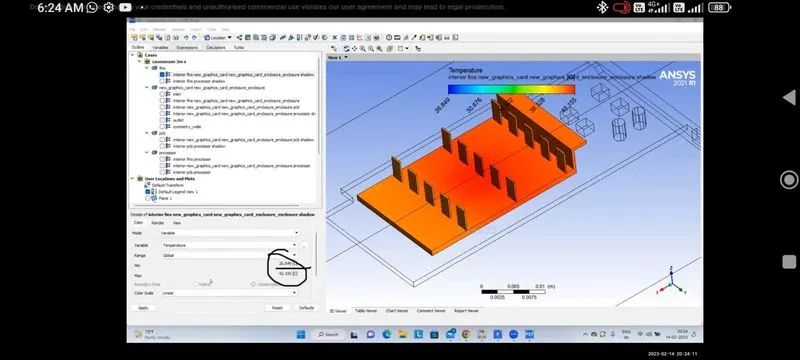

Global Hotspot Region
Hotspot Around the Processor
Wall Heat Transfer Coefficient

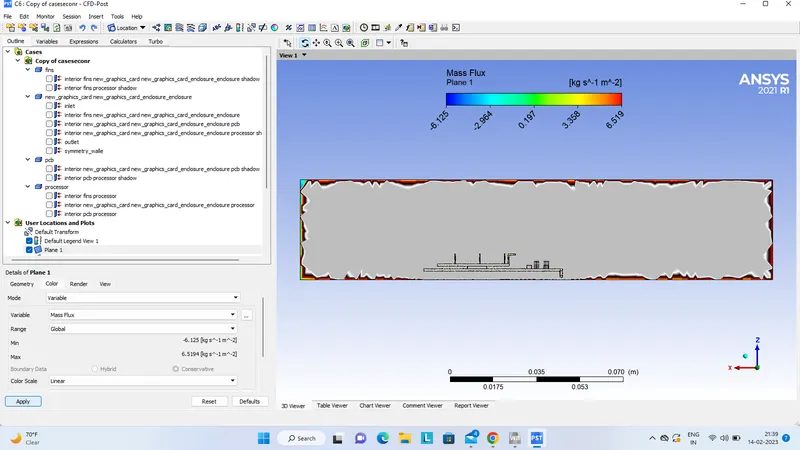

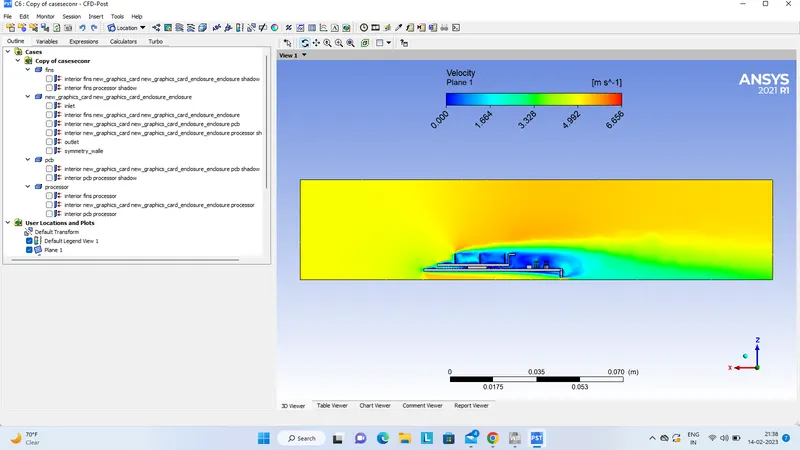

Velocity Contour
Vll. RESULTS

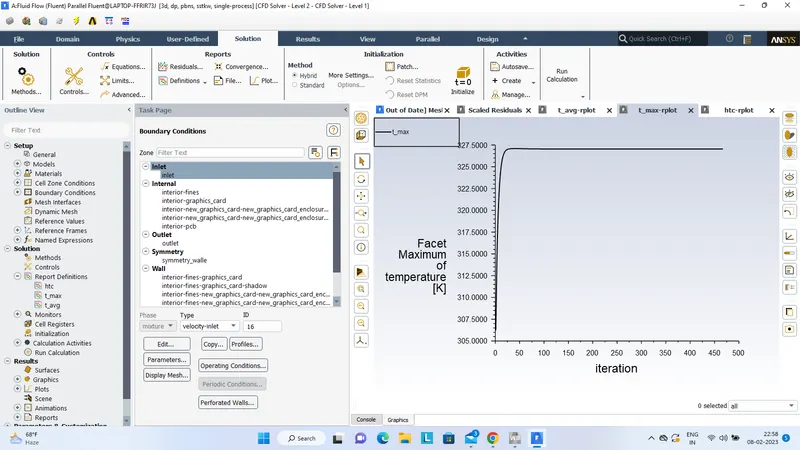

Velocity The temperature at Processor [k] The temperature at Fins [k] HTC at Fins [
W
m
2
k
]
1 327.07 326.94 -5.9106
3 315.14 315.26 -6.80205
5 311.01 311.13 -9.015
Vlll. CONCLUSION
As the number of elements increases the accurate results of temperature distribution is obtained
From the above table, it is fairly notable that, the net temperature of components of graphics cards decreases with an increase in inlet velocity.
Hence it can be inferred that a higher inlet velocity results in better cooling and lower the average temperature thus keeping the components safe from damage.
Furthermore, it can be observed that the temperature of components increases as the inlet velocity decreases from 5 m/s to 1m/s, also proving that higher velocity results in better cooling.
