Week 6 - CHT Analysis on a Graphics card

Objective:

Perform a steady-state conjugate heat transfer analysis on a model of a graphics card. You can use appropriate materials of your choice for the simulation. Make sure to properly define the correct solid and fluid zones. Refer to the video for further clarification and the model is provided below the video.

Run the simulation for the best possible mesh with a combination of coarse and refined mesh in different regions. Explain the reason for choosing the particular mesh settings.

Mains:

1. Run the simulation by varying the velocity from 1m/sec to 5m/sec for at least 3 velocities and discuss the results.
2. Find out the maximum temperature and heat transfer coefficient attained by the processor.
3. Prove that the simulation has achieved convergence with appropriate images and plots.
4. Identify potential hotspots on the model.

Solution:

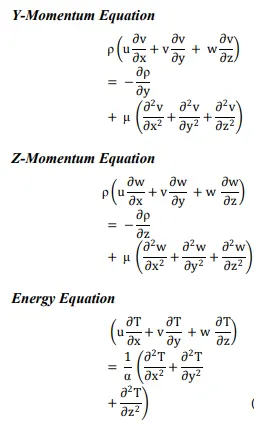

Governing Equations in CFD

There are mainly three equations that we solve in computational fluid dynamics problems. They are the continuity equation, momentum equation, and energy equation. These three equations are collectively called Navier-Stokes equations. The flow of most fluids may be analyzed by mathematically solving the last two equations. These three equations represent the conservation of mass, momentum, and energy respectively. These three equations are represented below.

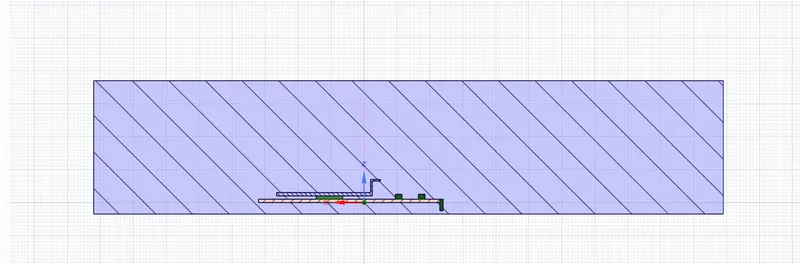

 Now we are going to set up the case from space claim and we run for 2 cases where one is base mesh and another one is refined. So we're going to run for base mesh with default element size. In addition to that, we are going to extract the model first.

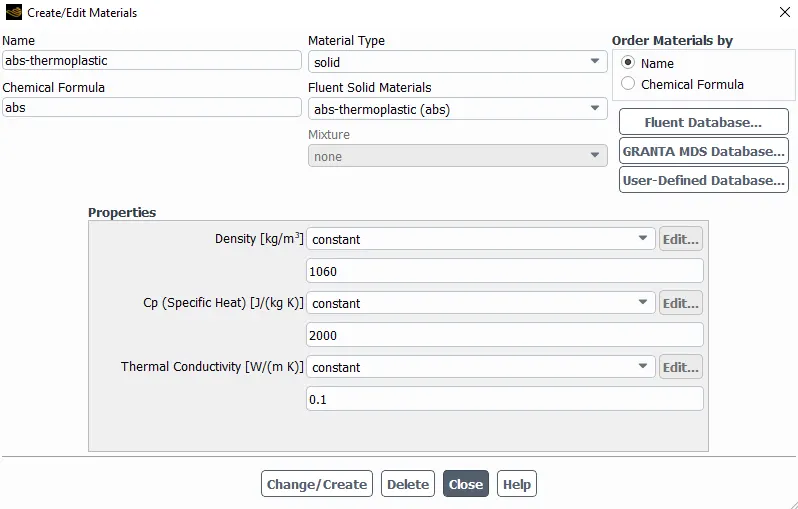

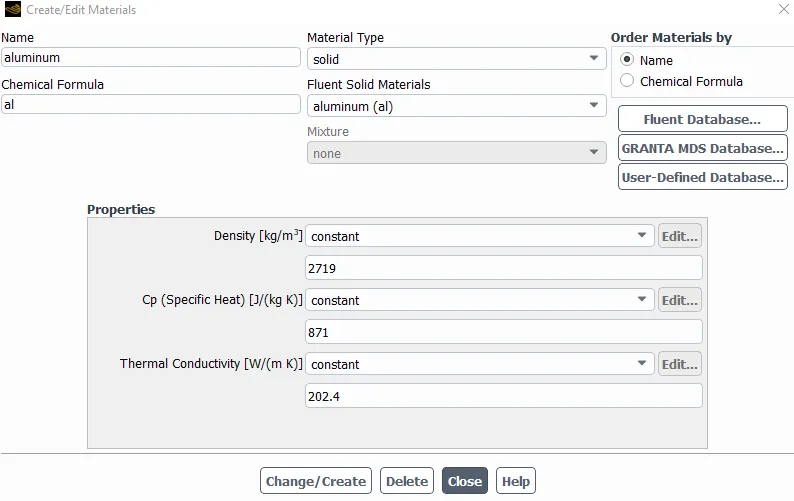

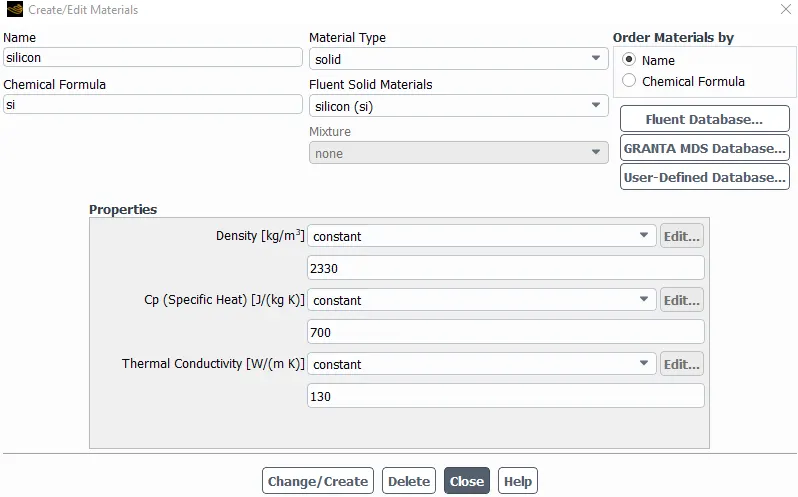

 before we jump into setting up the geometry we need to decide the technical properties of the materials we are going to select. We have ALuminium, Silicon, and ABS Thermoplastics.

                                                                                         Silicon                              Aluminium                        ABS Thermoplastics

1.    Density (Kg/m^3)                                                    2330                                       2719                                      1060

2.  Specific Heat at Constant pressure(Cp)J/Kg-K          700                                         871                                        2001

3. Thermal Conductivity(W/m-K)                                    130                                         202.4                                       0.1

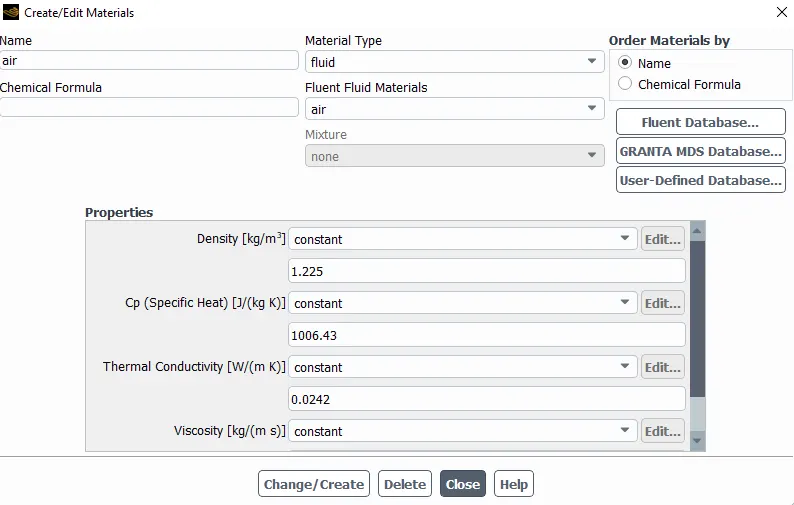

4. Fluid - Air

Density: 1.225(Kg/m^3)

Specific heat Cp J/Kg-K: 1006.43 J/Kg-K

Thermal Conductivity:  0.0242(W/mK)

Viscosity:  1.789e-05 (Kg/ms)

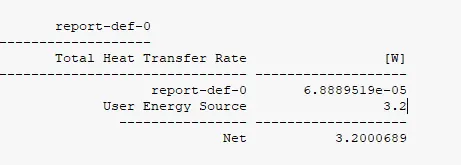

Heat generation takes place at the microprocessor at 5e^7 W/m^3

Running the simulation for the best possible mesh with a combination of coarse and refined mesh in different regions. Explain the reason for choosing the particular mesh settings.

CASE 1: Base Mesh (Coarse)

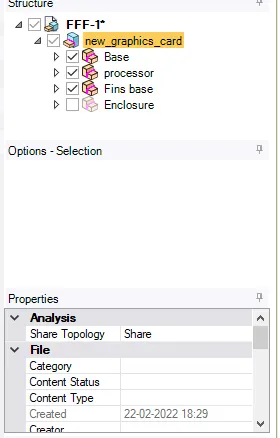

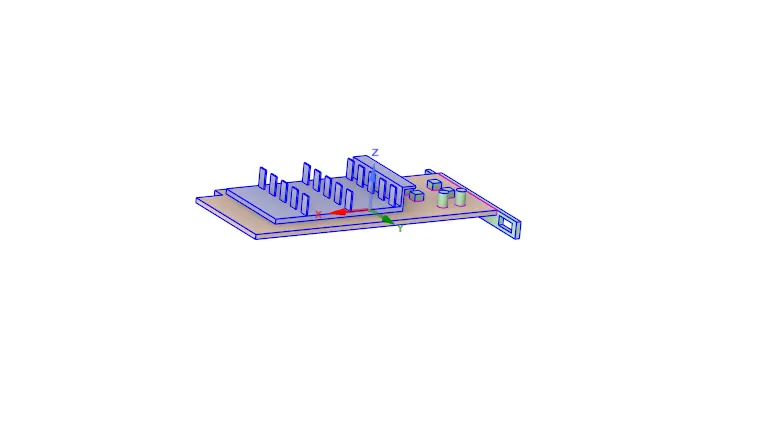

Now we run space claim and begin setup and while doing so we are going to enable SHARE TOPOLOGY

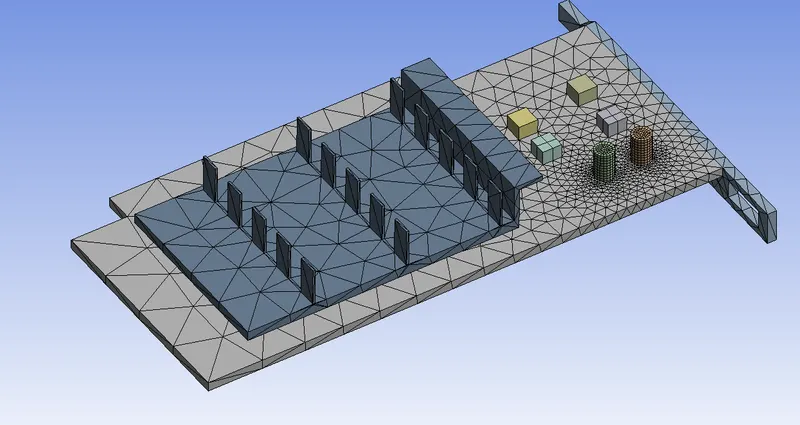

Now that we set up the geometry with share topology we are going to mesh and as for base mesh we are going to go for less cell counts with

10mm element size.

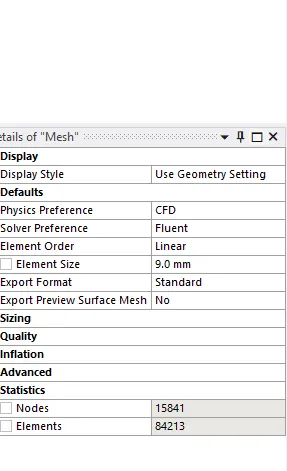

as we can see here we got ourselves less element size of 84213 cell counts.

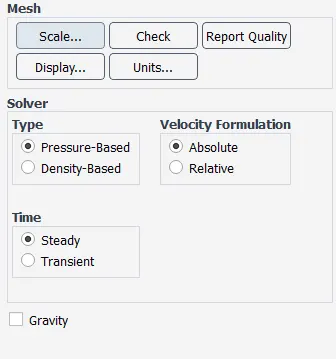

Now after naming the boundaries we move on Fluent for the simulation setup.

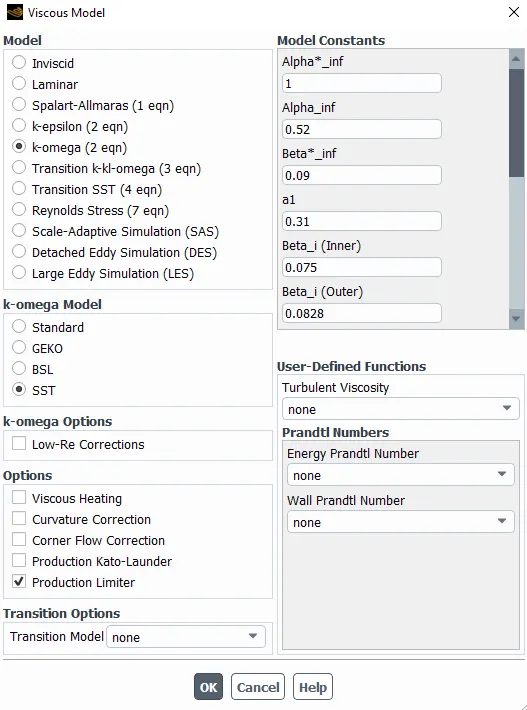

NOTE: we ARE RUNNING the k-omega SST viscous model for base mesh for a little bit of variation in cases.

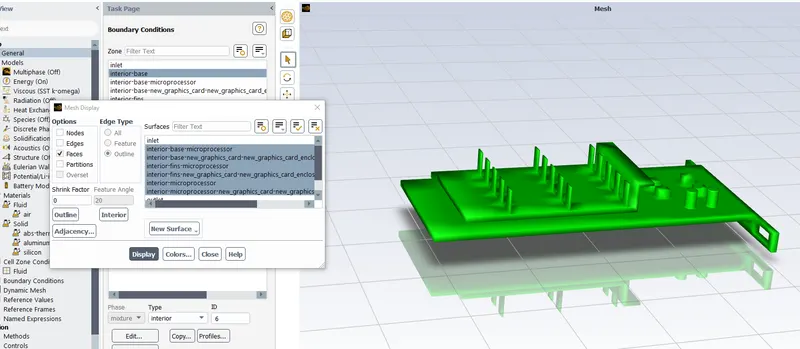

We can see the components in display where we visualize each and every art and interiors for the clearance and confirmation.

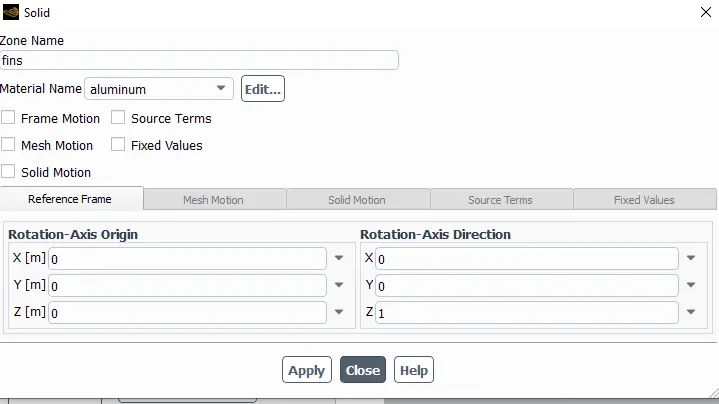

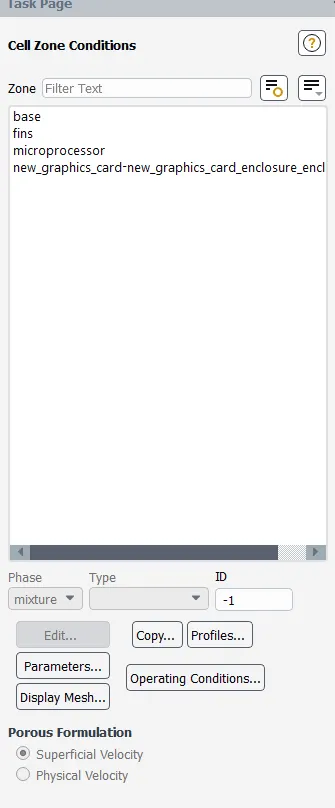

we have created and added 3 solids and 1 fluid for the geometry

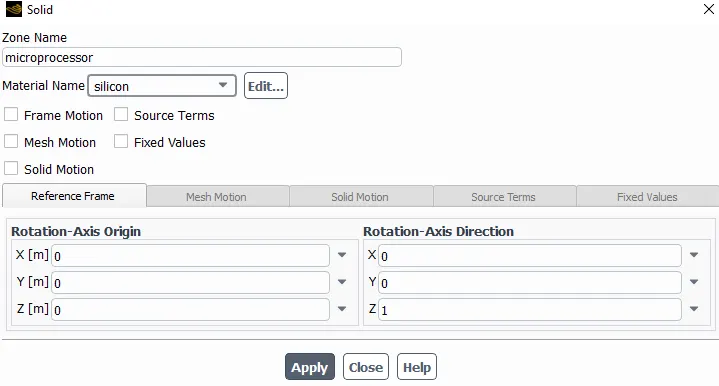

Silicon - Microprocessor

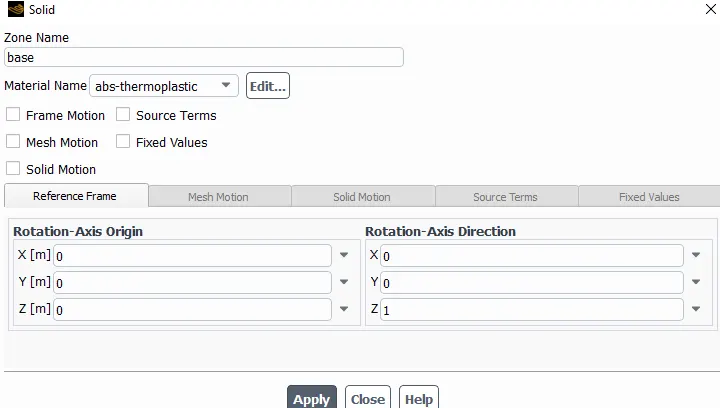

ABS Thermoplastics - Base

Aluminum - Fins.

Fluid - Air





and he after setting up th materials and assigning the fluid and solid zones separately we run for 500 iterations and see that the solution is converged.

Output:

Now we are going to analyze the result in CFD-Post here we discuss the variation of temperature and velocity over the components and how heat transfer takes place.

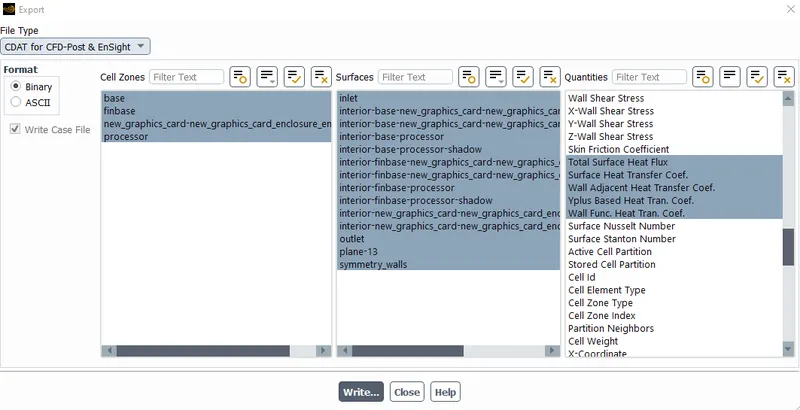

we take solution DATA and export it to CFD-Post via this method:

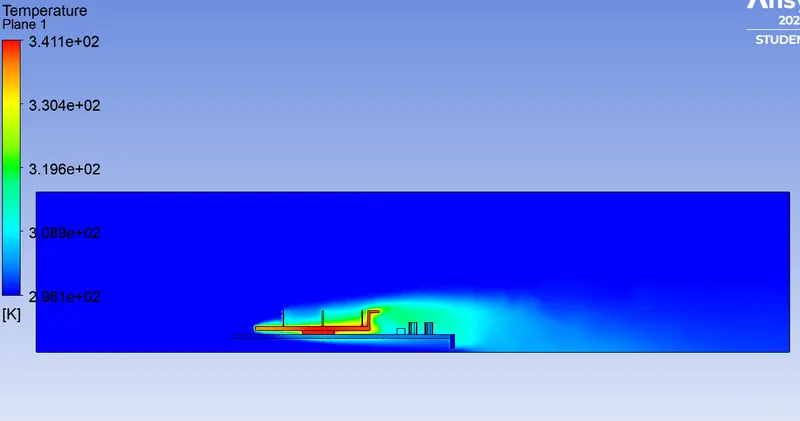

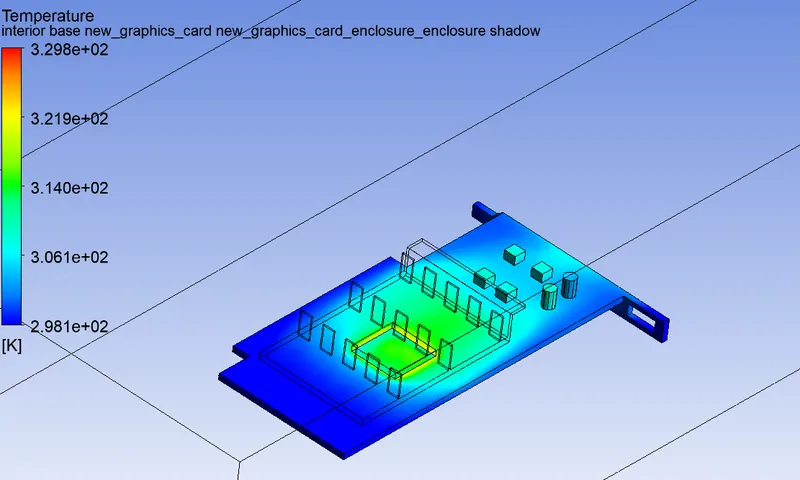

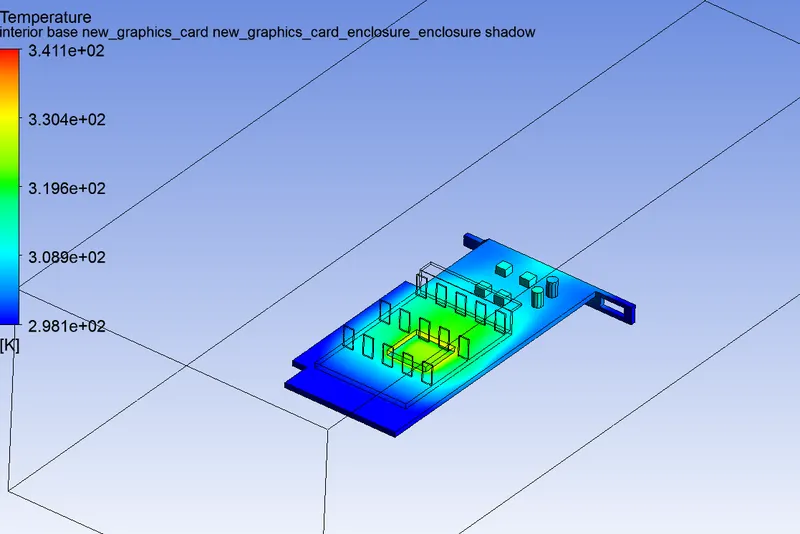

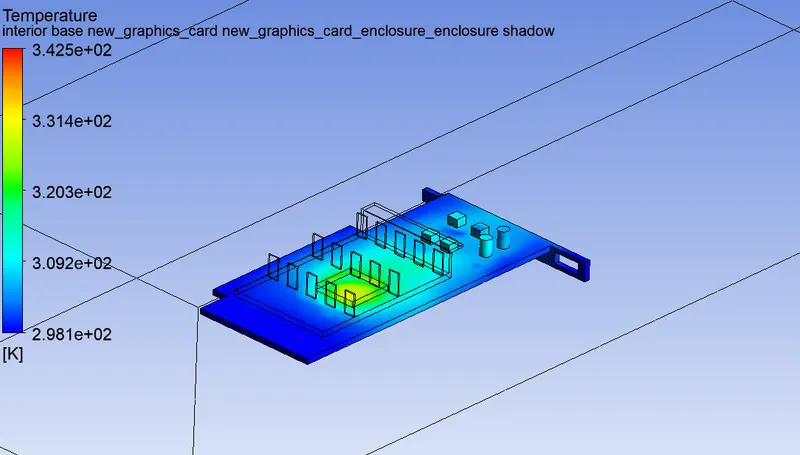

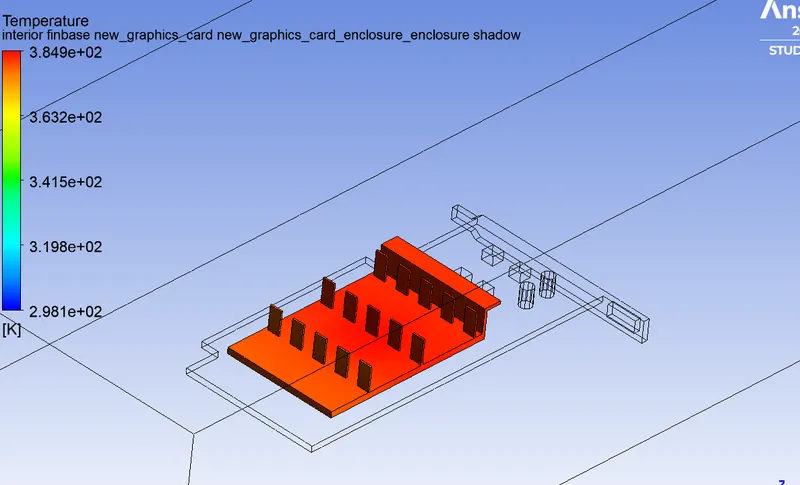

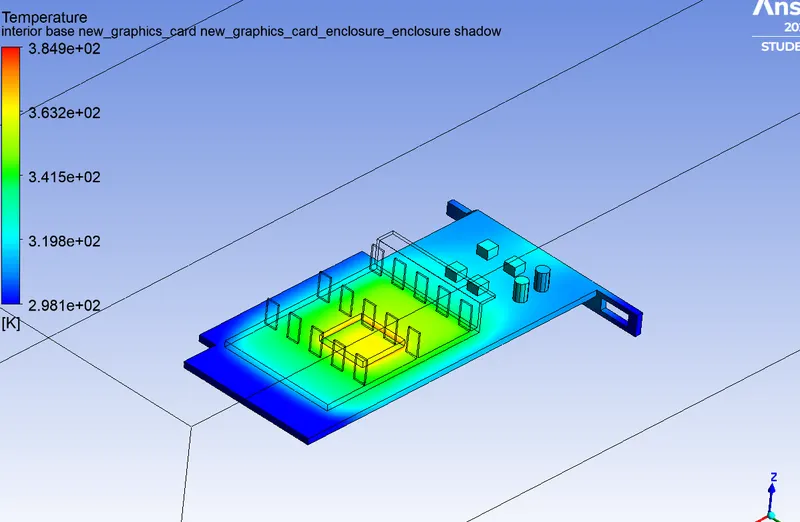

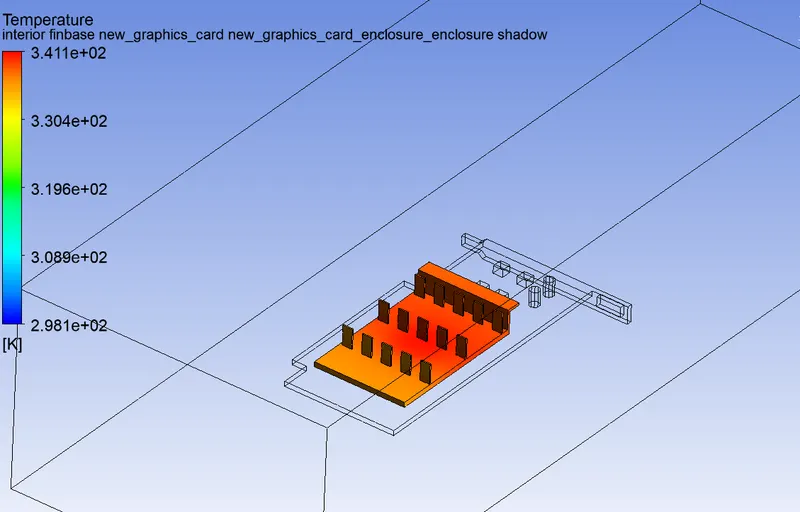

Temperature:

Velocity:

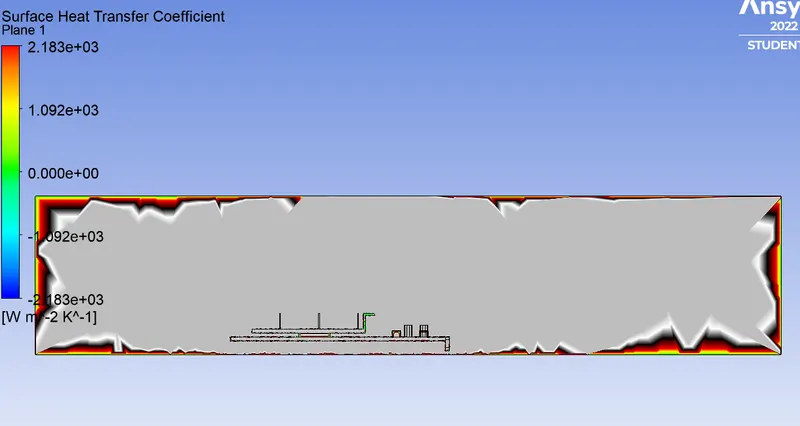

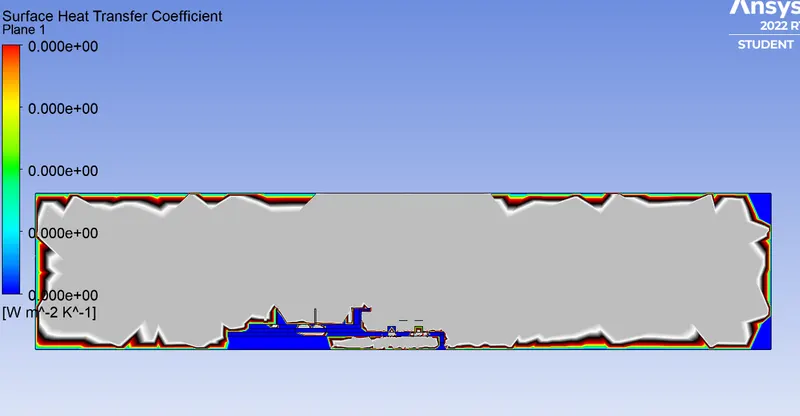

Heat Transfer Coefficient:

CASE 2: Refined Mesh

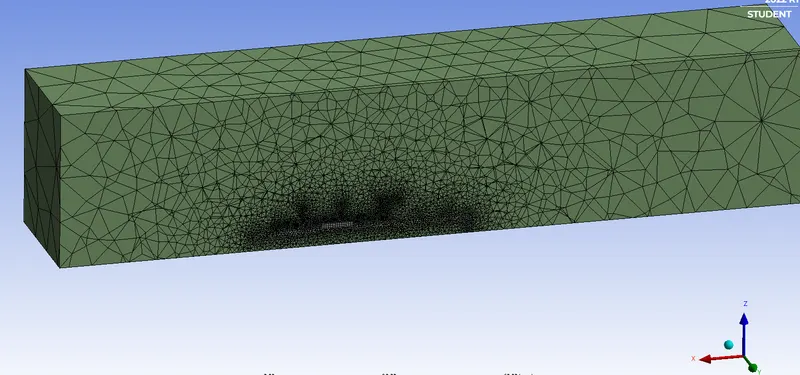

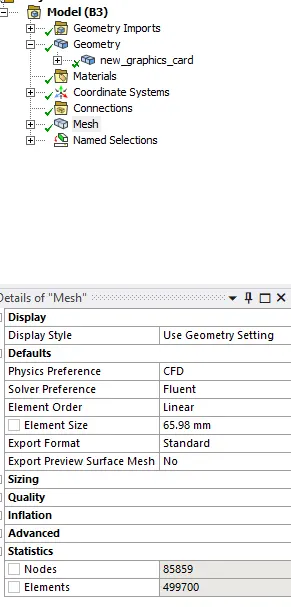

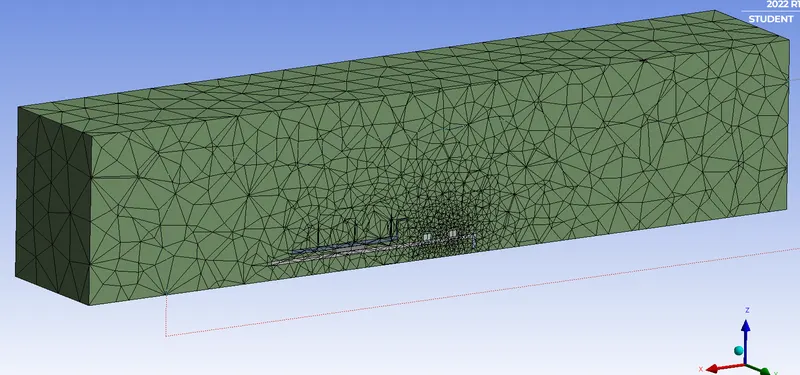

 Now here we have refined the setup and made it to 499700 cells just near the academic license limit. The finer mesh will let us give precise results around the edges and the heat transfer coefficient. This is what we made the mesh accordingly:

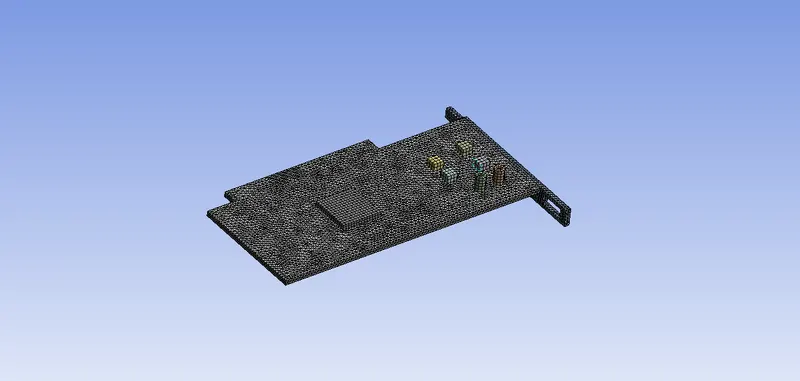

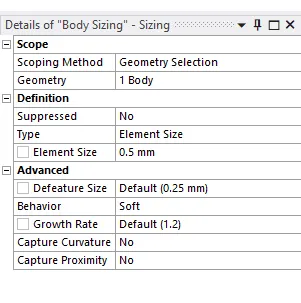

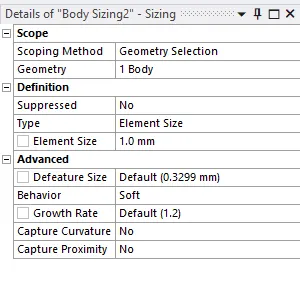

As you can see here when the element size is reduced the mesh gets finer and more importantly around the microprocessor and the base components, the mesh is structured by itself as we apply the body sizing mesh tool to MICROPROCESSORS and FINS.





The main reason why we went for refining and specifically the kind of refining where we select the body and sized it down to 0.5 and 0.1 mm element size respectively.

Choosing the Refined mesh settings:

We are more interested in the thermal energy transfer from the Microprocessor to the Aluminium fin where it cools with airflow and this is where our turbulence model also plays a vital role, well there's not much of a difference in its varietals, but this tells us how heat transfer takes place and this is the only 2 body in the GPU where the temperature is at highest, and we can see that in our BASE MESH fin and microprocessor CFD-post results.

That's why we refine these 2 whole bodies alone where we can exact results in simulation. In Base mesh, the results may not be viewed accurately as the mesh is too coarse not only around 2 Hotspot bodies but the GPU as a whole.

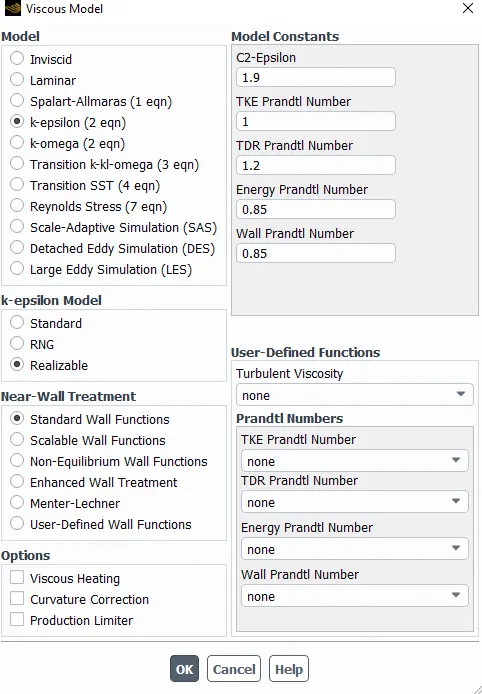

Now that we did setting up the mesh we move on to Fluent where we set up the geometry the same as BASE MESH with one difference where we use K-Epsilon Viscous model for the refined case just to make a variation in results and to play with the turbulence model.



And now we INITIALIZE and run for 500 iterations where we see converged results.

Output:

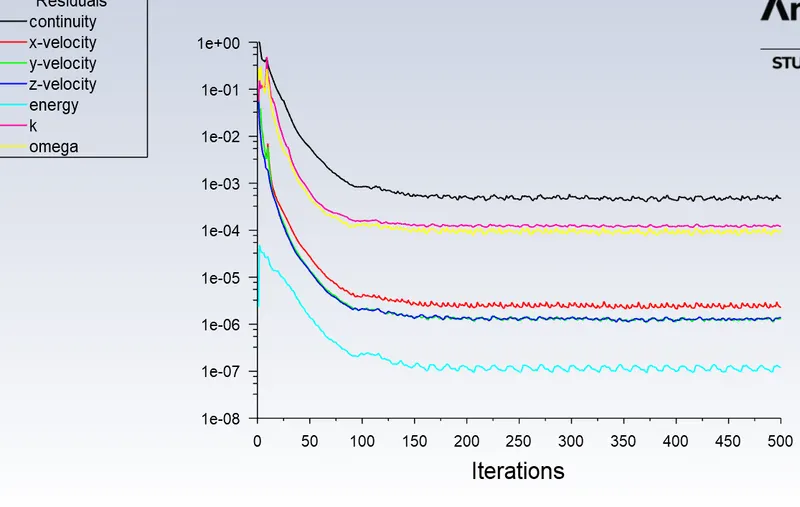

Residuals where the solution is converged:

Now we export results as solution data to CFD-Post where we analyze the results more clearly

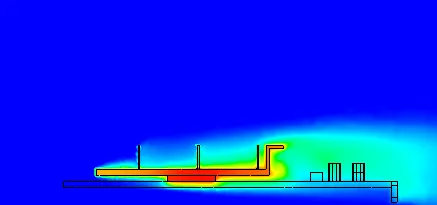

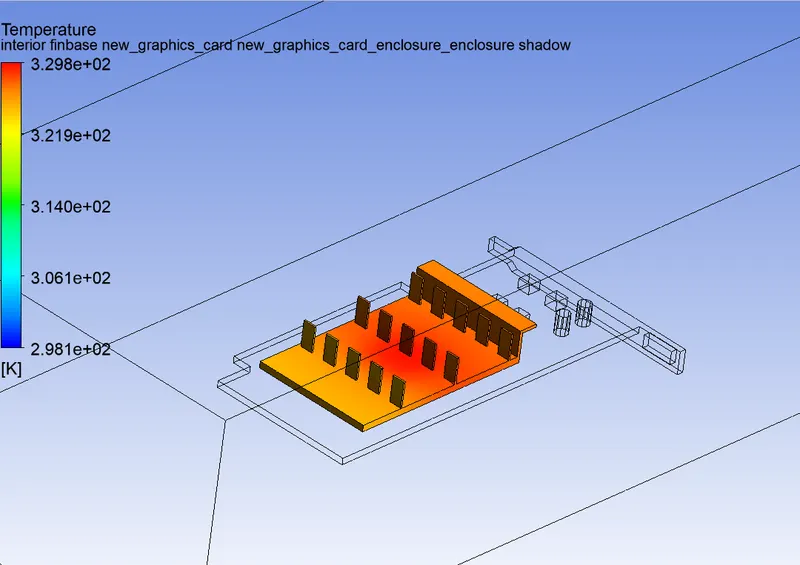

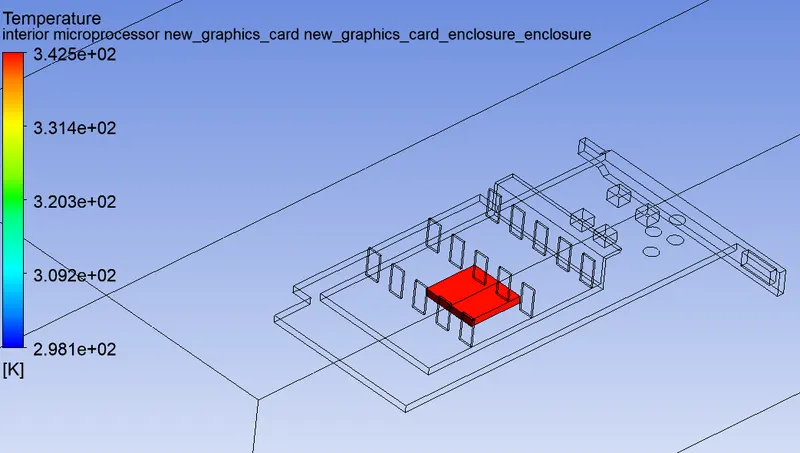

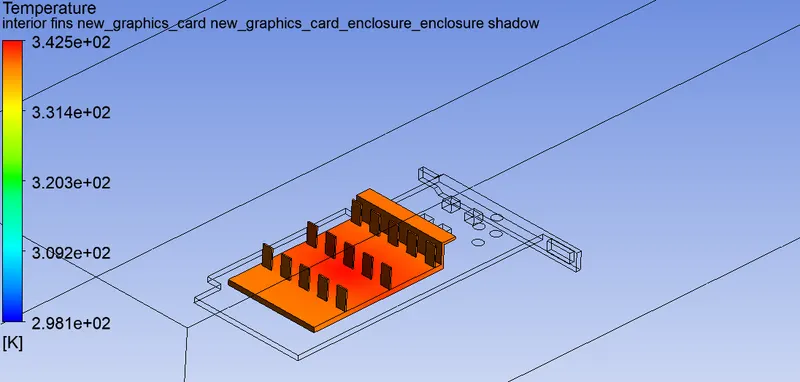

Temperature:

Velocity:

Heat Transfer coefficient:

Mains:

1. Run the simulation by varying the velocity from 1m/sec to 5m/sec for at least 3 velocities and discuss the results.

since it has 3 cases we gonna divide this into 3 sections where we study and analyze the temperature and HTC difference in different cases.

case 1: where Velocity is 1ms-1

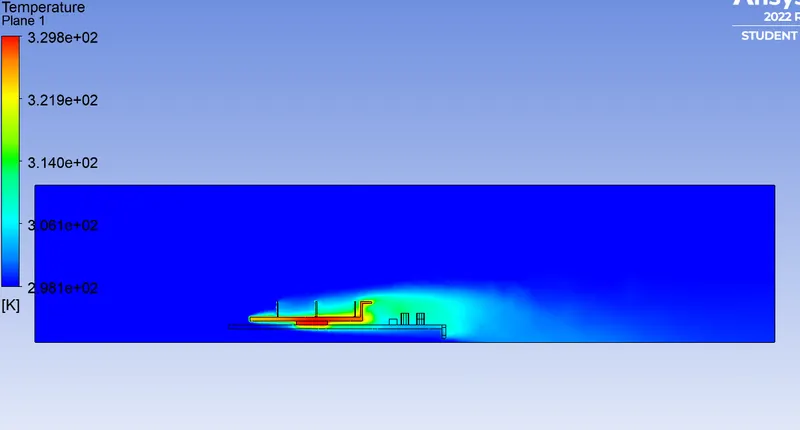

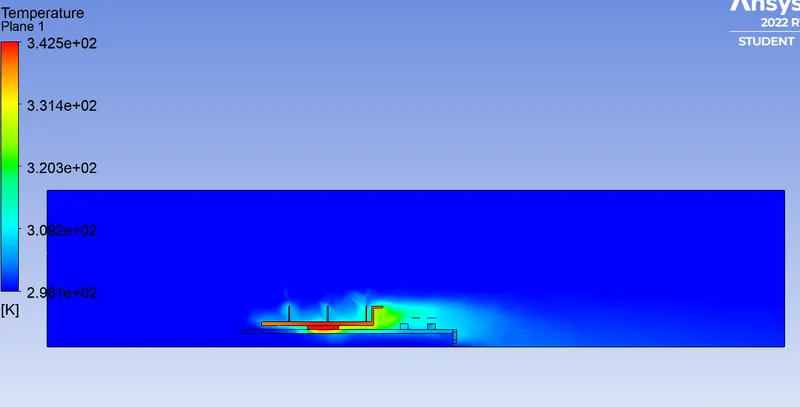

 Temperature:

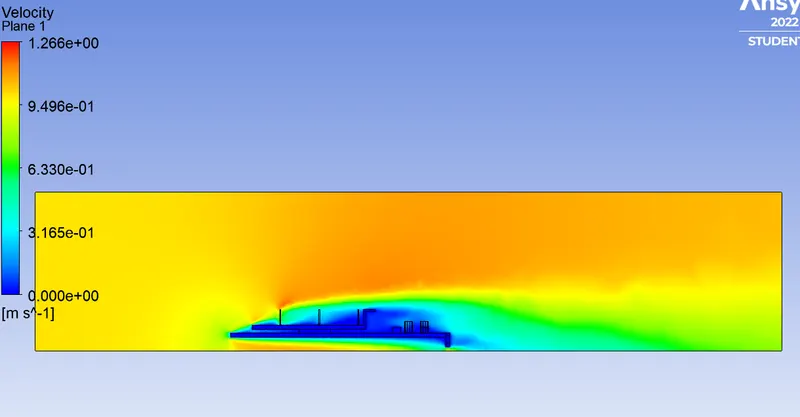

Velocity:

  As we can see in our results the velocity varies around the edges reaching up to 12.66ms-1

case 2: where Velocity is 3ms-1

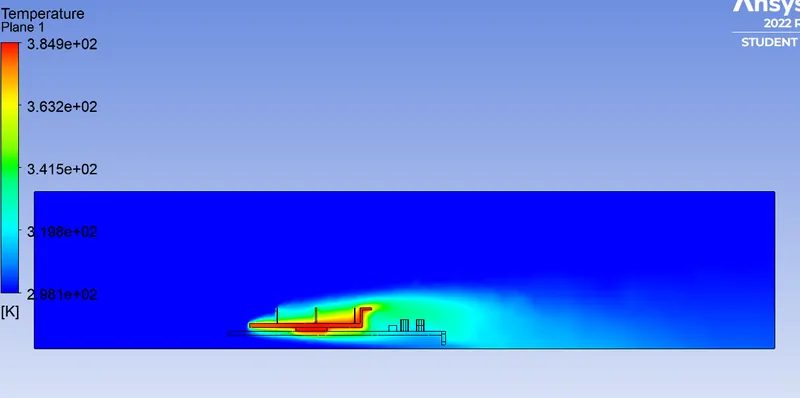

Temperature:

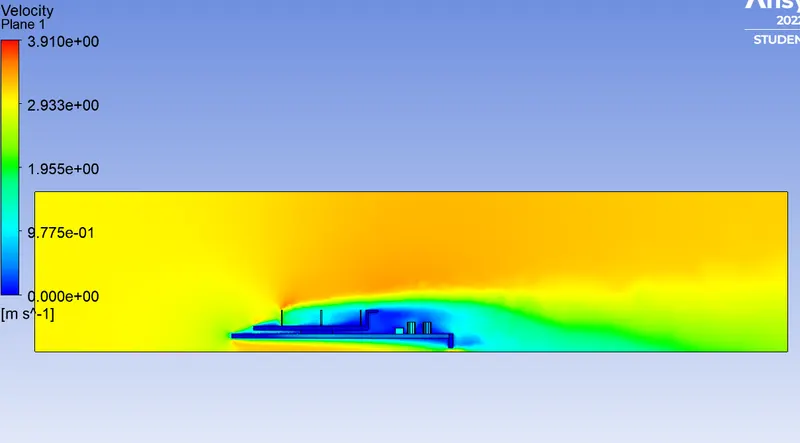

Velocity:

HTC:

case 3: where Velocity is 5ms-1

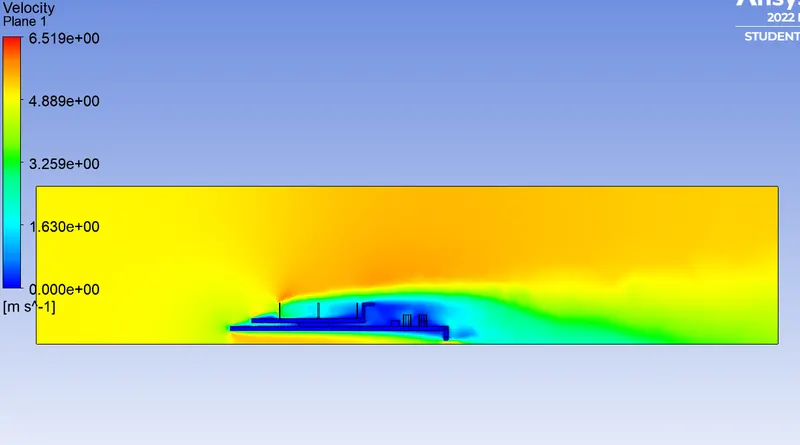

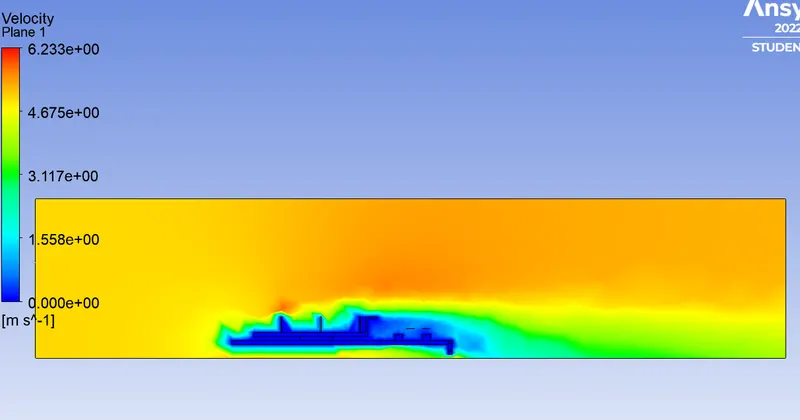

Velocity:

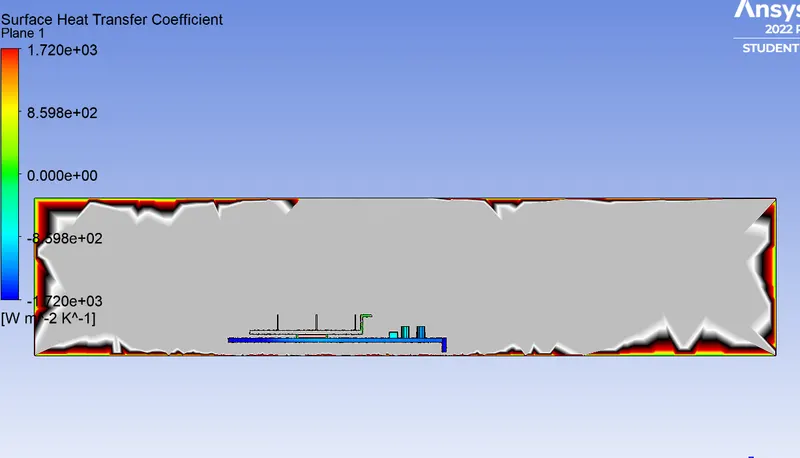

Heat Transfer coefficient:

2. Find out the maximum temperature and heat transfer coefficient attained by the processor.

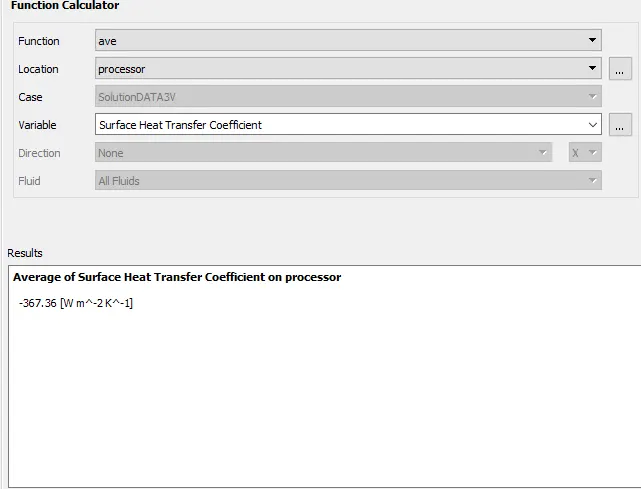

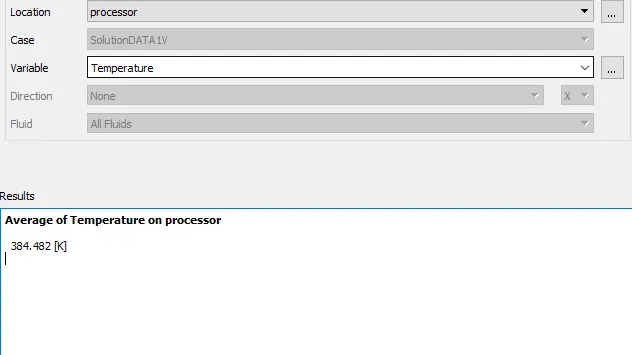

as we can calculate analytically with the plot and solution data but in CFD-Post we have special features to calculate the different functional areas and their averages so this is where we calculated results:

The following are calculated in refined setup case:

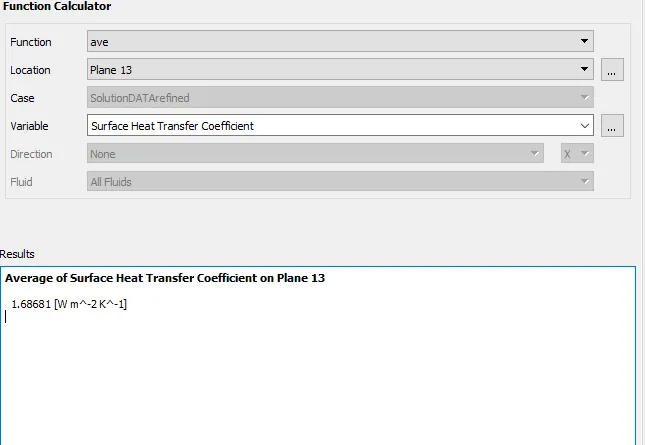

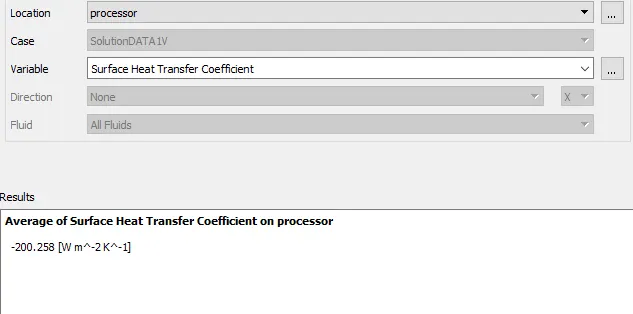

Heat Transfer Coefficient:

This is when we rin the cases for Velocity as 1ms-1 and 3ms-1 respectively by the Processor.

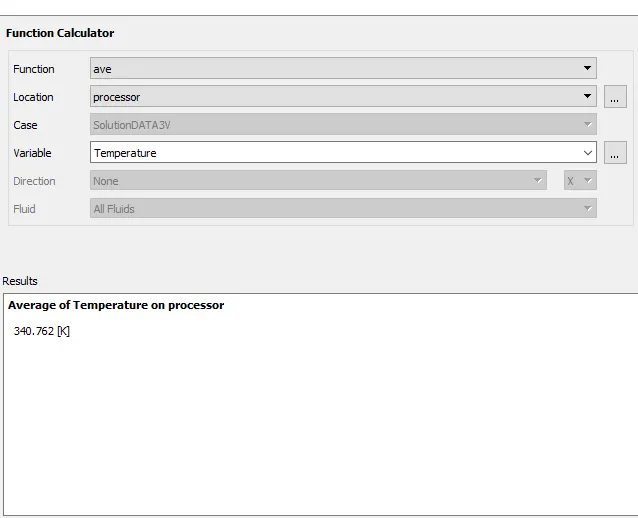

Case 3ms-1

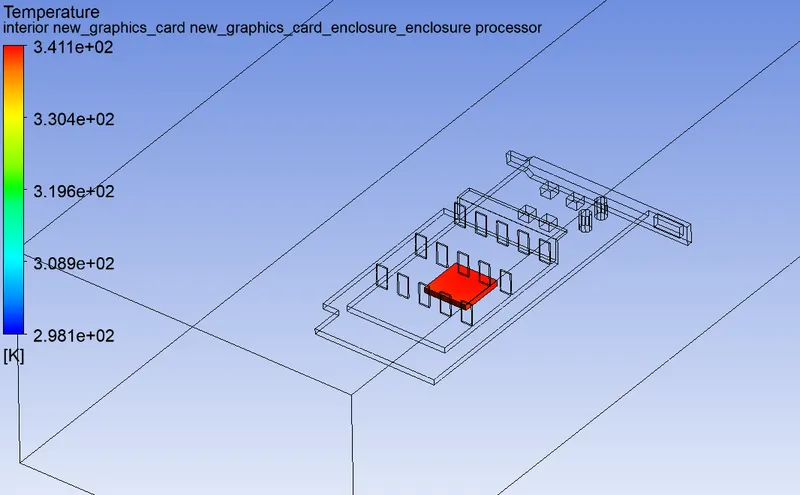

Max temps by the processor is 340K

3. Prove that the simulation has achieved convergence with appropriate images and plots.

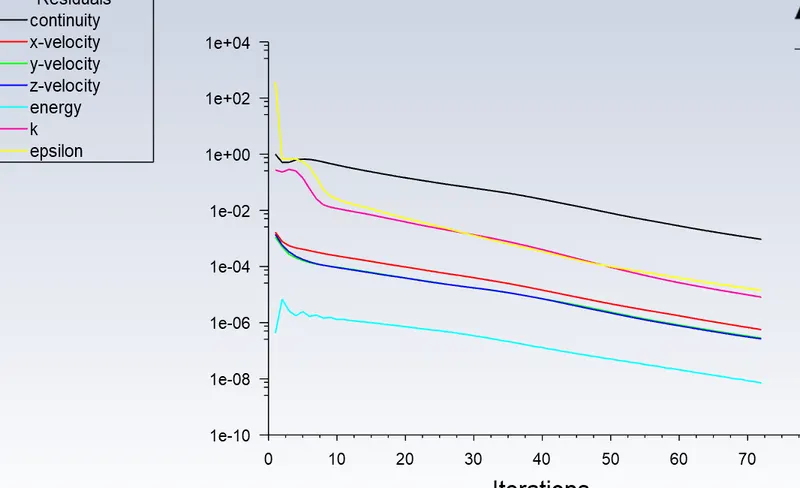

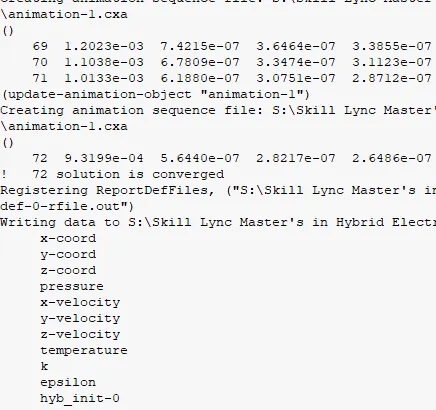

Here we can see that at 72nd Iterations the solver says that the solution is converged. And we can confirm this by looking at Residual Plots.

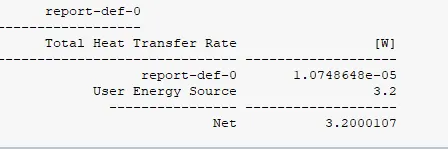

Refined setup:

Base Mesh setup:

4. Identify potential hotspots on the model.

For identifying the Hotspots we have studied and analyzed several cases for the temperature and HEAT transfer coefficient.

so we know that the most potential Hotspots are around the Fin base and the whole microprocessor.
