Week 6- Challenge
OBJECTIVE
The Hood model is to be meshed with the below-mentioned quality criteria and assign thickness.
Target Element Length = 5mm
| S.N | Quality Criteria | Value |
| 1 | Aspect Ratio | 5 |
| 2 | Skewness | 45 |
| 3 | Warping | 15 |
| 4 | Taper | 0.5 |
| 5 | Min. Length | 2mm |
| 6 | Max. Length | 8mm |
| 7 | Min angle Quad | 45 |
| 8 | Max angle Quad | 135 |
| 9 | Min angle Tria | 20 |
| 10 | Max angle Tria | 120 |
| 10 | Tria % | 10 |

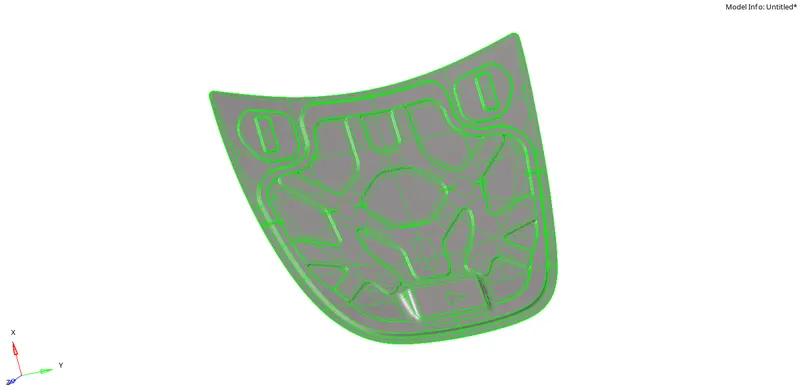

CAD MODEL
COMPONENTS
- Hinge
- LATCH
- INNER PANEL
- OUTER PANEL
PROCEDURE
- The given model is imported using the Import geometry subpanel and the model is selected and imported

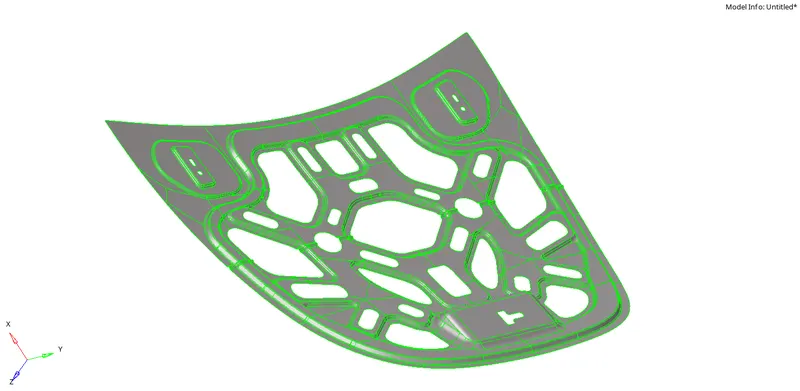

MIDSURFACE
- Now the mid surface of each component is generated using the mid surface(Skin offset ) option in the geometry panel since it is a sheet metal component. Then geometry clean up is done and made sure that there is no free edges other than holes and edges

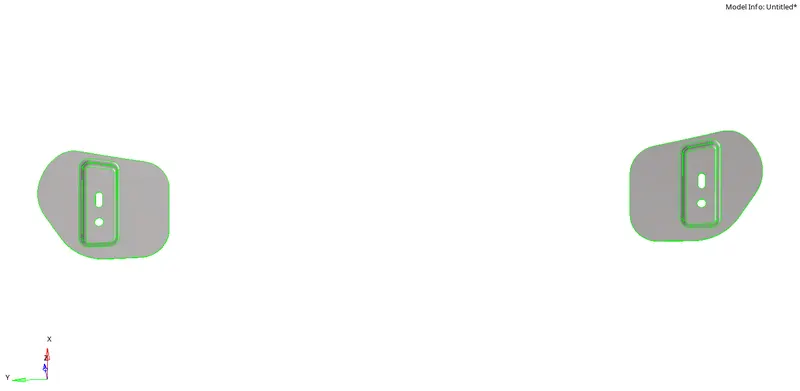

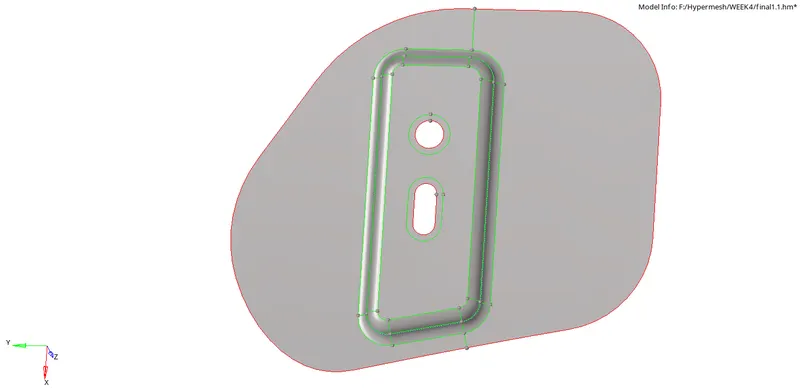

HINGE

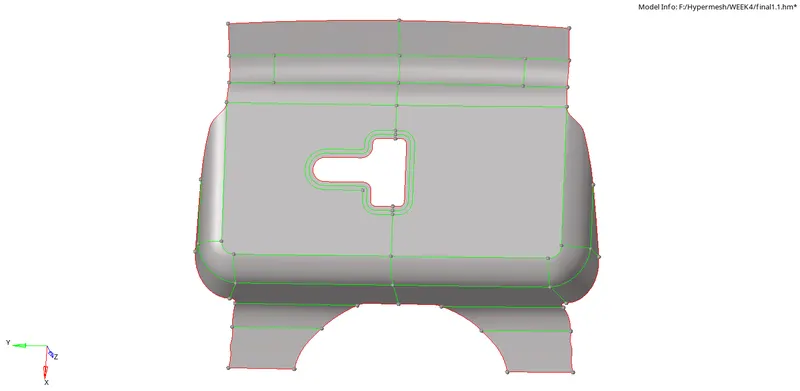

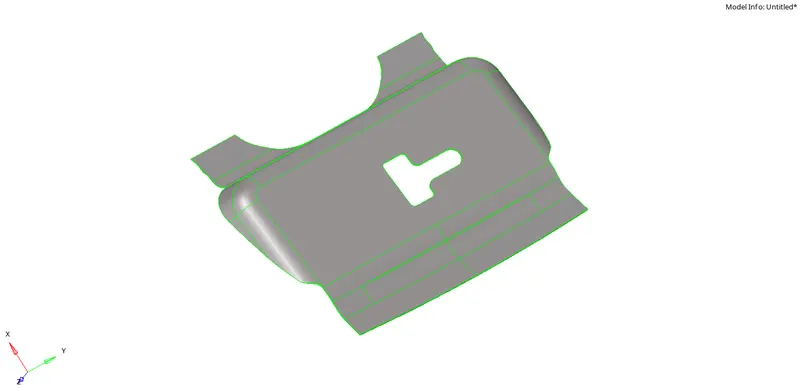

LATCH

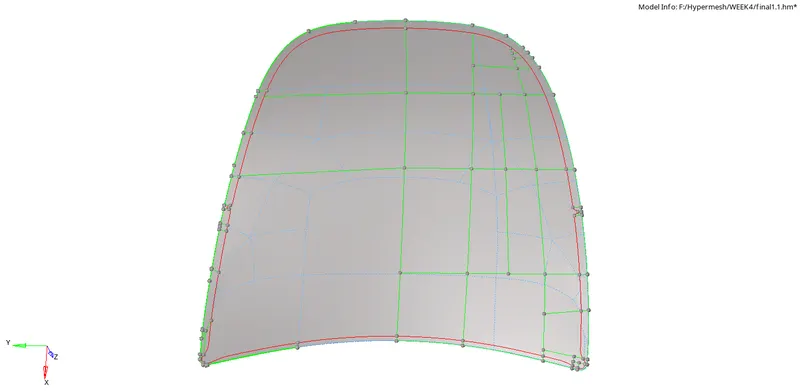

OUTER PANEL
MESH
- Since the inner and the outer panel are symmetric components one half is split, meshed using the auto mesh option with recommended target size, and reflected on the other half.

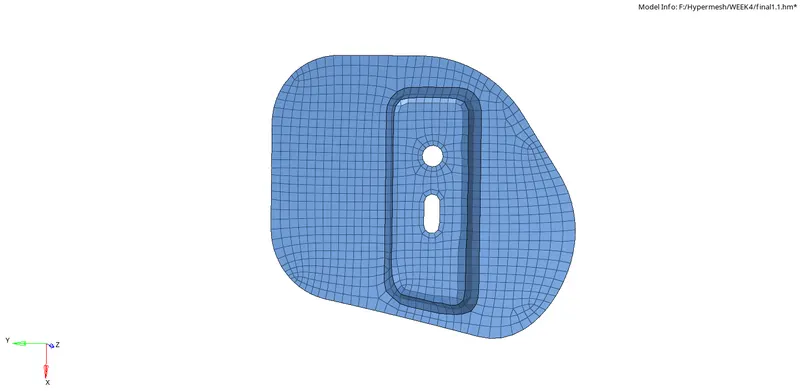

HINGE

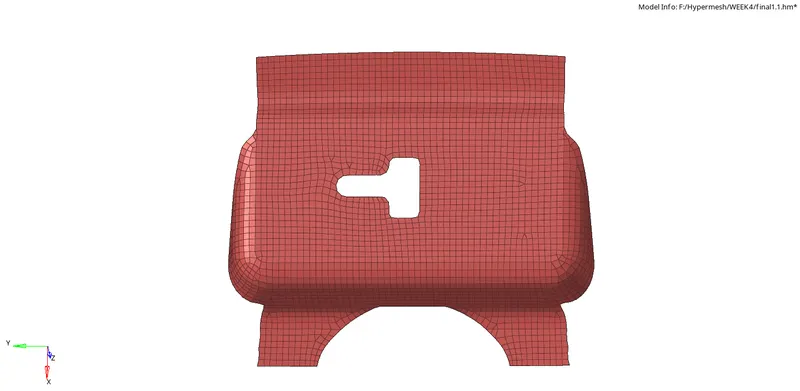

LATCH

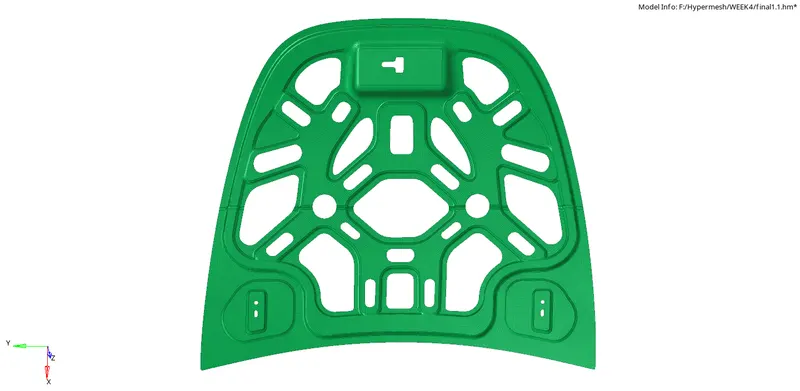

INNER PANEL

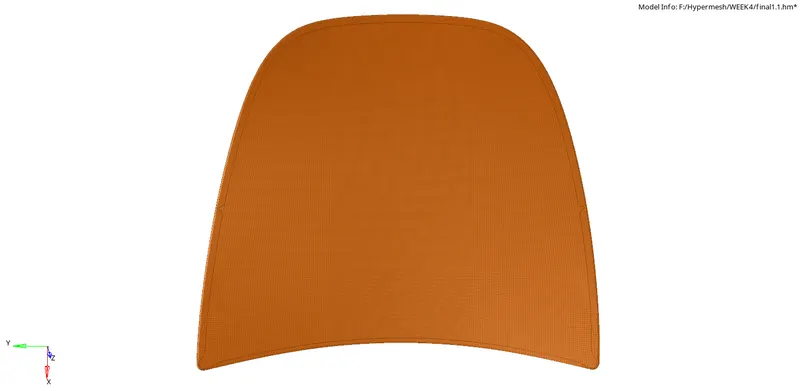

OUTER PANEL

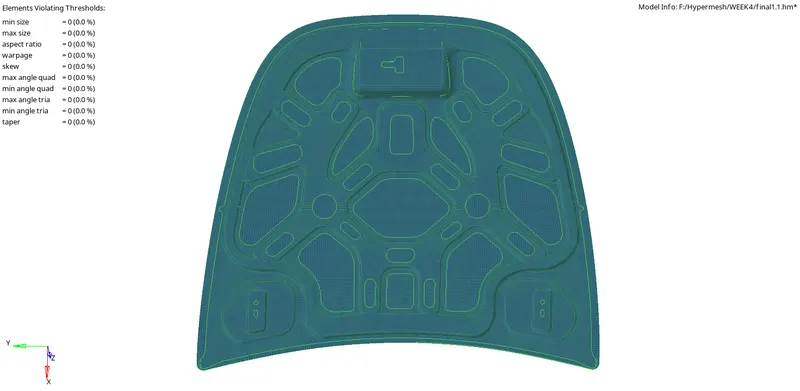

QUALITY CHECKUP
Tria

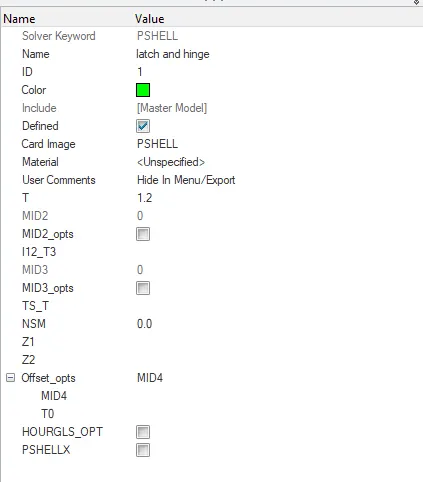

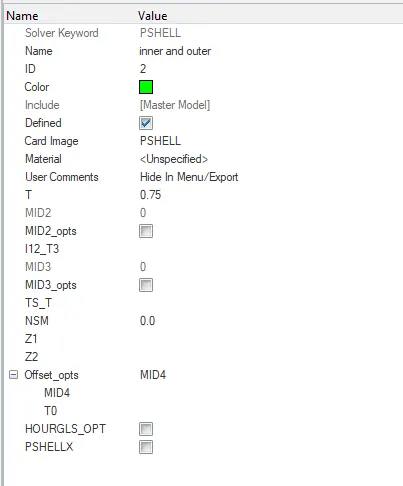

- Then the thickness is assigned to each parts from property card

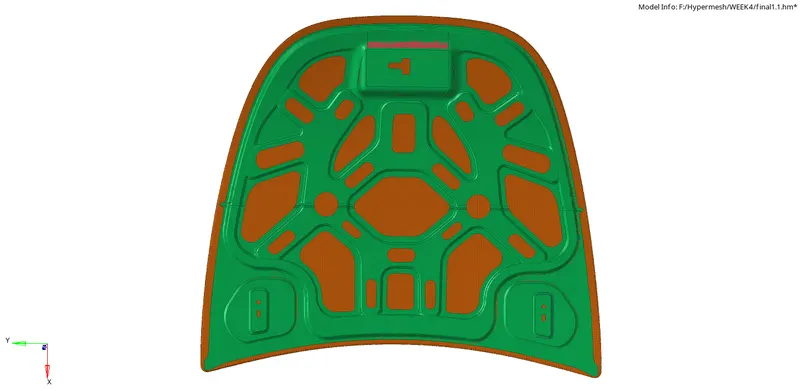

RESULT
