Week 5 - Curve fitting

Curve fitting can be defined as the process of constructing a curve or mathematical function that has the best fit to a series of data points, subject to constraints.

In this project, the curve for Specific heat as a function of Temperature will be plotted and the plot will be compared with the actual plot.

The specific heats at different temperatures will be provided as inputs.

Initially, we will be writing a program for linear and cubic polynomial and check the results with the actual plot. Based on the results obtained, we are going to figure out the best possible ways to have a perfect fit.

popt: It gives an array with the optimal values for the parameters so that the sum of the squared residuals of data is minimized

pcov: It is a 2d array with the estimated covariance of the parameters in popt. It can be used to calculate the the standard deviation errors of popt.

np.array(temperature): This function stores the values of temperature in the form of array and passes it to the function numpy.

* in *popt: It stores the values of the constant parameters(a,b,c) in the array popt.

Type of curve fitting including:

• Interpolation, Where you discover a function that is exact to the data points. Since this assumes no measurement error, it has limited application to real-life scenarios.
• Smoothing is when we find a function that is an approximate fit to the data points, but we give room for error and we allow our actual points to be near, but not necessarily on the line; given the error is minimized overall.

Linear and Polynomial Curve fitting

* Linear curve fitting, or linear regression, is when the data is fit to a straight line. Although there might be some curve to your data, a sr=tring line provides a reasonable enough fit to make predictions.

* Polynomial curve fitting is when we fit our data to the graph of a polynomial function. the same least-squares method can be used to find the polynomial, of a given degree, that has a minimum total error.

OLUTION STEPS :
1. At first, necessary modules such as math,matplotlib,Numpy,scipy are imported to perform their respective functions.
2. Two functions are defined which return linear and cubic equations.
3. The following data is loaded into Python by placing it in the right directory and a function read_file is created. For loop is used to run each line by using 'open' command with 'r' to read it.
4. From the data obtained, two individual column matrices of temperature and specific heat are derived.
5. For curve fitting, 'popt' and 'pcov' are used as output fostoring parameters obtained by 'curve_fit' command which takes input as the required function(linear or cubic) , temperature, and Cp. Now, another variable named 'fit_cp' stores the new values of Cp calculated by using temperature array.
6. Plots of both raw dataset and predicted dataset are made and compared to find fitness characteristics for both the curves for both linear and cubic polynomial.

Program:

#curve fit for linear equation
import numpy as np
import matplotlib.pyplot as plt
from scipy.optimize import curve_fit
#curve fit
def func(t,a,b):
	return a*t + b
#reading thermodynamic data file
def read_file():
	temprature = []
	cp = []
	for line in open('data1', 'r'):
		values = line.split(',')
		temprature.append(float(values[0]))
		cp.append(float(values[1]))
	return [temprature,cp]

#main program
temperature, cp = read_file()
popt, pcov = curve_fit(func, temperature, cp)
fit_cp = func(np.array(temperature), *popt)

plt.plot(temperature, cp,, linewidth=3)
plt.plot(temperature, fit_cp, color='red',linewidth=3)
plt.xlabel('temperature[k]')
plt.ylabel('cp')
plt.title('Specific Heat Vs Temperature')
plt.legend(['Actual data','Curve fit'])
plt.grid()
plt.show()

#curve fit for quadratic equation
import numpy as np
import matplotlib.pyplot as plt
from scipy.optimize import curve_fit
#curve fit
def func(t,a,b,c):
	return a*pow(t,2) + b*t + c
#reading thermodynamic data file
def read_file():
	temprature = []
	cp = []
	for line in open('data1', 'r'):
		values = line.split(',')
		temprature.append(float(values[0]))
		cp.append(float(values[1]))
	return [temprature,cp]

#main program
temperature, cp = read_file()
popt, pcov = curve_fit(func, temperature, cp)
fit_cp = func(np.array(temperature), *popt)

plt.plot(temperature, cp,, linewidth=3)
plt.plot(temperature, fit_cp, color='red',linewidth=3)
plt.xlabel('temperature[k]')
plt.ylabel('cp')
plt.title('Specific Heat Vs Temperature')
plt.legend(['Actual data','Curve fit'])
plt.grid()
plt.show()


#curve fit for cubic equation
import numpy as np
import matplotlib.pyplot as plt
from scipy.optimize import curve_fit
#curve fit
def func(t,a,b,c,d):
	return  a*pow(t,3)+b*pow(t,2)+c*t+d
#reading thermodynamic data file
def read_file():
	temprature = []
	cp = []
	for line in open('data1', 'r'):
		values = line.split(',')
		temprature.append(float(values[0]))
		cp.append(float(values[1]))
	return [temprature,cp]

#main program
temperature, cp = read_file()
popt, pcov = curve_fit(func, temperature, cp)
fit_cp = func(np.array(temperature), *popt)

plt.plot(temperature, cp,, linewidth=3)
plt.plot(temperature, fit_cp, color='red',linewidth=3)
plt.xlabel('temperature[k]')
plt.ylabel('cp')
plt.title('Specific Heat Vs Temperature')
plt.legend(['Actual data','Curve fit'])
plt.grid()
plt.show()

Results:

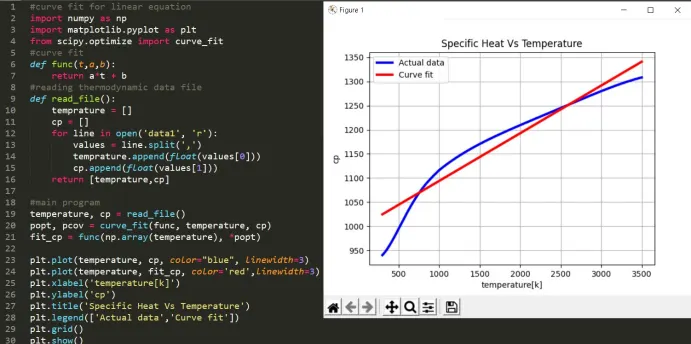

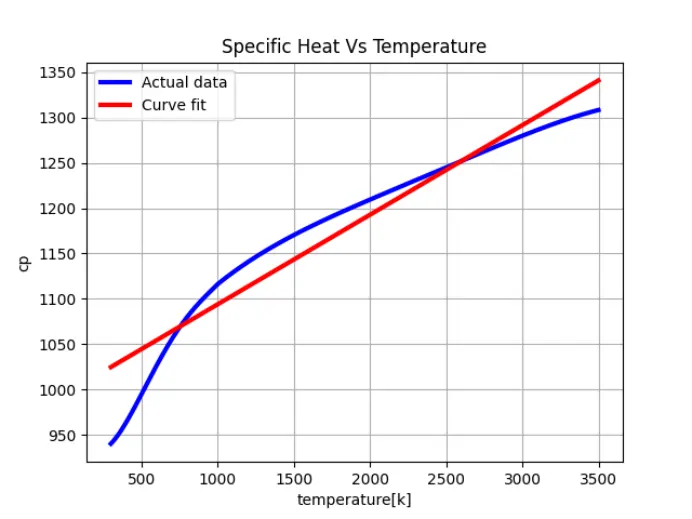

Linear curve fit:

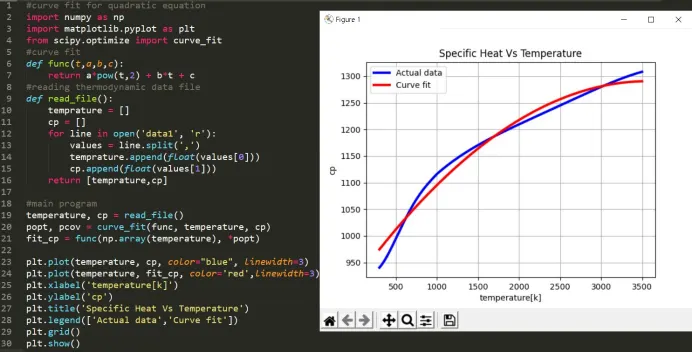

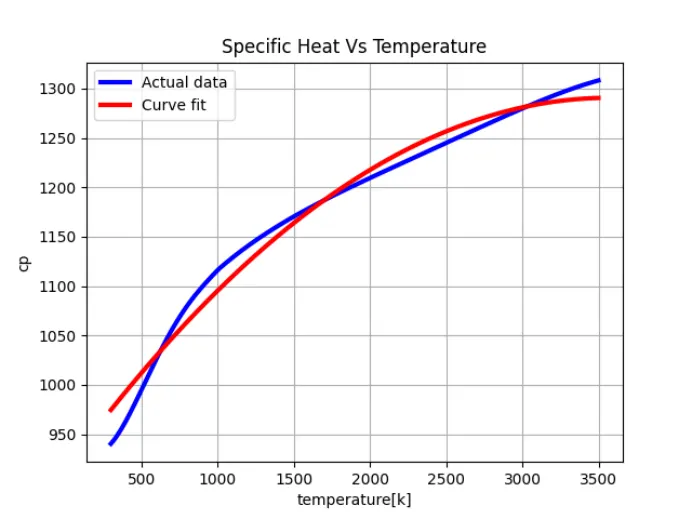

Quadratic Curve fit:

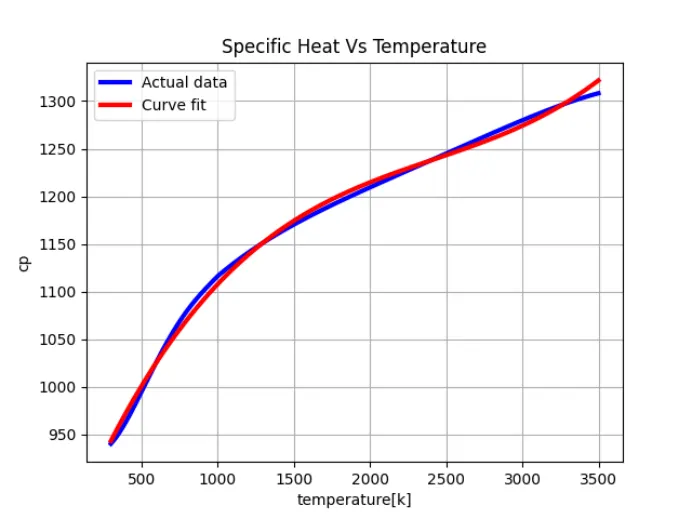

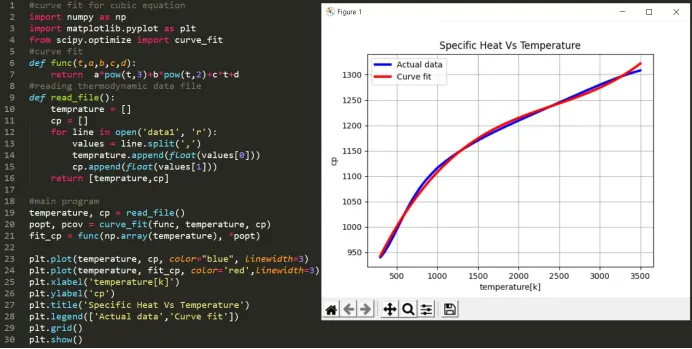

Cubic Curve fit:

It is clear from the above figures that the curve fits better when the degree of the polynomial increases. It can be observed that the deviation of the curve fit with the actual data is more for linear equation and gradually the deviation decreases with the increase in the order of the polynomial. If we consider fourth, fifth order polynomials etc then the curve fit will overlap with the actual data.
