Week 5 Challenge : Surface wrap on Automotive Assembly

Aim = For the given models, check for the geometrical errors and delete surfaces which are unwanted for Surface wrap

After clearing geometry, Merge all 3 models and perform surface wrap.

SURFACE WRAP = Surface Wrapping Use to surface wrap a model, add an external volume, and generate a quality mesh

we can't perform surface wrap without external cleanup . internal we won't mind.

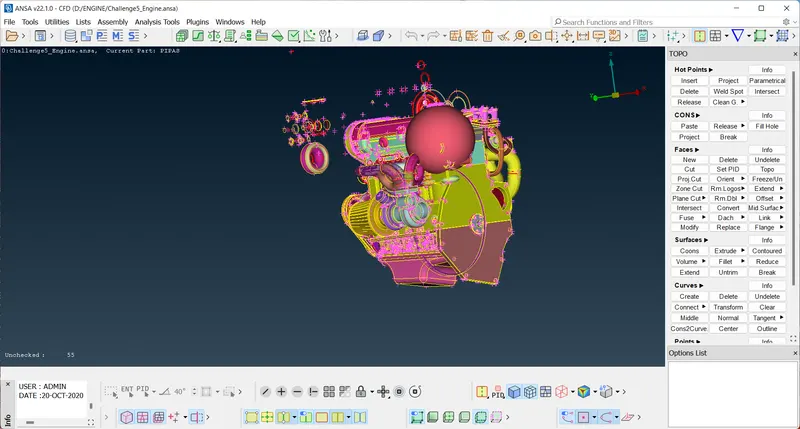

model 1: engine= we have to clear all the external errors to do a wrap

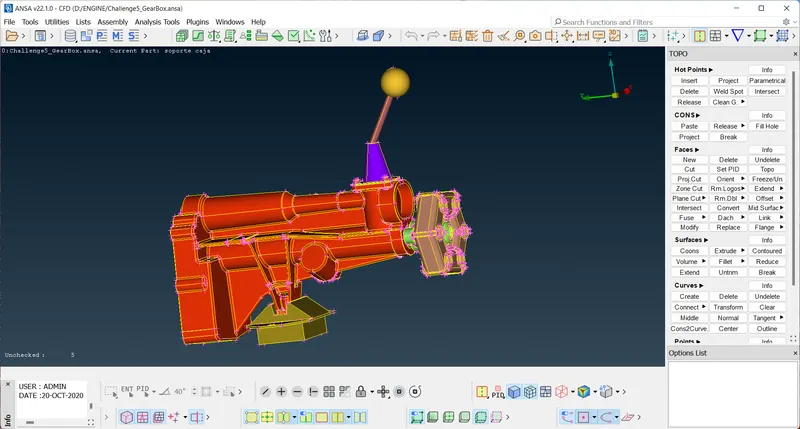

model 2: gear box

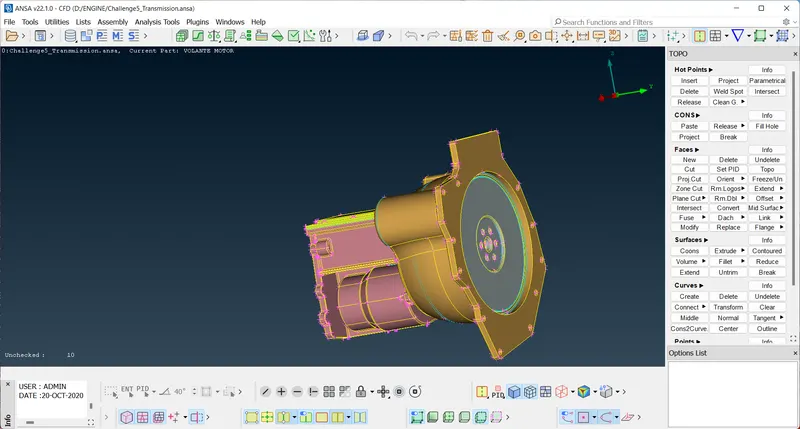

model3 = transmission

after geometry cleanup

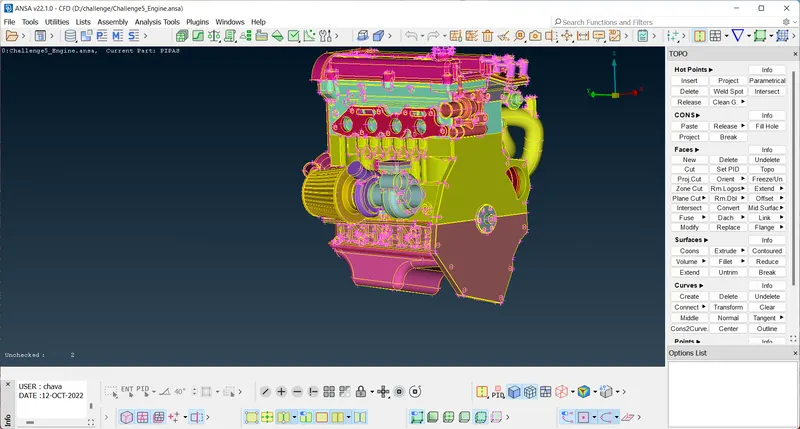

model 1

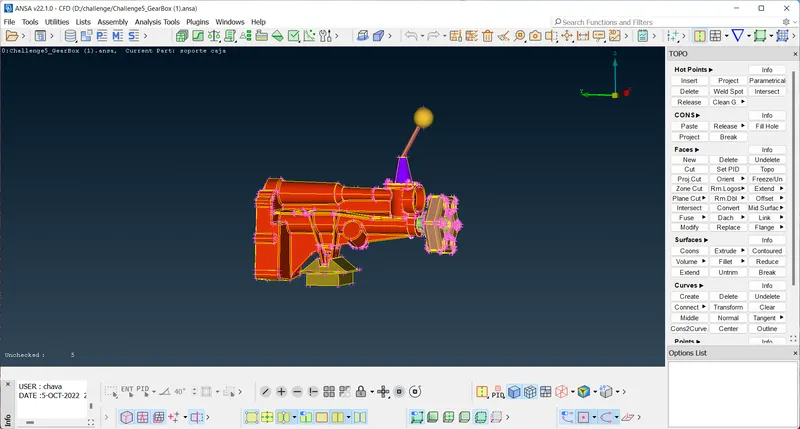

model2

model3

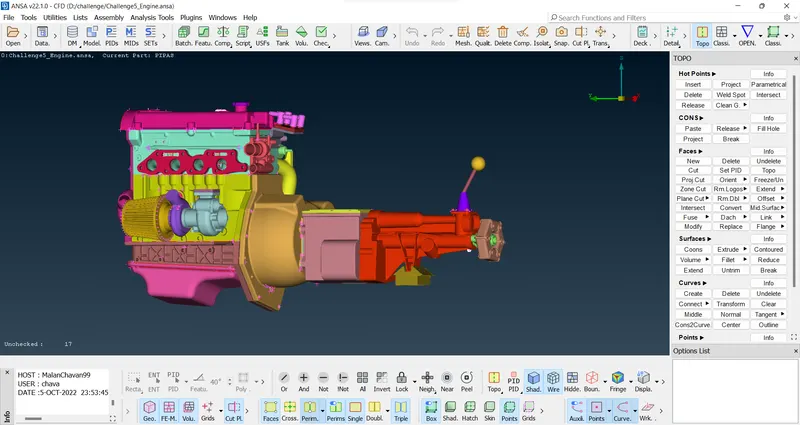

in this above image we have used the merge option to join the above three models to perform the wrap

and we have to close all the holes in the model after merge

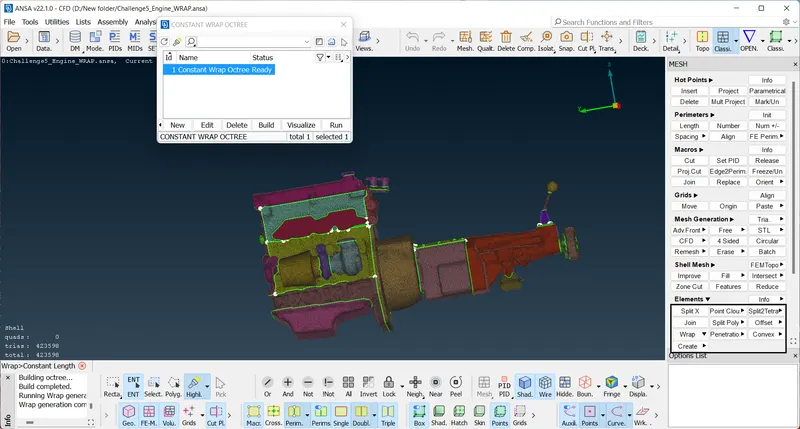

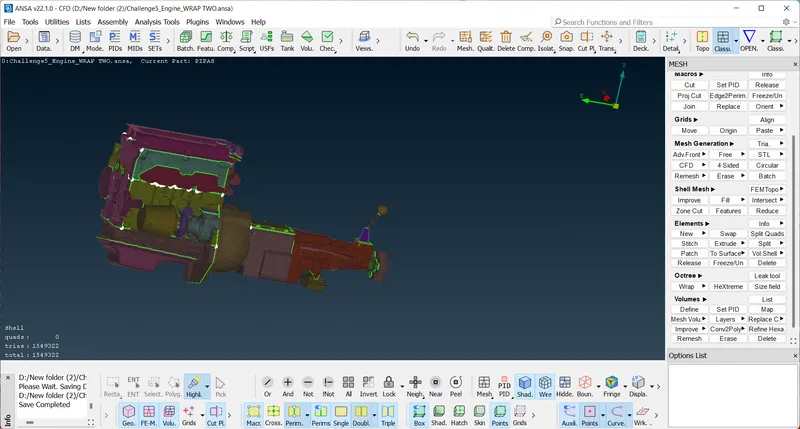

Final model after performing surface wrap

the final model in above link

Result = for given models we have performed the surface wrap after cleaning the external errors .
