Week 5.2 - Multi Level Meshing

Problem statement

The Icepak model is given for this assignment. Open and unpack the given hanging_node.tzr model.

Without any modifications, the model results in about 700,000 elements. Note that this mesh count results from using the non-conformal meshing technique, which reduces mesh bleeding and mesh count. However, this mesh does not fully resolve the fine-level geometric features of the CAD objects. You can reduce the mesh count and improve the mesh resolution on and around the CAD objects by using the multi-level meshing technique. This procedure starts with a coarse background mesh and resolves fine level features through a series of successive mesh refinements. By using multi-level meshing and the uniform mesh parameters feature, you can reduce the mesh count to approximately 500,000 elements and improve mesh resolution.

2. Generate the Mesh:
   1. Create non-conformal mesh assembly
   2. Use mesh separately option with slack values
   3. Use object parameters
   4. Use set uniform parameters and use average on 1 assembly, in multi-level meshing tab allow multi-level meshing up to level 2 for the objects.
   5. Use the same technique of 1
   6. Generate mesh.
   7. Observe in mesh reduction
   8. Do visual inspection
   9. Check for quality

Model

File>> open>> unpack model>> hangingnode.tzr file- this opens the model and click on view>> default shading- solid

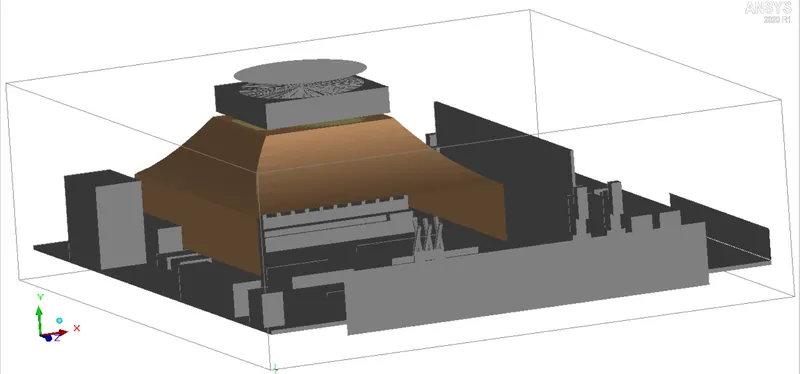

This model has two CAD models

Sheet metal HS

Fan guide sweep

The mesh refinement is done to capture the model accurately. The mesh modelling is done using coarse method to reduce the mesh count and mesh bleeding by non-conformal technique.

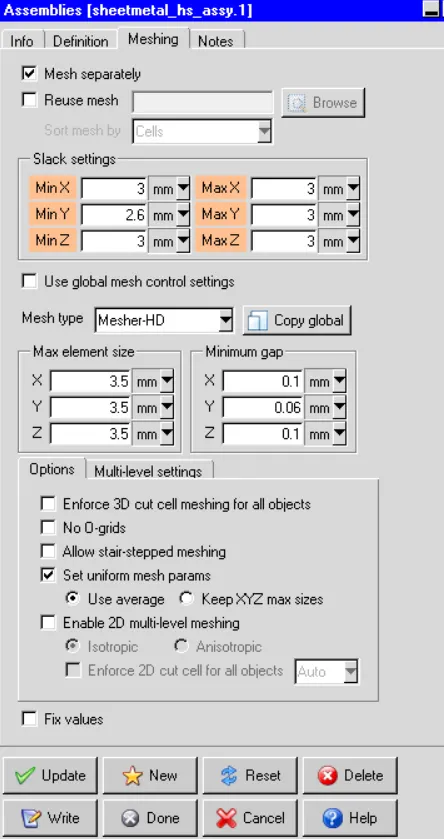

Sheet metal Assembly settings:

Slack settings for assembly meshing

Min x = 3mm

Max x =3mm

Min y= 2.6 mm

Max y= 3 mm

Min z = 3mm

Max z = 3mm

Mesh type

Maximum element size in x = 3.5 mm

Maximum element size in y = 3.5 mm

Maximum element size in z = 3.5 mm

Min gap x = 0.1mm

Min gap y = 0.06mm

Min gap z = 0.1mm

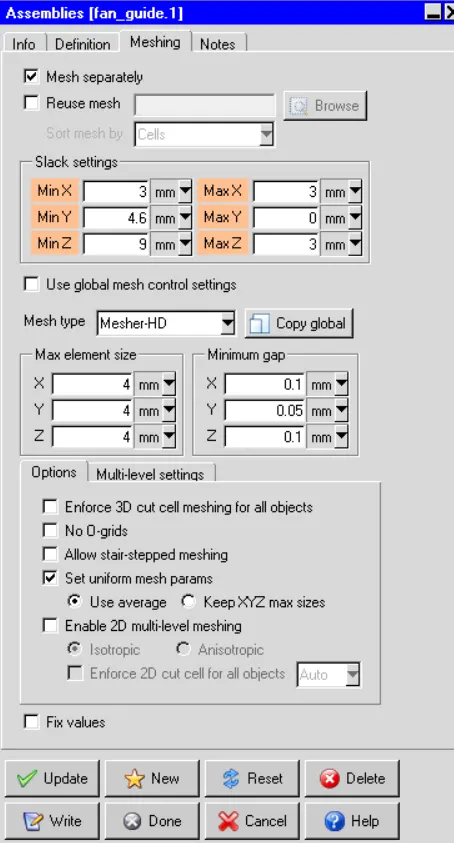

Fan guide Assembly settings:

Slack settings for assembly meshing

Min x = 3mm

Max x =3mm

Min y= 0

Max y= 4.6 mm

Min z = 3mm

Max z = 9mm

Mesh type

Maximum element size in x = 4mm

Maximum element size in y = 4mm

Maximum element size in z = 4mm

Min gap x = 0.1mm

Min gap y = 0.05mm

Min gap z = 0.1mm

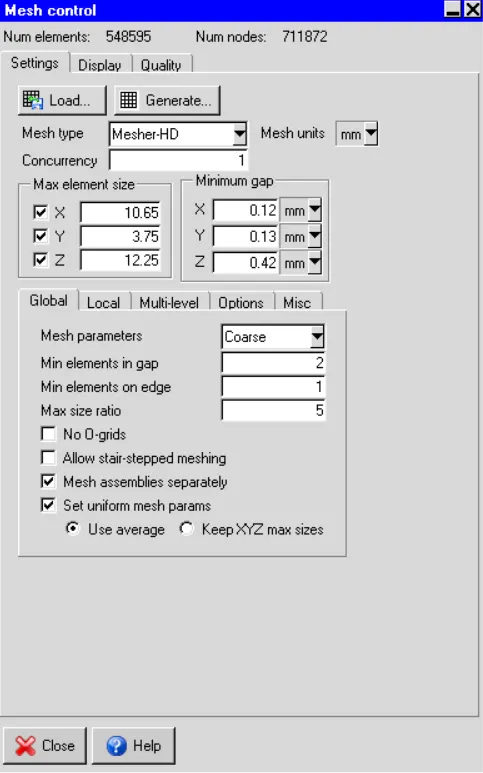

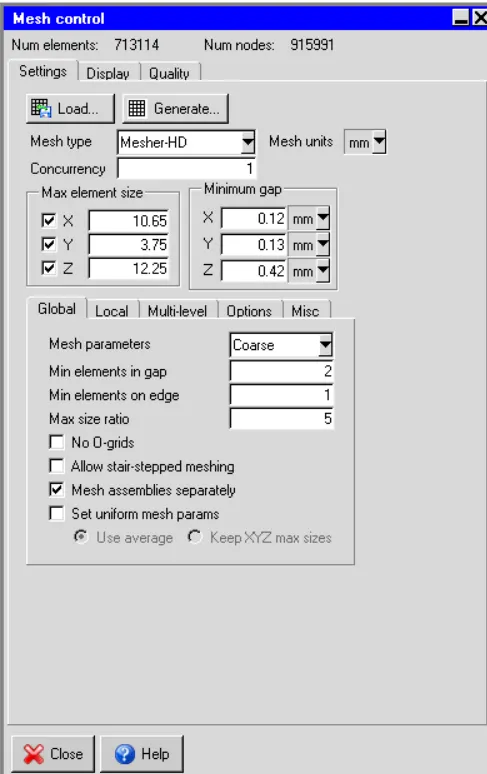

Global mesh settings:

Maximum element size in x = 10mm

Maximum element size in y = 3.75mm

Maximum element size in z = 12.5mm

Min gap x = 0.12mm

Min gap y = 0.13mm

Min gap z = 0.42mm

Mesh parameter: coarse

Visual inspection

final mesh count

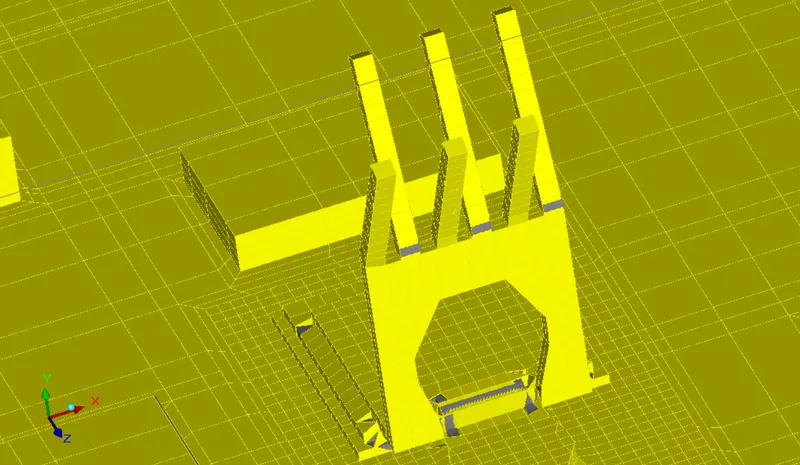

Sheet metal

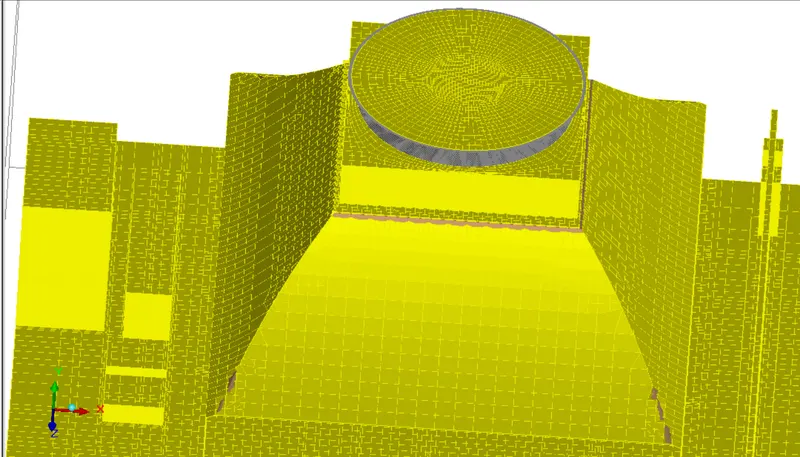

Fan guide

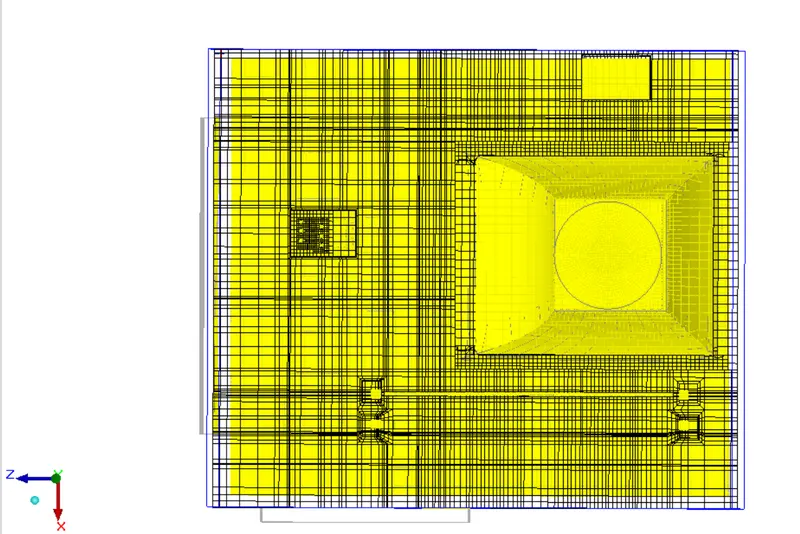

Meshing along x direction

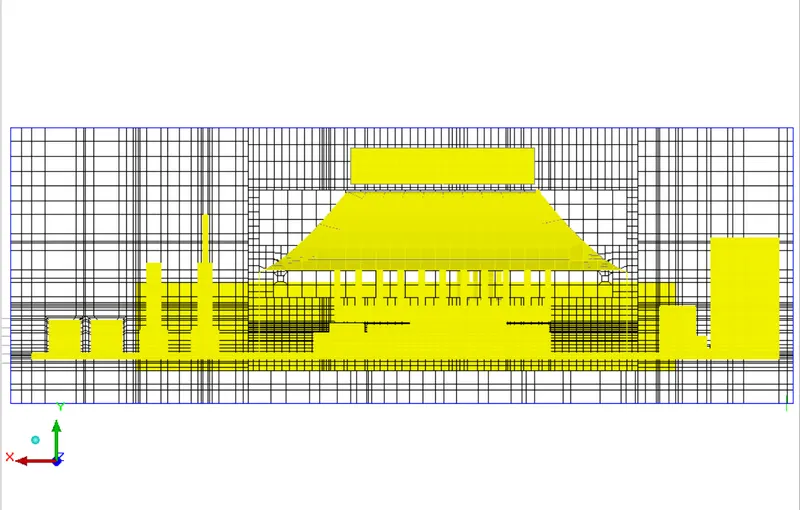

Meshing along y direction

Meshing along z direction

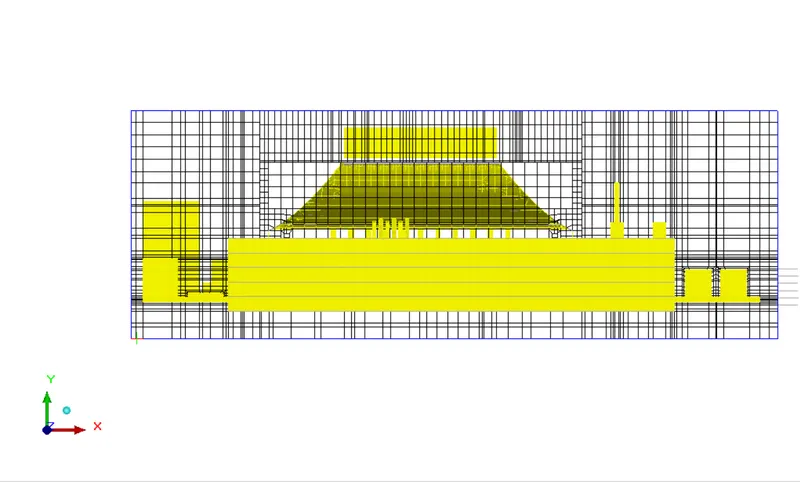

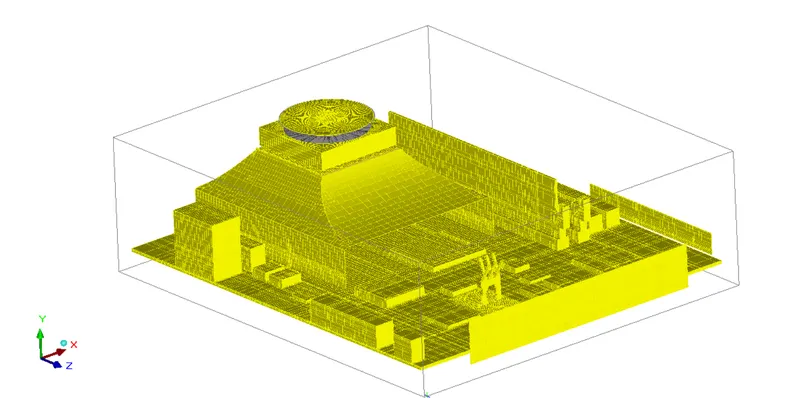

Overall mesh

Mesh verification:

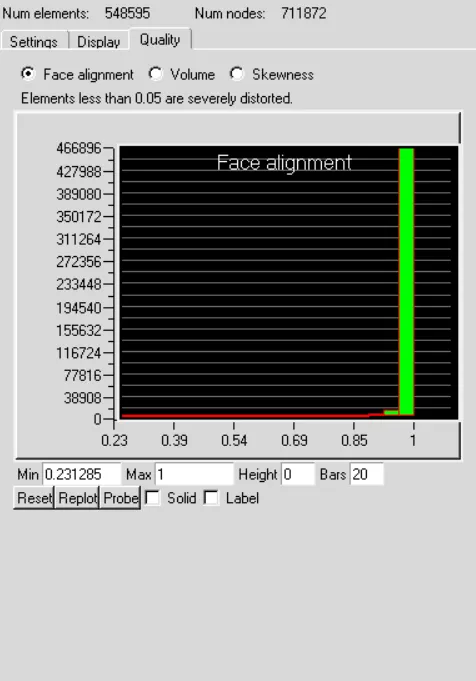

Face alignment:

Measures the mesh quality by face alignment index.

The value of face alignment ranges from 0 to 1. Value greater than 0.1 is preferred and greater than 0.15 is better.

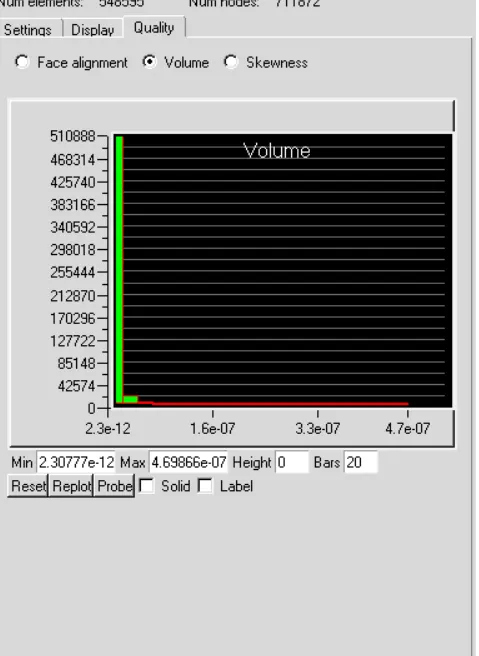

Volume:

Preferable volume mesh should be 1e-12 for single precision and 1e-15 for double precision.

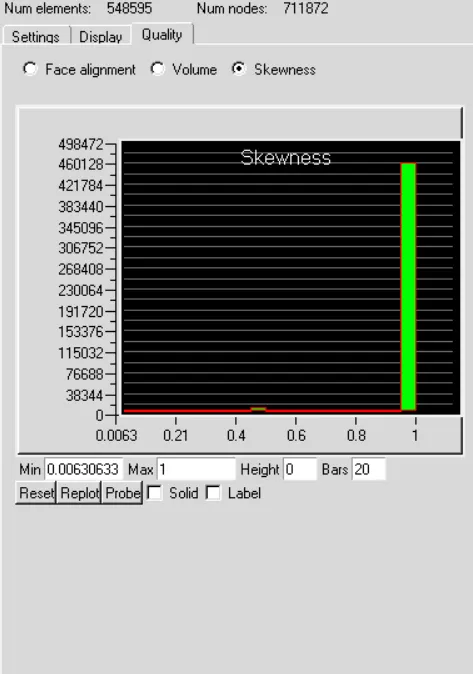

Skewness:

It determines the deviation of the mesh from its ideal shape.

Conclusion:

The mesh count has been reduced by 2 lakhs and the generated mesh is inspected by visualizing the mesh and checking the mesh quality parameters.
