Week 5.1 - Mid term project - Solving the steady and unsteady 2D heat conduction problem
1. Steady-state analysis & Transient State Analysis
Solve the 2D heat conduction equation by using the point iterative techniques that were taught in the class. The Boundary conditions for the problem are as follows;
Top Boundary = 600 K
Bottom Boundary = 900 K
Left Boundary = 400 K
Right Boundary = 800 K
You will implement the following methods for solving implicit equations.
1. Jacobi
2. Gauss-seidel
3. Successive over-relaxation
Your absolute error criteria are 1e-4.
Solution:
Here we are going to understand the concept of the 2d heat conduction equation of both stead and transient state of flow. We need to understand the derivation part where the terms are being discretized sequentially and then we move on to the coding part. There are few things that need to be considered before going over it is that for steady-state we need to apply iterative solvers and for transient, we have to solve both the schemes we seen in the previous section as IMPLICIT and EXPLICIT.
Now we are going to understand the derivation part of the steady-state condition.
Solving this by
1. Jacobi
2. Gauss-seidel
3. Successive Over Relaxation SOR
since d2t/dx2 + d2T/dy2 = 0, its has elliptic nature properties which we an discretize them using central differencing scheme
now what happens when represent them as jacobi
for Gauss seidel
and SOR is enhanced gauss-seidel method where nth time step and n+1 time step is all same.
where omega is the relaxation factor as 1.4.
now here we begin the coding part which is done in MATLAB where these all terms are considered by applying for loop and while loop.
Program of steady state 2D heat conduction equation.
% Solving Steady and unsteady 2D heat conduction problem
% Steady state conduction
% Iterative solver - Jacobi, Gauss -seidel, Relaxation methods
clear all
close all
clc
%initial conditions
%L = 1
nx = 10;
ny = 10;
x = linspace(0,1,nx);
y = linspace(0,1,ny);
dx = x(2) - x(1);
dy = y(2) - y(1);
% given data of boundary condition
% initial temp condition
t = 300*ones(nx,ny);
t(:,1) = 400;
t(1,:) = 600;
t(:,ny) = 800;
t(nx,:) = 900;
% defining the temperature at corner points
t(1,1) = 500;
t(nx,ny) = 850;
t(1,ny) = 700;
t(nx,1) = 650;
dt = 1e-2; %time step
told=t;
error = 100;
tol = 1e-4;
k = 2*(dx^2+dy^2)/(dx^2*dy^2);
% k2 = (dy^2)/(2*(dx^2+dy^2));
method = input('Iterative method = '); %iterative method selection
%JACOBI ITERATIVE METHOD
if (method==1)
tic;
jacobi = 1;
while(error>tol)
for i = 2:(nx-1)
for j = 2:(ny-1)
t(i,j) = (((told(i-1,j)+told(i+1,j))/(dx^2))+((told(i,j+1)+told(i,j-1))/(dy^2)))/k;
end
end
error = max(max(abs(t-told)));
told = t;
jacobi = jacobi+1;
time_taken = toc;
end
%plotting
figure(1)
contourf(x,y,t,'ShowText','on');
colormap(jet);
colorbar;
xlabel('X')
ylabel('Y')
text1 = sprintf('number of iteration = %d', jacobi);
text2 = sprintf('simulation time = %f', time_taken);
title({'Steady state heat condustion profile by jacobi'; text1; text2});
end
%GAUSS-SEIDEL ITERATIVE METHOD
if (method==2)
tic;
gauss = 1;
while(error>tol)
for i = 2:(nx-1)
for j = 2:(ny-1)
t(i,j) = (((t(i-1,j)+told(i+1,j))/(dx^2))+((told(i,j+1)+t(i,j-1))/(dy^2)))/k;
end
end
error = max(max(abs(t-told)));
told = t;
gauss = gauss+1;
time_taken = toc;
end
%plotting
figure(2)
contourf(x,y,t,'ShowText','on');
colormap(jet);
colorbar;
xlabel('X')
ylabel('Y')
text1 = sprintf('number of iteration = %d', gauss);
text2 = sprintf('simulation time = %f', time_taken);
title({'Steady state heat condustion profile by Gauss-Seidel'; text1; text2});
end
%SUCCESSIVE OVER RELAXATION ITERATIVE METHOD
if (method==3)
tic;
sor = 1;
omega = 1.4; %over relaxation factor
while(error>tol)
for i = 2:(nx-1)
for j = 2:(ny-1)
term1 =(t(i-1,j)+told(i+1,j))/(dx^2);
term2 =(told(i,j+1)+t(i,j-1))/(dy^2);
t(i,j) = ((told(i,j)*(1-omega)))+(omega*(term1+term2))/k;
end
end
error = max(max(abs(t-told)));
told = t;
sor = sor+1;
time_taken = toc;
end
%plotting
figure(3)
contourf(x,y,t,'ShowText','on');
colormap(jet);
colorbar;
xlabel('X')
ylabel('Y')
text1 = sprintf('number of iteration = %d', sor);
text2 = sprintf('simulation time = %f', time_taken);
text3 = sprintf('over relaxation factor = %f', omega);
title({'Steady state heat condustion profile by Successive Over Relaxation'; text1; text2; text3});
end
Output:

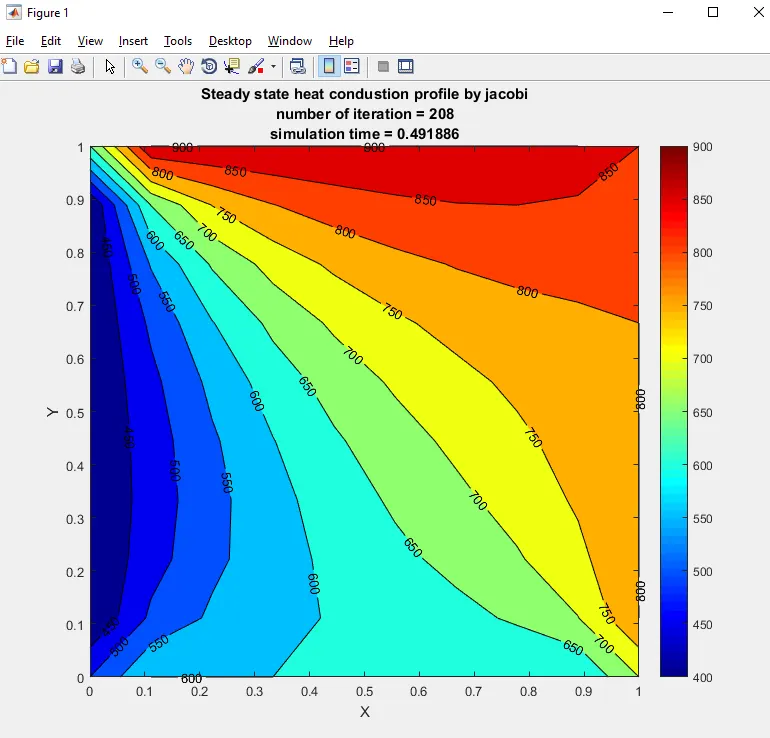

By Jacobi Method
By Gauss-seidel Method

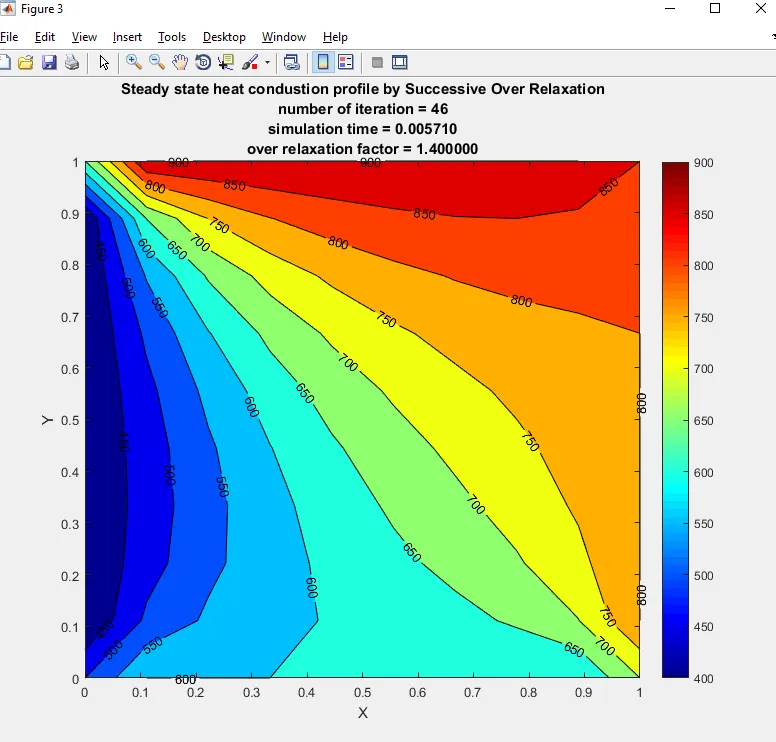

By Successive Over Relaxation method
From above results we can see that the SOR method gives a better in terms of iterations carried out by them and no. of simulations time.
Transient (Unsteady) state simulation:
Moving on to the Transient State simulation where we are going to work on Implicit and explicit schemes.
1. Implicit schemes
2. Explicit schemes
What is these schemes?
Explicit and implicit methods are approaches used in numerical analysis for obtaining numerical approximations to the solutions of time-dependent ordinary and PDEs, as is required in computer simulations of physical process. Explicit methods calculate the state of a system at a later time from the state of the system at the current time, while implicit methods find a solution by solving an equation involving both the current state of the system and the later one. Mathematically, if
is the current system state and
is the state at the later time
is a small time step), then, for an explicit method
while for an implicit method one solves an equation
By derivation we have here:
Applying the first heat conduction equation in (1) to node at the time moment of , the equation can be rewritten as
The partial differential in the two sides of (2) can be approximated by difference quotient. The temperature item in the right of the equal sign can be approximated by first-order time forward difference quotient.
The second-order partial differential in the left of the equal sign can be approximated by the central difference quotient.
Substituting the value, we can get the difference equation of
Equation is the difference equation of heat conduction equation, and the truncation error [34] is O(DT + x2. y2).
Assuming that deltax = deltay = delta and substituting it into the latest eq., we can obtain
While we discretize the whole equation we get here.
By substituting the discrtize values to Jacobi, Gauss-seidel and SOR. we get
Jacobi
Gauss-seidel
Over Relaxation
Below is Transient State Implicitly, the Original Code that was written in MATLAB:
% Solving Steady and Transient 2D heat conduction problem
% Transient state solution with IMPLICIT
% Iterative solver - Jacobi, Gauss -seidel, Relaxation methods
clear all
close all
clc
%initial conditions
%L = 1
nx = 10;
ny = 10;
nt = 300; % No.of steps
x = linspace(0,1,nx);
y = linspace(0,1,ny);
dx = x(2) - x(1);
dy = y(2) - y(1);
% given data of boundary condition
% initial temp condition
t = 300*ones(nx,ny);
t(:,1) = 400;
t(1,:) = 600;
t(:,ny) = 800;
t(nx,:) = 900;
% defining the temperature at corner points
t(1,1) = 500;
t(nx,ny) = 850;
t(1,ny) = 700;
t(nx,1) = 650;
dt = 0.01; %time step
told=t;
alpha = 0.3; % Thermal diffusivity
tprev_dt = told;
tol = 1e-4;
k1 = alpha*dt/(dx^2);
k2 = alpha*dt/(dy^2);
method = input('Iterative method = '); %iterative method selection
%JACOBI ITERATIVE METHOD
if (method==1)
tic;
jacobi = 1;
for p = 1:nt
error =100;
while(error>tol)
for i = 2:(nx-1)
for j = 2:(ny-1)
term1 = (1+(2*k1)+(2*k2))^-1;
term2 = k1*term1;
term3 = k2*term1;
h = (told(i-1,j)+told(i+1,j));
v = (told(i,j+1)+told(i,j-1));
t(i,j) = ((tprev_dt(i,j)*term1)+(h*term2)+(v*term3));
end
end
error = max(max(abs(t-told)));
told = t;
jacobi = jacobi+1;
end
tprev_dt = t ;
end
time_taken = toc;
%plotting
figure(1)
contourf(x,y,t,'ShowText','on');
colormap(jet);
colorbar;
xlabel('X')
ylabel('Y')
text1 = sprintf('number of iteration = %d', jacobi);
text2 = sprintf('simulation time = %f', time_taken);
title({'Transient state heat conduction profile Implicit-Jacobi'; text1; text2});
end
%GAUSS-SEIDEL ITERATIVE METHOD
if (method==2)
tic;
gauss = 1;
for p = 1:nt
error =100;
while(error>tol)
for i = 2:(nx-1)
for j = 2:(ny-1)
term1 = (1+(2*k1)+(2*k2))^-1;
term2 = k1*term1;
term3 = k2*term1;
h = (t(i-1,j)+told(i+1,j));
v = (told(i,j+1)+t(i,j-1));
t(i,j) = ((tprev_dt(i,j)*term1)+(h*term2)+(v*term3));
end
end
error = max(max(abs(t-told)));
told = t;
gauss = gauss+1;
end
tprev_dt = t;
end
time_taken = toc;
%plotting
figure(1)
contourf(x,y,t,'ShowText','on');
colormap(jet);
colorbar;
xlabel('X')
ylabel('Y')
text1 = sprintf('number of iteration = %d', gauss);
text2 = sprintf('simulation time = %f', time_taken);
title({'Transient state heat conduction profile Implicit-Gauss-seidel'; text1; text2});
end
%SUCCESSIVE OVER RELAXATION ITERATIVE METHOD
if (method==3)
tic;
sor = 1;
omega = 1.2; % Over relaxation factor
for p = 1:nt
error =100;
while(error>tol)
for i = 2:(nx-1)
for j = 2:(ny-1)
term1 = (1+(2*k1)+(2*k2))^-1;
term2 = k1*term1;
term3 = k2*term1;
h = (t(i-1,j)+told(i+1,j));
v = (told(i,j+1)+t(i,j-1));
t(i,j) = (told(i,j)*(1-omega))+(omega*((tprev_dt(i,j)*term1)+(h*term2)+(v*term3)));
end
end
error = max(max(abs(t-told)));
told = t;
sor = sor+1;
end
tprev_dt = t ;
end
time_taken = toc;
%plotting
figure(1)
contourf(x,y,t,'ShowText','on');
colormap(jet);
colorbar;
xlabel('X')
ylabel('Y')
text1 = sprintf('number of iteration = %d', sor);
text2 = sprintf('simulation time = %f', time_taken);
title({'Transient state heat conduction profile Implicit-SOR'; text1; text2});
end

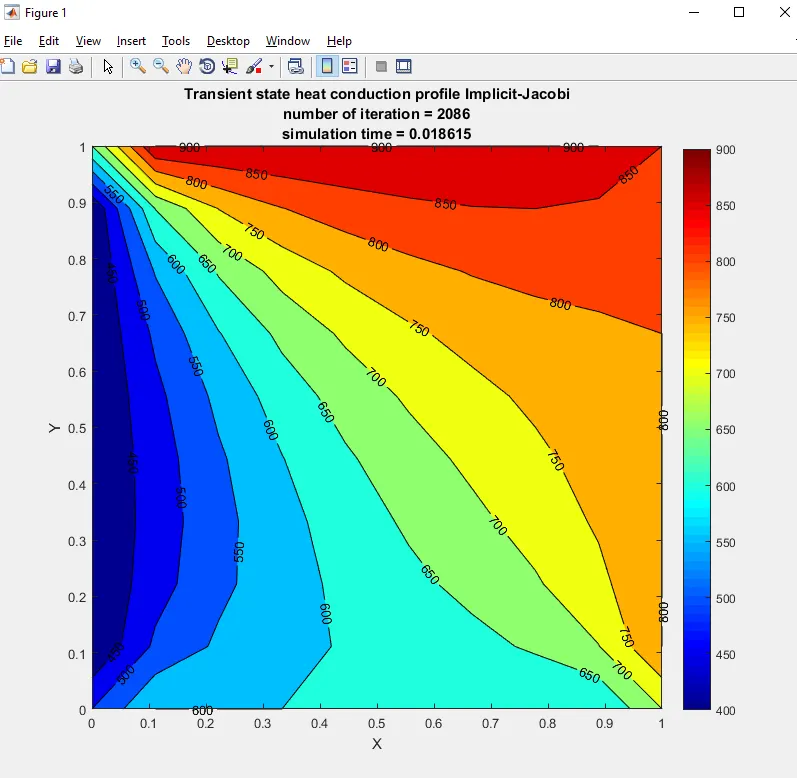

Output:
The conclusion of the above results are just as silimar as what was in the steady state, and it was observed that SOR methods gives better results with no. of simulation and time elapsing on the run case.
Transient State with Explicit Scheme
after discretizing the values for explicit schemes we have here.
Original Code for Explicit schemes of Transient state
% Solving Steady and Transient 2D heat conduction problem
% Transient state solution with EXPLICIT
clear all
close all
clc
%initial conditions
%L = 1
nx = 10;
ny = 10;
nt = 300; % No.of steps
x = linspace(0,1,nx);
y = linspace(0,1,ny);
dx = x(2) - x(1);
dy = y(2) - y(1);
% initial temp condition
t = 300*ones(nx,ny);
t(:,1) = 400;
t(1,:) = 600;
t(:,ny) = 800;
t(nx,:) = 900;
% defining the temperature at corner points
t(1,1) = 500;
t(nx,ny) = 850;
t(1,ny) = 700;
t(nx,1) = 650;
dt = 0.01; %time step
told=t;
alpha = 0.3; % Thermal diffusivity
k1 = (alpha*dt)/(dx^2);
k2 = (alpha*dt)/(dy^2);
CFL = alpha*dt/(dx^2);
%EXPLICIT METHOD
% running for loop
tic;
explicit = 1;
for p = 1:nt
for i = 2:(nx-1)
for j = 2:(ny-1)
term1 = (told(i-1,j)-2*told(i,j)+told(i+1,j));
term2 = (told(i,j-1)-2*told(i,j)+told(i,j+1));
t(i,j) = ((told(i,j))+(k1*term1)+(k2*term2));
end
end
told = t;
explicit = explicit+1;
end
time_taken = toc;
%Plotting
figure(1)
contourf(x,y,t,'ShowText','on');
colormap(jet);
colorbar;
xlabel('X')
ylabel('Y')
text1 = sprintf('timen = %d', dt*nt);
text2 = sprintf('simulation time = %f', time_taken);
title({'Transient state heat conduction profile Explicit'; text1; text2});

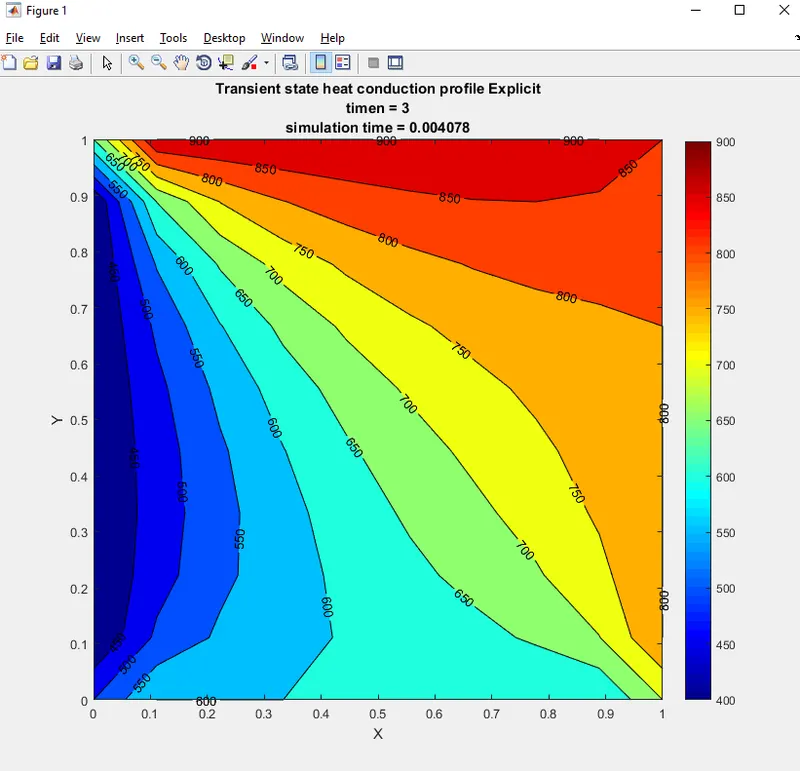

Output:
From above simulation we can see explicit method is converging faster than implicit methods taking less time for simulations. For steady state we can opt for SOR method as it reaches converge faster than any other methods.
For explicit methods produce greater accuracy with less computational period require to run it.
