Challenge

Week 4- Rolling operation

Aim:To see the behaviour changes on the copper plate while rolling operation.

Result:

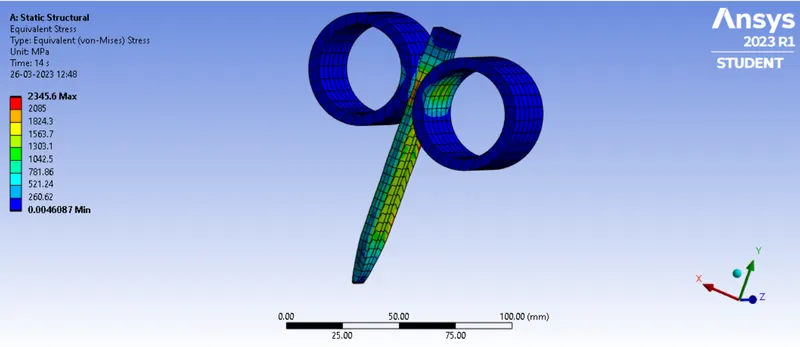

1. Equivalent stress for the whole setup: 2345 MPa

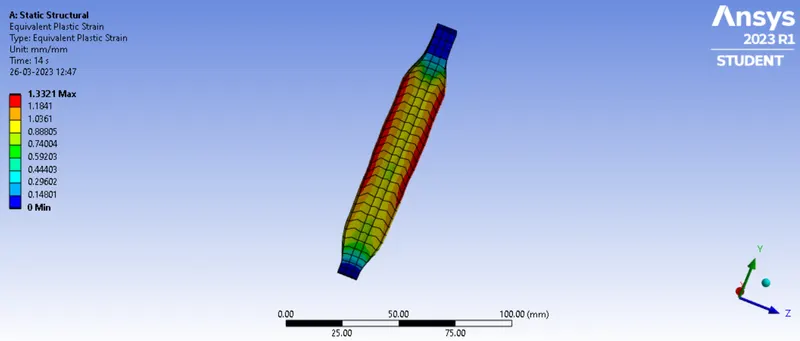

2. Equivalent Plastic strain for the workpiece: 1.33mm

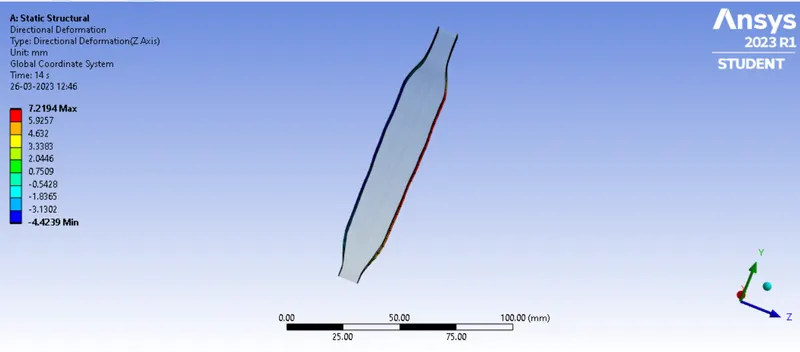

3. Directional Deformation in the Z axis for the workpiece:7.22mm

4.Prove that the workpiece has displaced by 90mm: 89.96mm
