Week 4: Project - Transient simulation of flow over a throttle body

AIM: To perform transient simulation of flow over a throttle body. PROCEDURE:  The throttle body geometry is imported and the boundary flagging is done.                            In transient case,the rotation centre and axis should be calculated…

    • PHANI CHANDRA S

      updated on 28 Dec 2020

    AIM: To perform transient simulation of flow over a throttle body.

    PROCEDURE:

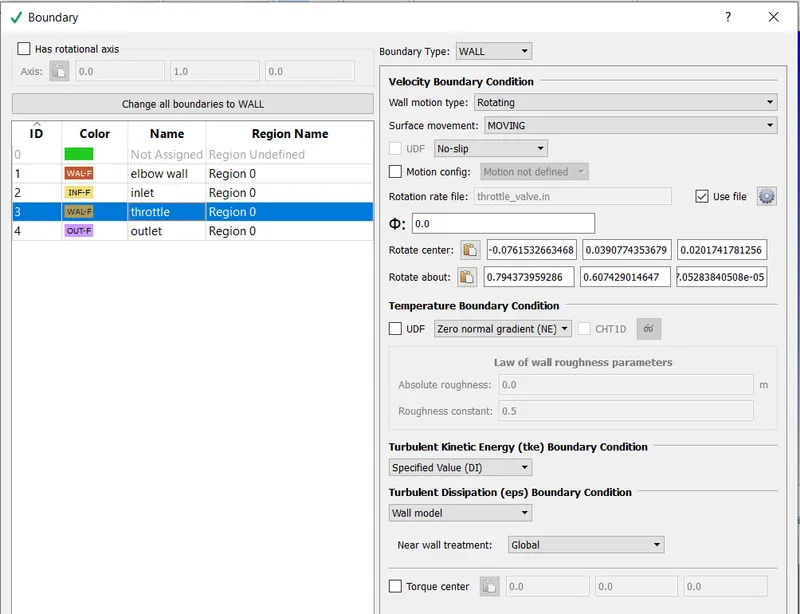

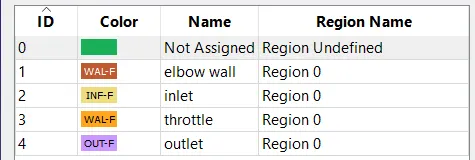

    •  The throttle body geometry is imported and the boundary flagging is done.

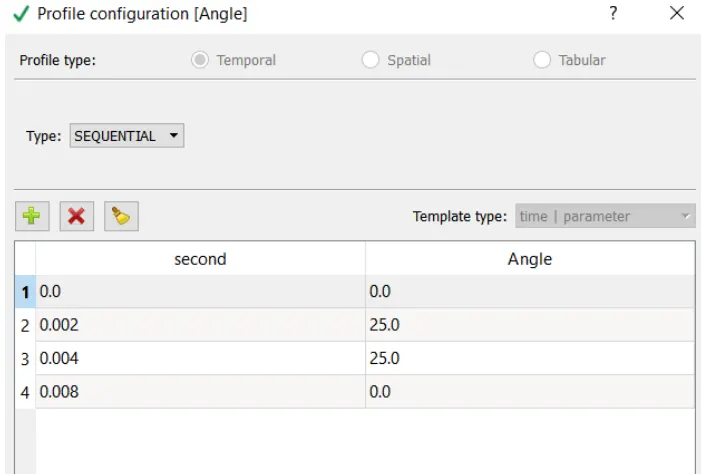

    • In transient case,the rotation centre and axis should be calculated for the throttle



                  and the profile is as follows:

                    From 0 to 2 ms the valve should rotate by 25 degrees

                    From 2 to 4ms it should stay at 25 degrees.

                    After which by 8ms the valve should get back to it’s original position.







    • Once the boundaries are allotted then we proceed for the case setup.

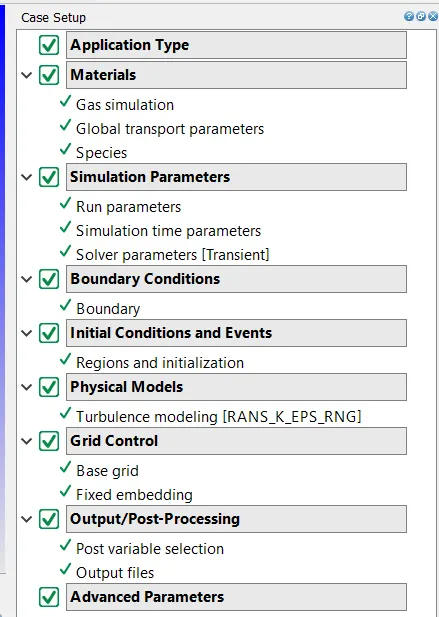

    Setup:

    • Material - Air
    • Species - N2 and O2

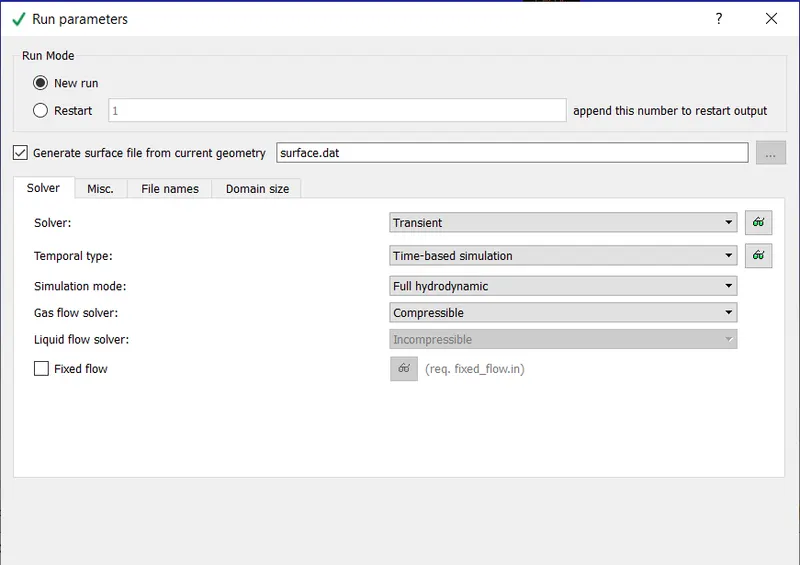

    • Run parameters

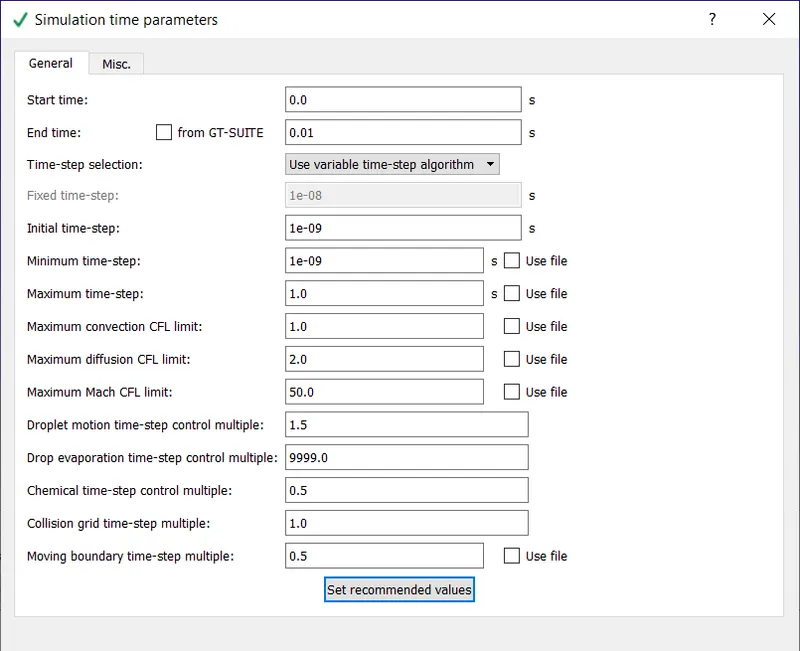

    • Simualtion parameters

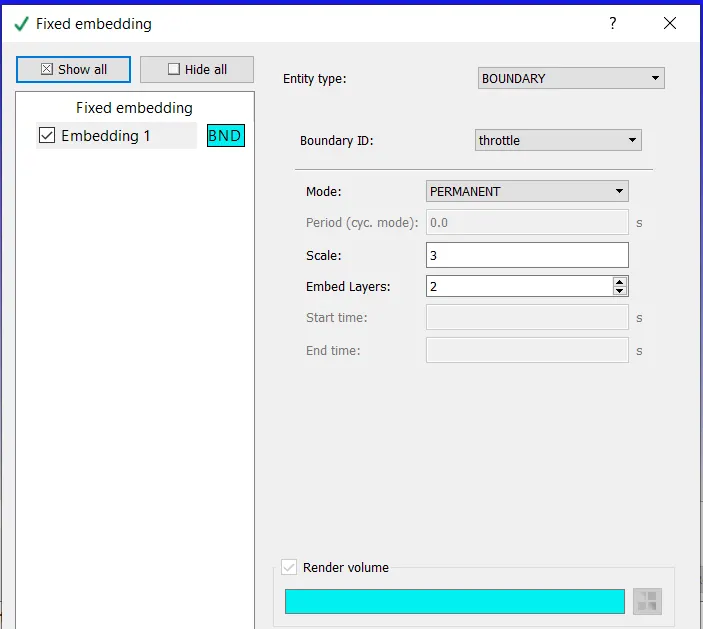

    • Grid size of 0.002m is used and for the sake of local refinement, embedding is also done to the geometry.





    Results:

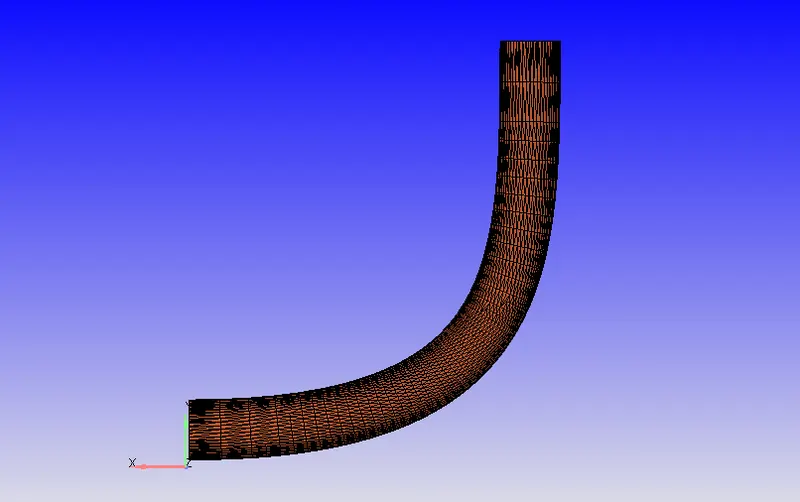

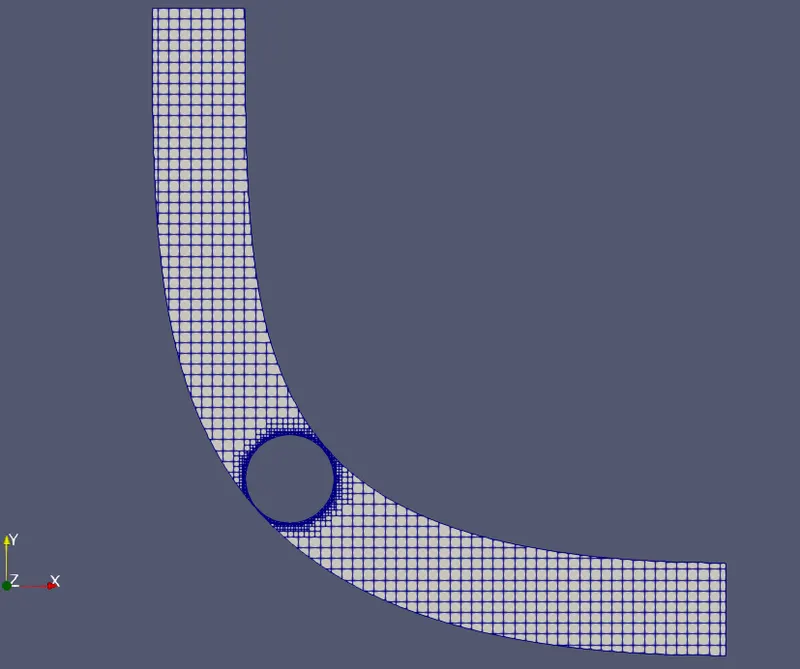

    mesh

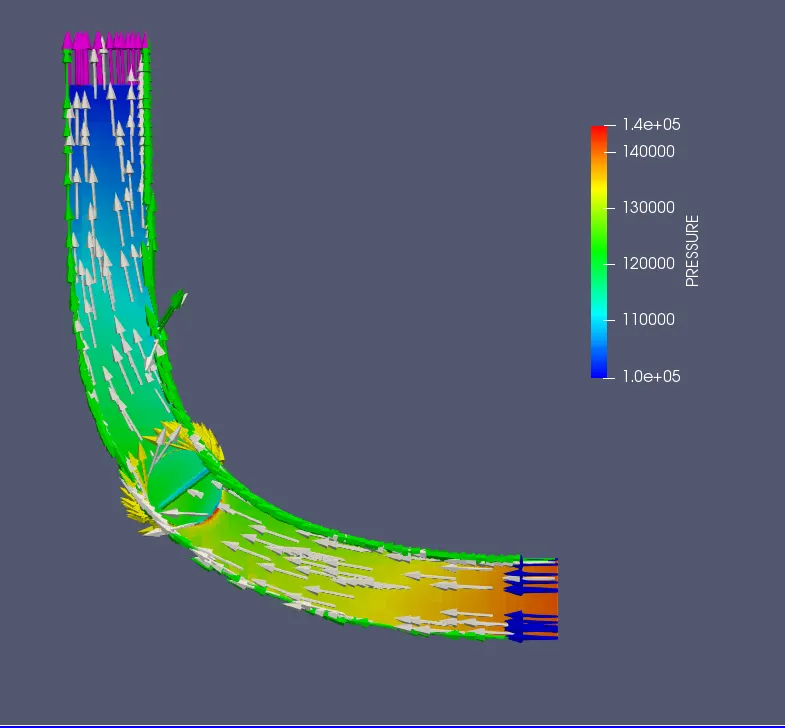

    vector representation

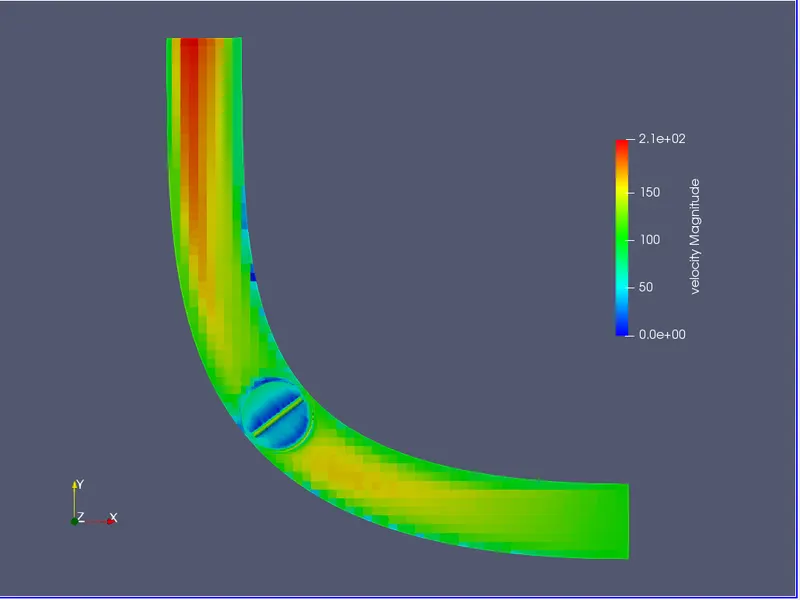

    velocity contour

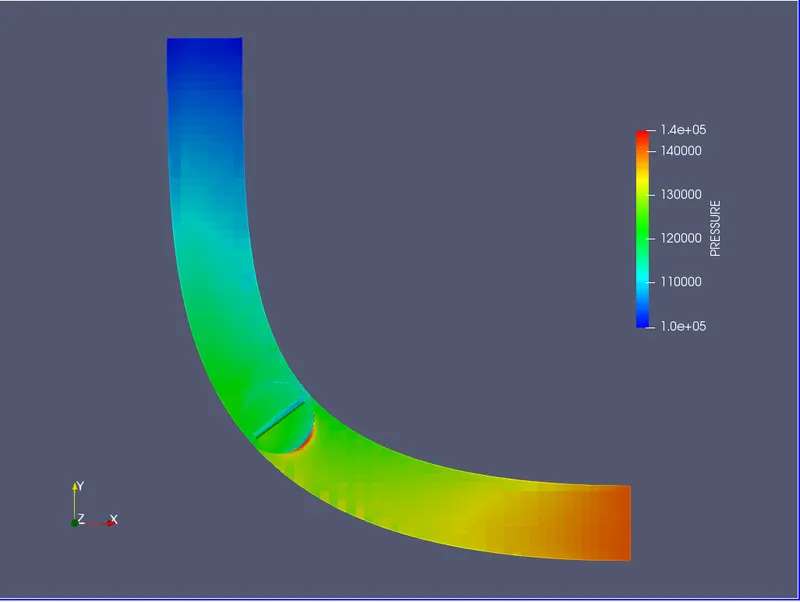

    pressure contour

    velocity animation

    pressure animation



    Plots:

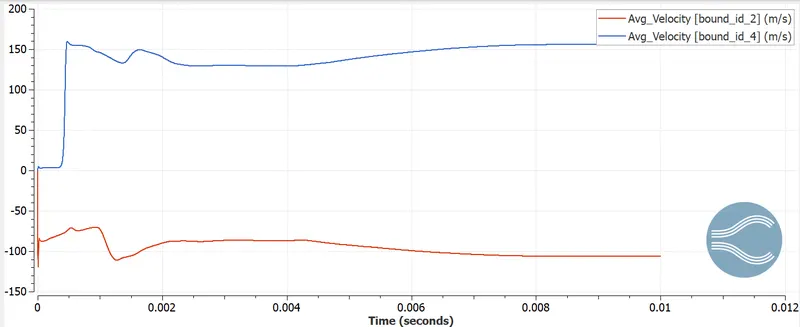

     velocity

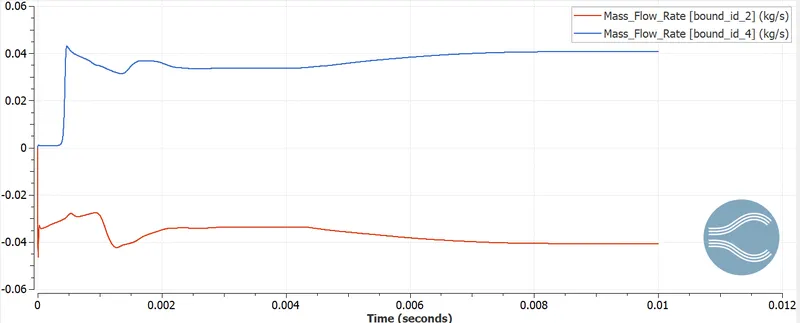

    mass flow rate

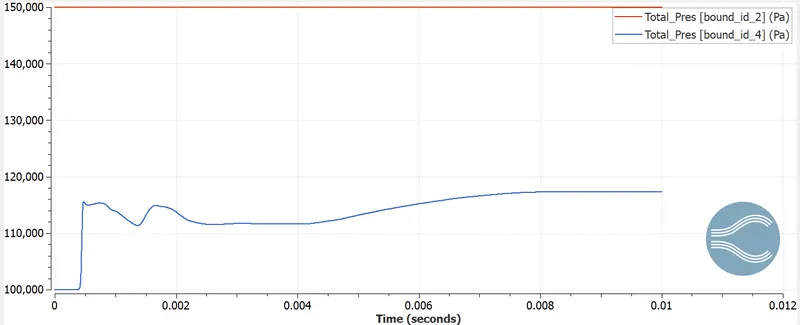

    total pressure

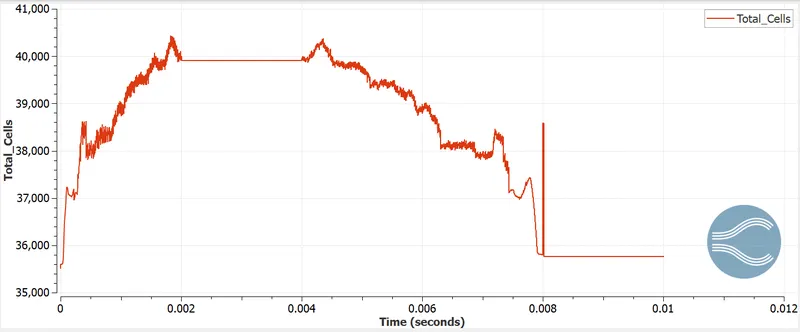

    total cells

    Conclusion:

    • Transient settings were incorporated to the throttle body and the simulation was carried out successfully using converge and the above results were obtained.
