Week 4: Project - Steady state simulation of flow over a throttle body

AIM: To perform steady state simulation for flow over a throttle body.

PROCEDURE:

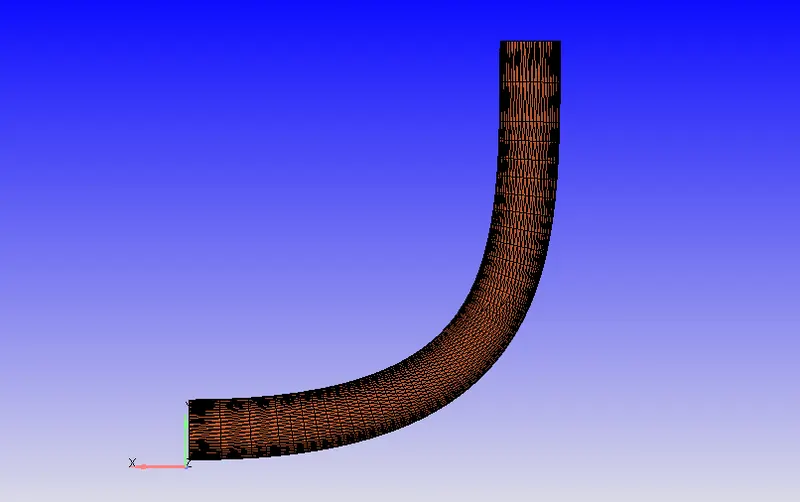

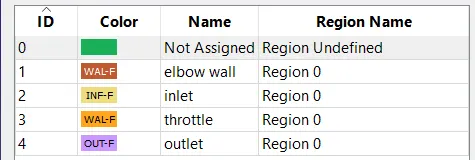

• The throttle body geometry is imported and the boundary flagging is done.

• Once the boundaries are allotted then we proceed for the case setup.

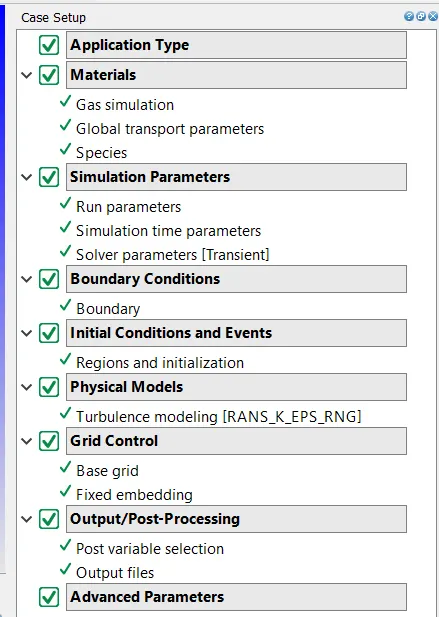

Setup:

• Material - Air
• Species - N2 and O2

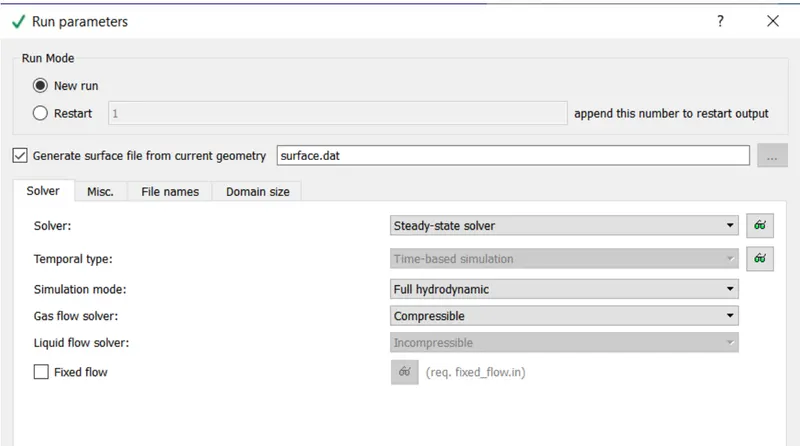

• Run parameters

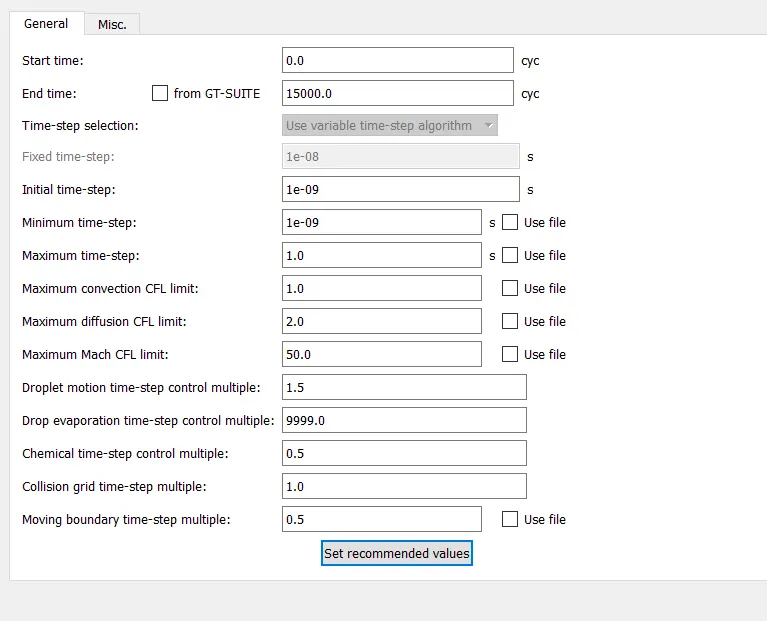

• Simulation parameters

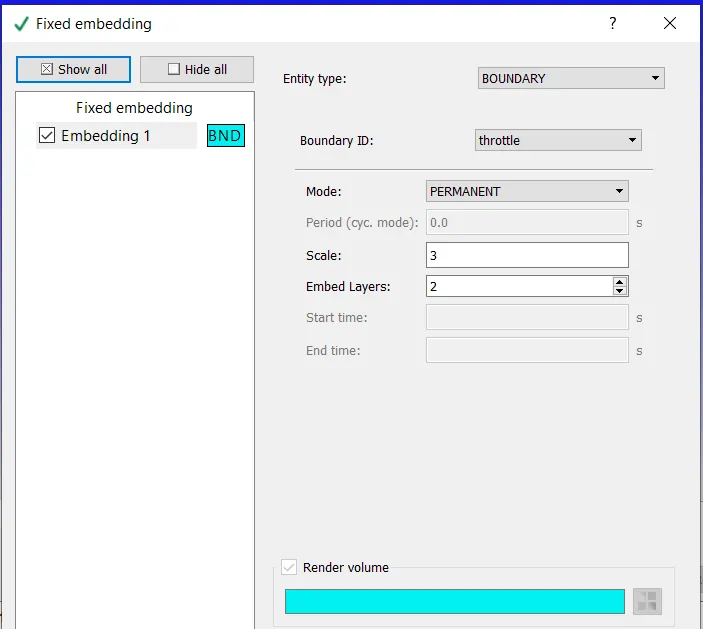

• Grid size of 0.002m is used and for the sake of local refinement, embedding is also done to the geometry.

Results:

Now the above case is run in cygwin and once the simulation is completed,the results are post processed in paraview and the solution plots are obtained in converge studio.

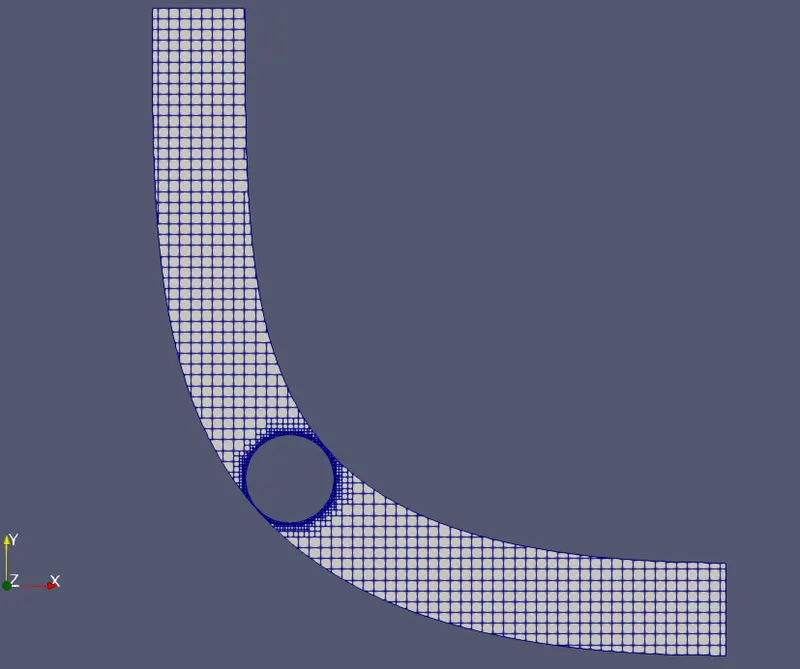

Mesh

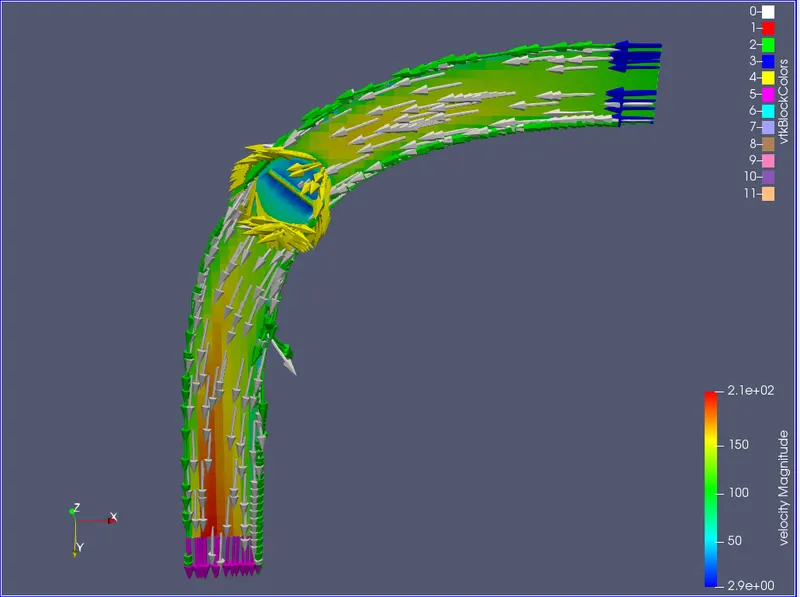

Vector representation

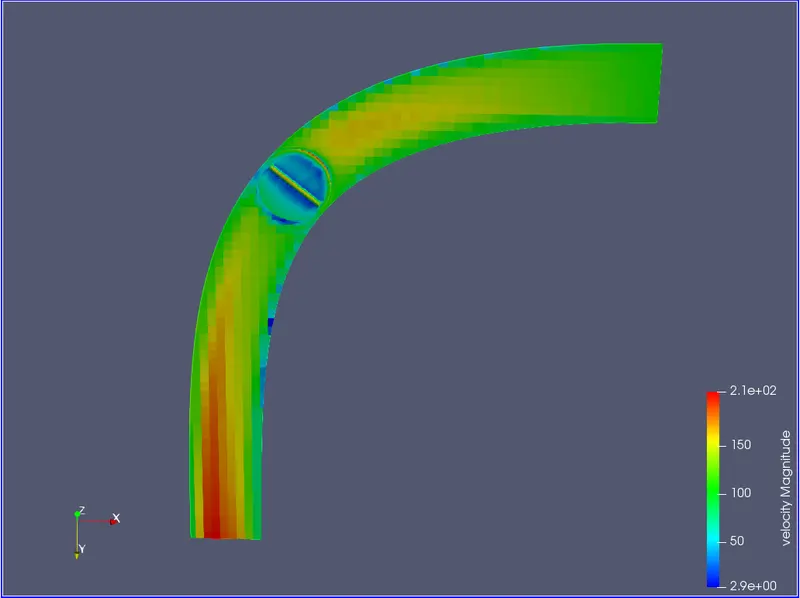

Velocity contour

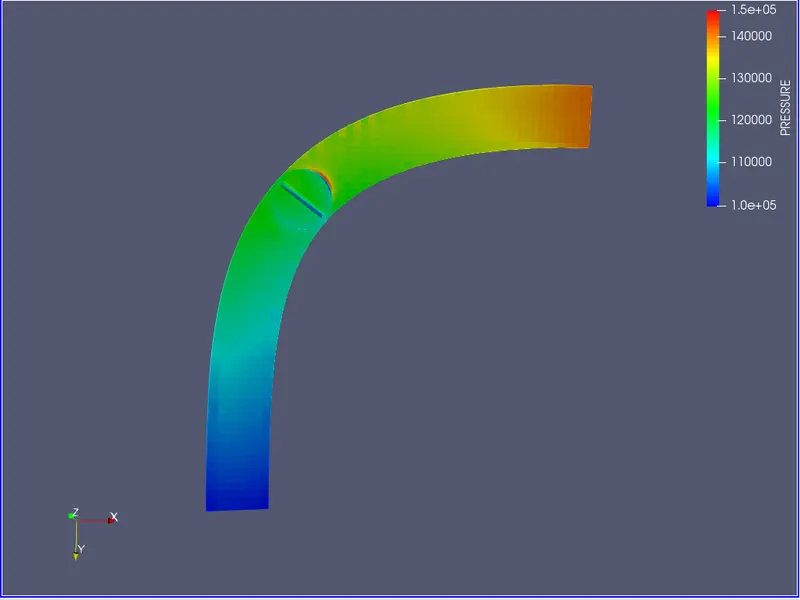

Pressure contour

Velocity animation:

Pressure animation:

Plots:

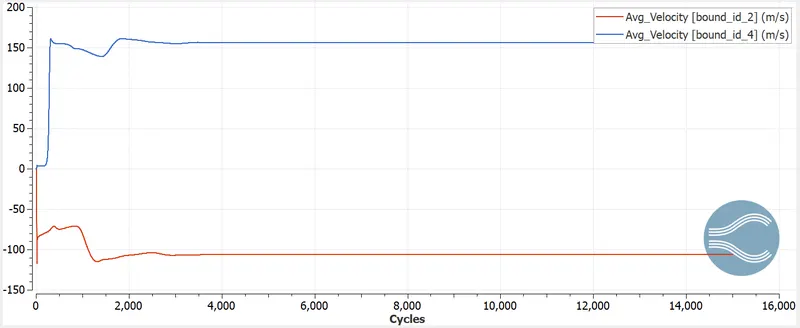

Velocity

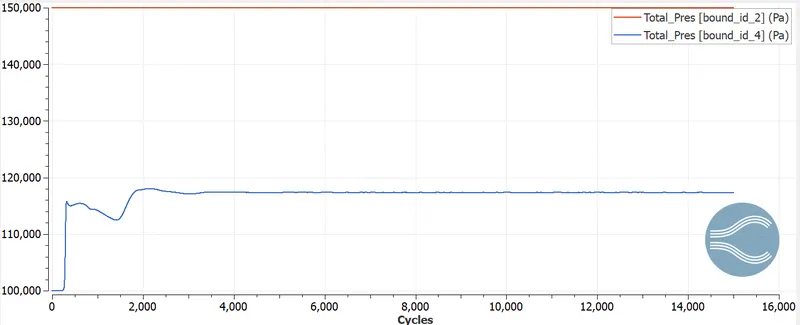

Pressure:

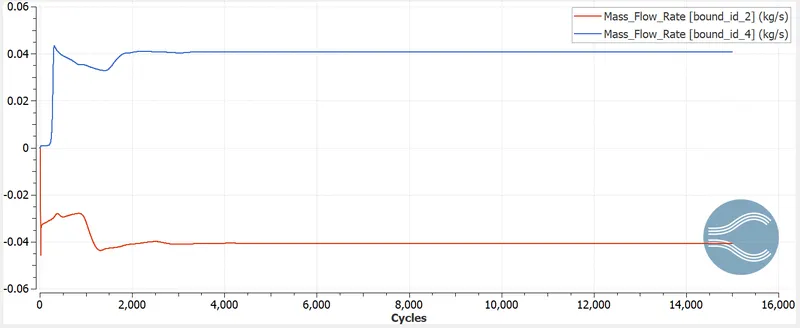

Mass flow rate:

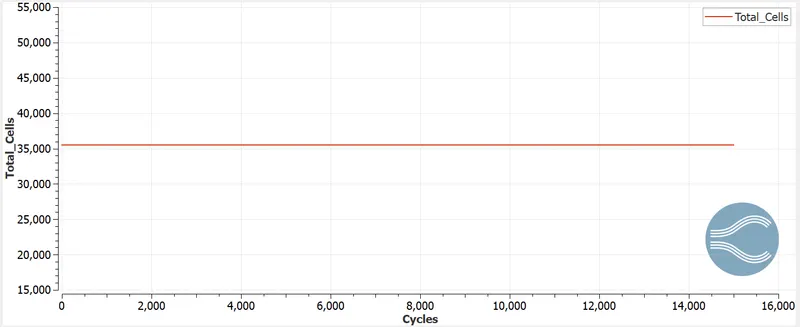

Total cells:

Conclusion:

• Steady state simulation for flow over a throttle body using converge was carried out successfully.
