Week 4- Meshing of Backdoor Challenge

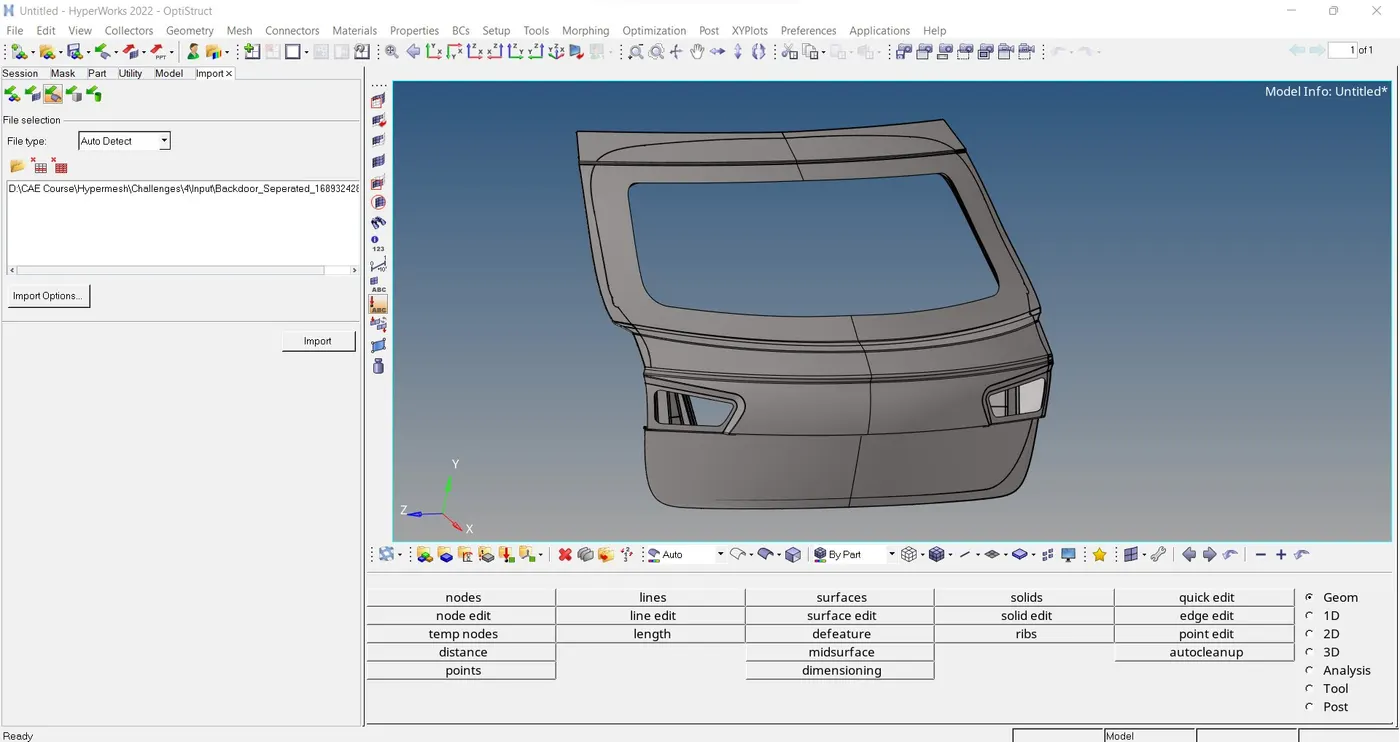

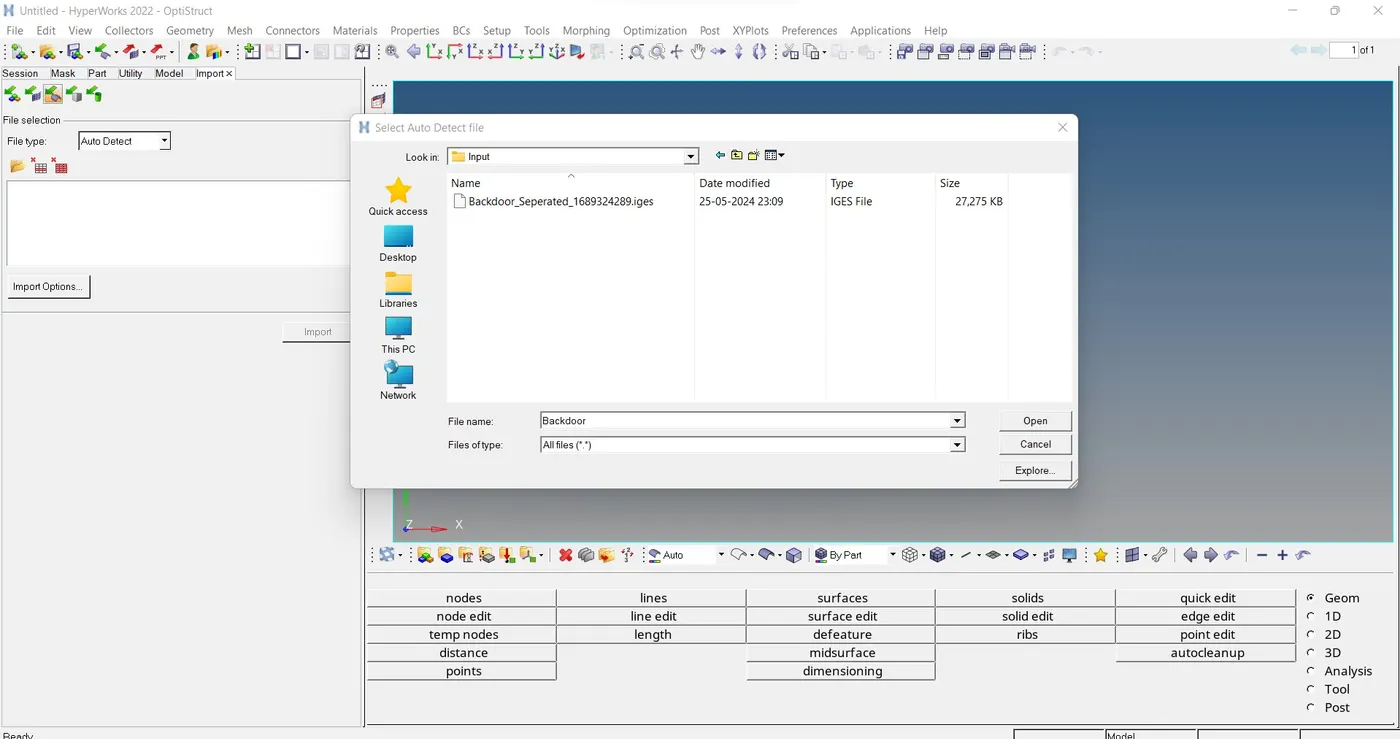

Step-1 Import the Geomentry

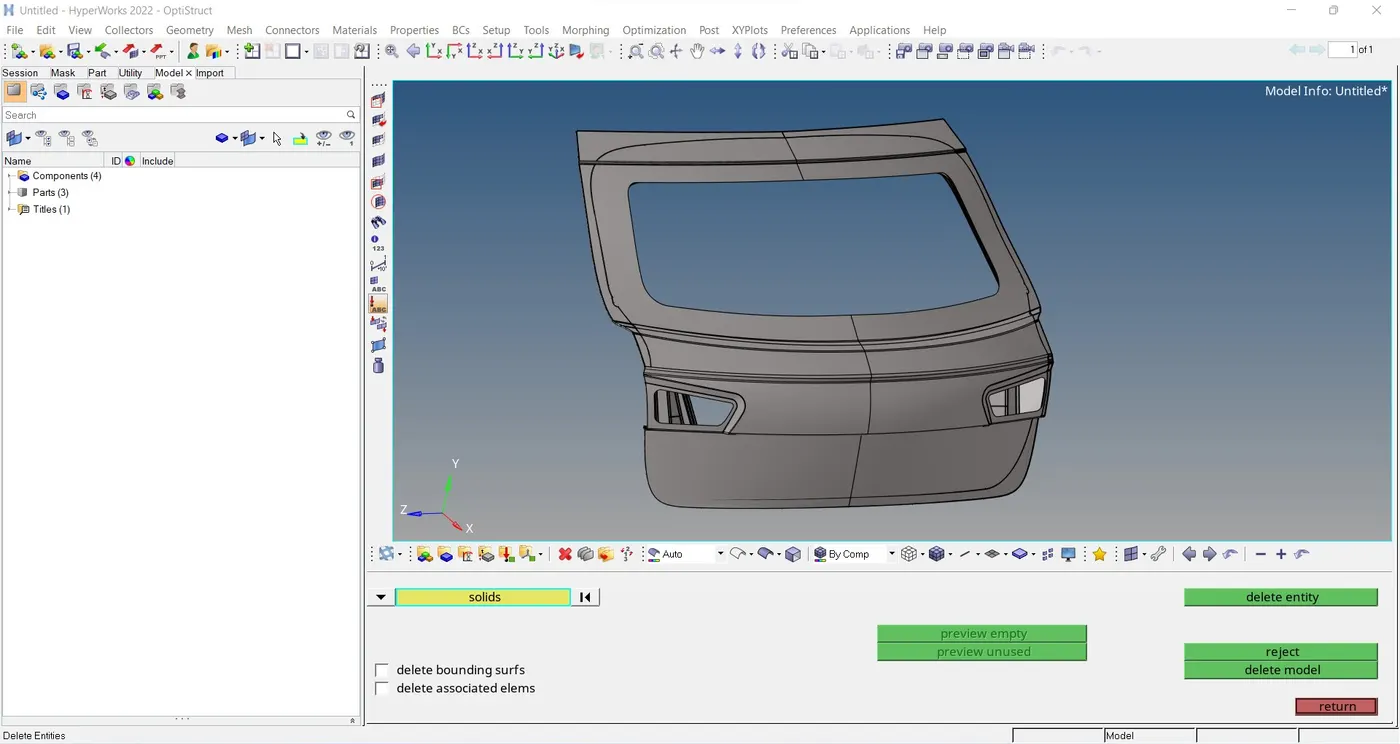

Step-2 Delete the Solids in the given cad

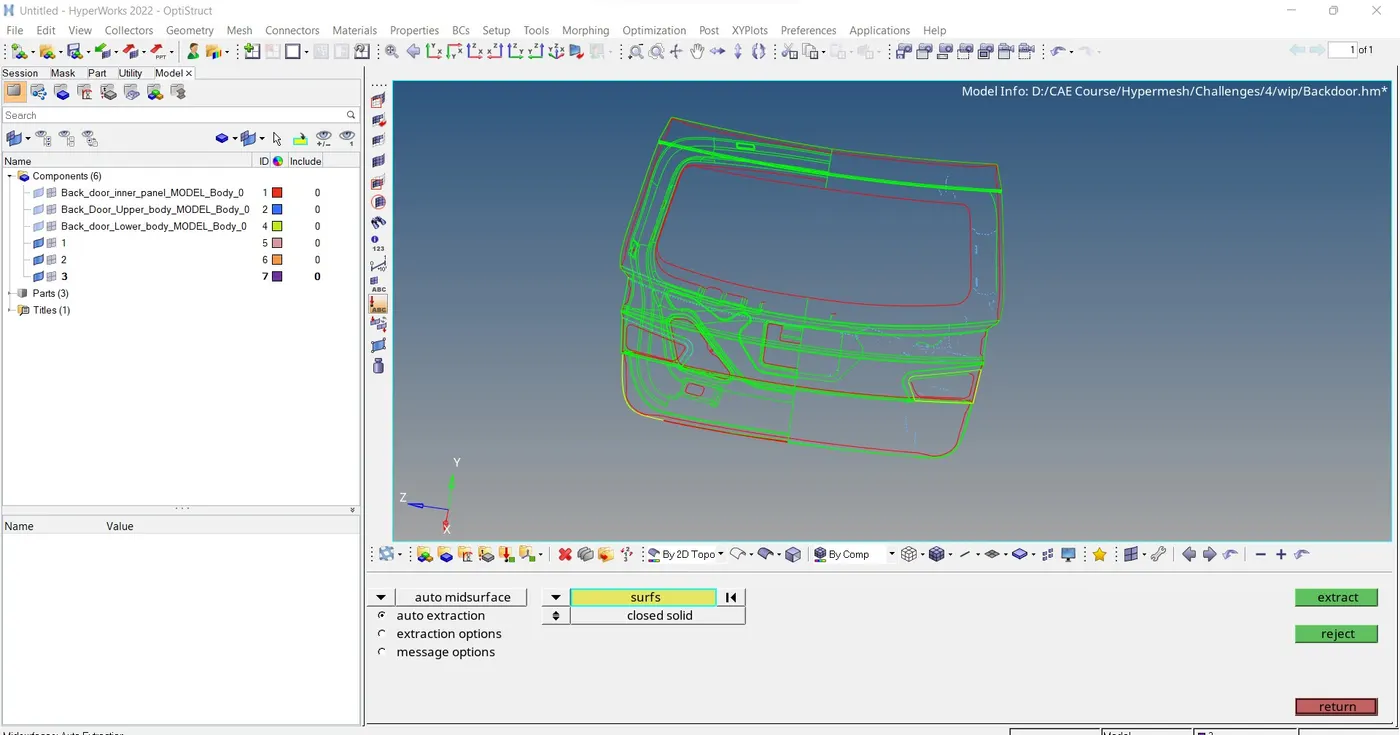

Step-3 Extracting Mid Surface

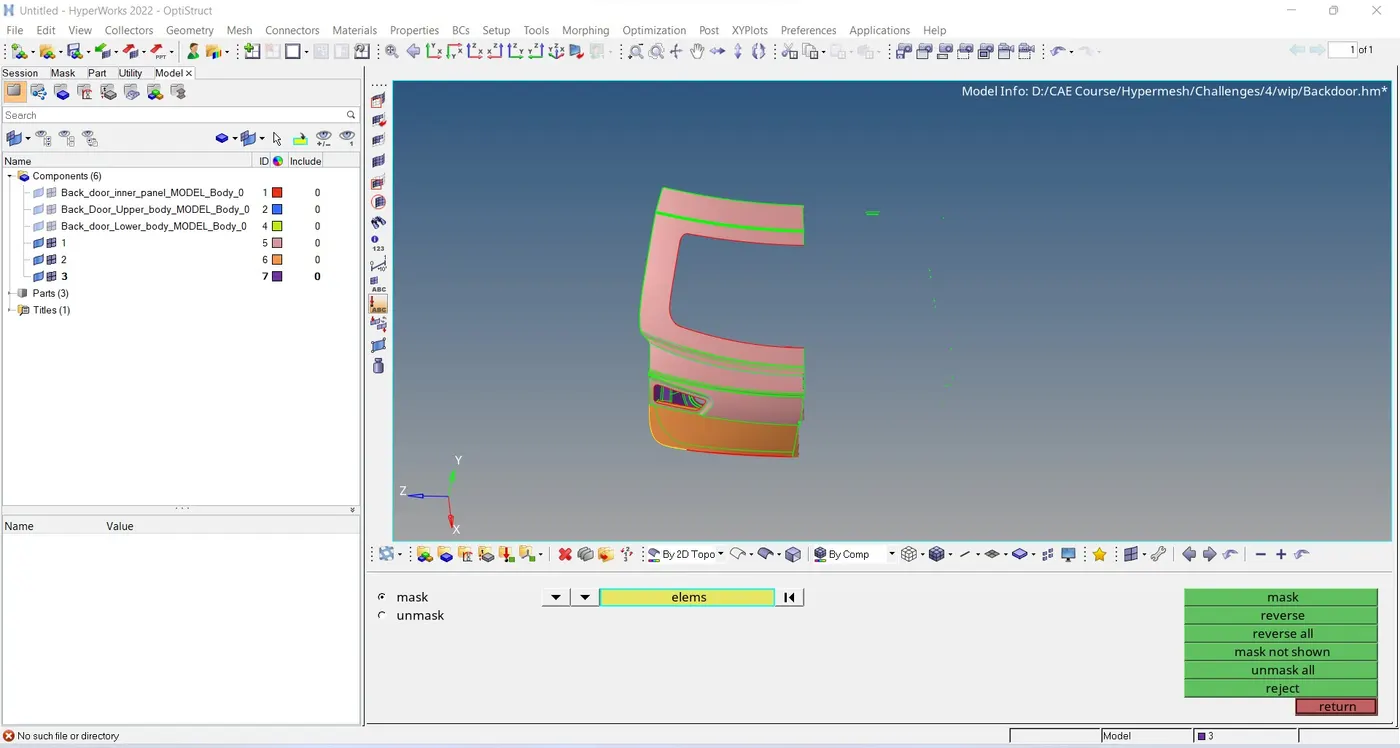

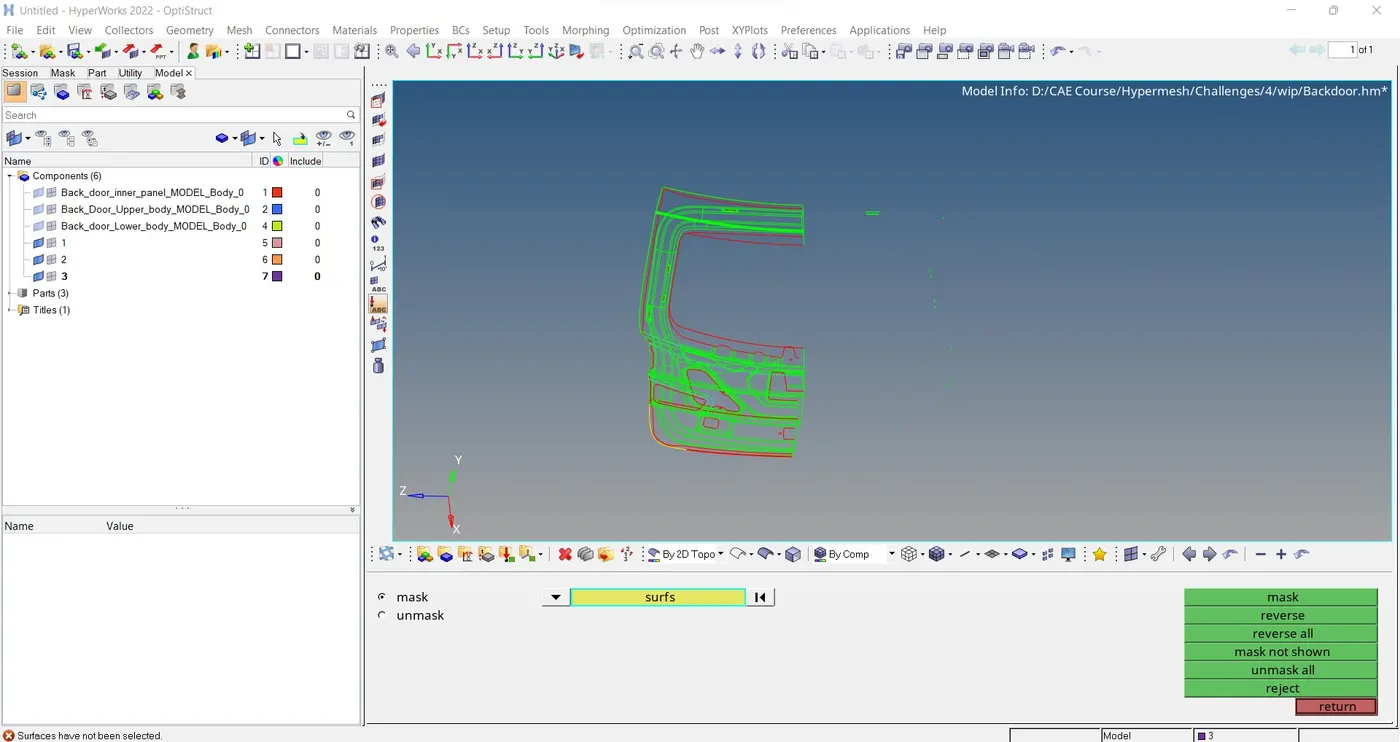

Step-4 geometry Cleanup and masking the one side of mid surface

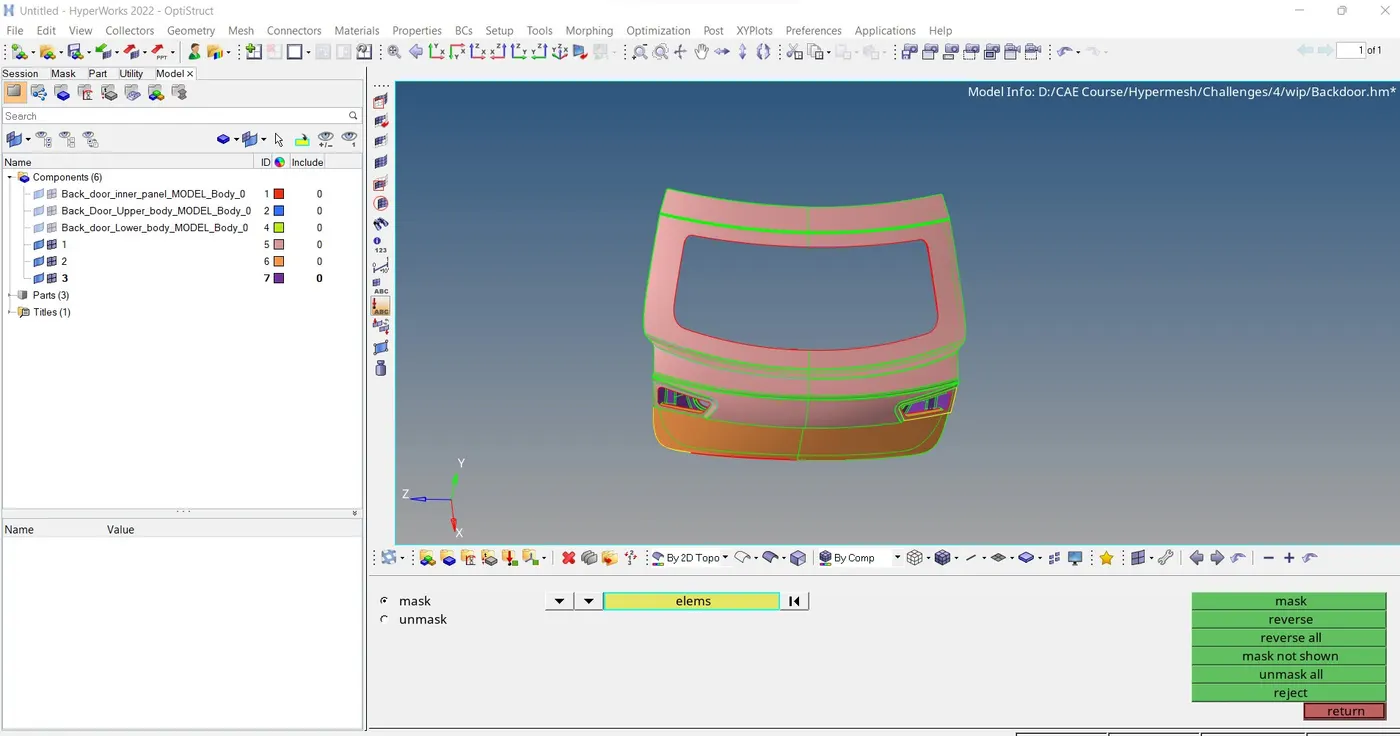

Step-5 Mesh the one side

Step-6 Reflect the mesh and make corrections if there any in the surface

Step-7 Clear the Mesh qualities as per given criteria

Step-8 Check the Free edges.

Step-9 assigning property, thickness and material

Step-10 Save the Model
