Week 4 Challenge

1. Tooling Direction - Tooling direction or axis is a direction in which the mold blocks move in a mold assembly.

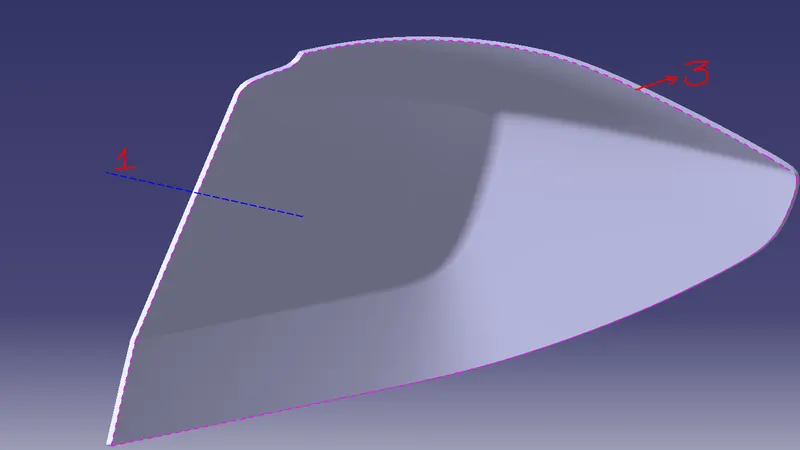

Image 1 - Lens with Tooling Axis and Parting Line

3. Parting Line - The edge formed when the mold blocks comes in contact with each other is called parting line.

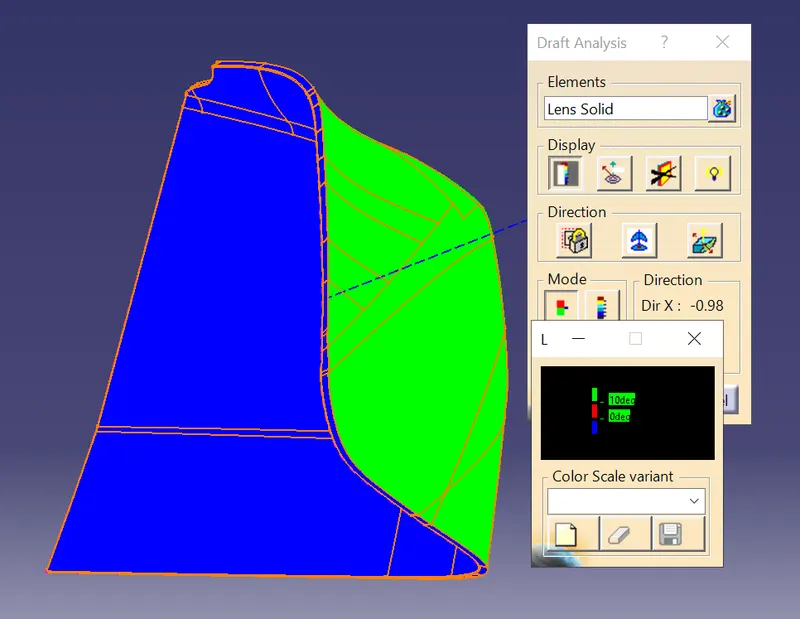

Image 2 - Draft analysis report of Lens with 10 deg

Parting line for the lens has been created considering the draft analysis report.

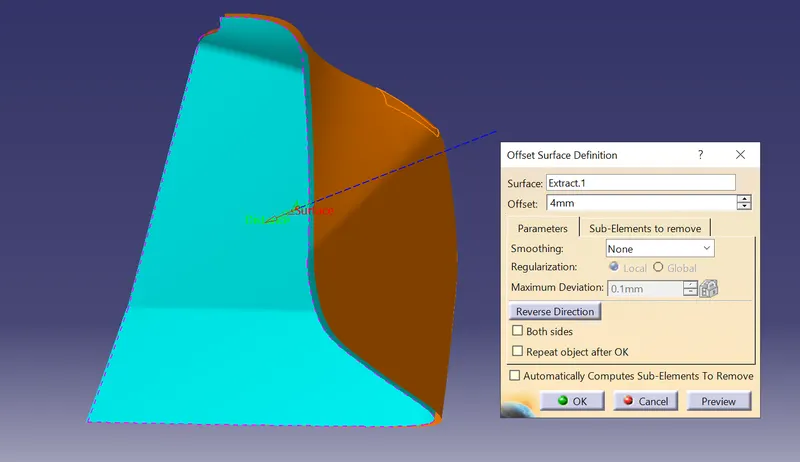

Image 3 - B surface of Lens with 4 mm thickness
