Week 4 Challenge

Q.1

Answer:-

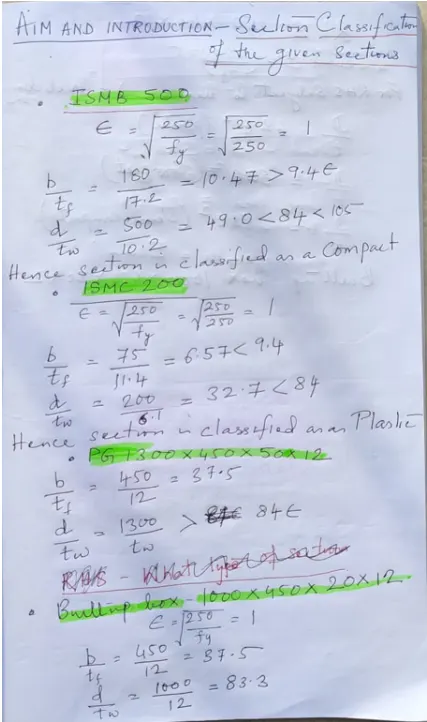

AIM AND INTRODUCTION : DESIGN OF BEAMS

PROCEDURE : SECTOIN CLASSIFICATION CALCULATION OF THE FOLLOWING BEAMS

For built up box d/t=960/12=80 Hence the section is semi compact

PLASTIC compact semi compact

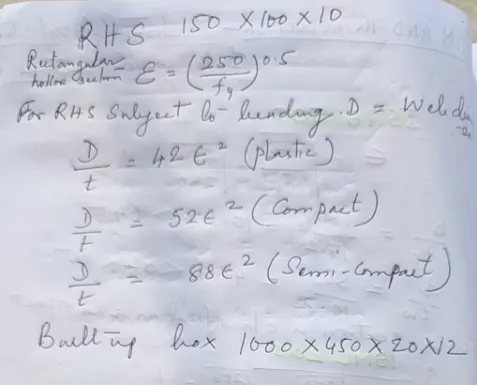

for RHS section FLANGE b/t 29.3ε 33.5ε 42ε

web d/t 67.1 ε 84ε 125.9ε

nbsp; d/t = 130/10 = 13 section is plastic

nbsp; PLASTIC compact semi compact `

• Double angle (Back to back) – 2 x ISA 75x75x6 d/t 9.4ε 10.5` 15.7
• 75/6=12.5 hence semi compact section.

Q.2

Answer:-

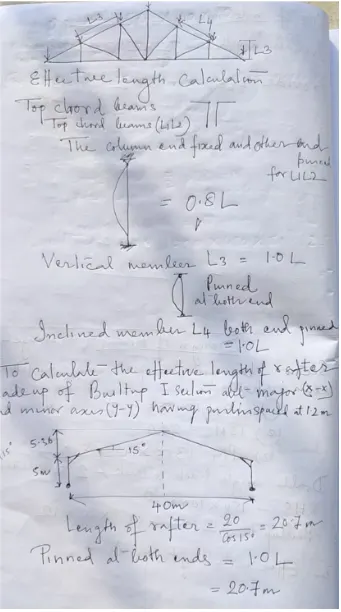

AIM AND INTRODUCTION : TO FIND THE EFFECTIVE LENGTH OF THE MEMBERS

PROCEDURE :

Q.3

Answer:-

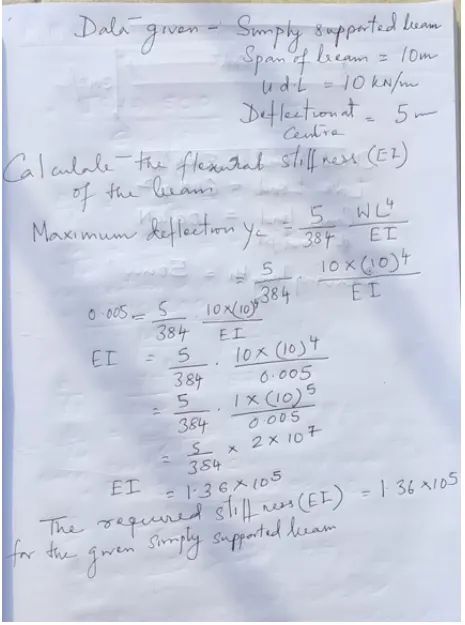

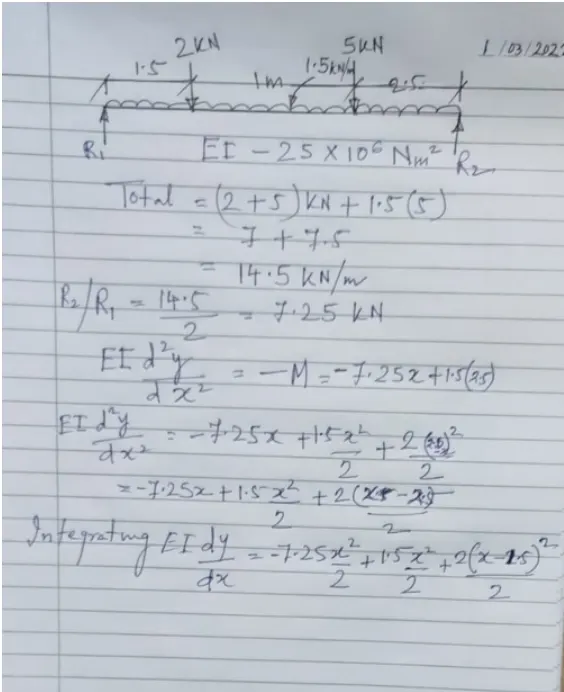

AIM AND INTRODUCTION : DEFLECTION OF BEAMS

PROCEDURE :

Q.4

Answer:-

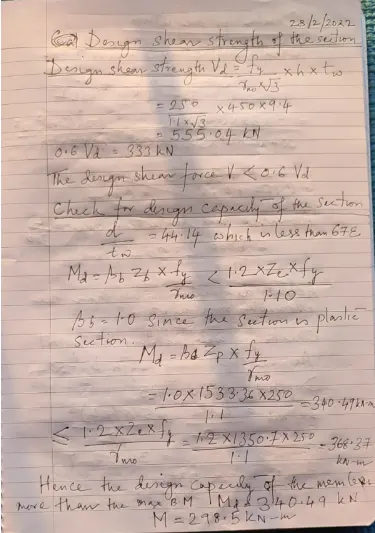

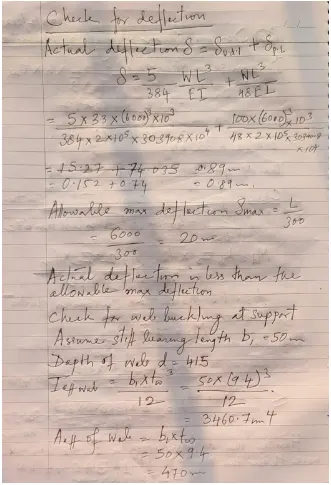

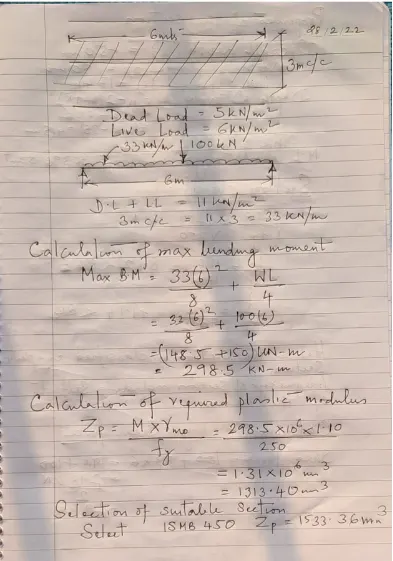

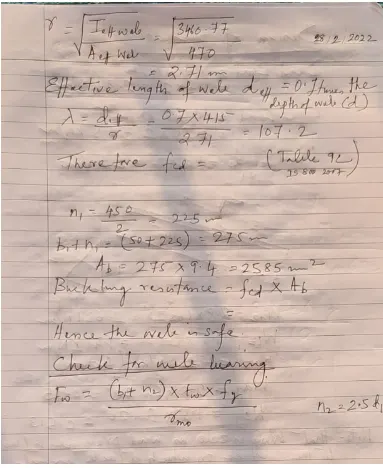

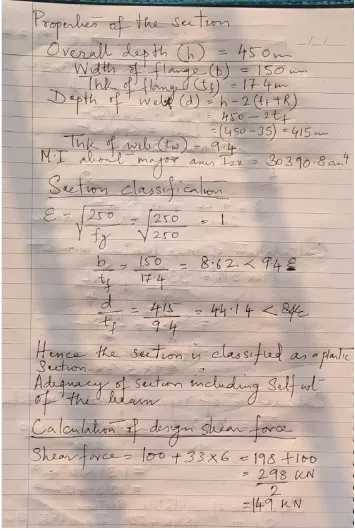

AIM AND INTRODUCTION : MOMENT CAPACITY DETERMINATION PROBLEM

PROCEDURE :

Q.5

Answer:-

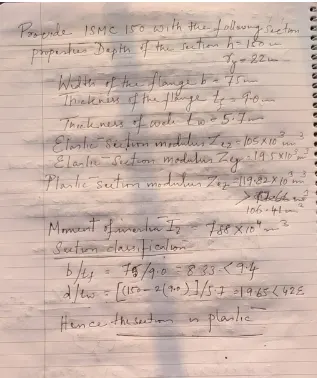

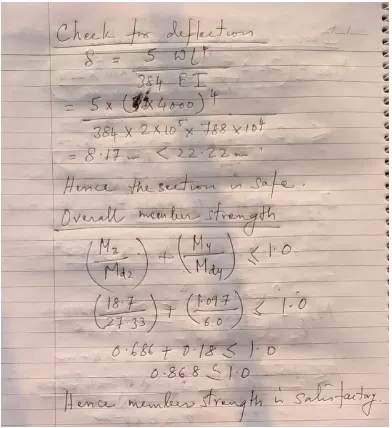

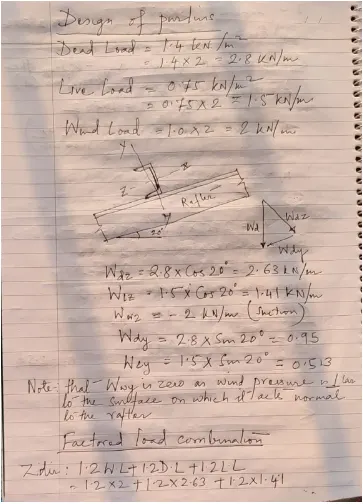

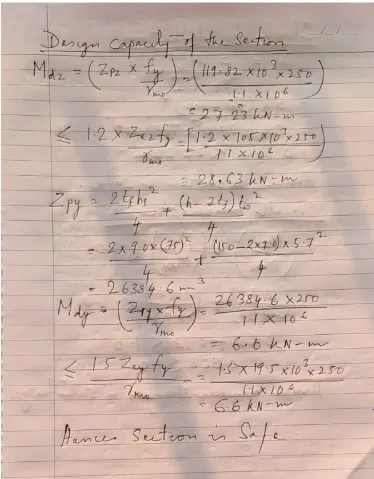

AIM AND INTRODUCTION : DESIGN OF PURINS

PROCEDURE :

RESULT: purlin is desigined and for deflection design capacity and overall member strength.
