Week 4 Challenge

1. Tooling direction is the movement of core and cavity during the injection moulding. tooling direction will be fixed according the parts which we are going to mould. it is a linear direction during injection moulding process.

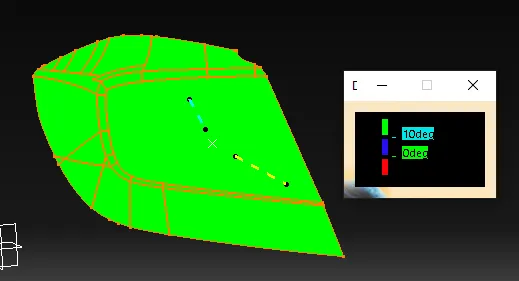

2. Proof of 10 deg draft analysis

3. Parting line is a profile which defines the parting area of core and cavity during injection moulding. the area above the parting line will be cleared by cavity and lower will be cleared by core or vice versa.
