1.WASHING MACHINE MODEL:

here to design a washing machine model our requirements are :

1. chart ( state flow )

2. slider switches

3. constants ( switch will be connected to them )

4. displays ( for connecting lamps )

5. lamps ( we can customize the icons & colors )

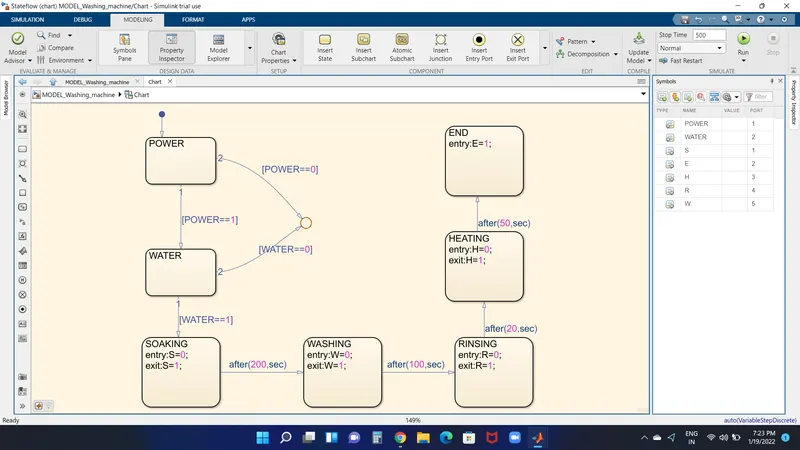

( the above picture is state flow - chart with symbol pane )

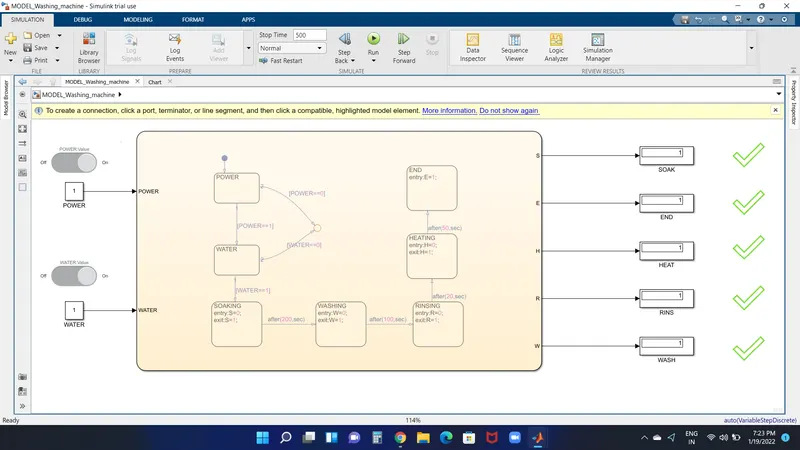

( the above picture is the simulation result )

-> the stop must be greater than the process time

-> here we gave the stop time as 500 seconds

2.GEAR Shifting Model :

requirements:

1. slider ( for varrying speed )
2. constant ( for connecting slider and input )
3. chart ( state flow )
4. displays
5. lamps ( LEDs )

in the above model , we used a slider for giving speed as input

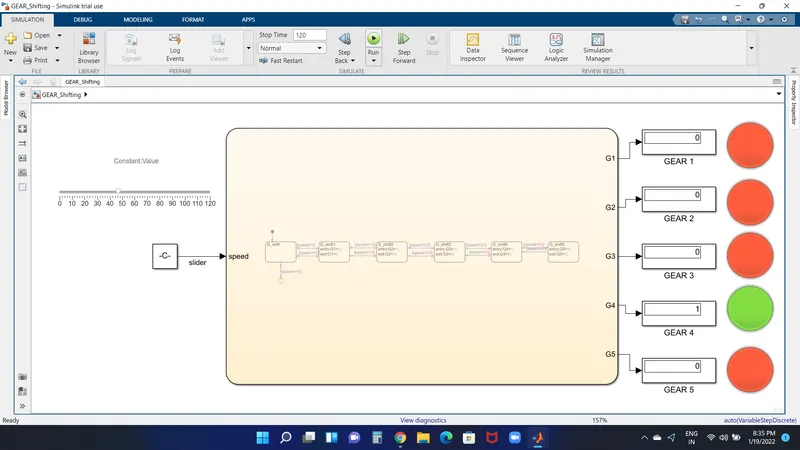

we give speed = 46 it is showing that is a GEAR 4

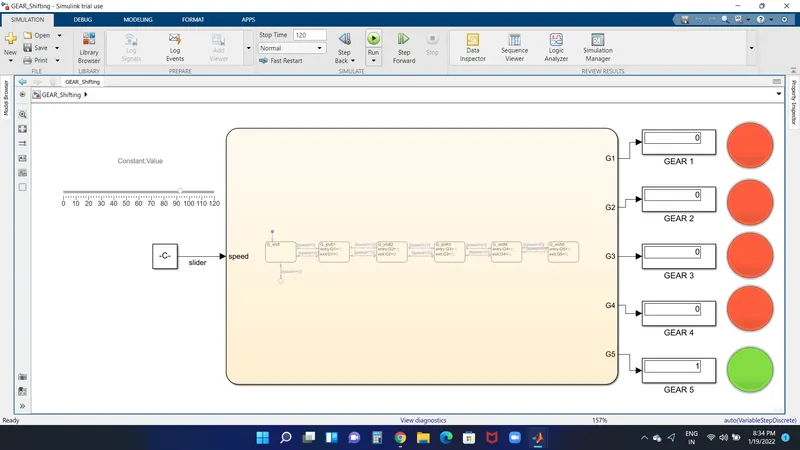

in the above screen shot we give speed = 92 and it is showing that is GEAR 5

submitted the simulink models and simulation results as of requirements...
