Week - 4

1ST.QUESTION

TO IMPLEMENT A CONTROL LOGIC OF A WASHING MACHINE USING STATEFLOW

BLOCKS USED;

1.SLIDER SWITCH.

2.CONSTANT.

3.CHART.

4.DISPLAY.

5.LAMP.

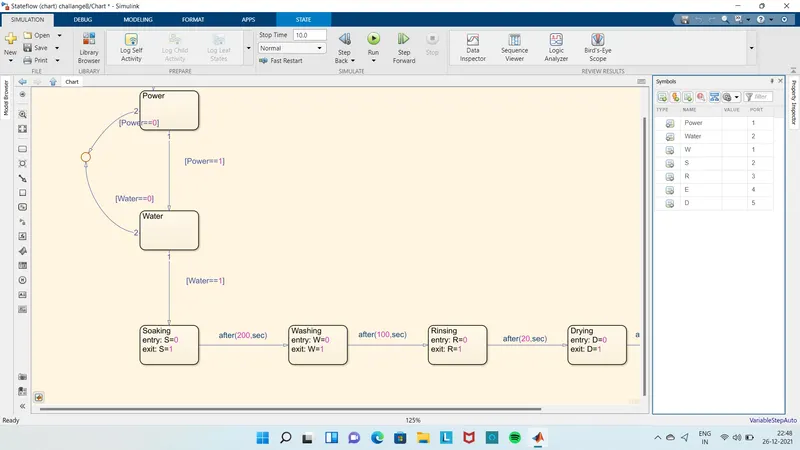

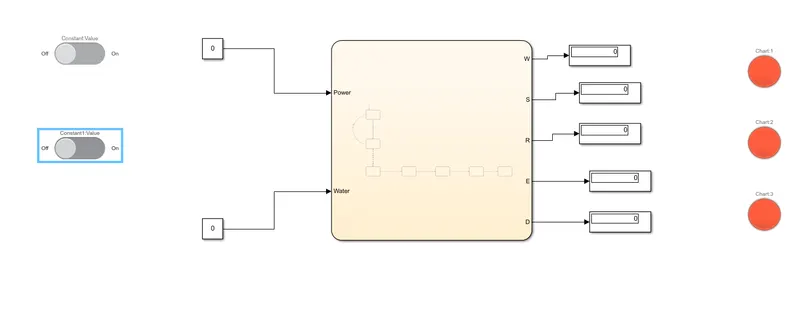

If power supply is on the system gets activated.if the water supply is not available, stop the process and indicate through LED

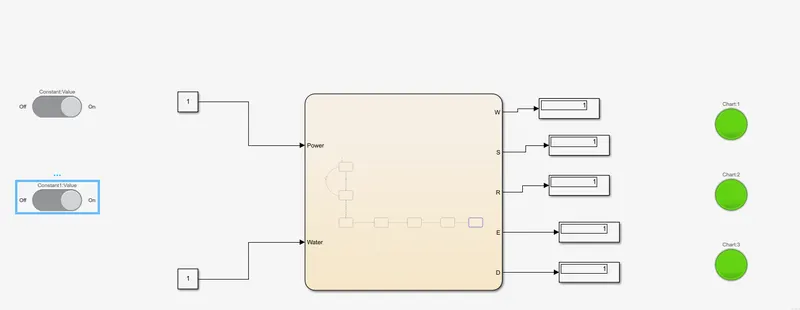

if both POWER and WATER in ON state;

at last all the process have completed turn on the finshed LED

Q.(B)

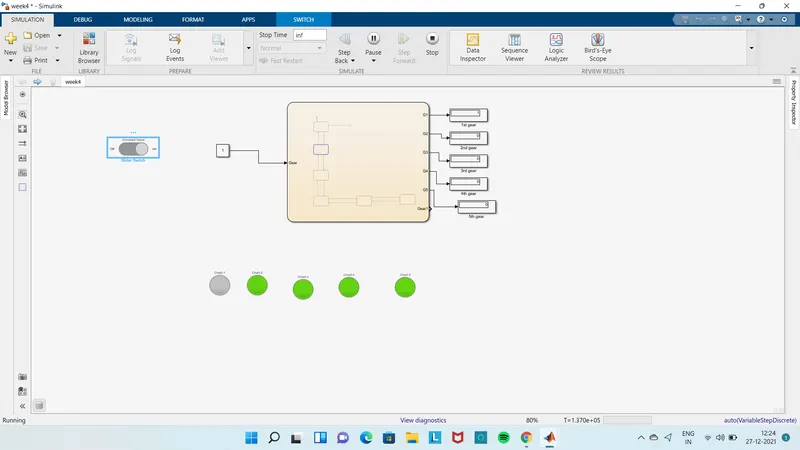

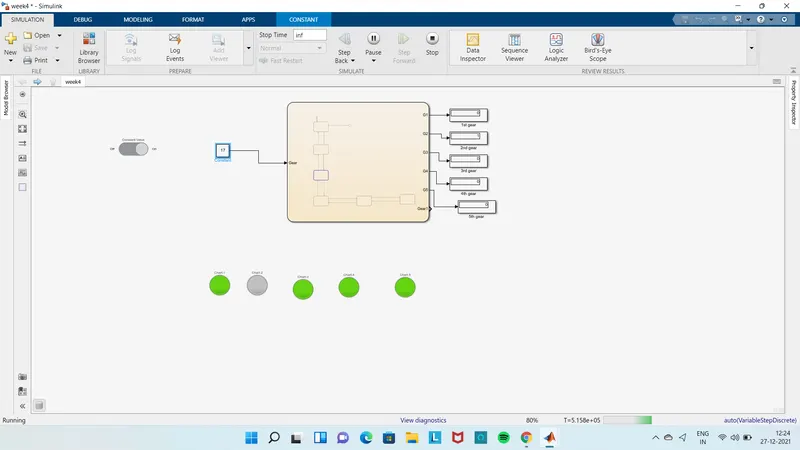

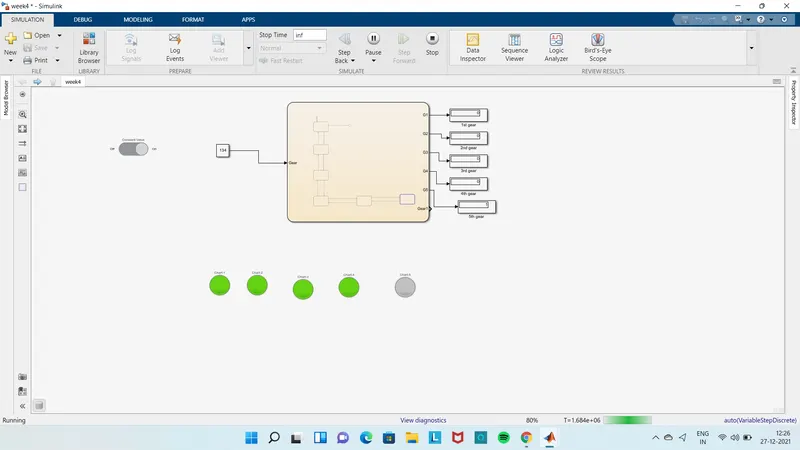

MAKE A SIMULINK CHART FOR THE GEAR SHIFT

IN STATE 1 SPEED IS BEYOND 15KMPH (G>0)

IN STATE 2 SPEED IS ABOVE 15KMPH (G>15)

IN STATE 3 SPEED IS ABOVE 25KMPH (G>25)

IN STATE 4 SPEED IS ABOVE 40KMPH (G>40)

IN STATE 5 SPEED IS ABOVE 60 (G>60)

BLOCKS USED ARE ;

1.SLIDER

2.CONSTANT

3.CHART

4.DISPLAY

5.LAMP

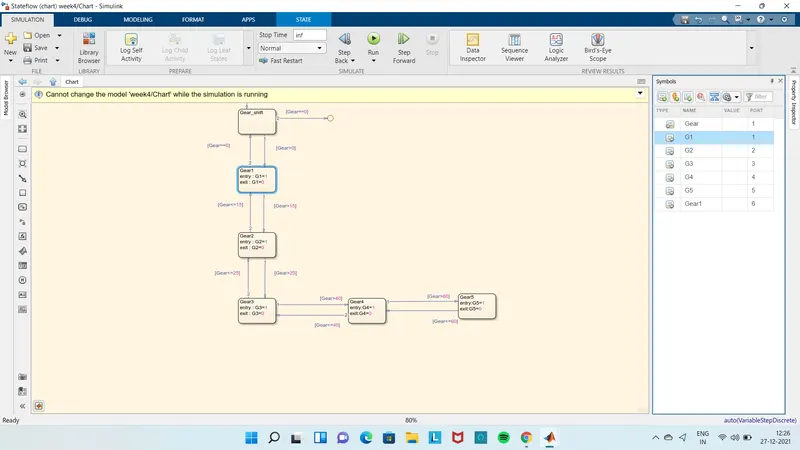

BLOCKS USED IN CHART ARE ;

1.STATE

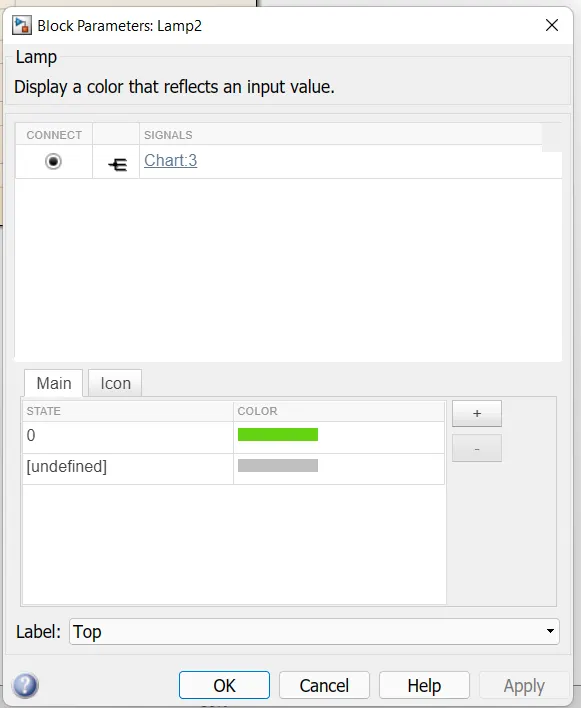

LAMP PARAMETERS;

RESULTS AND CONCLUSION;

A control logic of a washing machine using stateflow for the given sequence is implemented and a simulink chart for Gear shift logic for the given conditions are made.
