Week - 4

1. Stateflow Chart

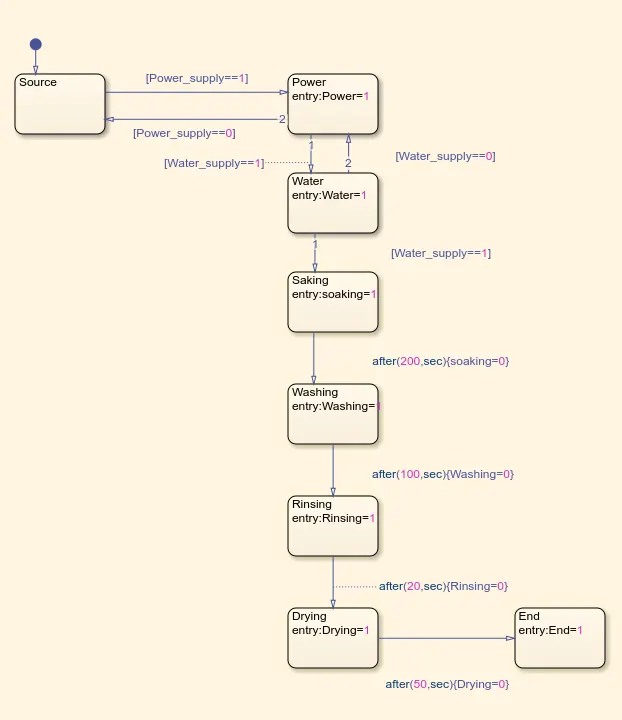

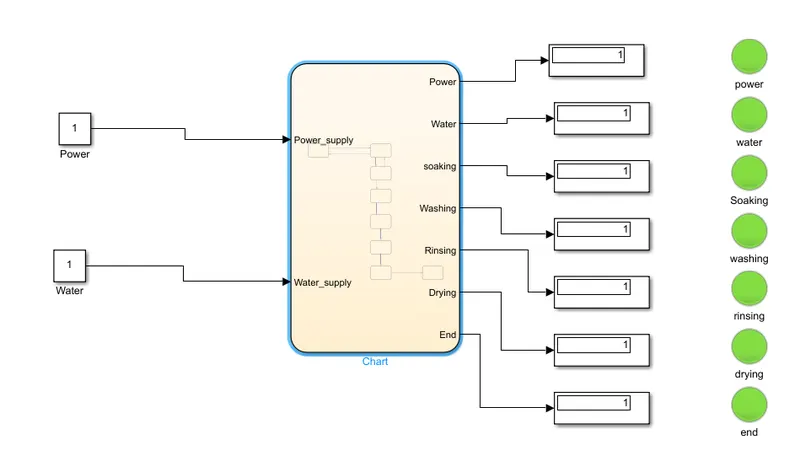

“washing machine” using Stateflow as per given sequence:

• If the power supply is available, the system gets activated
• If the Water supply is not available, stop the process & indicate through LED
• Soaking time should be 200s followed by Washing time of 100s.
• Then rinsing happens for next 20s & dryer runs for 50s
• After all the processes have completed turn on the finished LED

2.

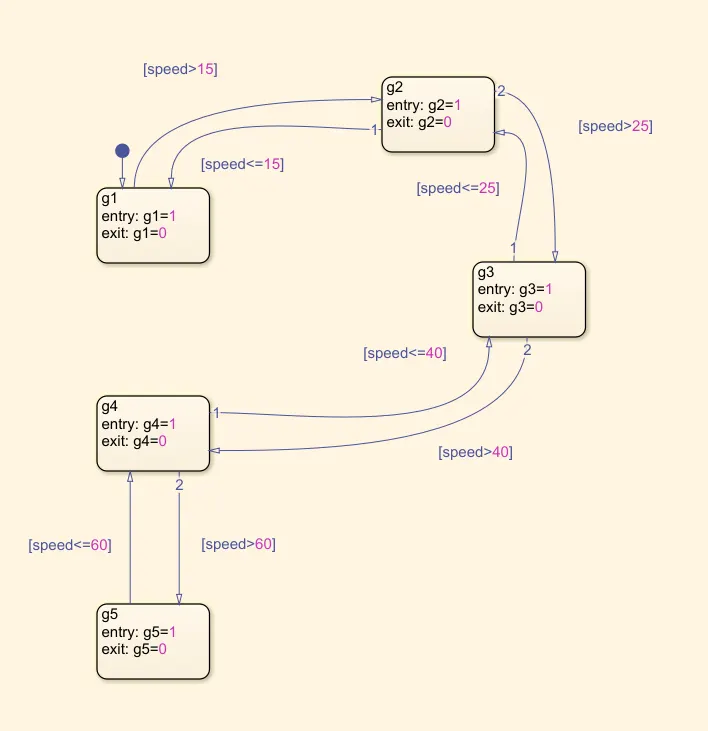

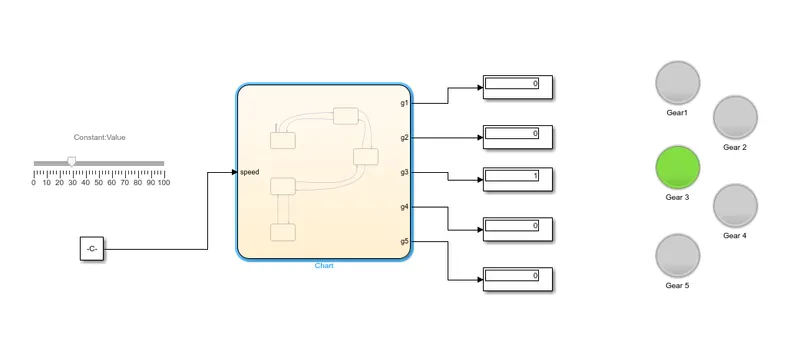

2. Make a Simulink chart for the “Gear shift” logic as per below conditions:

        Speed Range(kmph)        Gear

              0 to 15                         1

             16 to 25                        2

             26 to 40                        3

             41 to 60                        4

             Above 61                       5
