Week 4 - 2D Meshing for Sheet Metal

Aim: To perform the Geometry cleanup, mid surface, and Mesh it with the given 2D element Quality criteria for the given CCB model assembly.

Procedure:

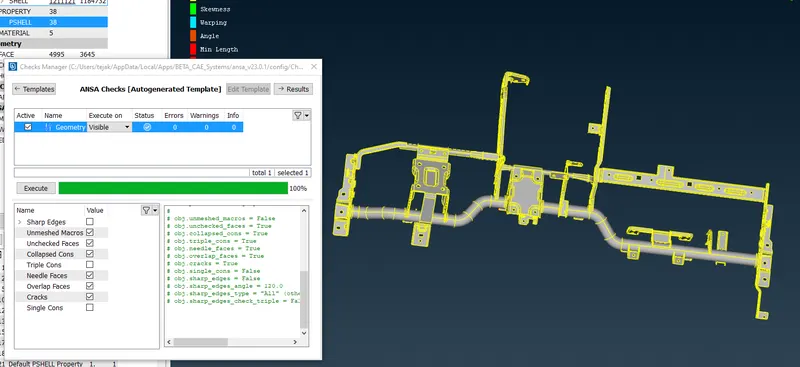

• Geometry checkup: I have performed geometry and please observe the below figure.

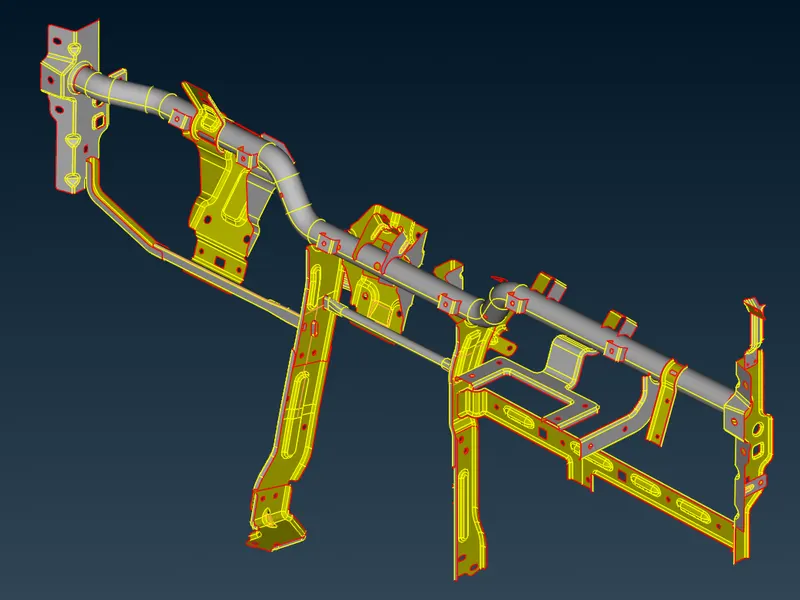

• Mid-Surface Extraction: performed mid-surface extractions by using a manual method and found the mid-surface extraction for the given model as shown below.

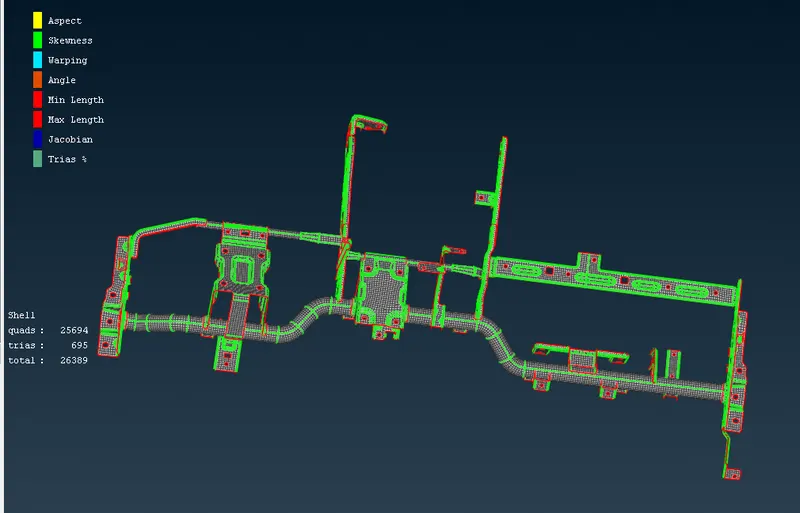

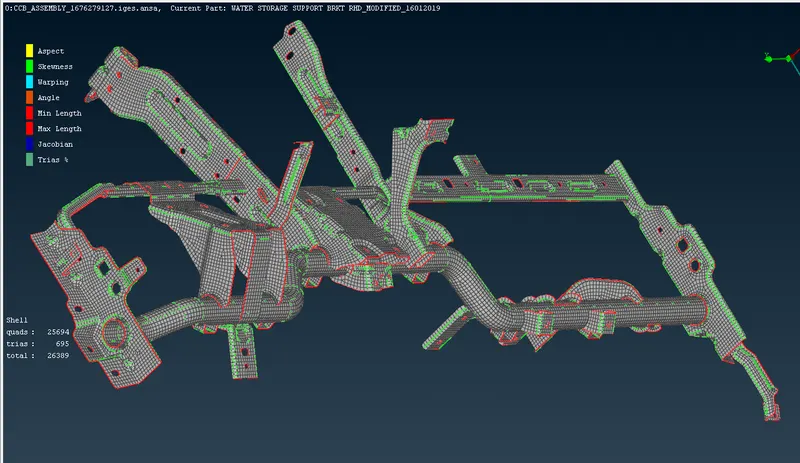

• Meshing: 2D meshing has to be performed for the extracted mid-surface, and observe there are no OFF elements available for the given mesh quality parameters.

• PID and Thickness Assignment: PID and thickness assignment has been performed and the observed solid mesh for the shell is solid.

• Conclusion: Performed the 2D meshing for the given CCB Assembly model and given the best meshing for the given assembly. there is no off elements are available for the given mesh parameters and created mesh is qualified for the given mesh quality parameters. eliminated opposite trias and adjacent trias with in the mesh flow.
