Week 4 - 2D Meshing for Sheet Metal
AIM: Meshing and connection implementation for CCB using ANSA
PROCEDURE:

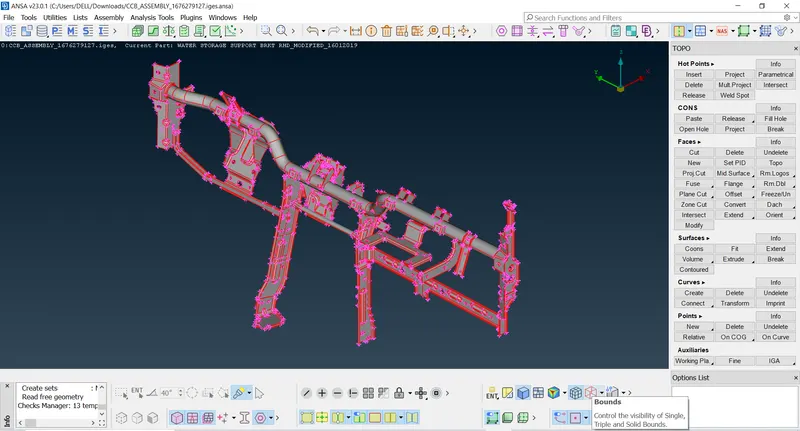

1. Import CAD model
- importing the CAD model
- and do Topo over the entire model
2. GEOMETRY CLEANUP

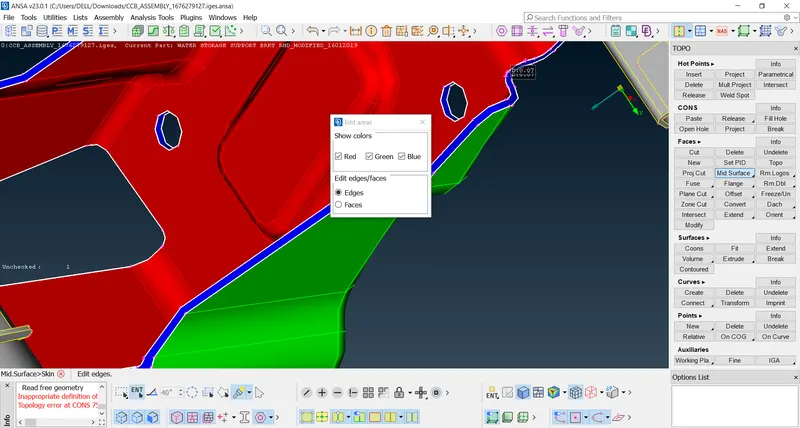

- The given model is performed with to view the cons properly.then it is subjected to geomety clean up.

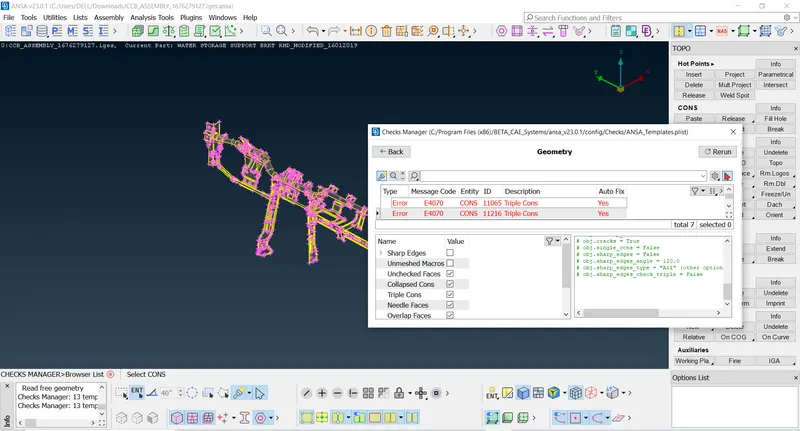

- the errors are checked and fixed as shown in figure.

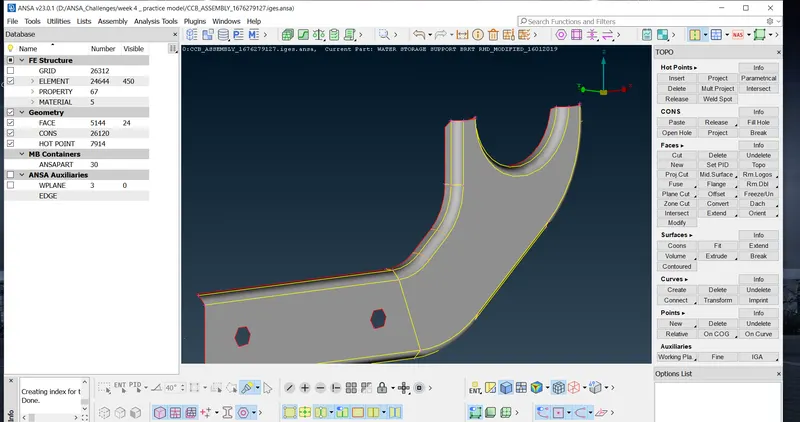

3. MID SURFACE GENERATION
- They are two types midsurace.
- auto (midsurface).
- manual (offset).

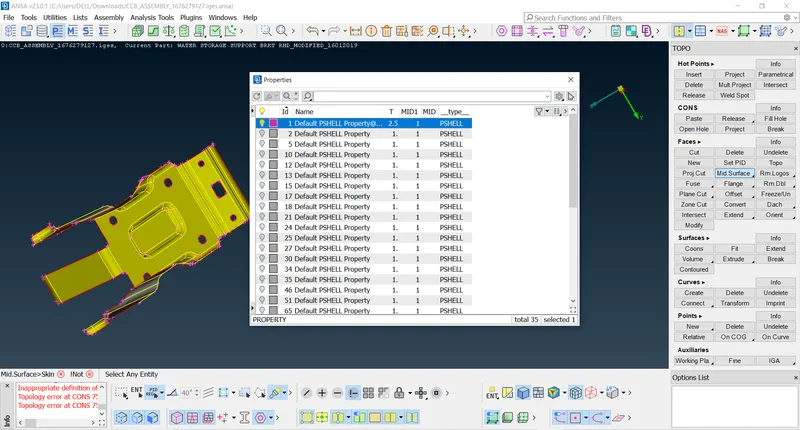

- iam using midsurface (skin) option.
- this method midsurface thickness also assigned atomatically

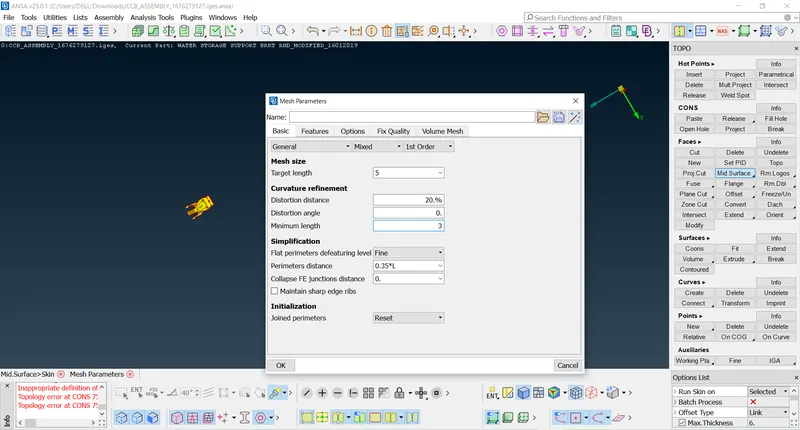

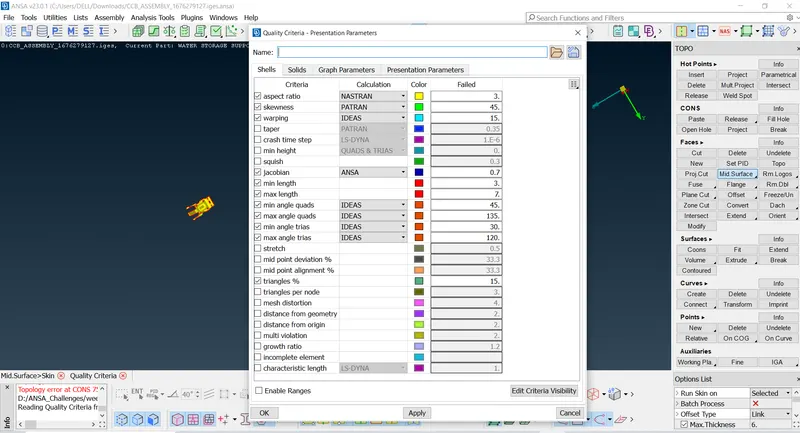

4. Quality and Mesh parameter setup.
- Setup the Quality parameter and Mesh parameter.

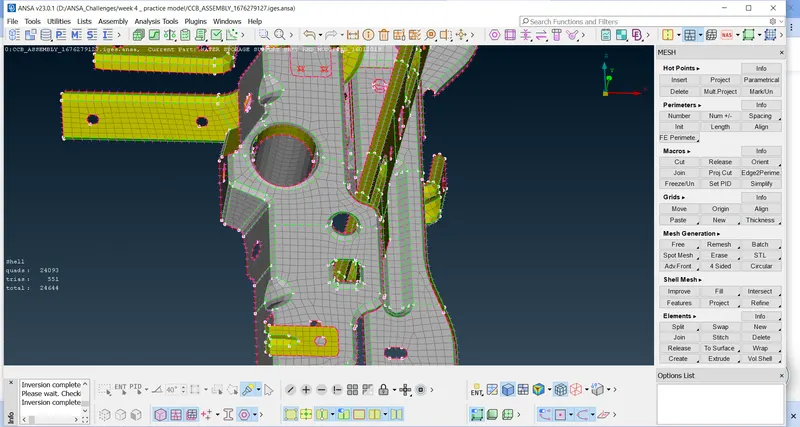

- after go to the classic mesh and set the permeters length, remove the unnecessary hotpoints, and remove the unnecessary constuction lines
- and check the hole are number is even number, if its odd number correct after start the mesh

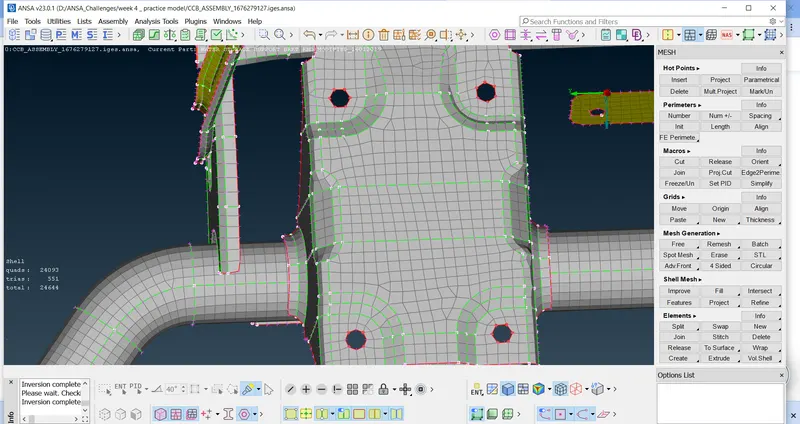

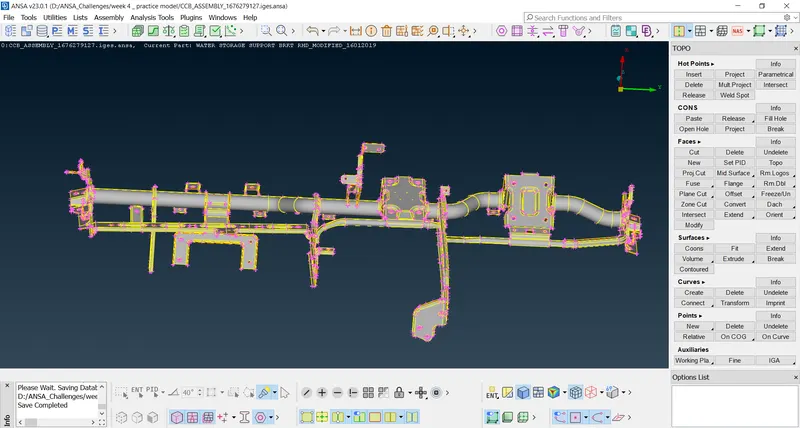

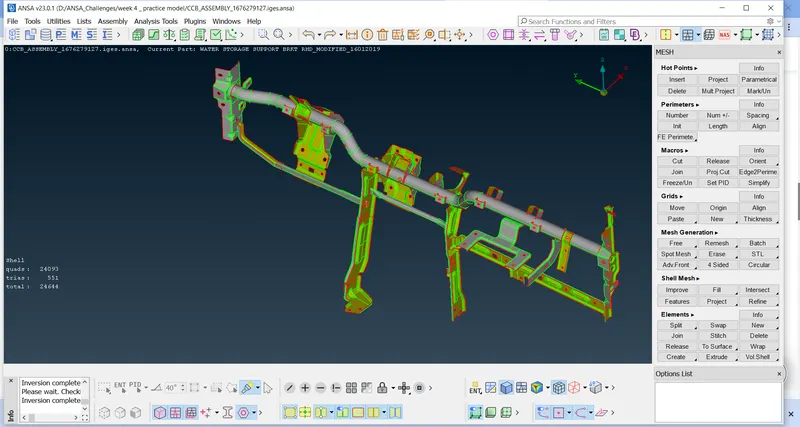

6. FINAL RESULT
7. CONCLUSION:
- The mid surface extracted captures all the features correctly and the meshing is done over the mid surface the with required quality requirement. The mesh flow is smooth and uniform with a target length of 5mm.
