Week 4.2: Project - Transient simulation of flow over a throttle body

Aim: Transient simulation of flow over a throttle body.

Procedure:

Load the case setup file for steady state flow and make the following changes.

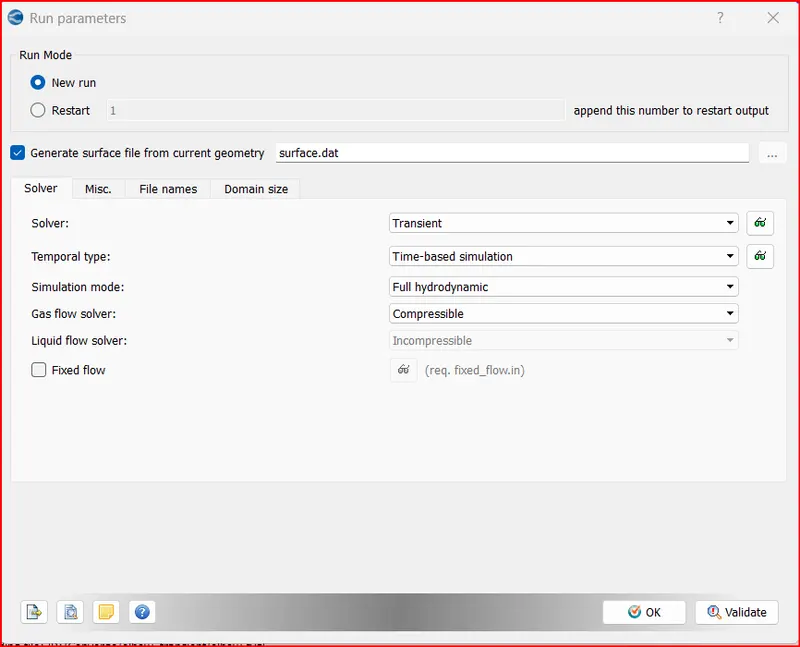

In run parameters select the transient solver

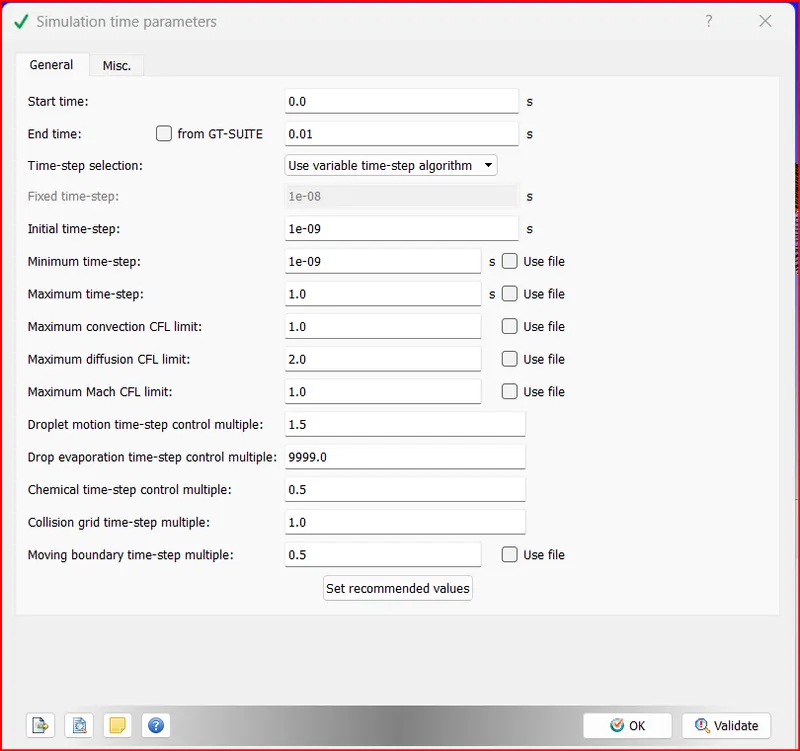

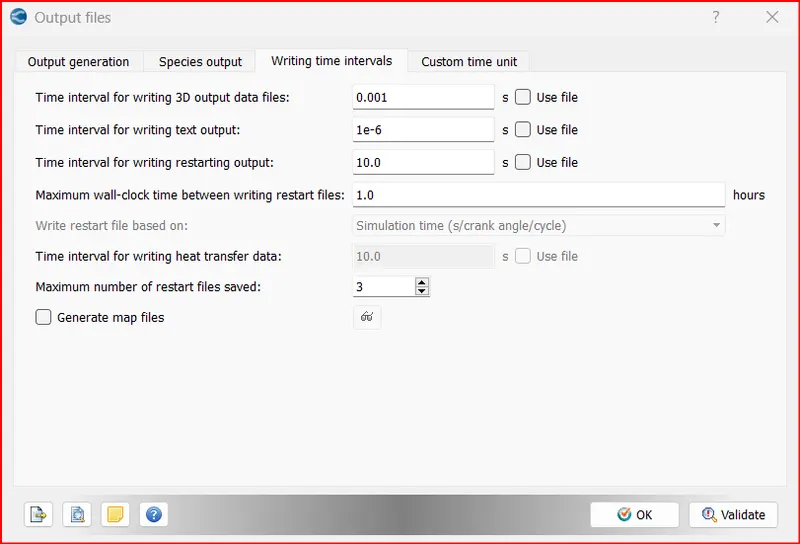

In Simulation time parameters, End time is 4*time for flow to take place through the pipe=4*vel*char length=0.01 secs.

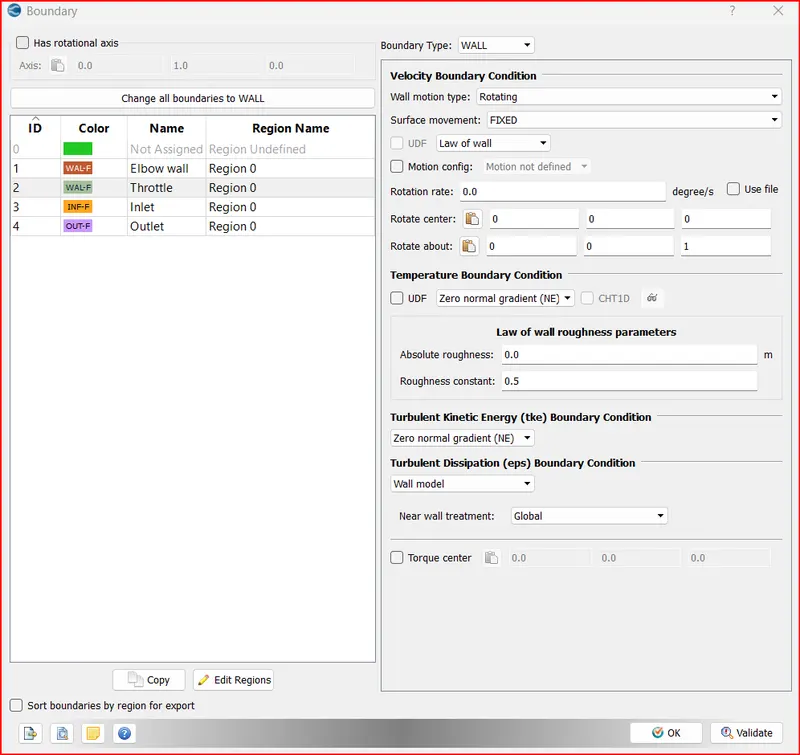

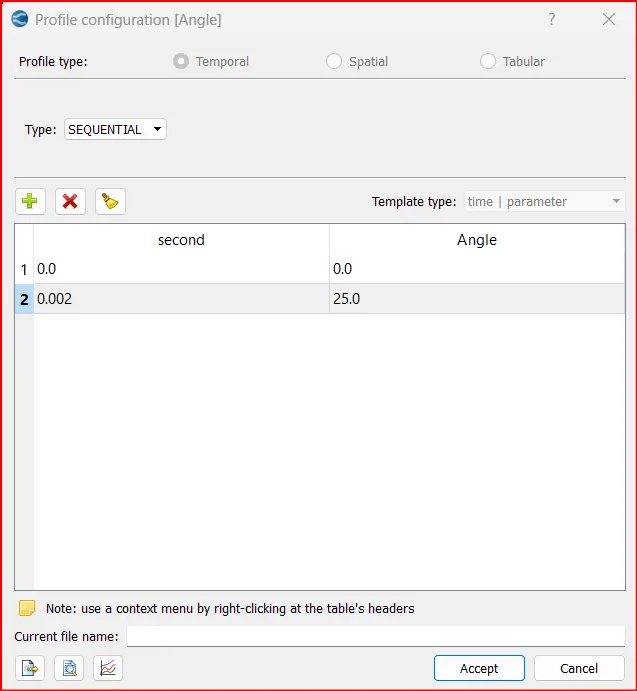

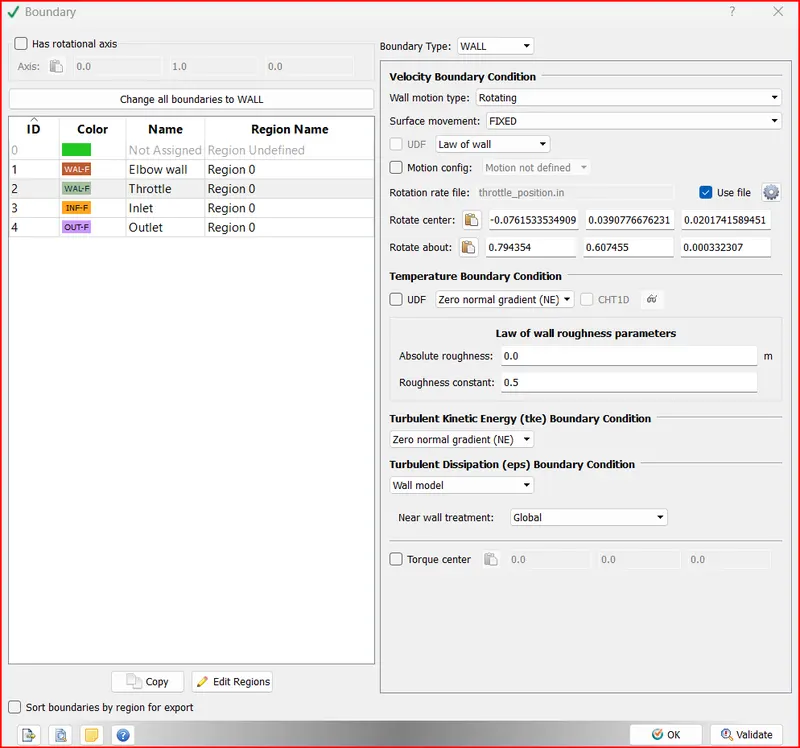

 Now go to boundary and for throttle , Select boundary type as wall and wall motion type as rotating.

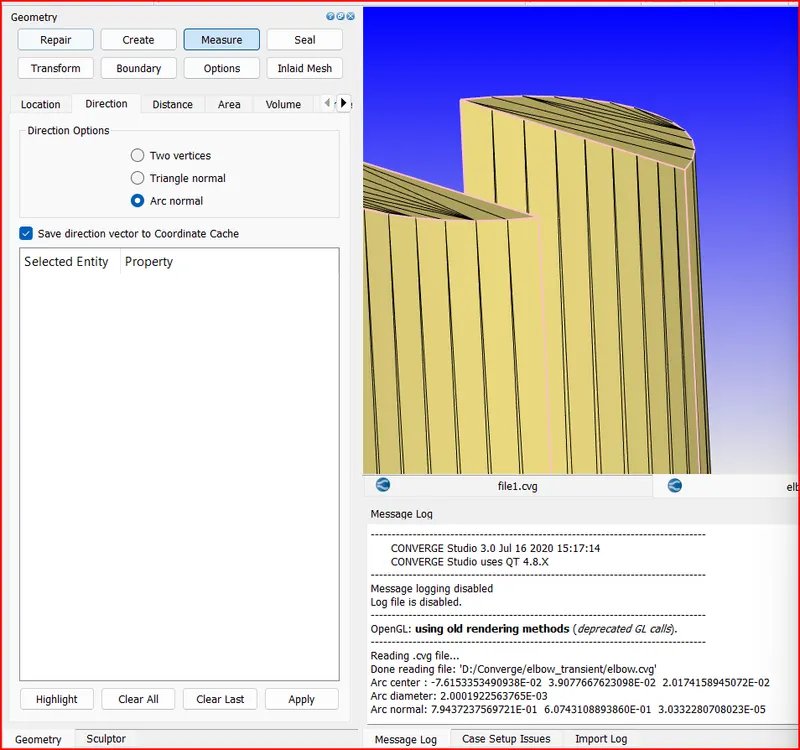

 To get the centre point of the valve rotation,

Go to measure> Direction > Arc Normal select three points and click apply.

Copy the arc centre coordinates.

Contour plots:

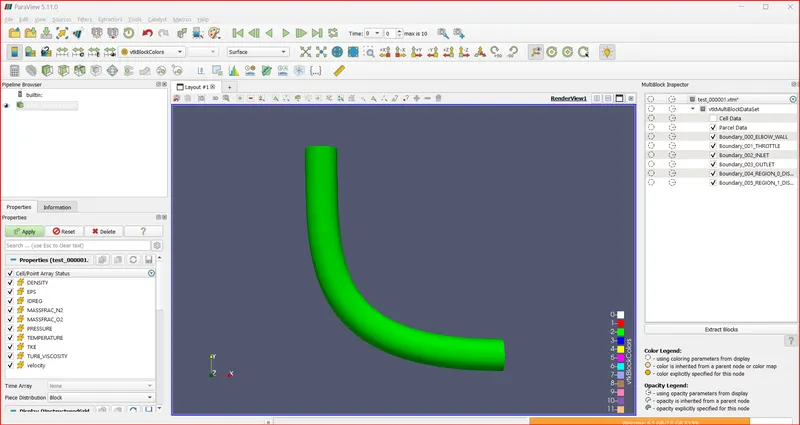

Open paraview and load.vtm file

In view> Multiblock Inspector > uncheck cell data.

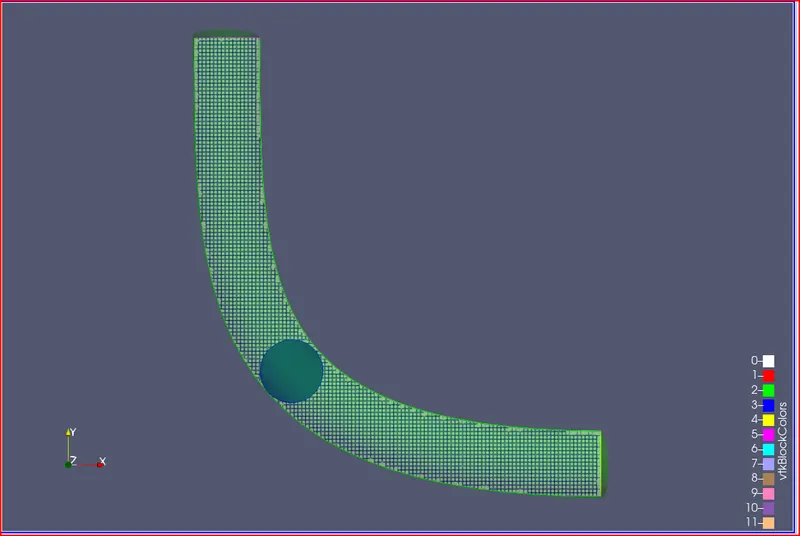

Surface with edges

Plots:

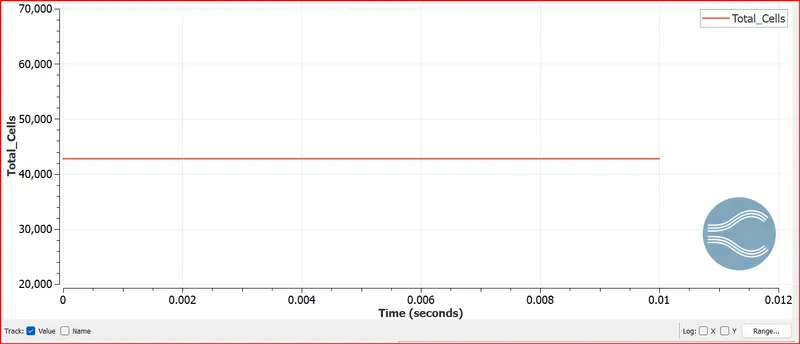

Cell count

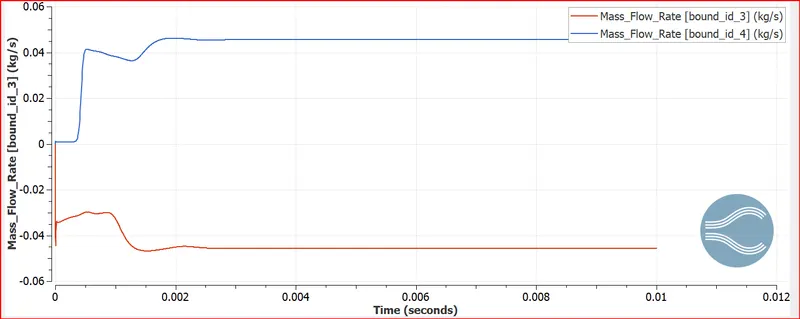

Mass Flow rate

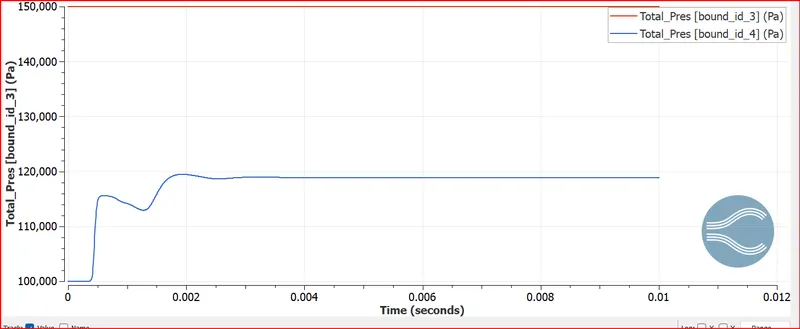

pressure:

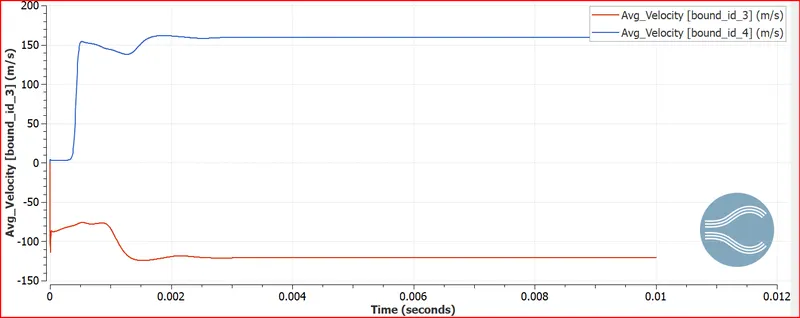

Velocity:
