  Objective:For the given  model, Take the mid surface  after checking the geometrical errors and mesh the mid surface with the given element Quality criteria. (Refer the table Below for the Quality criteria)  Target Element Length = 5 Units S.N Quality Criteria  Value  1 Aspect Ratio …

Aim:Creating connection for Rear door   Solution: first Import the File   Now,Create suitable Connections In this I have made Rbe2 elements for Bolt because it will be fixed connection.  Go to Rbe2- select many nodes- then select nodes - then click on next- Rbe2 is done. Some Images of Rbe2 elements  …

Solution First open the file by going to File-Open     Now,After opening the file select the whole component and do Topo option (it connect the cons if they are not connected)   Now,check for any geometrical errors by going to Tools-checks-geometry Or search check on search box     select all the…

Solution First open the file by going to File-Open Now,After opening the file select the whole component and do Topo option (it connect the cons if they are not connected)         original model                               …

Solution First open the file by going to File-Open Now,After opening the file select the whole component and do Topo option (it connect the cons if they are not connected)   Now,check for any geometrical errors by going to Tools-checks-geometry Or search check on search box select all the errors by Ctrl+A and then…

Objective-2D meshing for sheet metal For the given Hood model, Take the mid surface for all the components after checking the geometrical errors and mesh the mid surface with the given element Quality criteria. (Refer the table Below for the Quality criteria)    S.No  Quality Criteria  Value  1…

AIM:Carry out a system-level simulation of an all-terrain vehicle And Prepare a technical report explaining the model properties & comments on the results on Baja-All terrain vehicle(A.T.V.).   What is All terrain vehicle(A.T.V.) ??? All-Terrain Vehicles (ATVs) and Recreational Off-highway Vehicles (ROVs)…

Q:Project 2-Meshing of Rear Wheel Holder challenge     GEOMETRY CLEANUP     MID-SURFACE     MESH Mesh the component given below and assign thickness: Target Element Length = 5 Units S.N Quality Criteria  Value  1 Aspect Ratio  5 2 Skewness 45 3 Warping 15 4 Taper   …

Follow the Quality Criteria and mesh the following component and assign thickness: Target Element Length = 4 Units S.N Quality Criteria  Value  1 Aspect Ratio  5 2 Skewness 45 3 Warping 15 4 Taper      0.5 5 Min. Length 2 Units 6 Max. Length 6 Units 7 Min angle Quad 45 8 Max angle Quad 135…

Q1. For this challenge, you will have to mesh the given geometry. Provided below are the quality parameters that you have to follow. Target Element size - 5 Units S.N Quality Criteria  Value  1 Aspect Ratio  5 2 Skewness 45 3 Warping 15 4 Taper      0.5 5 Min. Length 2 Units 6 Max.…

Q1.Morph the given side body component to the desired shape shown in the images below and write a Macro for the same     SOLUTION select the profile optistruct first import the file using file-import-solver geometry(in case of .fem)-file name make the duplicate component to work on it so that the…

Objective:3D Tetra Meshing Challenge   Q1.Create a Teramesh for Housing component with the following quality criteria.      TetraMesh Generation Method: 2D to 3D Conversion     Elements sizes: Min- 2 Units, Target- 5 Units, Max- 7 Units       Tet collapse: 0.15  …

Objective -to mesh the hood   Hood has four componentsInner extractOuter extractLatchHingeQuality criteriaTo set the criteria go to preference -criteria settings Solution Import the hood.hm file by going to file-import-model-hood.hmTo mesh the hoodWe will do it one by one i.e. selecting one component at a time Inner…

Mesh the Given component with the Size of 5 Units. Create 1D elements on the following component with given cross-section and DOF a. Rod element:- Translational DOF should be Constrained with RBE2 link Cross-Section: BOX- Dimension a= 12 mm dimension b=10 mm Thickness t= 0.75 mm b. Beam element:- All DOF should be constrained…

objective:Implement control logic of a “washing machine” using Stateflow as per given sequence: If the power supply is available, the system gets activated If the Water supply is not available, stop the process & indicate through LED Soaking time should be 200s followed by Washing time of 100s. Then rinsing…

Objective1. Make a Simulink model of Doorbell using solenoid block Create a situation where the switch is closed for 2 seconds and then released. 2. Use a thermistor to sense the temperature of a heater & turn on or turn off the fan Fan conditions: ON if the temperature above 25 °C, OFF otherwise   solution1. …

Create a Rankine Cycle Simulator and plot the corresponding T-s and h-s plots. Rankine cycle The Rankine Cycle is a mechanical cycle commonly used in power plants to convert the pressure energy of steam into mechanical energy through steam turbines. The Rankine Cycle’s major components include a rotating steam turbine,…

LINKS https://youtu.be/5IGe9t5Y4Ig   i have shared all my files in the google drive link below in zip file  https://drive.google.com/file/d/1M13h41a01GduMX3SisflxO_Ugky90Fz8/view?usp=sharing     Write a function that extracts the 14 co-efficients and calculates the enthalpy, entropy and specific heats…

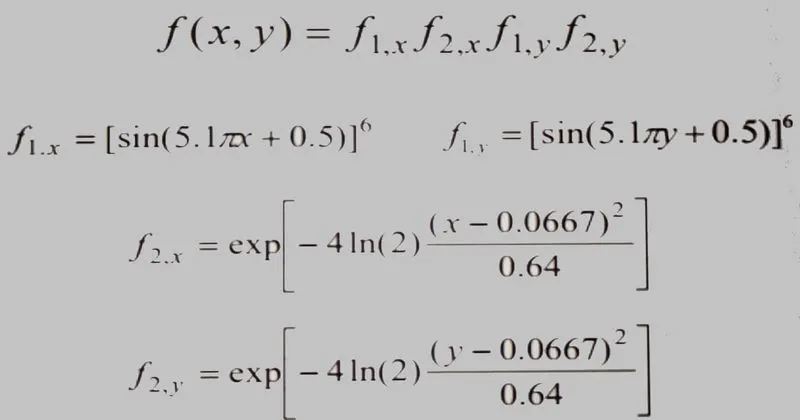

https://drive.google.com/file/d/1YxeTzV-NKTPc4YKm7zK5_wpFozmwYLXp/view?usp=sharing   GENETIC ALGORITHMGenetic Algorithm (GA) is a search-based optimization technique based on the principles of Genetics and Natural Selection. It is frequently used to find optimal or near-optimal solutions to difficult problems which…

https://drive.google.com/file/d/1NyacFHnRz8ESzNLY_JX7dpBl_jJ9fD-0/view?usp=sharing  Objective1.To solve an otto cycle and make plots for it.2.To find the thermal efficiency of the engine.   IntroductionOtto cycle The Otto Cycle is named after Nikolaus Otto (1832–1891, German) who is credited as the first…

https://drive.google.com/file/d/1bybTMojYuOkonhWyf7bNPPVgCnR9h756/view?usp=sharing https://drive.google.com/file/d/1bybTMojYuOkonhWyf7bNPPVgCnR9h756/view?usp=sharing https://youtu.be/z2MHEox7NV0 ODE An ordinary differential equation (also abbreviated as ODE), in Mathematics, is an equation which consists of one or more…

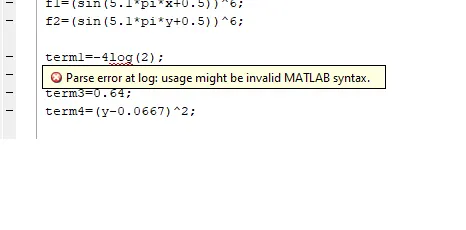

https://youtu.be/xo5FQQhN6z4 https://drive.google.com/file/d/1HpsfCN4I1y6cx2QeB9RU63pDfd--_D7D/view?usp=sharing * I have provided the links above for movie and if google link video do not start please download the video then play it. * I have attached the script. * I have not faced many errors but only faced errors in…
