Week 4.1 - Genetic Algorithm

The Genetic Algorithm is an optimization technique used to slove non linear optimizationproblems. It uses to find the maxima or minima in the required equation.

Main Program

clear all
close all
clc

x=linspace(0,0.6,150);
y=linspace(0,0.6,150);
limit = 50;


%Creating 2D array using meshgrid fuction
[xx yy]=meshgrid(x,y);

% Nested loop for array value input

for i=1:length(xx)
    for j=1:length(yy)
        input_vector(1)=xx(i,j);
        input_vector(2)=yy(i,j);
        f(i,j)=stalagmite_fun(input_vector);
    end
end


% Study 1 - Statestical Behaviour
tic
for i=1:limit
    [inputs,fval(i)]=ga(@stalagmite_fun,2);
    x_opt(i)=inputs(1);
    y_opt(i)=inputs(2);
end
study1_time = toc
figure(1)
subplot(2,1,1)
surfc(xx,yy,-f)
xlabel('X_Axis')
ylabel('Y_Axis')
title('Unbounded inputs','color','k')
shading interp
hold on;
plot3(x_opt,y_opt,-fval,'marker','o','markersize',6,'MarkerFaceColor','r');
subplot(2,1,2)
plot(-fval)
xlabel('No of Iterations')
ylabel('Max Function Value')

% Case : 2 InsertingBounding Box

tic

for i=1:limit
    [inputs, fval(i)]=ga(@stalagmite_fun,2,[],[],[],[],[0;0],[0.6;0.6]);
    x_opt(i)=inputs(1);
    y_opt(i)=inputs(2);
end
study2_time = toc

figure(2);
subplot(2,1,1)
hold on;
surfc(xx,yy,-f)
xlabel('X_Axis')
ylabel('Y_Axis')
title('Case 2','Color','k')
shading interp
plot3(x_opt,y_opt,-fval,'marker','o','markersize',6,'markerfacecolor','r')
subplot(2,1,2)
plot(-fval)
xlabel('No of Iterations')
ylabel('Max function Value')

% Study 3 Increasing GA iteration
options = optimoptions('ga');
options = optimoptions(options,'PopulationSize',100);

tic
for i=1:limit
       [inputs, fval(i)]=ga(@stalagmite_fun,2,[],[],[],[],[0;0],[0.6,0.6],[],[],options);
    x_opt(i)=inputs(1);
    y_opt(i)=inputs(2);
end
study3_time=toc
figure(3)
subplot(2,1,1)
hold on
surfc(xx,yy,-f)
shading interp
xlabel('X_Axis')
ylabel('Y_Axis')
plot3(x_opt,y_opt,-fval,'marker','o','markersize',5,'MarkerFaceColor','r')
subplot(2,1,2)
plot(-fval)
xlabel('No of Iterations')
ylabel('Max Function Value')
% Displying the Value of x & y for max value of function
display(inputs)

% End of Program

Stalagmite Function

function [f] = stalagmite_fun(input_vector)

f1x= (sin((5.1*pi).*input_vector(1)+0.5)).^6;
f1y= (sin((5.1*pi).*input_vector(2)+0.5)).^6;

f2x=exp((((input_vector(1)-0.0667).^2)/0.64).*(-4*log(2)));
f2y=exp((((input_vector(2)-0.0667).^2)/0.64).*(-4*log(2)));
f1=f1x*f1y*f2x*f2y;
f=-f1;
end

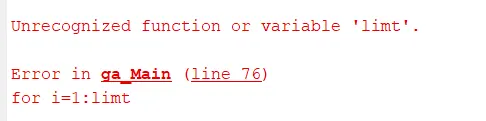

Error Found

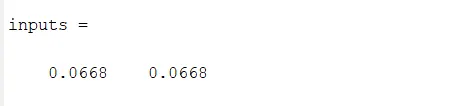

Values of x & y for maximum value of function.
