Sheet metal Bending challenge
Objectives: To perform Sheet Metal Bending Operation in ANSYS Workbench
Geometrical Design:
3D Model is shown below; it is having 3 main parts named as Punch Die and Sheet.
Material Properties:
For this analysis we will consider 3 different materials for sheet. We will consider Structural Steel for Punch & Die and will consider various other materials for sheet. Have a look at material properties below;
Problem Statement:
Sheet of different materials will pressed by punch and deformation and desired shape will be obtained. Sheet will deform as per the shape of Die. Various parameters will be used to perform this analysis like different materials, different co-efficient of friction and a refined mesh. At the end of simulation we will look for Total Deformation, Equivalent Elastic Strain and Equivalent Stress.
There will be 3 cases for this analysis
Case 1: Aluminum Alloy 1199, Copper Alloy NL, Magnesium Alloy NL
Case 2: Aluminum Alloy with friction co efficient of 0.19 (Other Cases 0.1)
Case 3: Aluminum Alloy with Refined Mesh

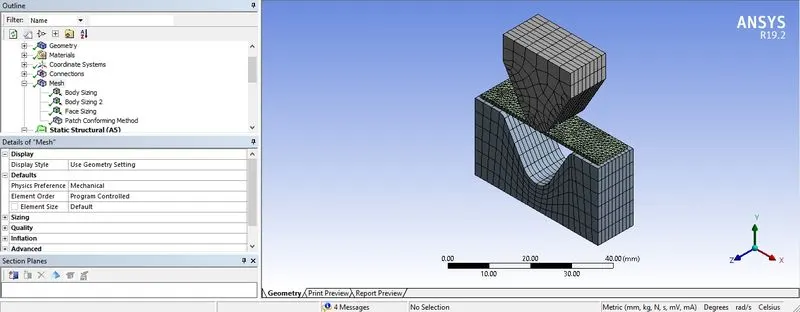

Mesh Criterion:
Element Type: Tet and Hex Mesh
Body Sizing 1: 4 mm
Body Sizing 2: 1 mm
Face Sizing: 1 mm
Method: Patch Conforming Method (Sheet)
Boundary Condition:

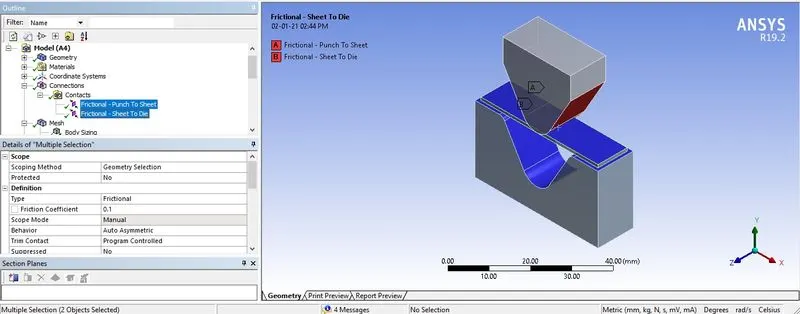

Punch Die & Sheet possess various contacts, Frictional contact between Punch & Sheet, another frictional contact between Sheet and Die.
Punch will be given displacement in Y Direction, two sides of plate is kept fixed with 0 mm displacement, die is constrained with all sides

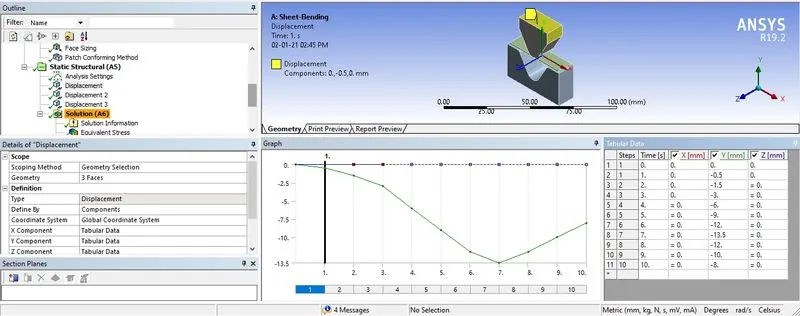

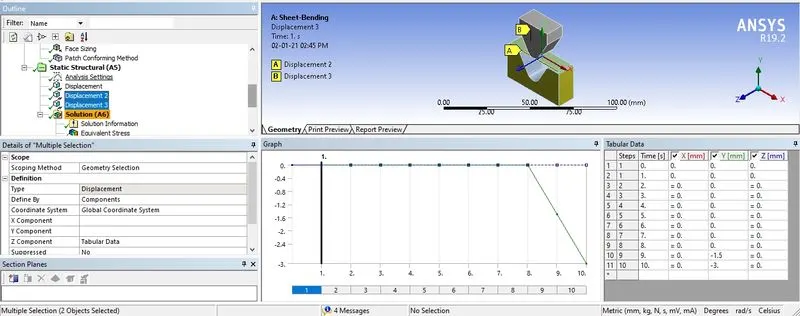

Displacement:
Loading & Analysis Setting:
The analysis is divided into total 10 steps.
Steps: 10 Steps
Post Process:
Case 1: Aluminum Alloy 1199

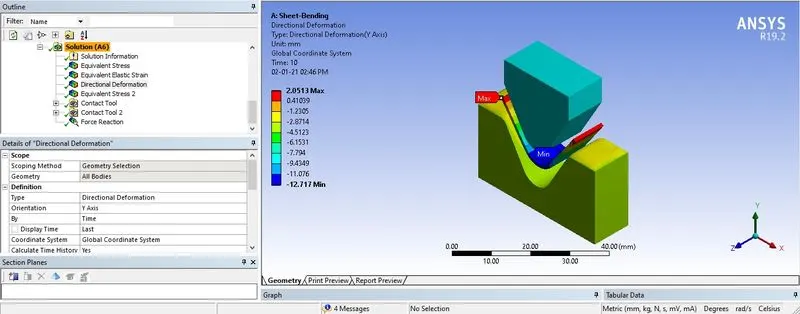

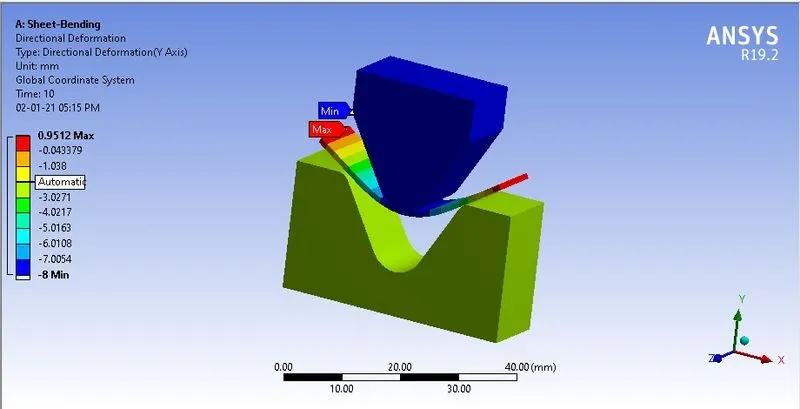

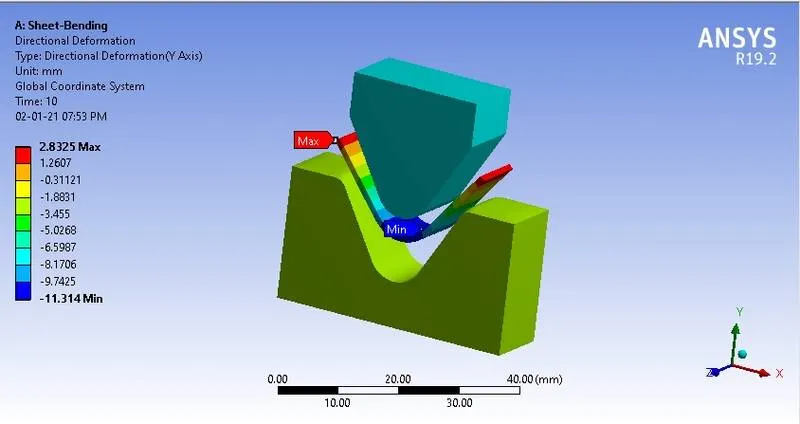

Directional Deformation

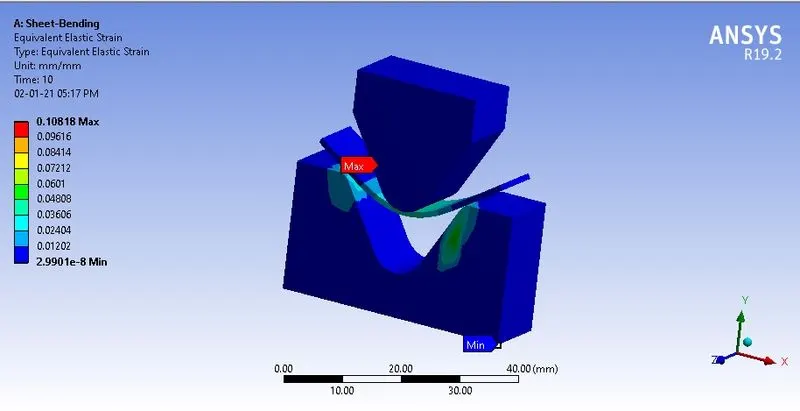

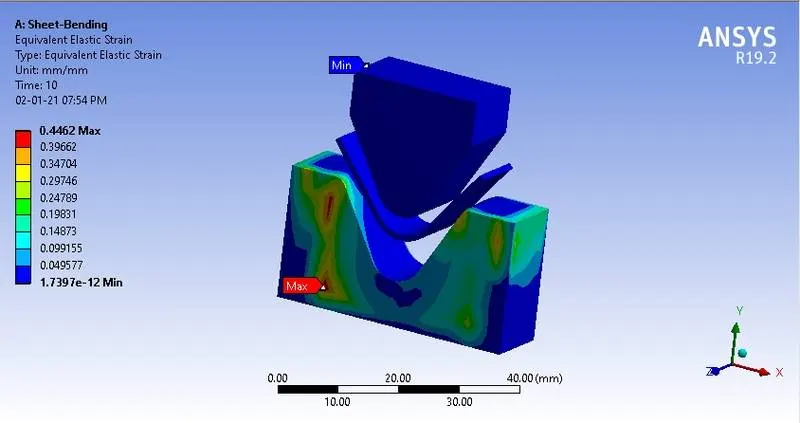

Equivalent Elastic Strain

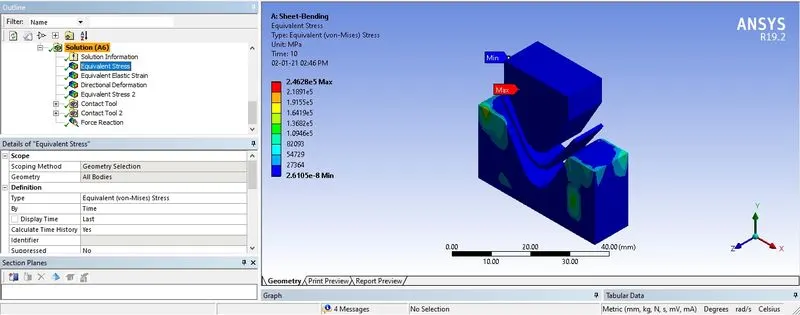

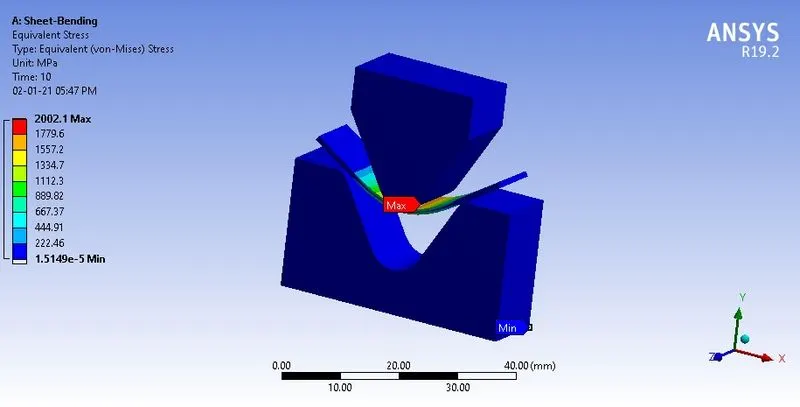

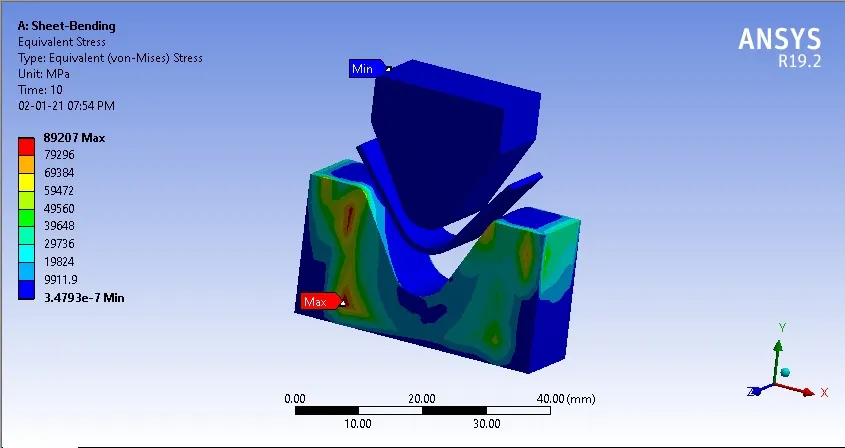

Equivalent Stress

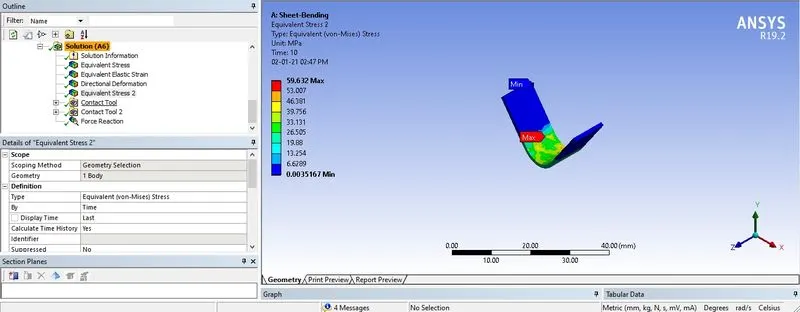

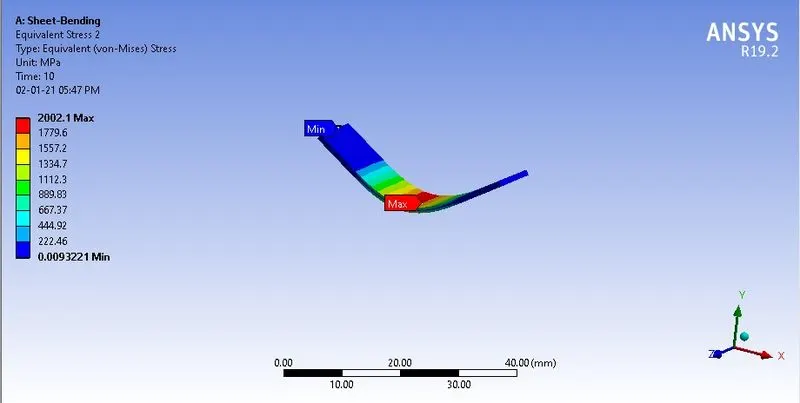

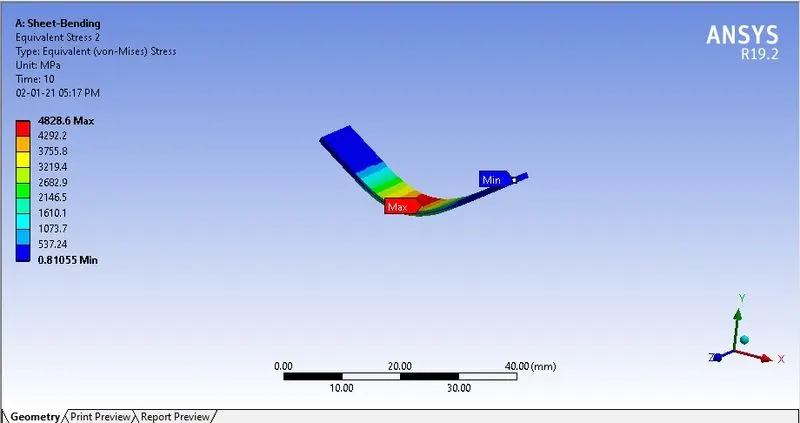

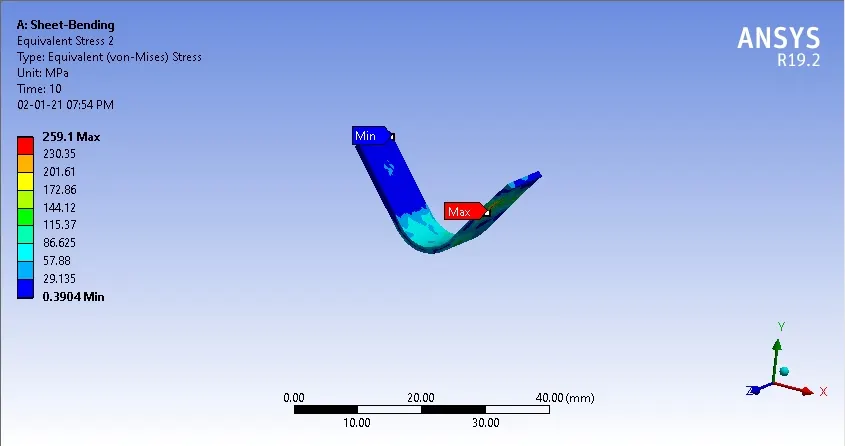

Equivalent Stress for Plate
Case 1: Copper Alloy

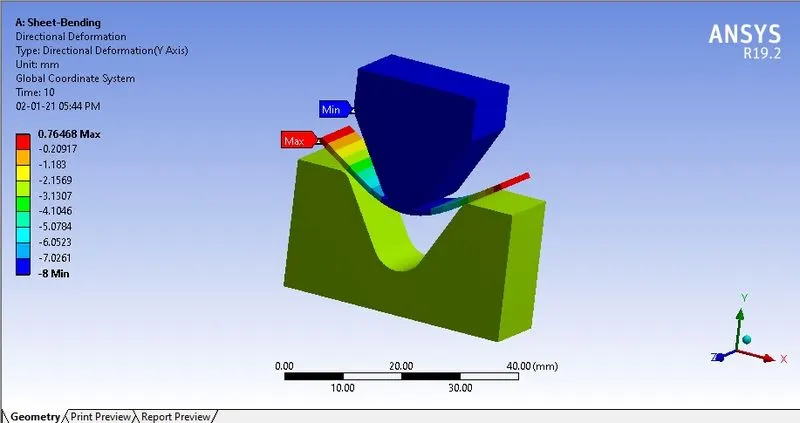

Directional Deformation

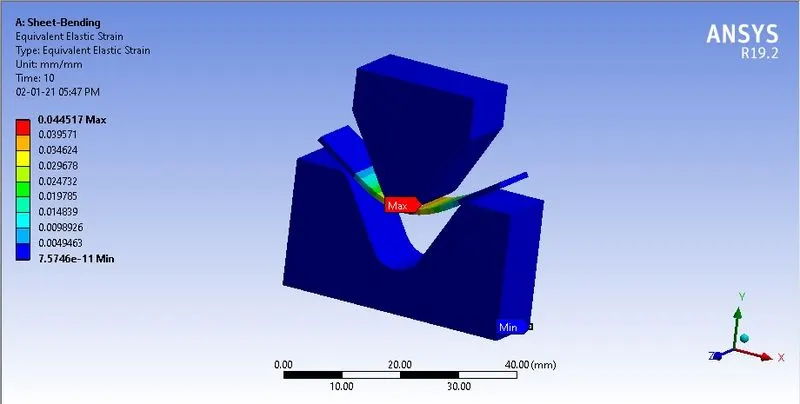

Equivalent Elastic Strain

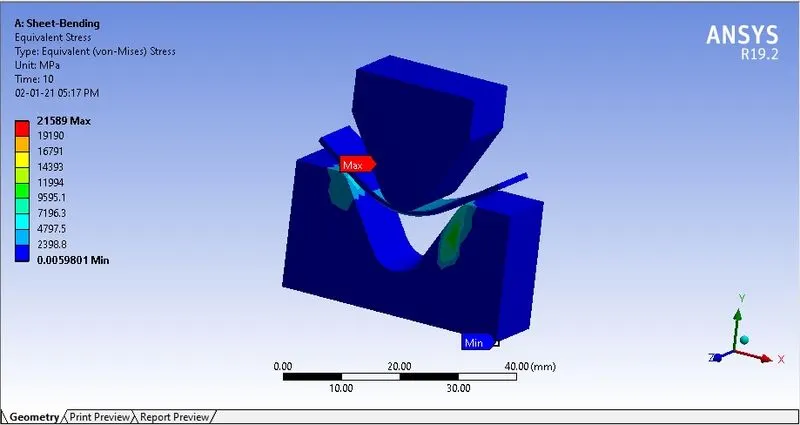

Equivalent Stress
Equivalent Stress for Plate
Case 1: Magnesium Alloy
Directional Deformation
Equivalent Elastic Strain
Equivalent Stress
Equivalent Stress for Plate
Case 2: Aluminum Alloy with friction co-efficient of 0.19
Directional Deformation
Equivalent Elastic Strain
Equivalent Stress
Equivalent Stress for Plate
Case 3: Aluminum Alloy with Refined Mesh
Directional Deformation
Equivalent Stress
Equivalent Stress for Plate
Results & Conclusion:
Various Results obtained from these analyses which are summarized in above given table. Lot of various and different parameters used in this analysis such as different materials, different co efficient of friction and mesh refinements. At the end of this we gets satisfactory results.
