Week 3 - Geometry simplification of an Electronic enclosure assembly

Aim

To perform geometric simplification of a 3D cad model using space claim in order to import into a ANSYS ICEPAK.

Introduction

The cad model designed by design engineer, in which their many objects were present which are may not effect the thermal simulation or those effects can be neglected, so we required to remove those objects.

remove the rounds,fillets and washers and hide the enclosure and open the PCB in new tab and do the splitting openration

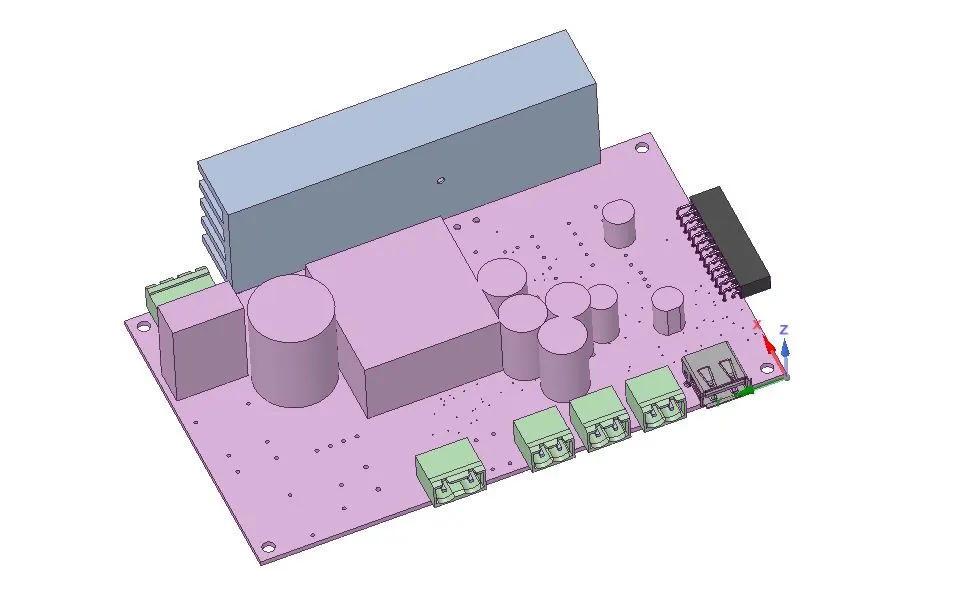

before simplification of PCB

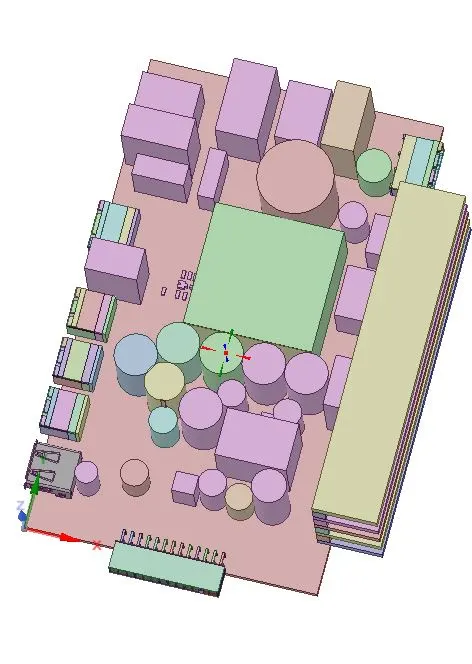

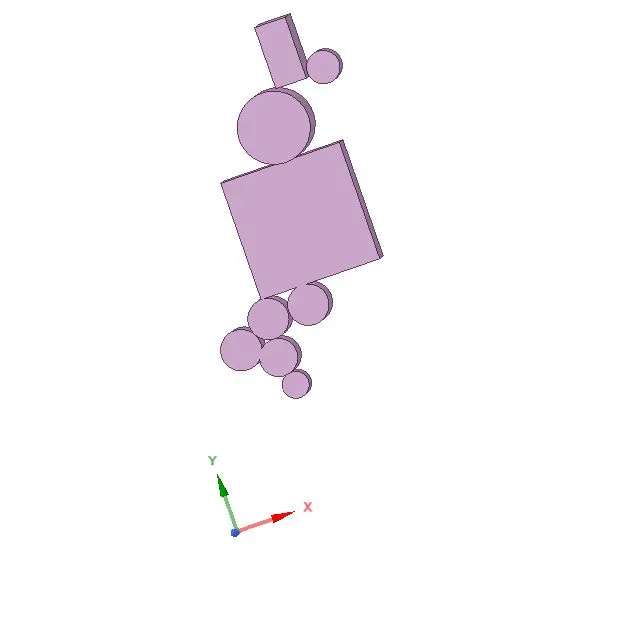

after simplification

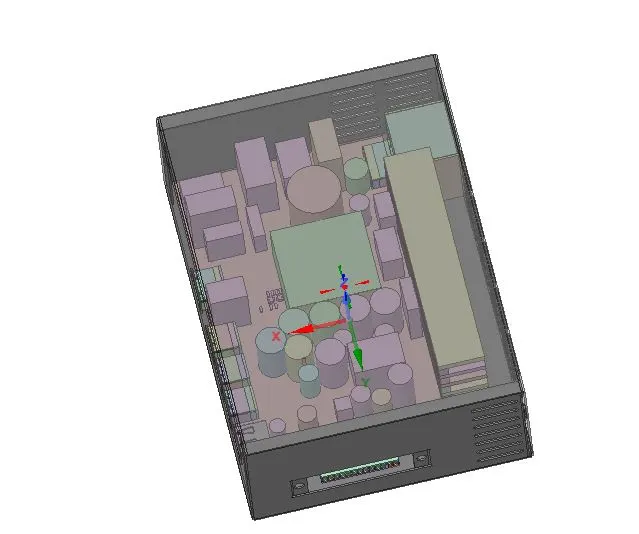

simplification of enclosure

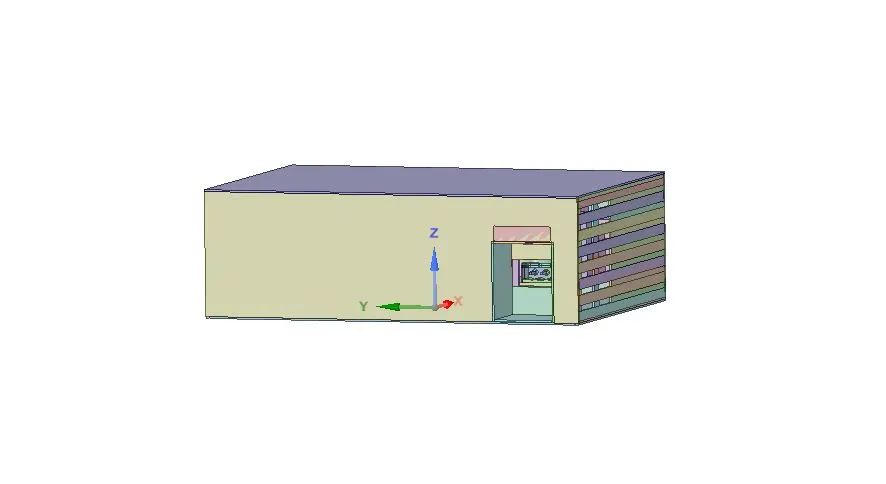

The final result
