Week - 3 Drop test Challenge

AIM- To perform drop test of cell phone using ls dyna solver and give detailed report

procedure

open the keyword file which was given in the question

the file consists of a mobile phone model and a rigis wall solid element and shell element i this we are going to delete the solid wall element

because the solid element takes more time than shell element while solver runs

as we know the file consist of 2 parts we will assign different material properties to both the wall and cell phone

rigid wall

cellphone

there are two sections which we need to create

for wall

for cell phone

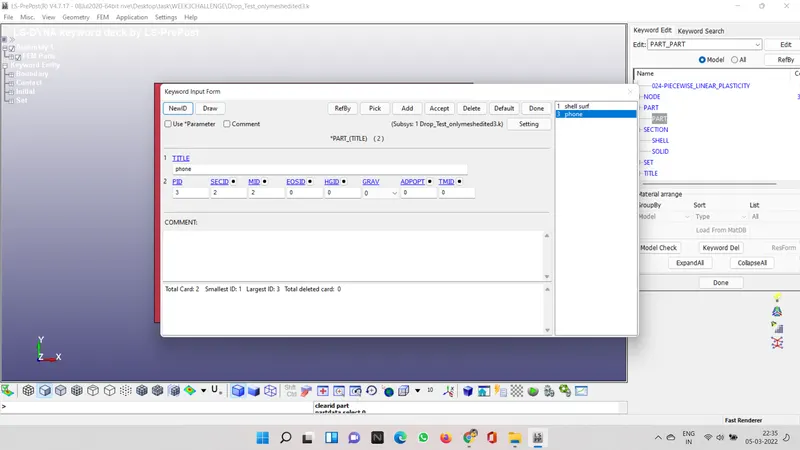

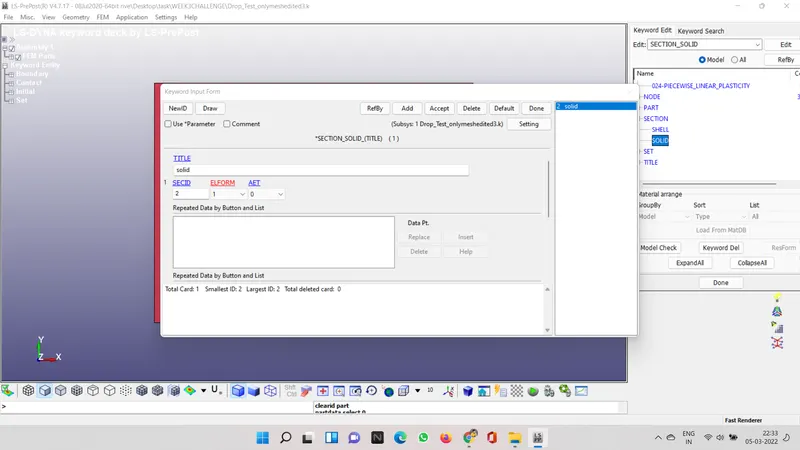

applying section and material to the part in the file

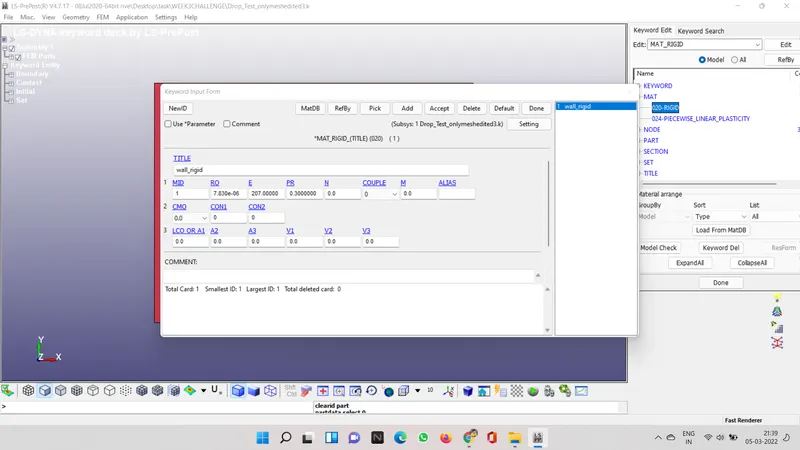

rigid wall

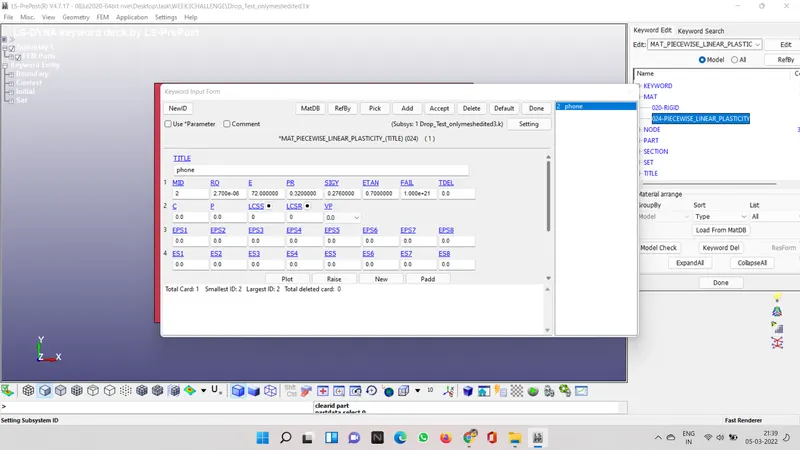

cell phone

after this we need to introduce velocity go to the keyword search and select all you will find every thing which we need to provide to the model

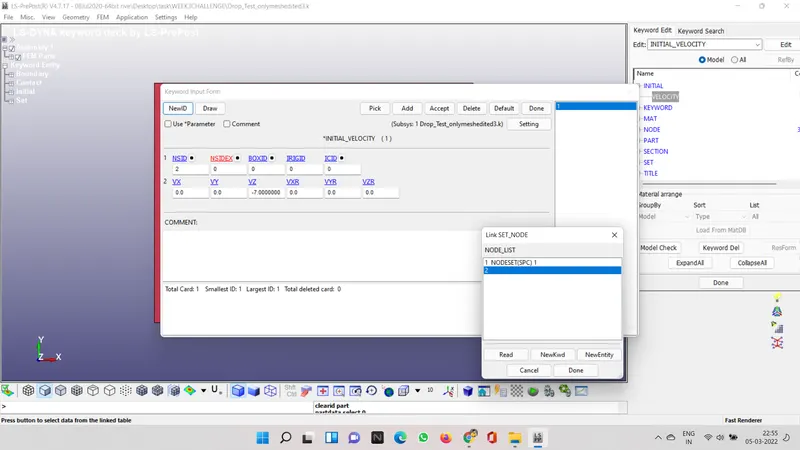

initial velocity

introduce the velocity to the cell phone

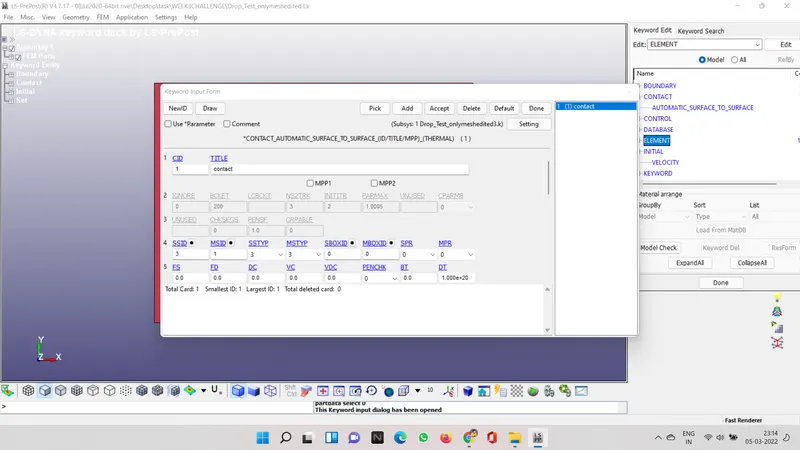

now we will introduce contact to the model

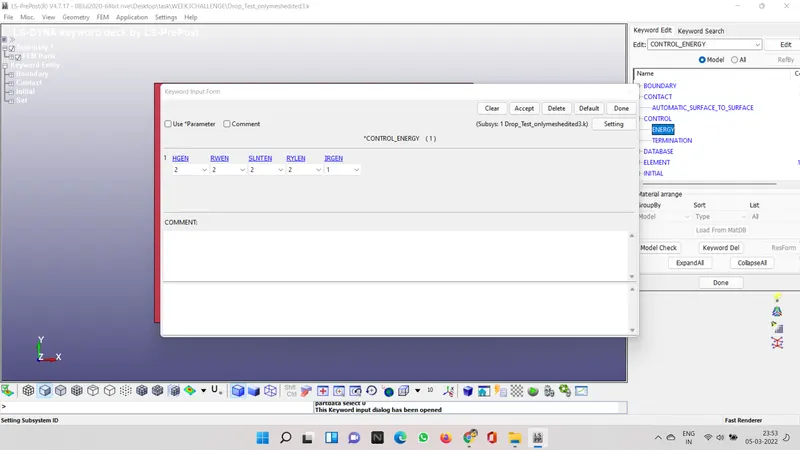

now we need to add energy card to the model

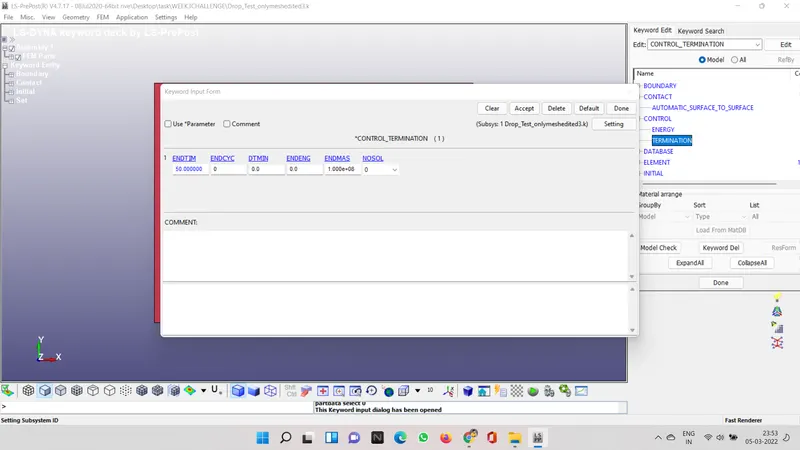

then we need to add the time which is termination closed time

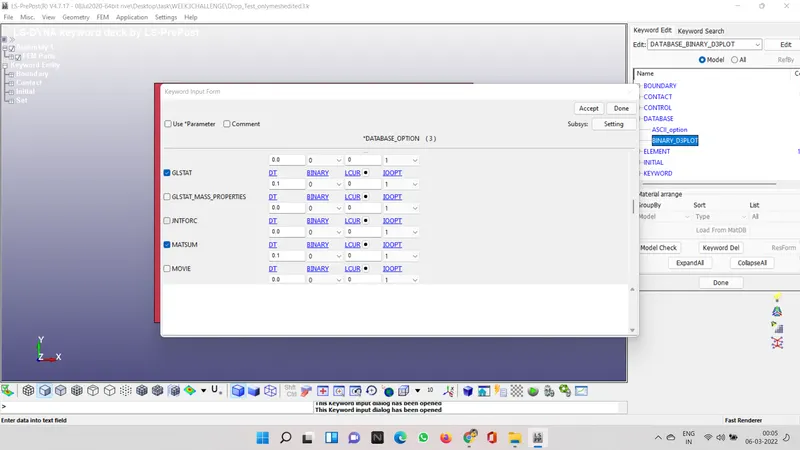

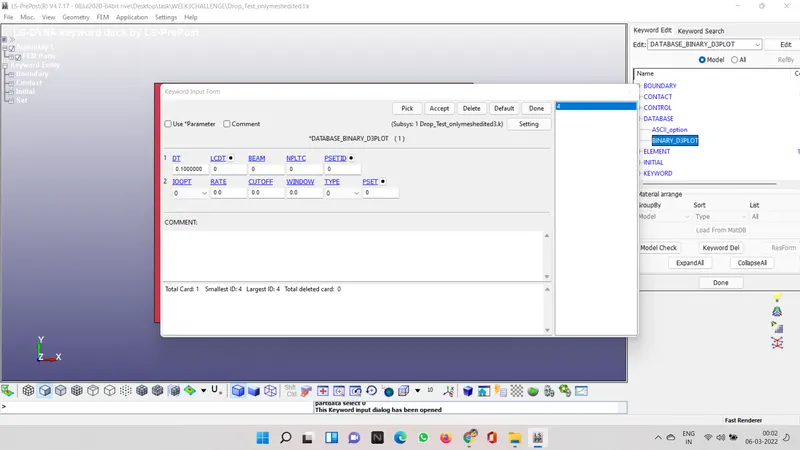

for animation we need to introduce binary_d3plot card to the model

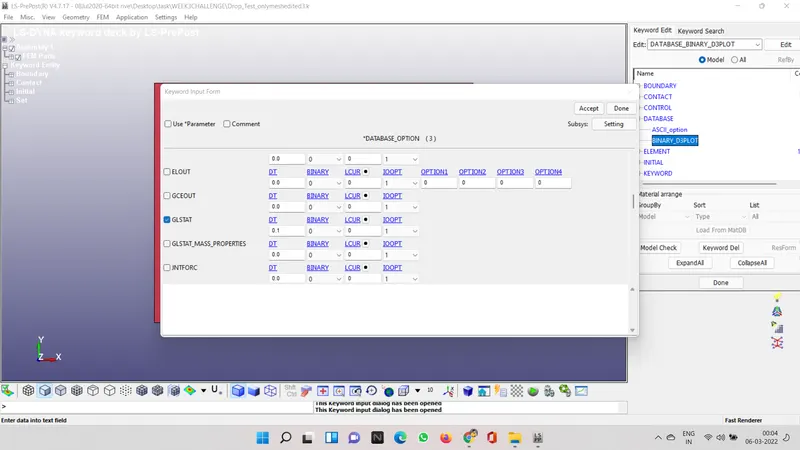

we need to create ascii option card to get output like global data, material engine and rigid wall forces

please select only these three

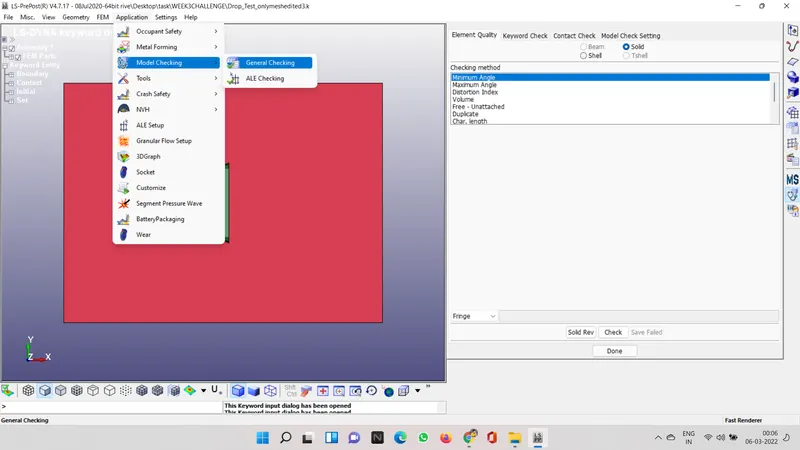

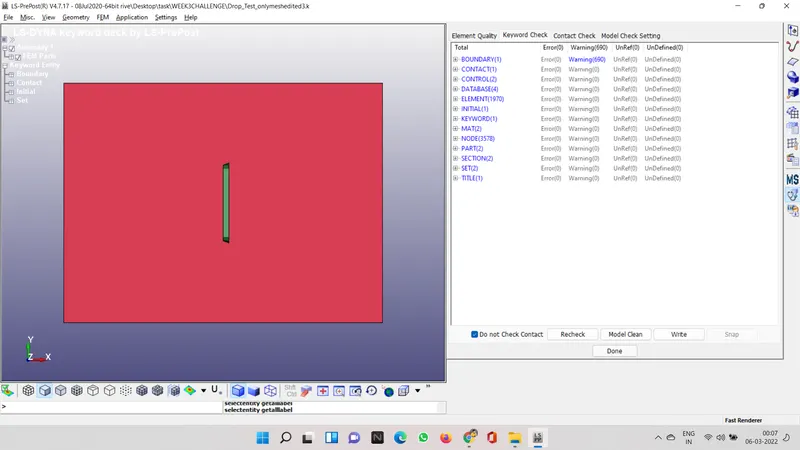

now check the model for any waring or error

having warning is okay but weneed to clear all un referred things or things with error

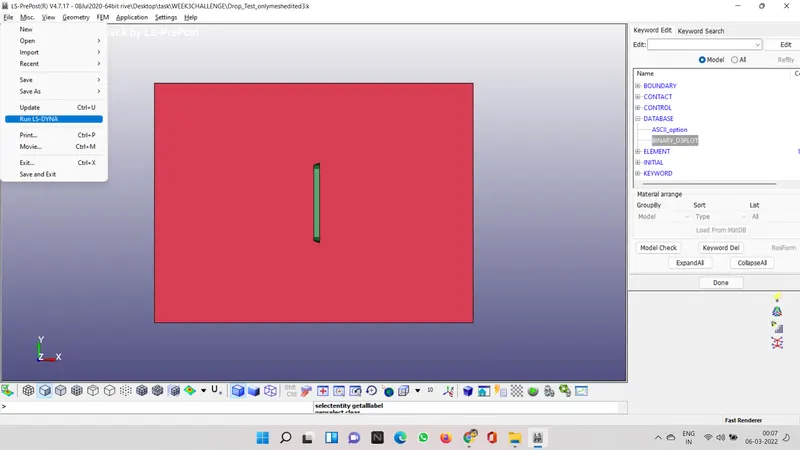

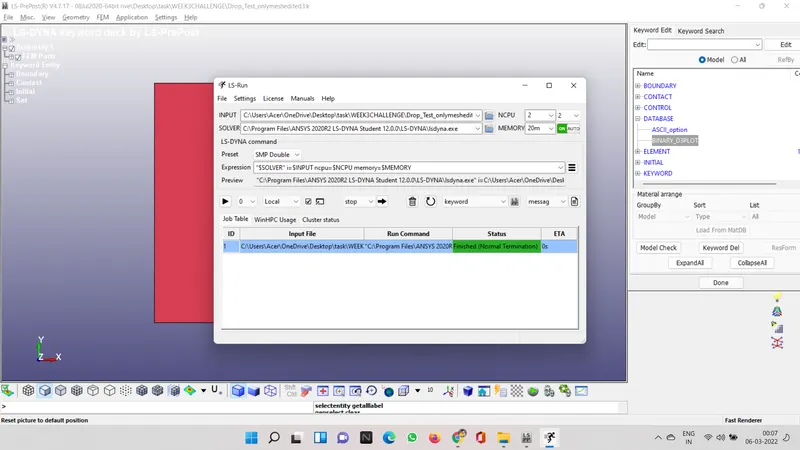

now run the ls dyna solver

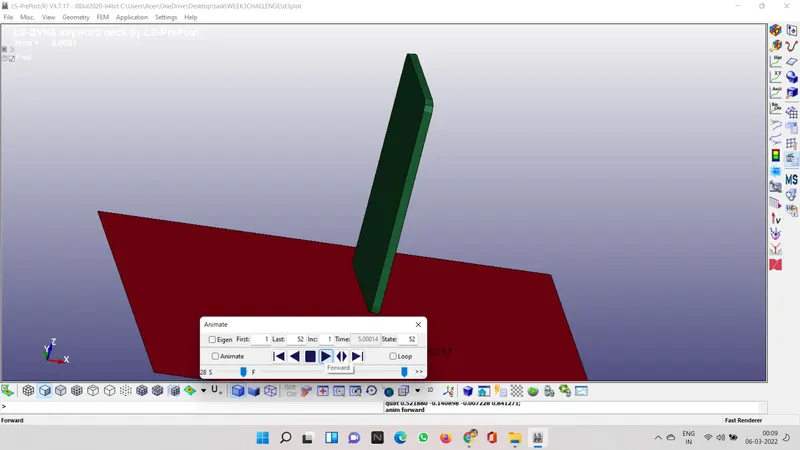

once the termination is finished normally open the d3plot to see the animation
