Week-3 Challenge: ADVISOR Tool

  Q1)What is the difference between mapped and dynamic model of engine, motor and generator? How can you change model type?  Mapped model is basically a block which which is controlled by some predefined input in model which is genareting its output by calculating those datas. theses is actually a set of lookup…

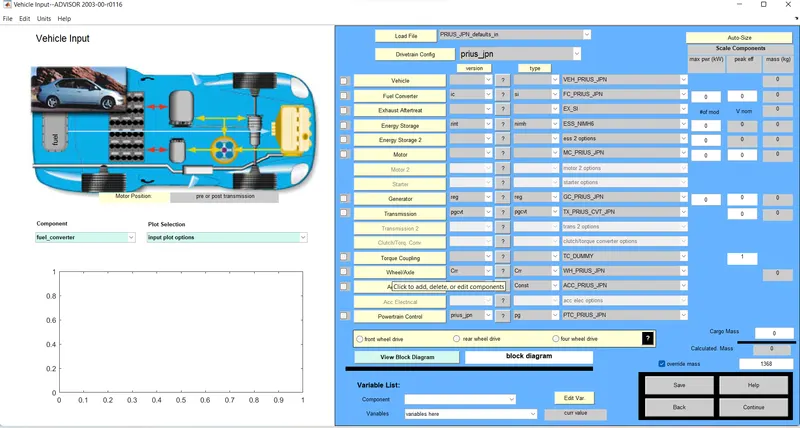

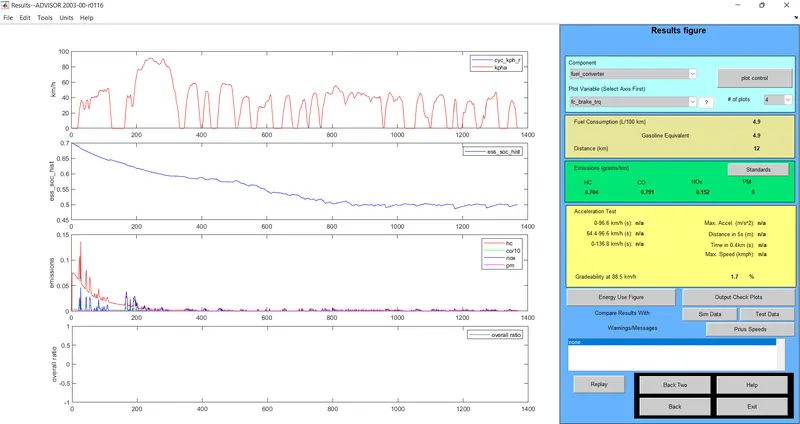

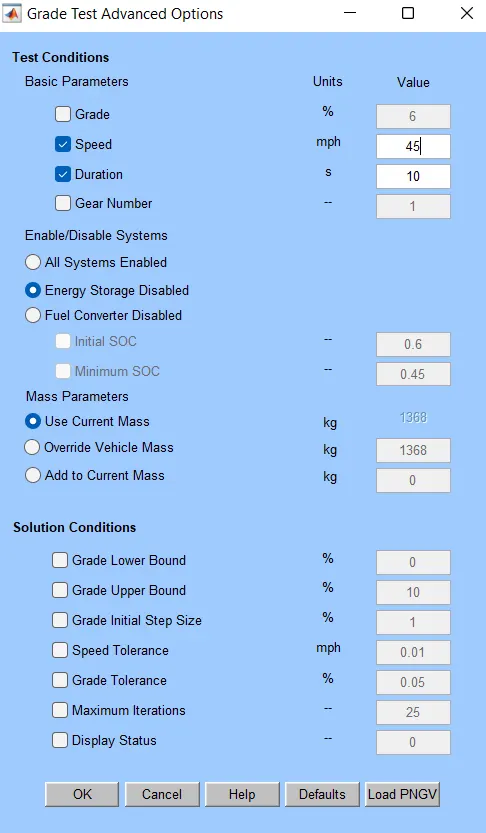

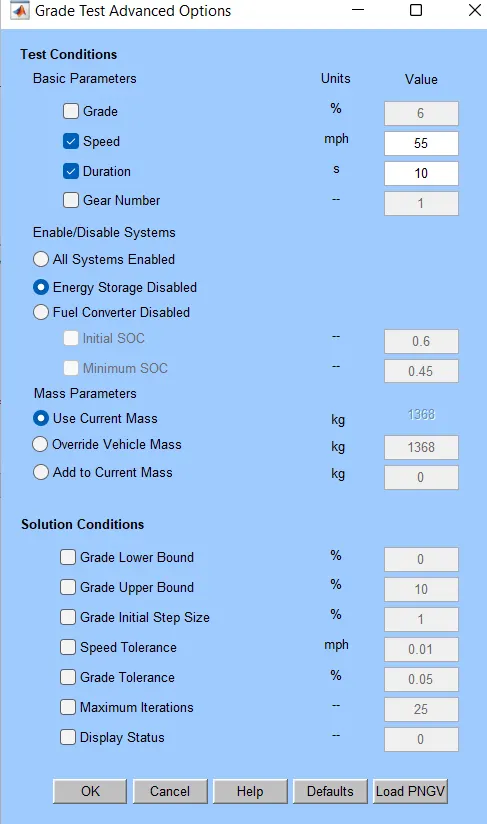

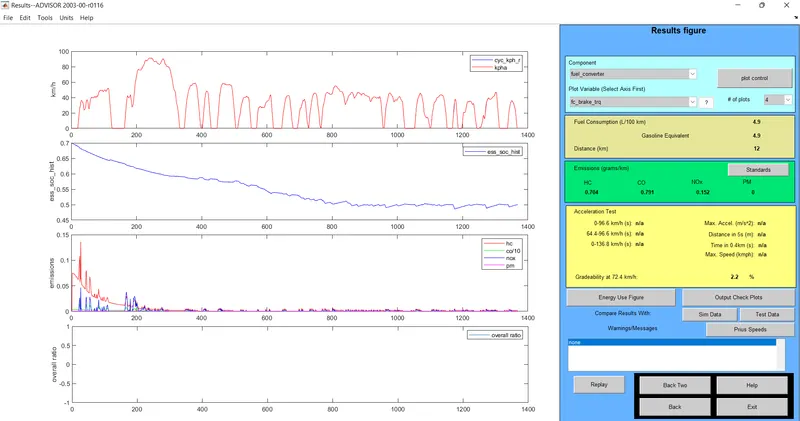

Q1)MODEL   In This model 25 battery pack has been used.   simulation drive cycle   output   Result is not up to the mark because battery is getting discherged in 41.4km Q2) In this model 28 battery pack has been used.   output)   Now battery is discherging at 46.3 km So, Car have achived its…

CIRCUIT MODEL   CALCULATION:   OUTPUT WHEN INPUT VOLTAGE IS 45V TO 60V: OUTPUT WHEN INPUT VOLTAGE IS 45V:   OUTPUT WHEN INPUT VOLTAGE 60V:

  MODEL     BOOST CONVERTER       BUCK-BOOST CALCULATION MODEL   OUTPUT

Mathemetical model Kirchoffs law Vs=RaIa+La(dIa/dt)+Vb [Ra = Armmeture Resistance; Ia = Armmeture Current; La=Armmeture inductence; Vb=Back Emf] Angular Velocity & Torque Vb=Km(d`theta`/dt) [Km=Back Emf;Kt=torque constant]T=KtI   Matlab code   J=0.01;% Moment of inertia of the rotorB=0.1;% motor viscous friction…

PART1 clear all;clc;x=xlsread('VI.xlsx');%read the data given xlxs file 'VI.xlsx' to xz=x';%Distribiutuing the data to two indiviual vectors 'voltage','current'voltage=z(1,1:end);current=z(2,1:end);%interploting tha data in given rangeinterpolation_range=[-17.3:0.1:0.9];interpolationdata=interp1(voltage,current,interpolation_range);%plotting…
