Week 3:- BiW Fixture Design Methodologies Challenges

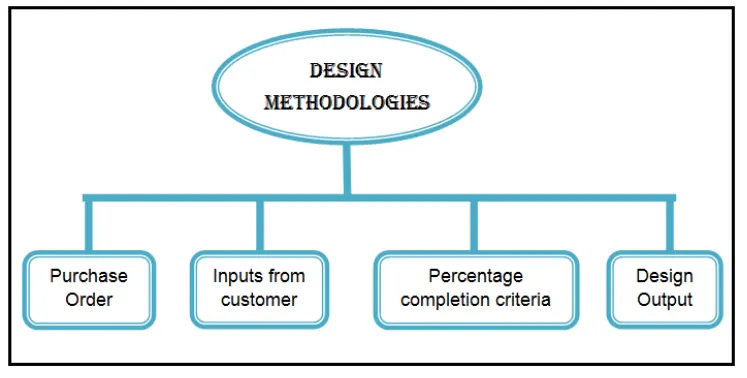

Q1. What is Design Methodology?
A2.Design methodology refers to the development of a system or method for a unique situation. It is a step followed during the concept designing stages. It is the study of the principles, practices and procedures of designing. The key to design methodology is finding the best solution for each design situation, whether it be in industrial design, architecture or technology. Design methodology stresses the use of brainstorming to encourage innovative ideas and collaborative thinking to work through each proposed idea and arrive at the best solution. Meeting the needs and wants of the end user is the most critical concern. Design methodology also employs basic research methods, such as analysis and testing.It involves four major stages

Production processes are designed to produce the required quantity of goods of the desired quality, at the right time, and at minimal costs. Process design helps develop a detailed plan for manufacturing products or services, and provides the foundation and structure for production operations.
⦁ Purchase order- order from the customer for start of work
⦁ Inputs from customer- Customer requirements refer to the specifications or features of a product or service
⦁ Percentage completion criteria-per- it is followed in design stage and dispatch stage of the welding fixtures
⦁ Design output-The outer is 3D model nad the 2D drawing of the tools

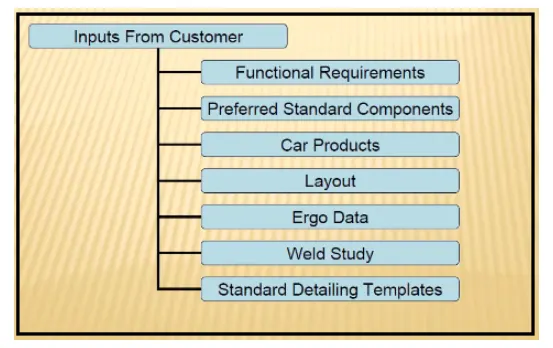

Q2. What are the inputs required from the customer to start designing a Fixture?
A2.The input required from the customer to start the work are mention below
⦁ Functional requirements about the product/part (Welding, hemming, checking fixture position and surrounding area and storage racks).
⦁ Preferred standard components/parts such as risers, L-block, retainers, pin, clamp, cylinder, sensors etc. From the standard company.
⦁ Car products consists information about part list such as GD&T, product assembly process sheet etc.
⦁ Layout consists of detailed information about plant and part in 2D.
⦁ Ergo data provides the details about manual operator for operation.
⦁ About weld study I.e., methods and number of weld spot/area
⦁ About the standard detailing templates

Q3. What is the input we get from "Car Products"?
A3.The car product is one part of information required form the customer. It contains the information about-

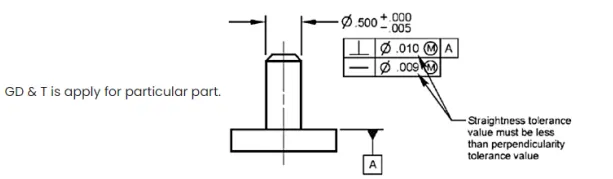

⦁ GD &T information (I.e., locating pin, rest, clamp, dumps, slide information, sequence of opening of clamp, slide stroke information)

⦁ Part list contain the information about part No, part revison part thickness, material and other part details.

⦁ Cad files of car part

⦁ Clamp plan provide the location of pins, rest, clam, etc.

⦁ Product assembly process sheet contain the part assembly sequence.

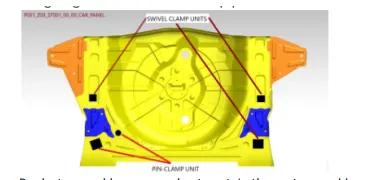

Q4. What is the Clamp plan?
A4.Clamp plan provide the information about the location of pins, rest, clamp, dump etc.
A clamp is a fastening device whose role is to hold the parts firmly together, i.e. to prevent any moving of parts or sub-assemblies relative to one another. From the above definition, we conclude that clamps are most commonly used in cutting or gluing operations in carpentry, welding or cutting in metalworking and the like. There is a large number of clamps for different purposes: C-clamps, bar clamps, pipe clamps, band clamps, picture frame clamps... Clamps can be found in almost every workshop, because they are simply irreplaceable; when it comes to performing various specific tasks, their main purpose is to replace a reliable extra pair of hands needed by every handyman.
start construction of mounting plate or fabrication structure as per the company standard to make the connection with the base plate.

• Most of exterior panel holding Teflon material is used.
• Other wise steel is used with heat treatment.
• Sometimes Aluminium blocks are also used.

Types of Clamp
Mechanical Actuation Clamps • Pneumatic and Hydraulic Clamps • Vacuum Clamping • Magnetic Clamping • Electrostatic Clamping • Non Mechanical Clamping • Special Clamping Operations

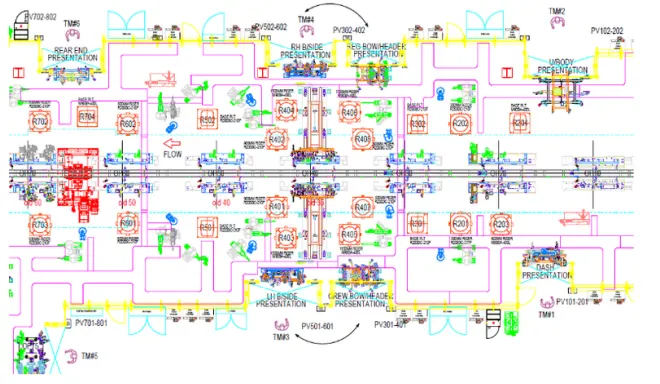

Q5. What is the purpose of a Layout?
A4.The layout provides the full information about the object/workpiece, tool/robot going to used and its functionality. Layout provides the following information-
⦁ Flow of parts.
⦁ Station pitch.
⦁ Robot stations and its reachability area.
⦁ Accessories like tool changer and tip dresser.
⦁ Sub assembly links.
⦁ Platform heights and human reachability.
⦁ Loading/unloading sequence/heights.

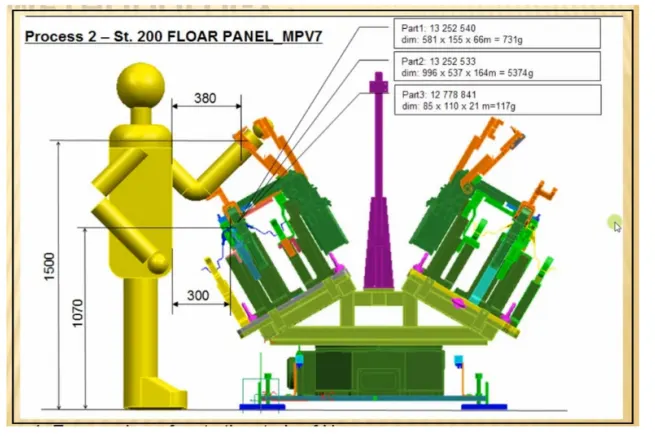

Q6. What is Ergo data?
A6.Ergo data is nothing but the data or inputs which gives the human factors engineering data, between the operator & his working environment.Under ergo data, the behavior of the human and movement is referred. It provides the information about human height reachability and their safety zone during the operation.

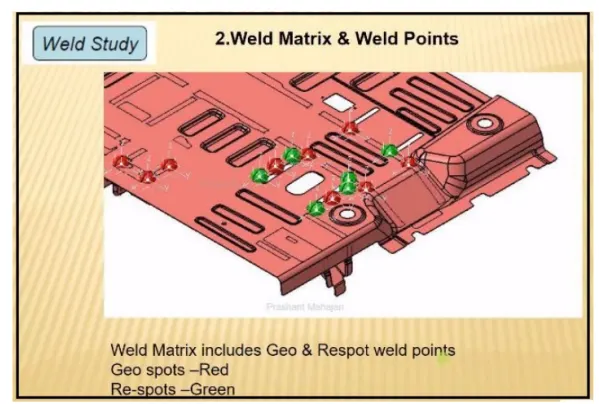

Q7. What do you understand by Weld study?
A7.Weld study provide the information about the weld gun details, number of spots to be done and its location. The weld matrix includes geo and re-spot weld points by different color.

Q8. What are the criteria for percentage completion in the designing stage? Explain it in detail.
A8.It is followed in the designing and dispatch stages of the welding fixtures.
The different stages are as follow as-
0-25% Input and concept design
25-40% Concept approval and simulation check
40-85% Design freezing and detailing
85-100% Check and final dispatch of the items/parts.

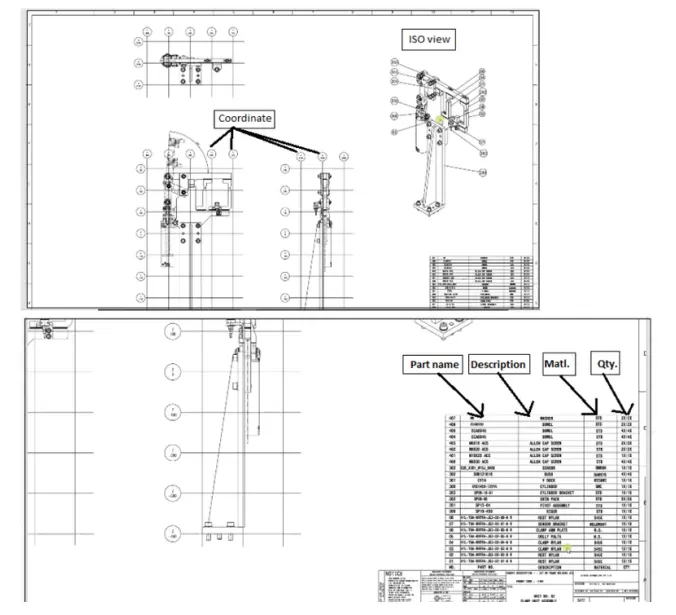

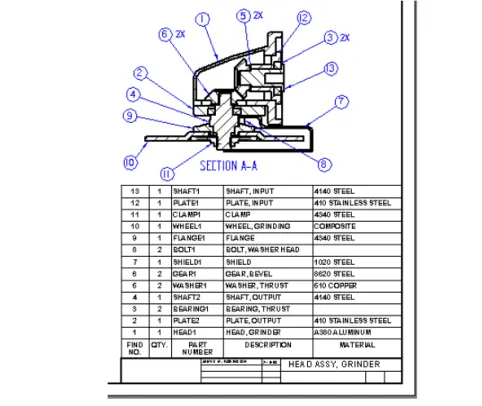

Q9. Brief about "Design output" in design?
A9.It is a 3D model and the 2D drawings of the tools. The tools are divided in two parts-
⦁ Unitized tools- In this multiple units are crated on the common base. It required two types of drawing sheets.
Key sheet-consists of an index of units and their placements.
Layout sheet-A detailed drawing of individual units to includes all of their components
⦁ Not-utilized tools-It is tools that work alone and can be detailed completely on a layout sheet.
The design output should compile the following information
⦁ Approved standard components are to be used wherever possible in the design.
⦁ Design must be very simple and economical as much possible.
⦁ Design must comply with all current safety and ergonomic (less effort) requirements.
⦁ Desing must be fully controlled and easy work flow with free handling of product.
⦁ The weight of the moving must be kept to minimum and same time strength must be sufficient.
⦁ Design clearance and accessibility must be provided for the routine maintenance and service.
⦁ For moving equipment, motion control must be considered.
⦁ Designer is responsible to validate clamps and all weld guns.

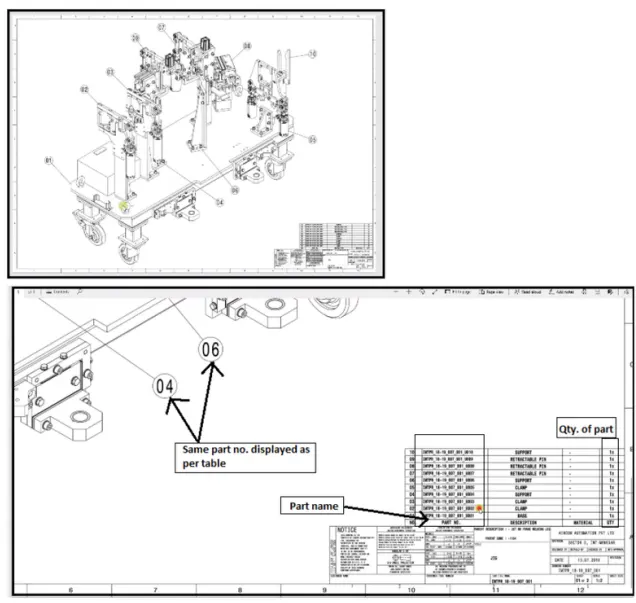

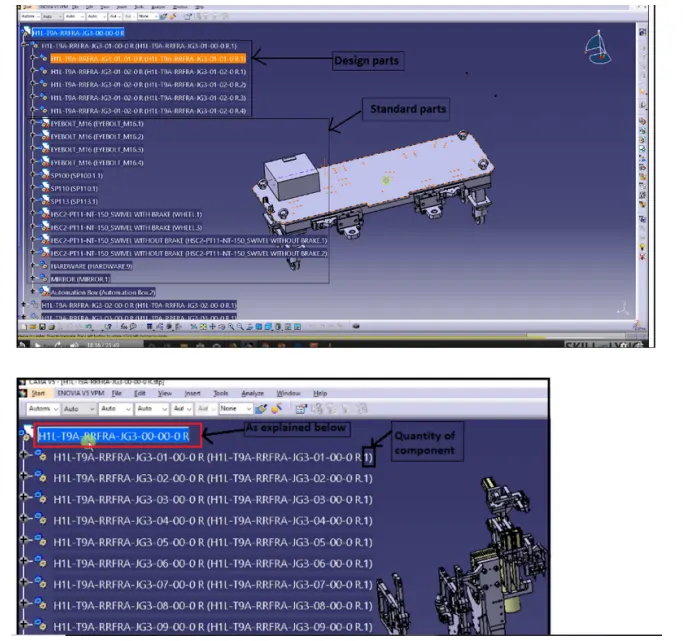

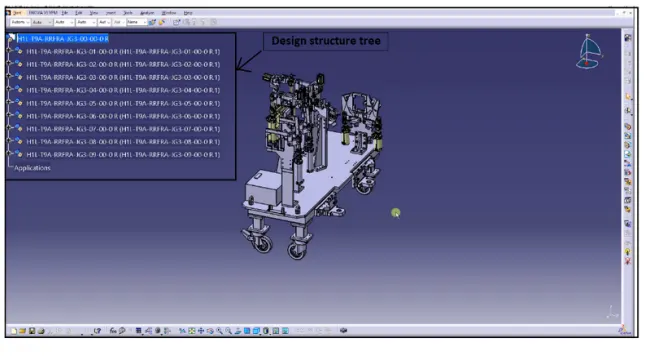

Q10. What do you understand by structuring a design tree? How does it reduce errors during the design process?

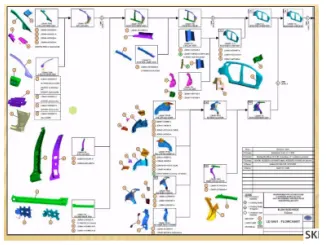

A10.The design structure tree must be defined properly to avoid any mistakes in the design. It is a process where all the assemblies/parts are named in a specific standard. Different customer has their own different set of standards to provide the design tree. It is an important process in designing to identify a specific part/assembly to a certain project.
A proper design tree avoids the mistake/error during the process, manufacturing, assembly and inspection process by providing the specific name to each part based on the project/stage etc. Naming of fixture/unit/part, provides the proper information about to its project, zone, or assemblies.It can help us to identify the quality of items of same types or diffrent types that are type or different types that are being used in an assembly.

Q11. What are Units? Mention 5 types of units.
A11⦁ Fixed pin unit
⦁ Retractable pin unit
⦁ Rest unit
⦁ Clamp unit
⦁ Sensor unit

Q12. Describe Fixed Pin units & their purpose?

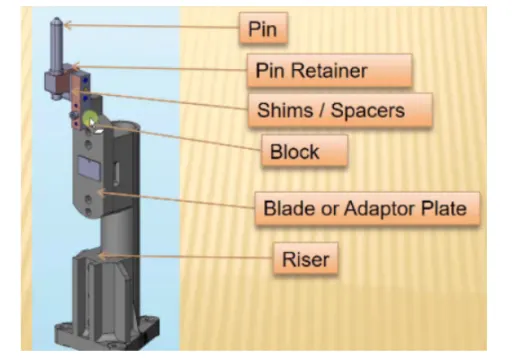

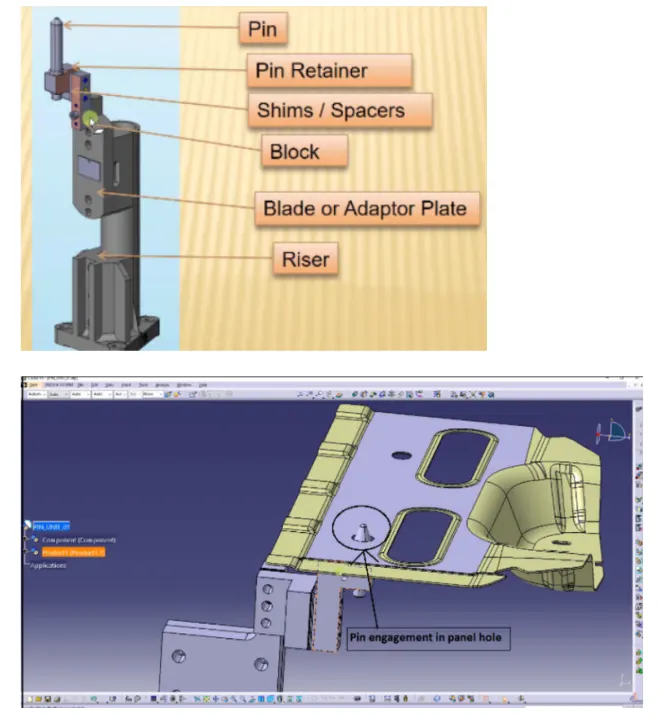

A12.Fixed pin unit is designed to locate the car panel using pins. It consists of different part such as pin, pin retainer, shims/spacers, block, blade or adaptor plate and riser.

Q13. What are the different parts of a fixed pin unit?

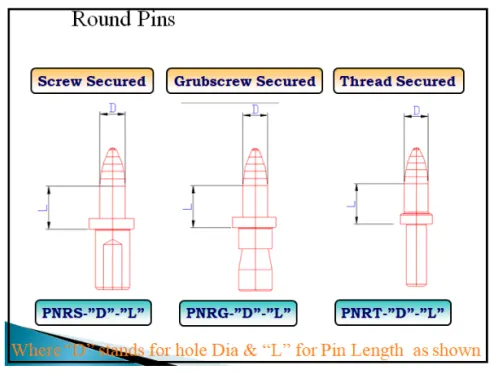

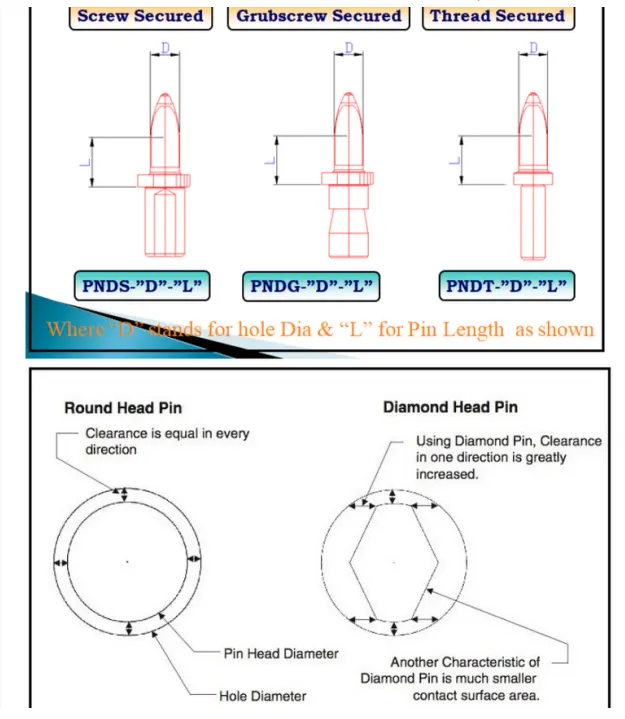

Under this pin have two shapes iround & diamonds depend upon the 2 ways and 4ways location.

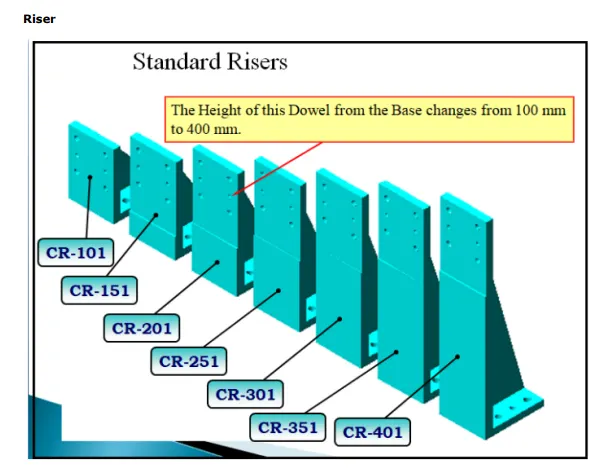

Riser

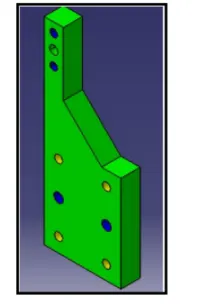

Blade

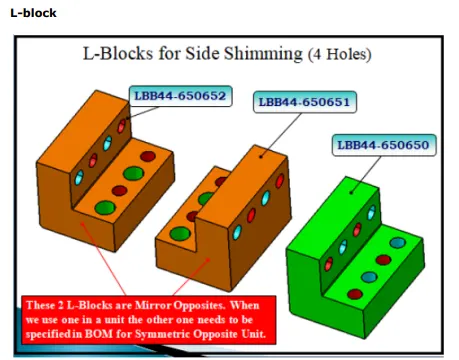

L-Blocks

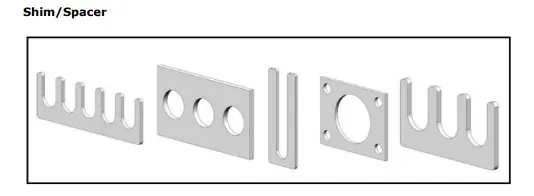

Shim/Spacer

PIN

Diamond Pin

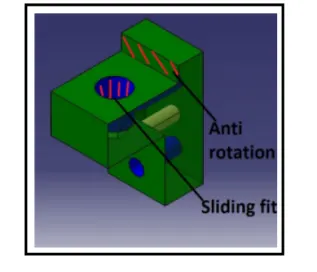

Pin retainer

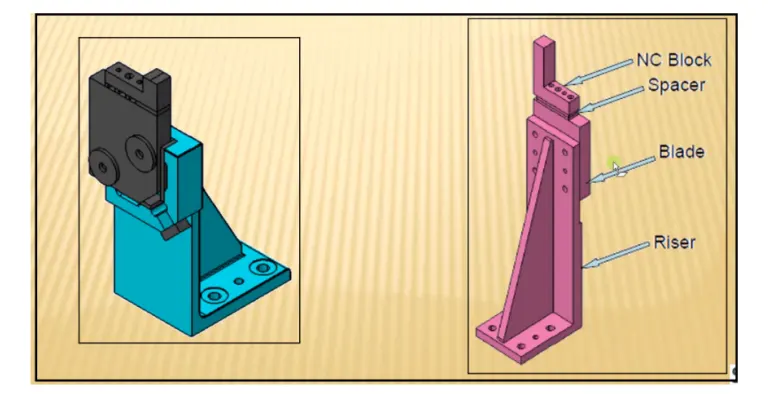

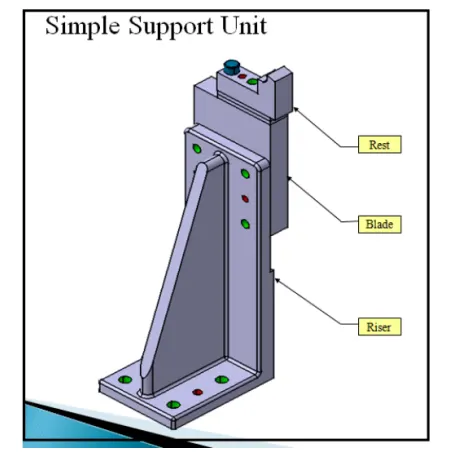

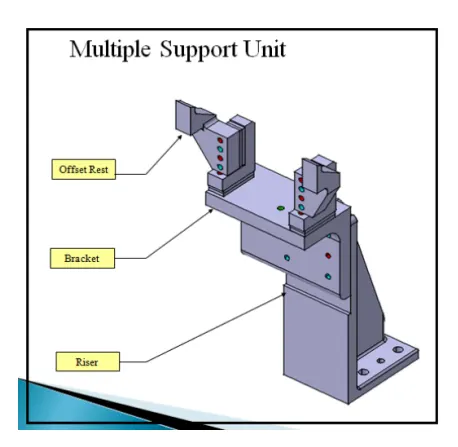

Q14. What is the purpose of making a Rest unit & describe its parts?
A14.It is used to rest the components/part on it during the operation. The shim and spacer are used to adjust rest block as per requirement. The riser is used to get the part at the required heights and generally it is used as standard part.

Q15. What are the basic fundamentals to design a Sensor unit?

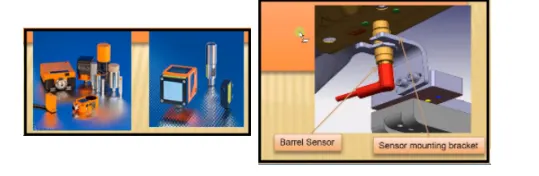

A15.This unit is designed to sense the position/weight of part/components. Once one process is completed and signal will be sent then only second operation will start. This will avoid any accident during the operation. Different types of sensors such as proximity sensors, laser sensors, photo electric sensor etc. used in automobile industries. Every single loose panel are joining together should be sensed. For big panel, the sensors must be mounted diagonally for better response and it should be 3 directions adjustable.

PROXIMITY SENSOR -A poximity sensor is a sensor able to detect the presence of nearby object without any physical contact

LASER SENSOR-It has sensing range is father aways from or a beam of elctromagetic radiation and looks foer changes in the field or return signal

PHOT ELECTRIC SENSOR- A photoelectric sensor is equipment uesd to discover the distance absence or presence of an object by using a light transmitter, often infrared and a photoelectric receviver.

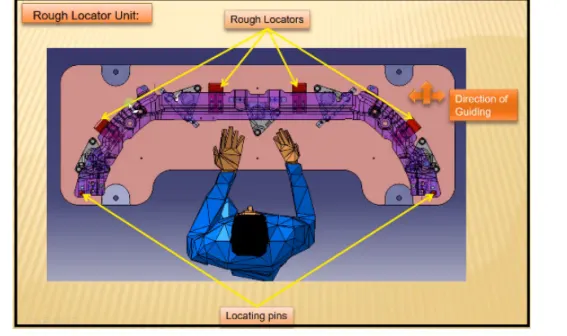

Q16. What is a rough locator unit & what are the basic fundamentals to consider while designing it?
A16.It is part designed to guide the operator to locate the car panel on to the pins as per the requirement. A rough locator can be of standard part or make part.
Point must be considered
It is placed at the edge of the car panel, which it has to guide.
It must be placed in the same angle with the car part edge with a minimum distance of 2-5 mm from the edge of the car part.
It should start guiding the panel before 10-15 mm to the start of the pin engagement.
It is designed with entry angle for car part entry.
The slots should be in the direction of car part guiding.

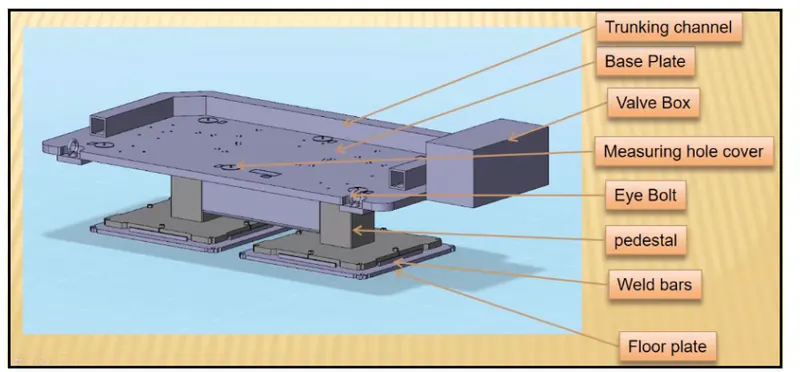

Q17. What is a Base unit and describe its parts?
A17.Base unit is used to mount all the units on it for any operation. Under it eyes bolt is used to lift or carry base, and stool used to provide the required height. Base plate is used to mount unis/parts. Its height must be designed as per the operation whether manual or robotic. For the manual working condition height should be in range of 850 mm to 1100 mm. It designs should deflection less and vibration free.

• BASE UNIT
• BASE PLATE
• PEDESTAL
• VALVE BOX
• TRUNKING CHANNEL
• EYE BOLT
• FLOOR PLATE

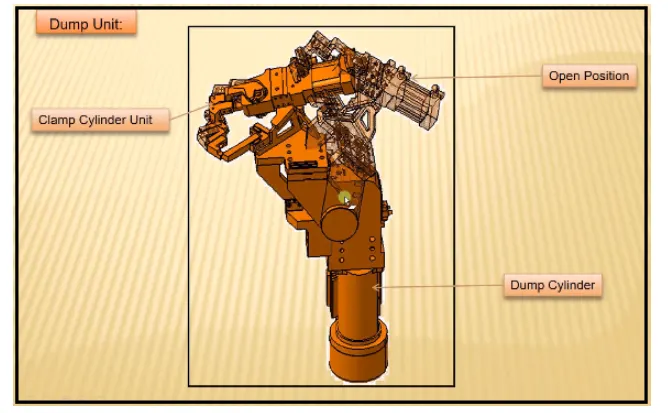

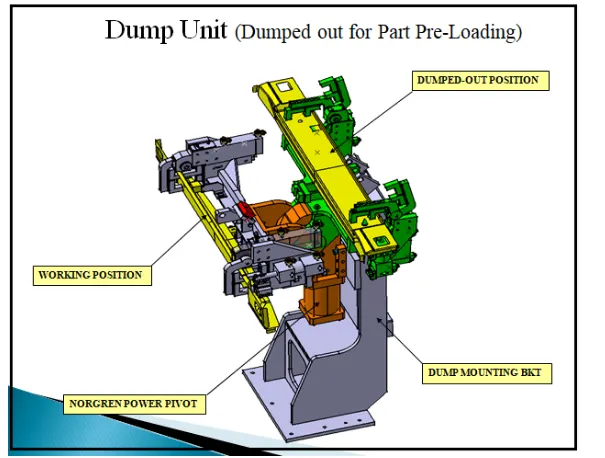

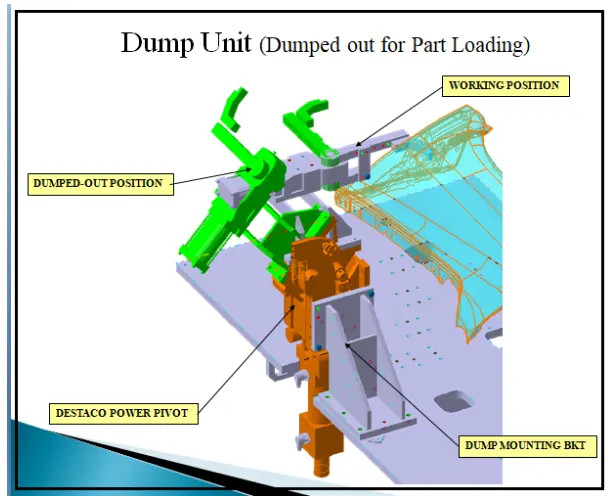

Q18. What is a Dump Unit and what are its functions?
A18.Dump unit is a complex unit which has a lot of parts. Hence, we need to be extra cautious while designing a dump unit because any mistake in design can result in irreversible errors that can create wastage of time and money.
It is used for complex region where simple unit cannot be fixed. The weight of the dump unit must be less as much as possible, it helps to reduces the forced required. It can have more than one cylinder to perform the complex operation. In this unit make sure that in open condition of the panel, one should be able to remove the panel.

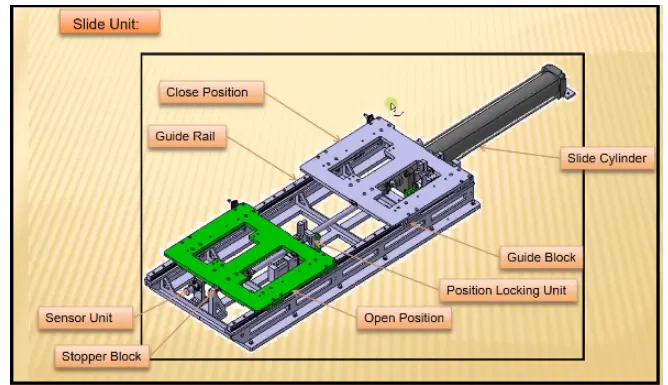

Q19. What is a Slide unit? Mention where Slide units are commonly used.
A19.This units consists of clamp, rest unit or pin. It is used to move the component forward and backward as well up and down direction to perform the work. After completion of work, it can be easily removed from the working space. The cylinder is used to provides the required motion. The sensor unit is also provided in the last of the slide to avoid any accident and to check the proper fixing of the parts. It is used at place where are space limitation and place where less accessibility. The pull and push action should be less as much as possible. It is majorly considered when slide unit is in inclination.

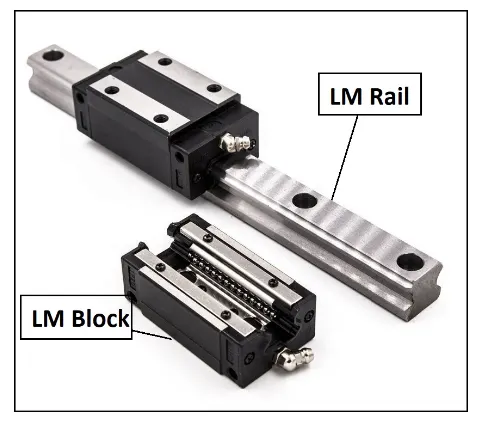

then entire panel move to open postion using frictionless guide block ,guide bolckneed to libricated
