Week 3

Objective: To create a mi surface for car dashboard and create mesh to the mid surfaced dashboard in the ANSA software. Import the model to Ansa software and check the geometry. Create mid surface for the given object. III. Give pid for the ribs and parts of the dashboard model. Mesh the given component with quality criteria.…

Objective: To create a mesh for a car suspension assembly model and also give connections for model using the ANSA software. Import the model into the ANSA software. Check for geometric errors and clear them. III. Create mid surface for required parts. Mesh the suspension assembly parts separately with given criteria.…

Objective :  To resize or morph the given object using the morphing method in ansa. Theory : What is a morphing? Morphing is a special effect in motion pictures and animations that changes (or morphs) one image or shape into another through a seamless transition. Traditionally such a depiction would be…

AIM: To give appropriate connections for the given model using ANSA.   OBJECTIVES: To set PID’s for various components. Getting to know appropriate connections for various parts. Providing connections using Assembly Deck.   PROCEDURE: PID SETTING: We have to define the properties for various components…

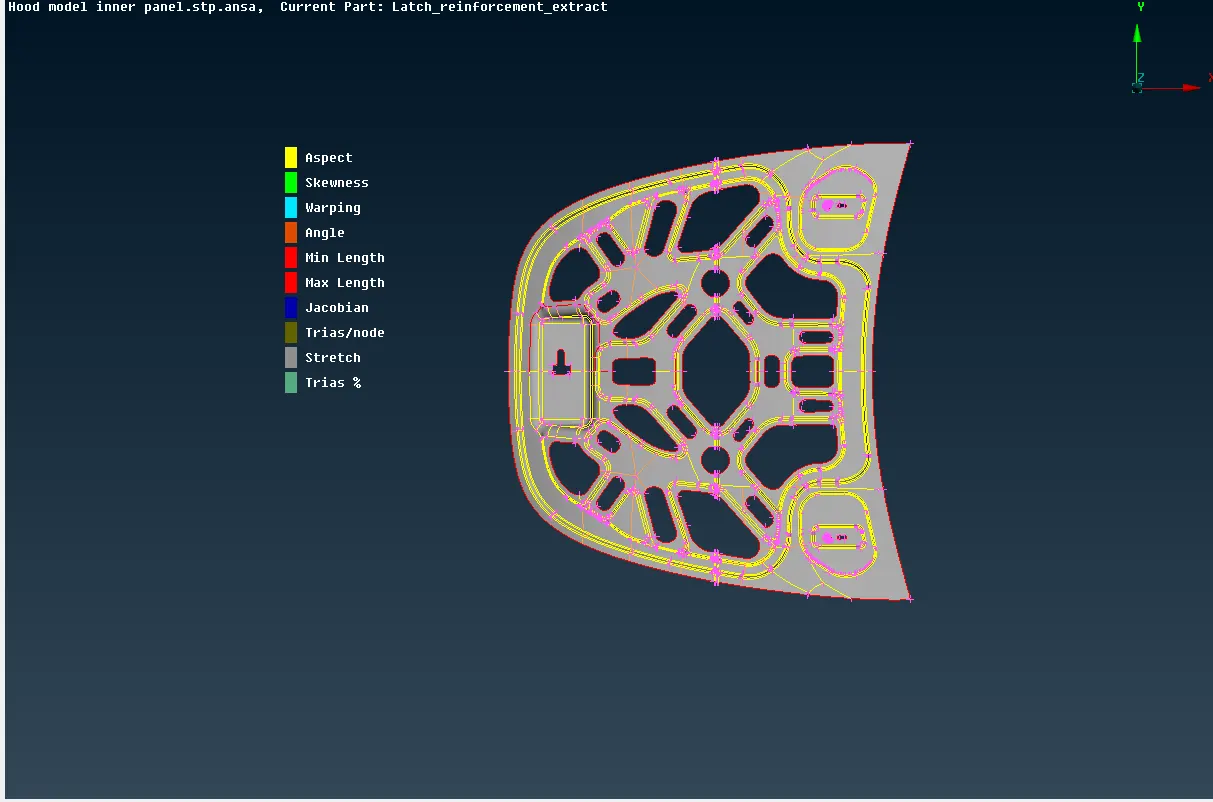

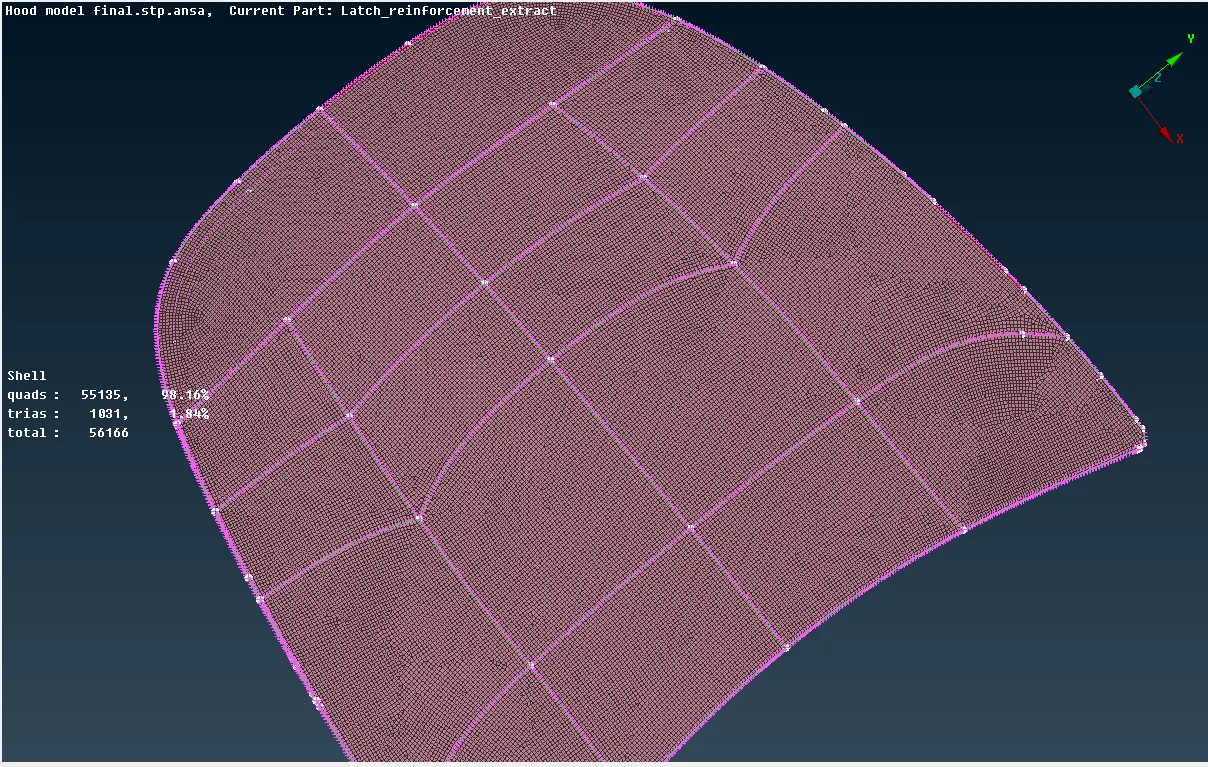

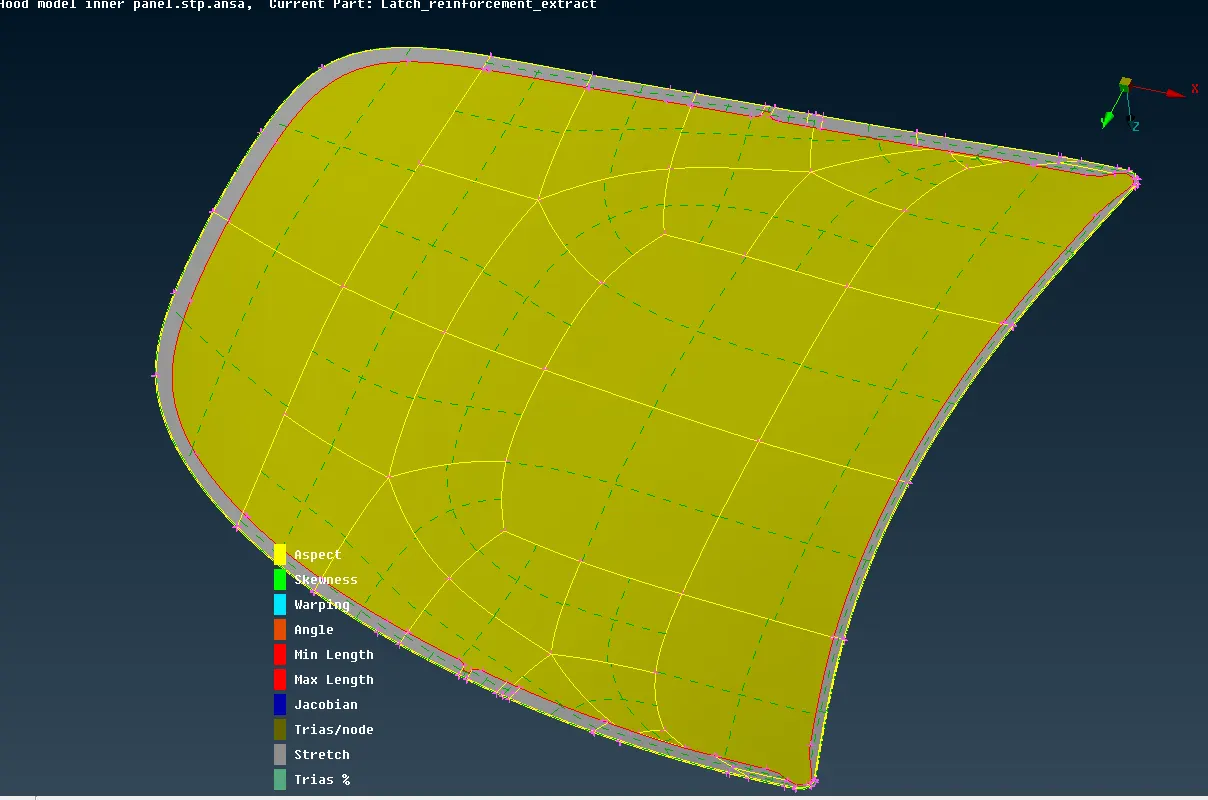

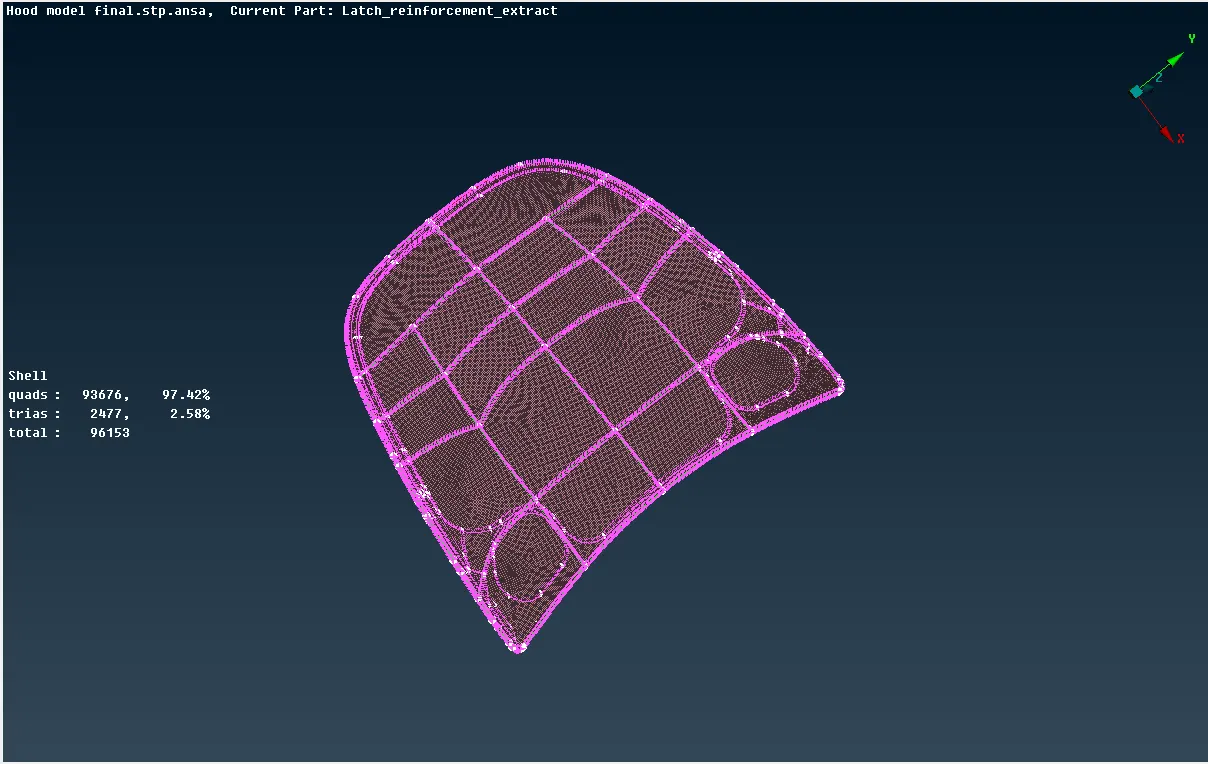

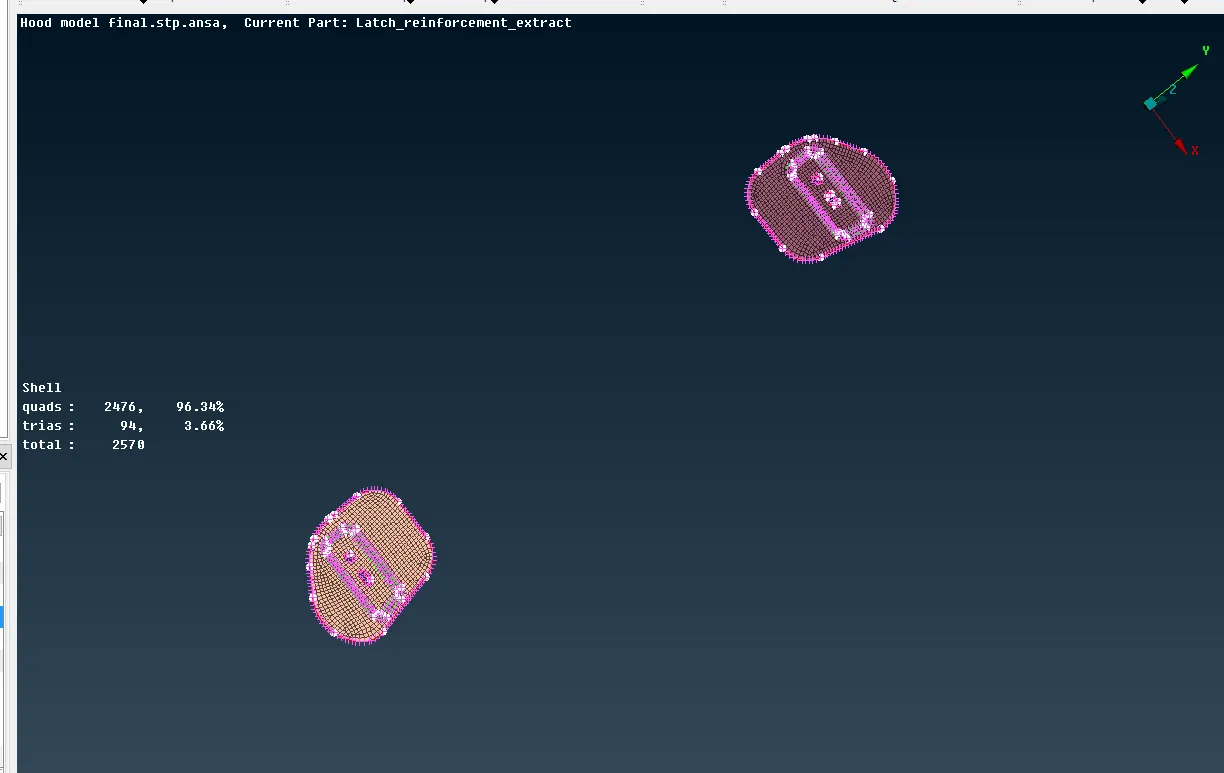

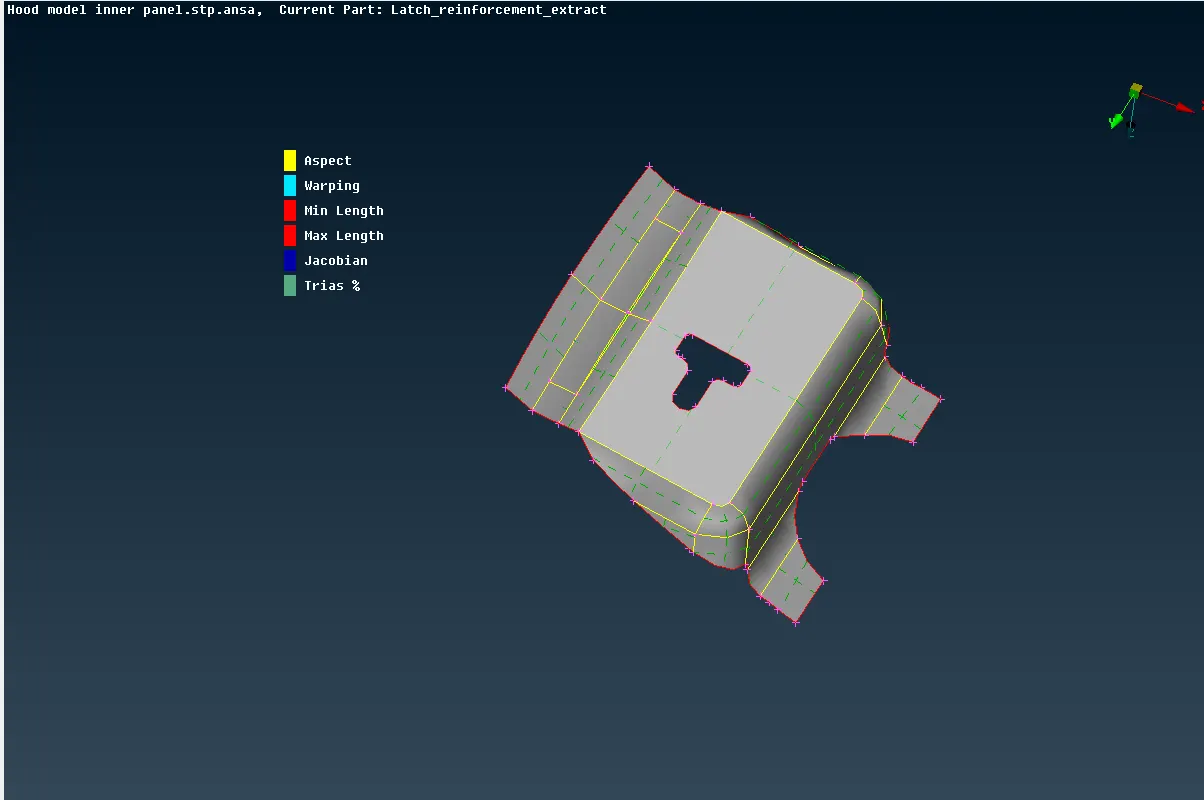

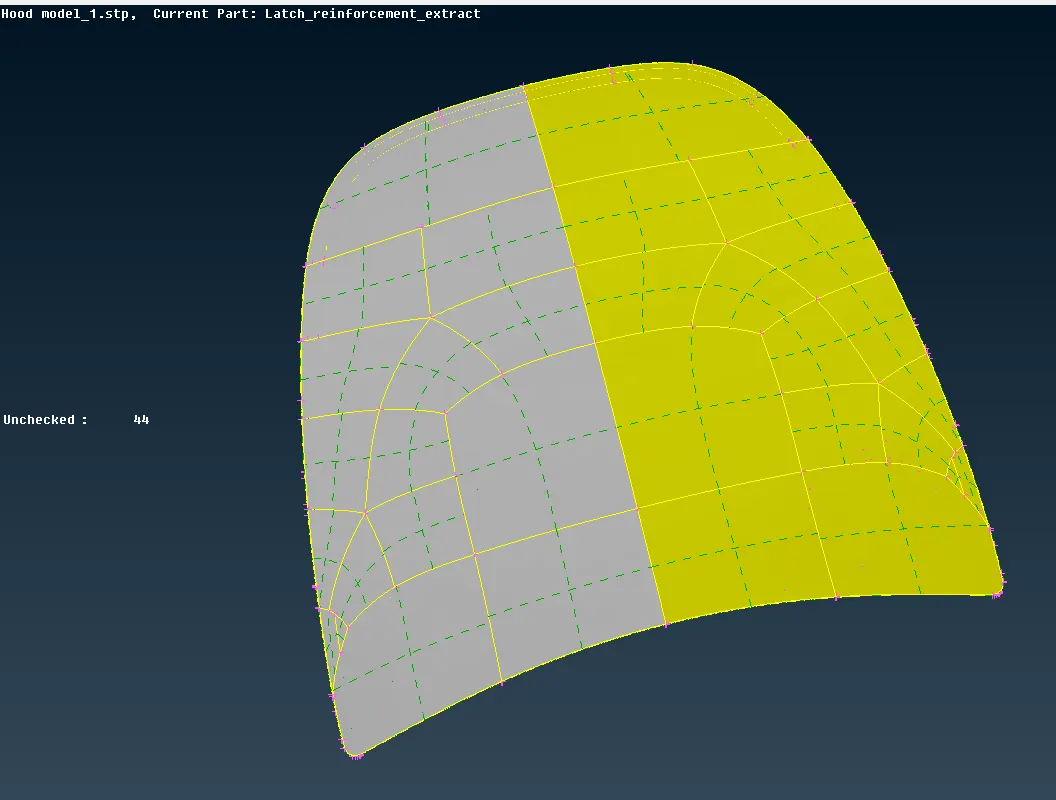

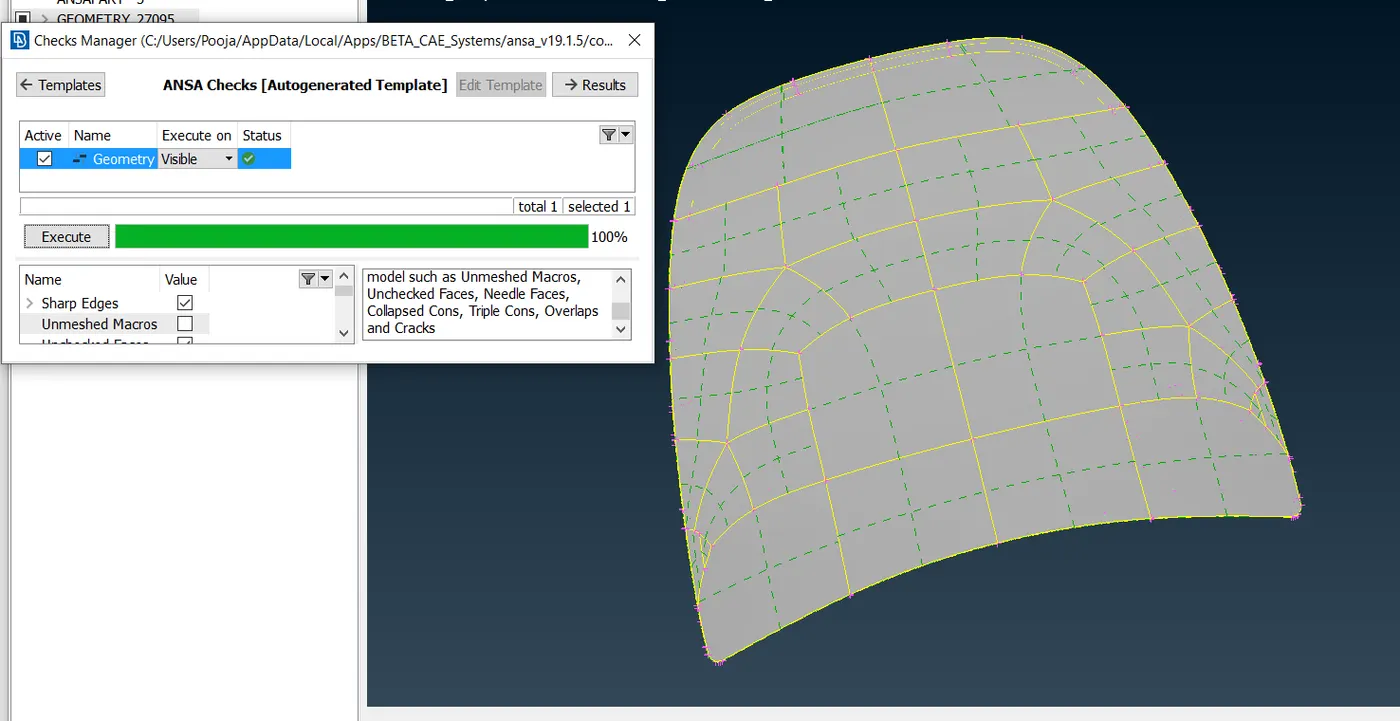

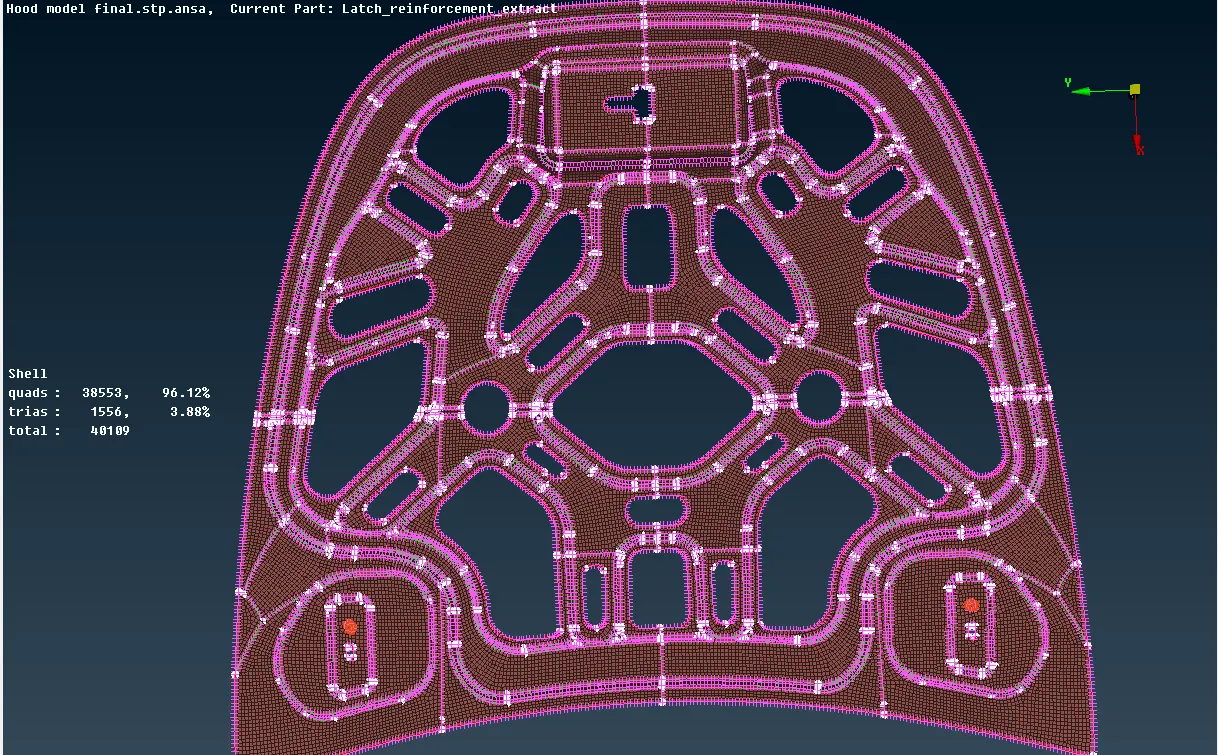

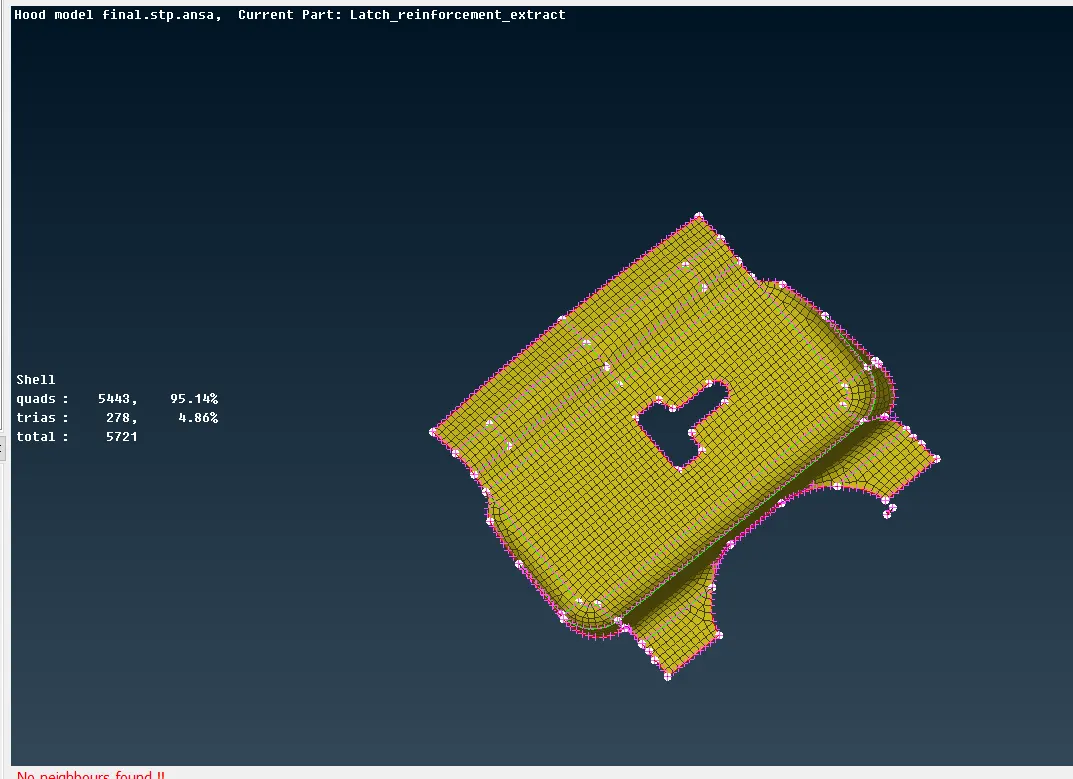

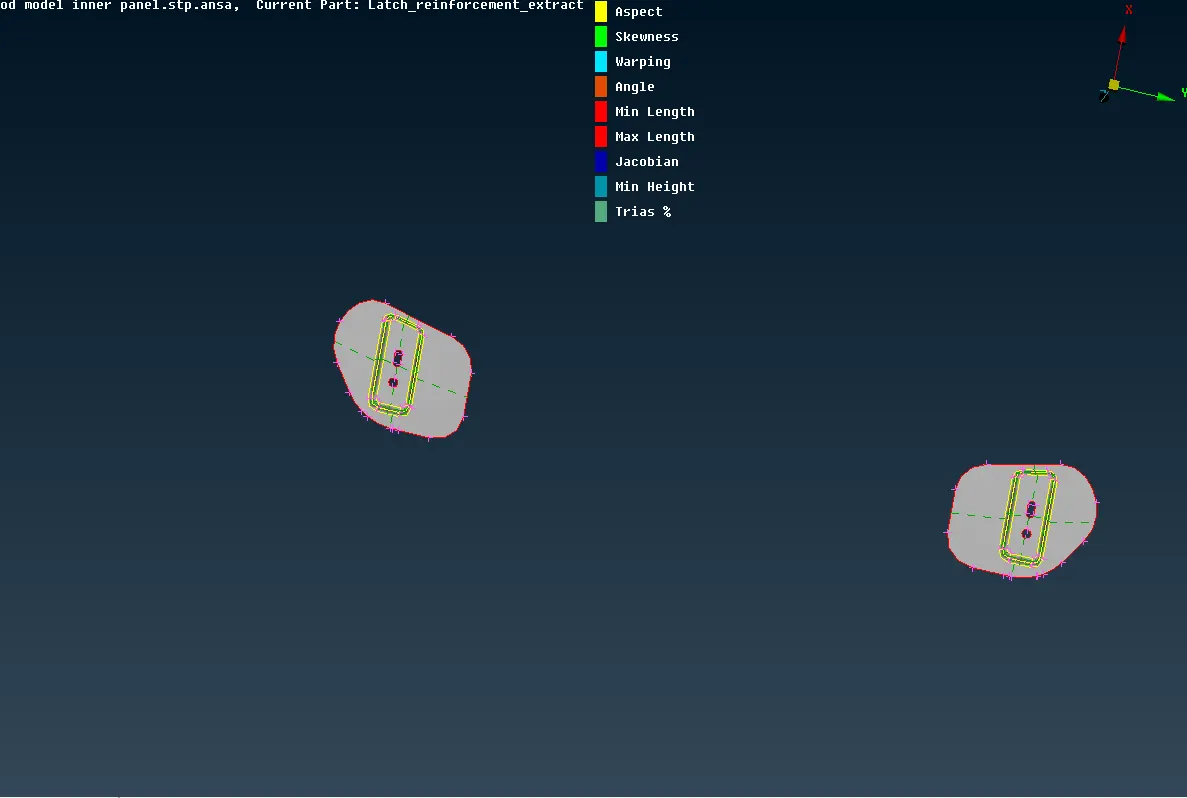

WEEK 3 CHALLENGE ASSIGNMENT     Aim: Check for the geometrical errors and mesh with the given element Quality criteria and            assign thickness after meshing the given component. Given component:   Procedure: Assign Material and properties to component.(lists<properties…
