Week 3 - 2D meshing for Sheet metal

Objective - Mid suraface and meshing of Hood model.

Procedure - Imported the CAD model and gave topo.

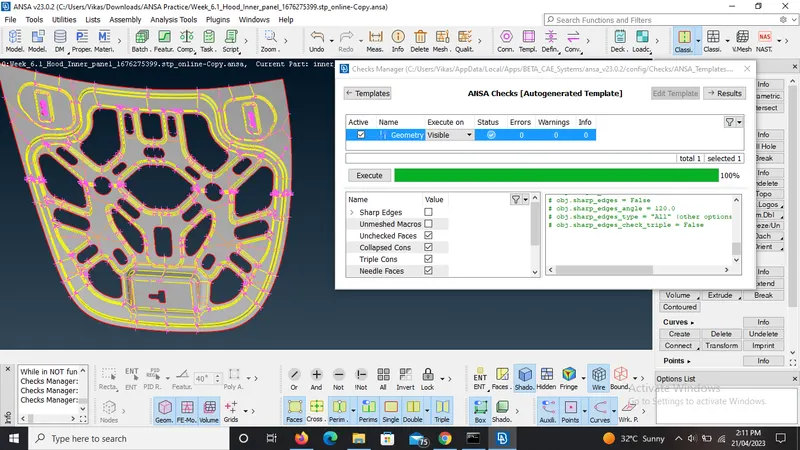

2. Checked for the geometry and solved the errors.

3. Done the mid surfacing by using offset method.

4. Checked for the geometry of mid surafce and solved for the errors.

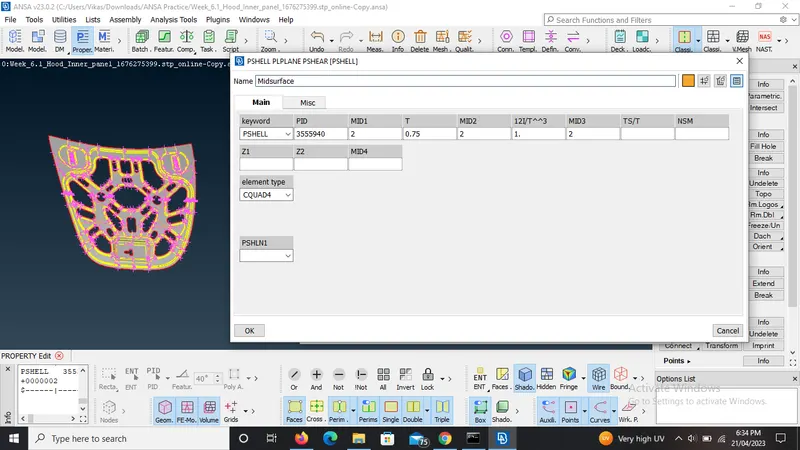

5. Created the new PID for mid surface of thickness 0.75 mm.

6. Mid surfacing done for the model.

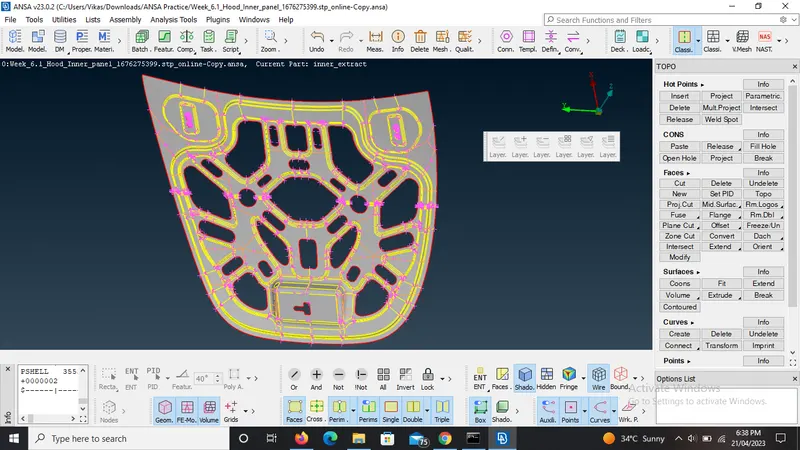

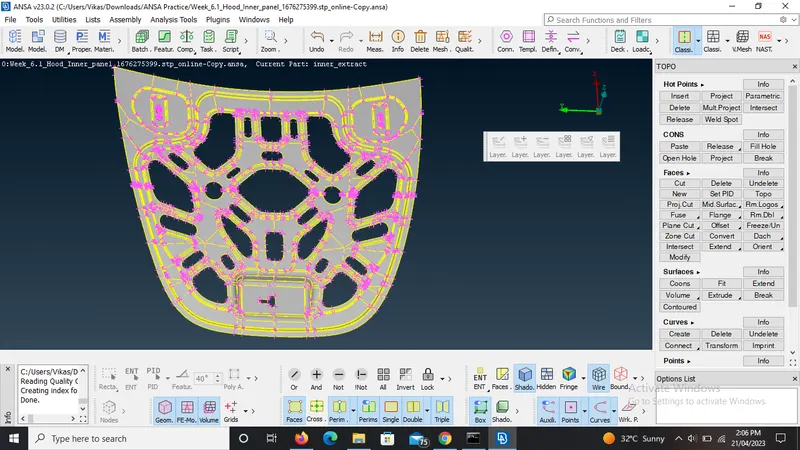

    (a). Before mid surfacing                                                        (b). After mid surfacing

7. After doing mid suraface of whole model done the meshing.

8. Entering the meshing parameter and quality parameter done the meshing.

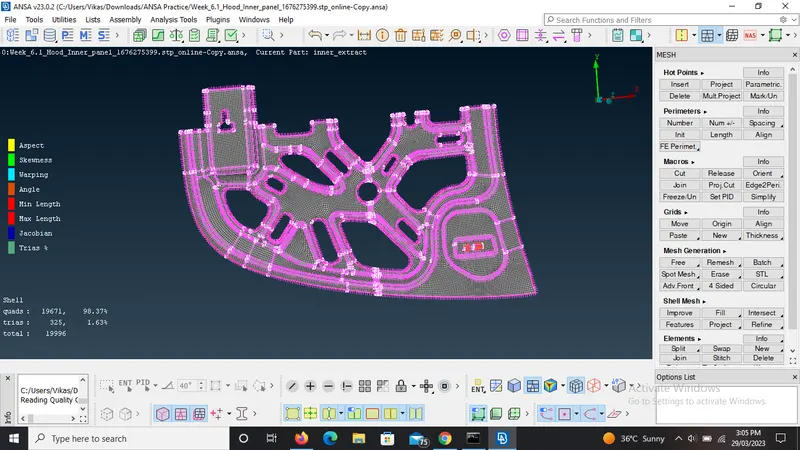

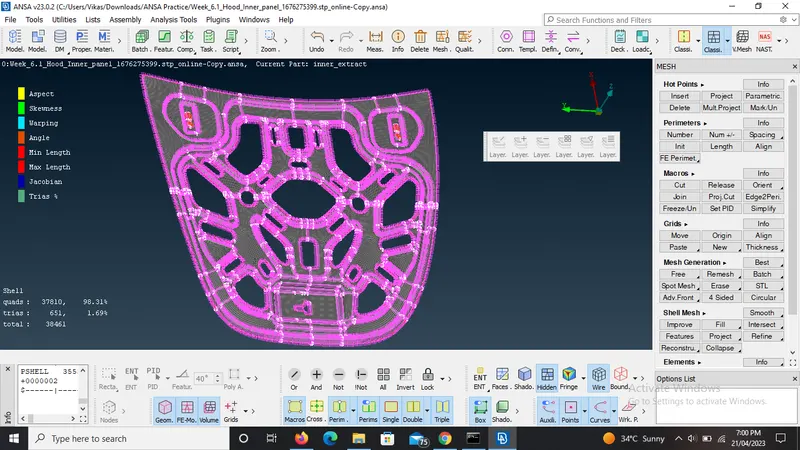

       (a). Before meshing.                                                       (b). After meshing.

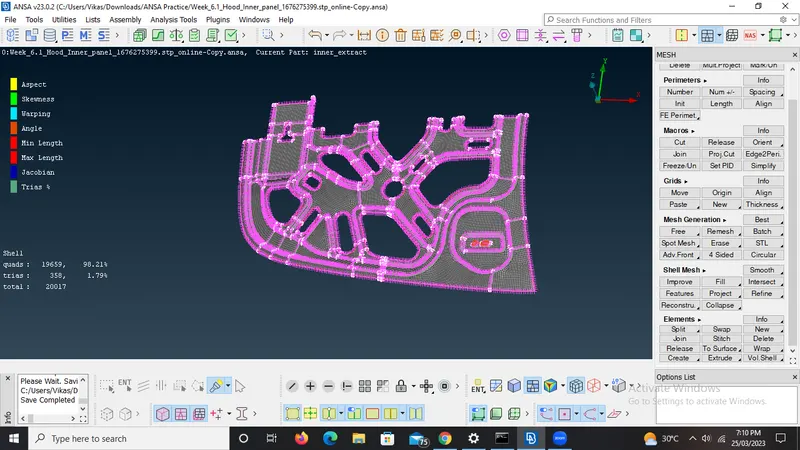

9. After meshing solved for the trias using split, swap and join command.

10. Using reconstruct and smooth command meshing is done.

Result - Mid Surface and Meshing done of the Hood mode and obtained the quality mesh of the model.
