Week 3 - 2D meshing for Sheet metal

OBJECTIVE:

To take the mid surface for all the components after checking the geometrical errors and mesh the mid surface with the given element quality criteria.

PROCEDURE:

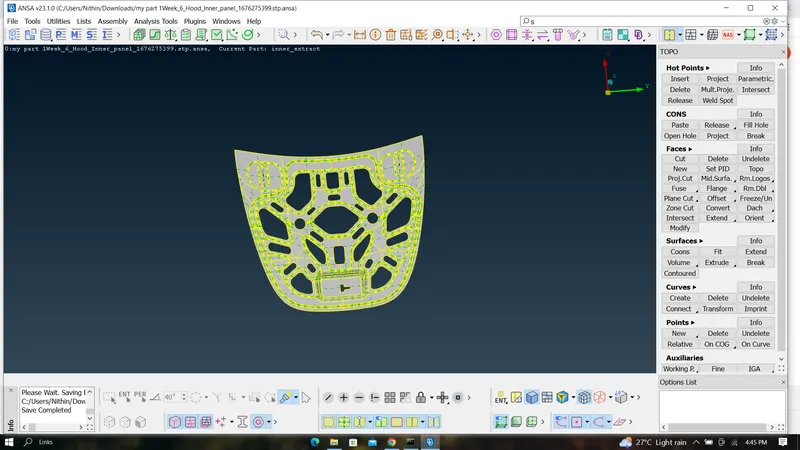

1. Geometry cleanup and Topology

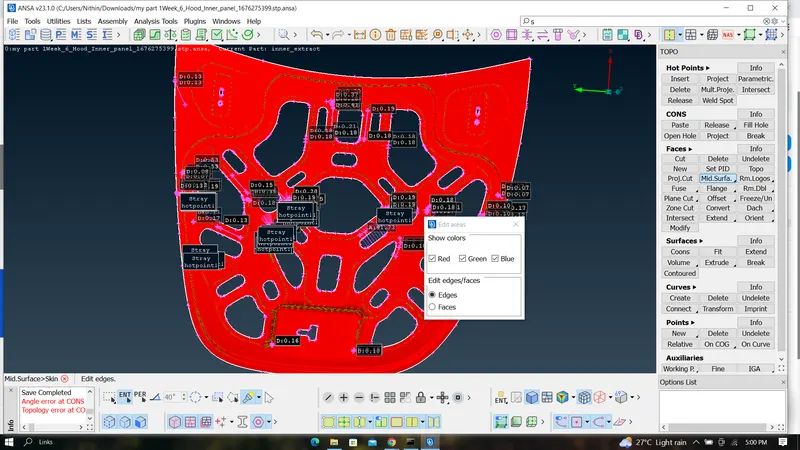

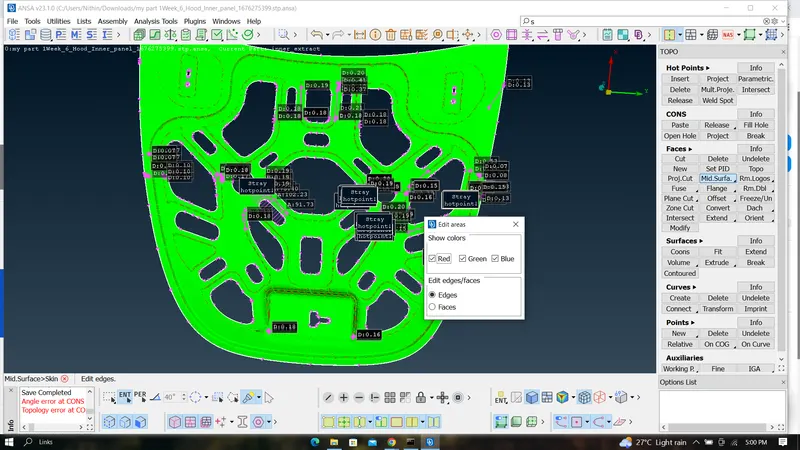

2. Mid-Surfacing and Skin Generation

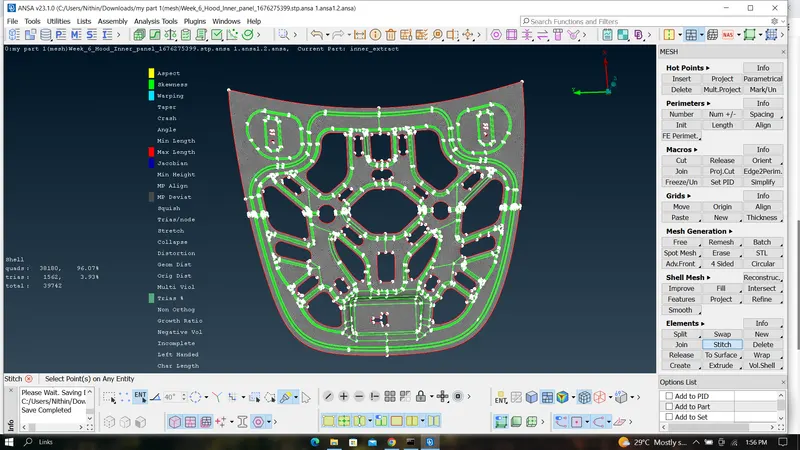

3. Meshing

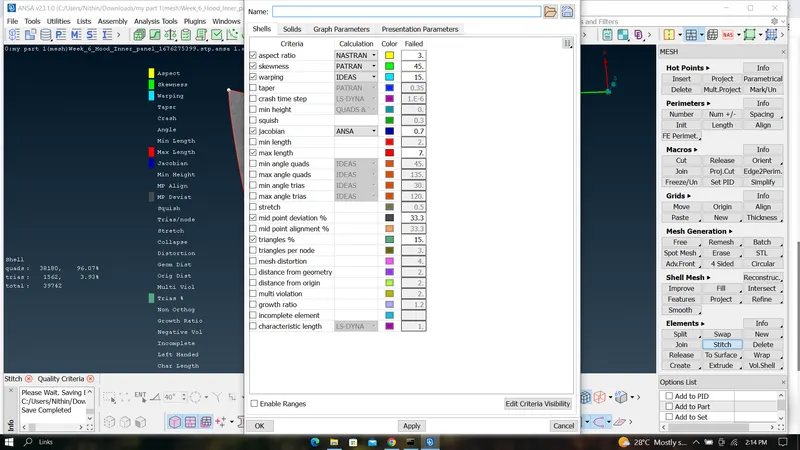

4. Quality parameters

RESULTS: The Geometry cleanup and Topology, Mid-surface or Skin Generation, and Meshing are done as per the given Quality parameter criteria.
