Week 3 - 2D meshing for sheet metal

AIM:-

For the given Hood model, Take the mid surface for all the components after checking the geometrical errors and mesh the mid surface with the given element Quality criteria. (Refer the table below for the Quality criteria)

S.No	Quality Criteria	Value
1	Target/Average length	5
2	Minimum Length	2
3	Maximum Length	7
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad Angle	45
9	Maximum Quad Angle	135
10	Minimum Tria Angle	30
11	Maximum Tria Angle	120
10	Tria Percentage	15

• The given file should be imported into ANSA file-->Open-->file location

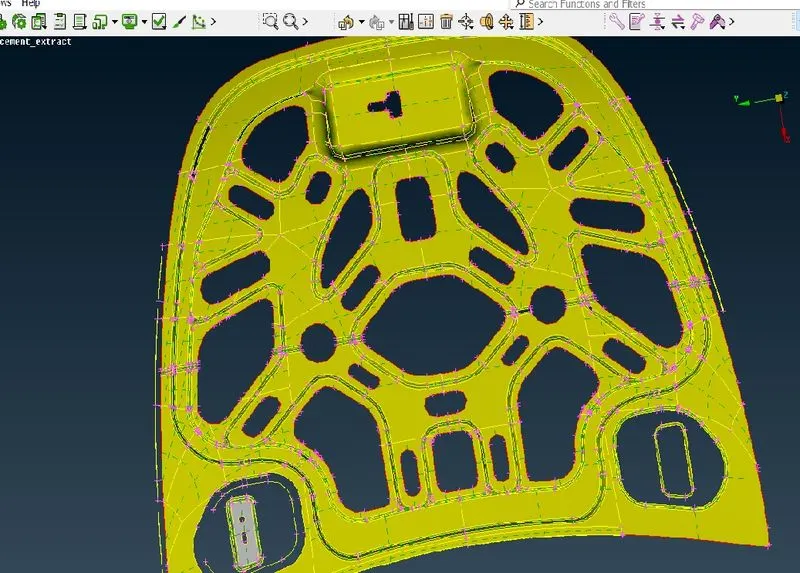

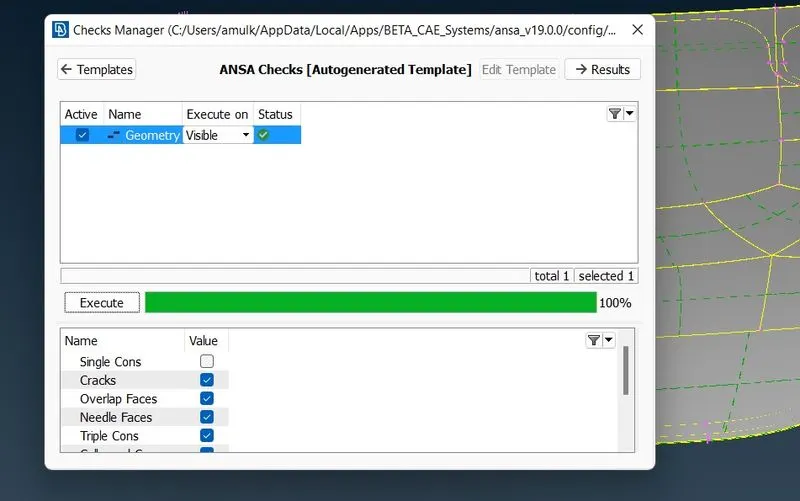

• The respective geometry is cleaned till no errors are encountered dvfvdd

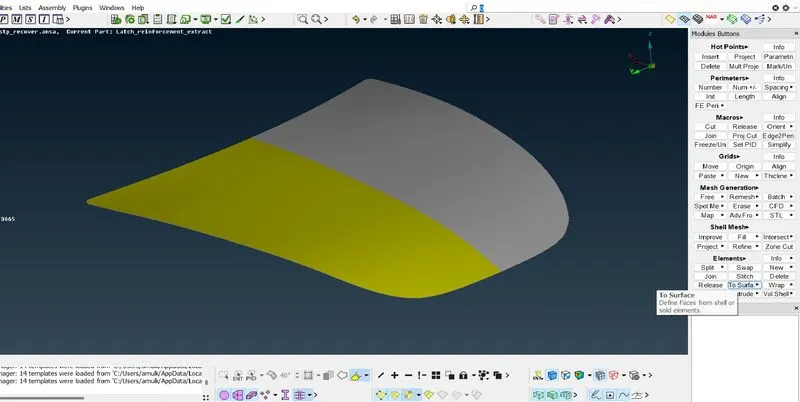

• the orientation of the geometry is set to one sided being positive and one being nevative

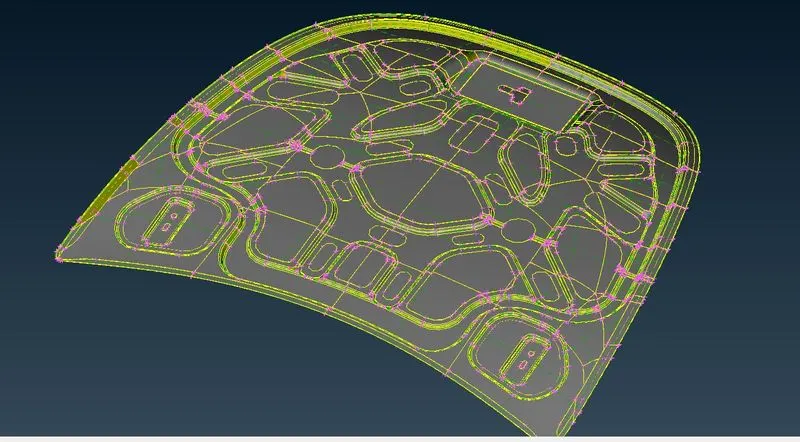

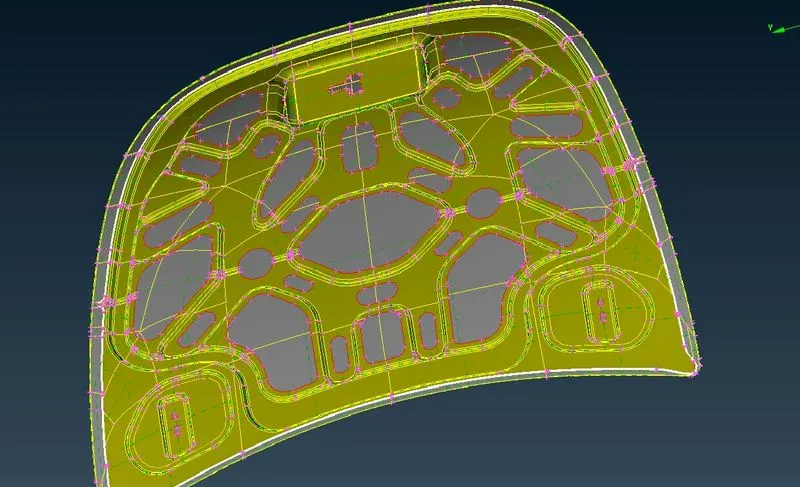

• the thickness of each 3D Zoon is taken and mid surface generated

• the mid surface for multiple similar shapes like inner part , nute bold holler, fine area upper side

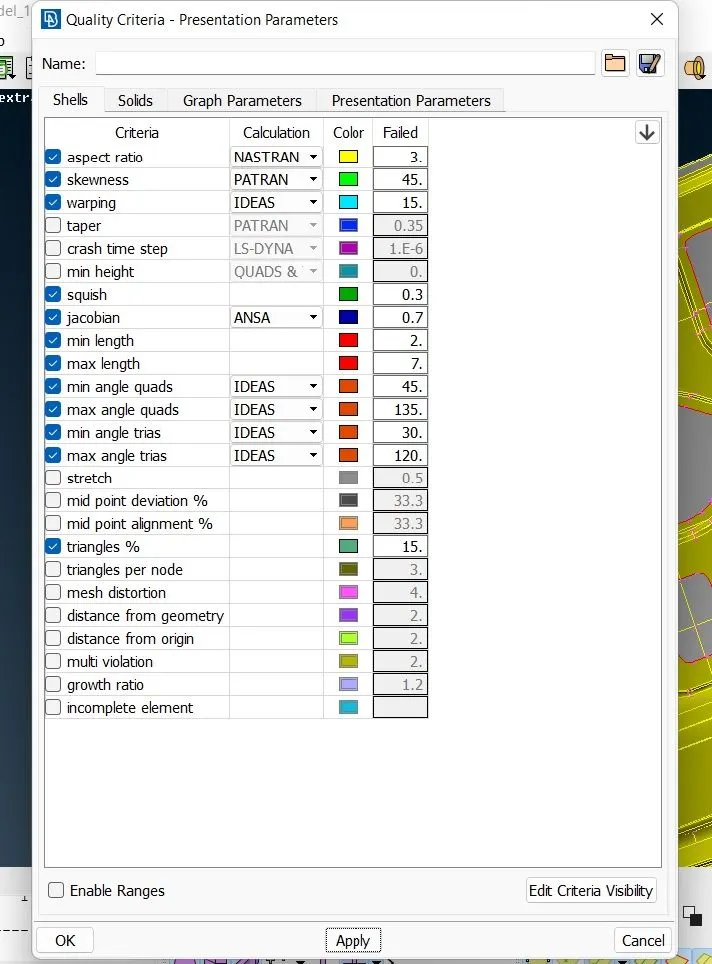

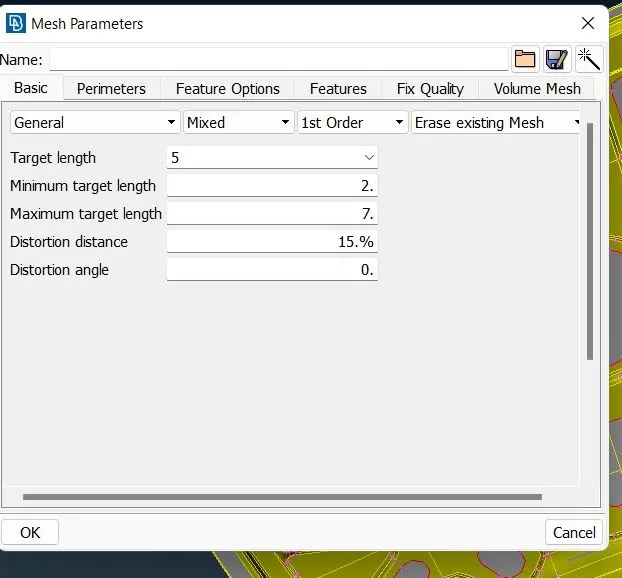

• after mid surface generation the mesh perameter and Quality criteria input

•

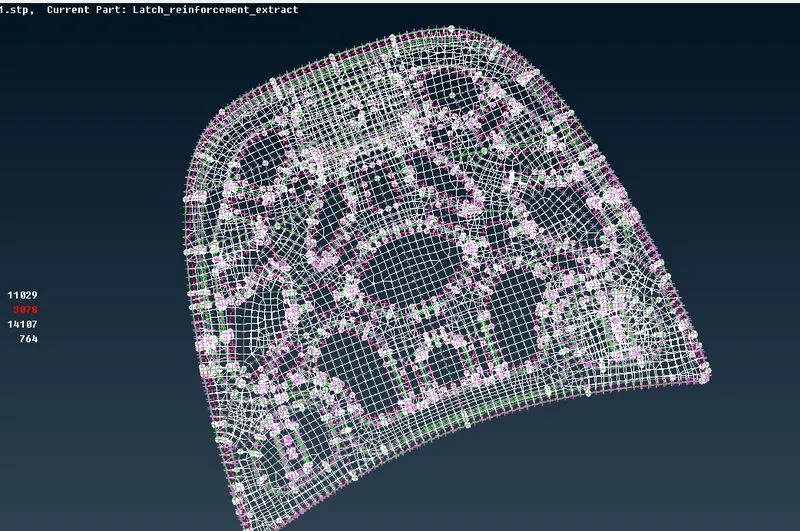

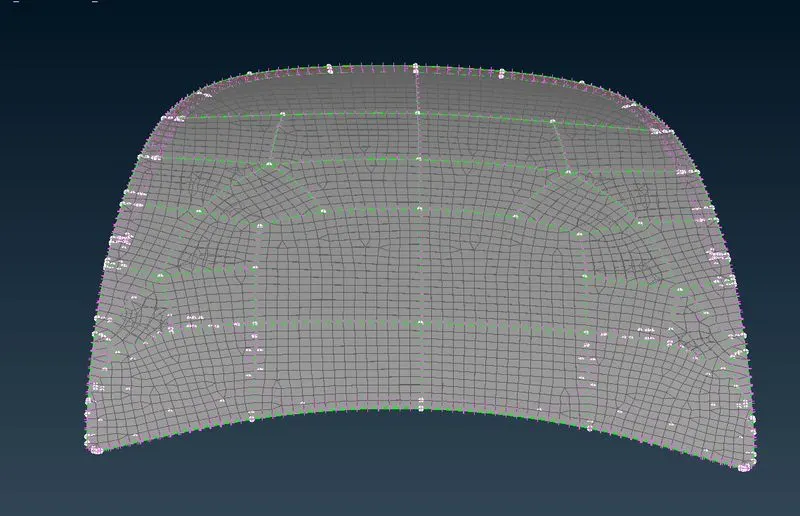

• Mesh of each component mid surface is done with rectificaton of each quality criteria encountered.

• The draw shell as a solid option is used in : Quality critera --> prsecriteria perameter --> draw sell as solid

conclusion :

• The geometry cleanup and mid surface generation was done successfully
• while meshing few intricate region creating problem which did not satisfy the quality specification to rectify this the geometry featured had to be altered
• few components gradually deformed from one thickness to another when connection to another components
