Week 2 Railwheel and Track
- Results For Bearing Load 100000N.
A. Total Deformation:

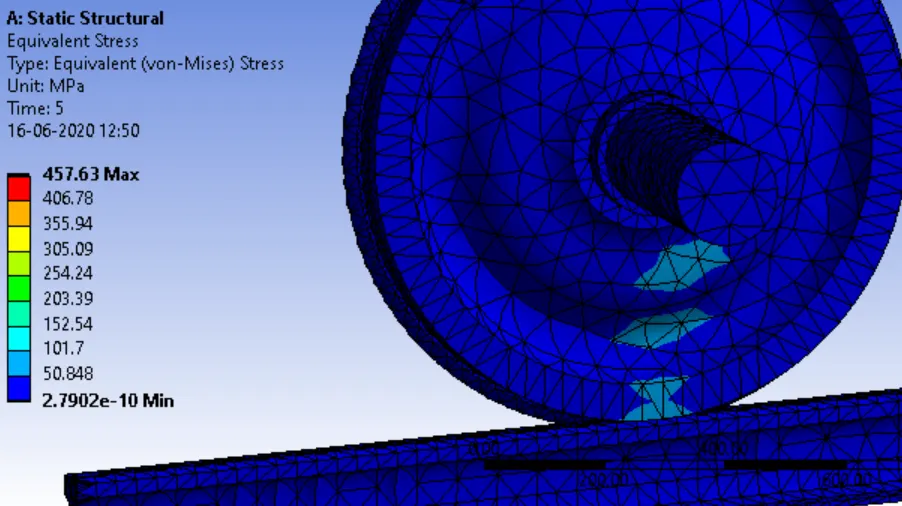

B. Equivalent Stress:
C. Life:

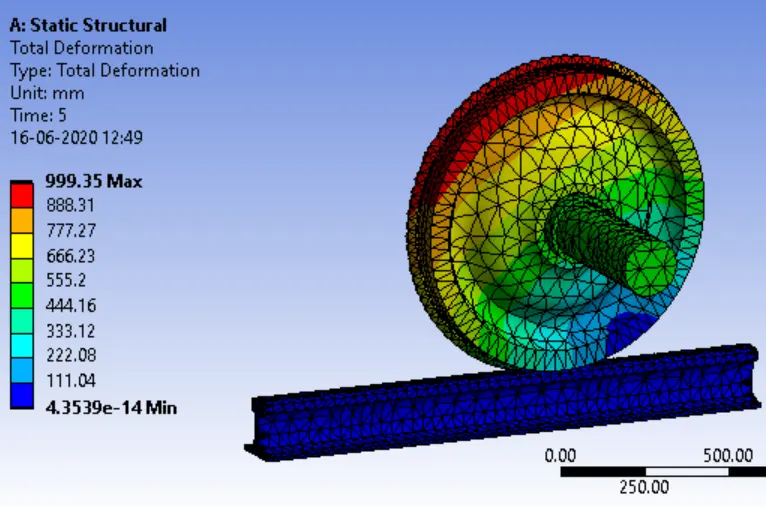

- Results for bearing Load 500000N A. Total Deformation
B. Equivaltent Stress

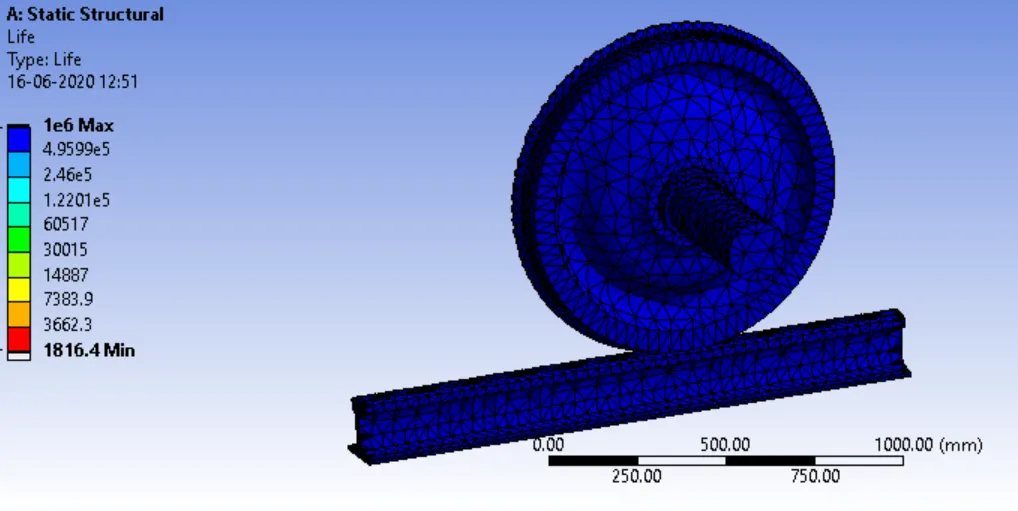

C. Life:
CONCLUSION:
| Bearing Load | Minimum Life | Max Total deformation | Max Stress |
| 100000N | 3.5 e5 cycles | 999.38 mm | 457.63 Mpa |
| 500000N | 1816.4 cycles | 999.35 mm | 101.3 MPa |
CASE 2:
Conclusion:
The total deformation is same as the total deformation through inbuilt results when the load was 100000N.
