Week 2 Railwheel and Track
1. Summary
|
Bearing Load |
Max Equivalent stress, (MPa) |
Deformation (mm) |
User Defined Function, Deformation, (mm) |
Fatigue Life (Cycles) |
Reference Comments |
|
100KN |
96.189 |
1000.7 |
- |
1×106 |
75% increase in the stress level |
|
500KN |
401.47 |
1000.8 |
- |
1×106 |
|
|
100KN |
- |
- |
1000.7 |
- |
Matching with ANSYS results. |
Table 1: Stress Summary.
Introduction

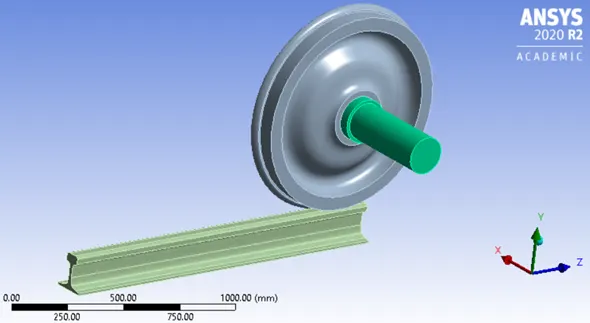

Figure 1 Rail Wheel Track (Track, Wheel and Shaft)
Objectives
- To perform the rail wheel track simulation with a bearing load of 500KN (5×100KN) and analyse the failure.

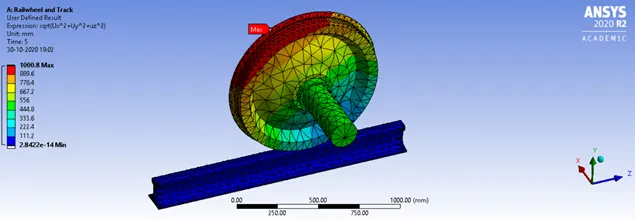

- To perform the user defined result of total deformation and checking for the case 1 (100KN) bearing load.

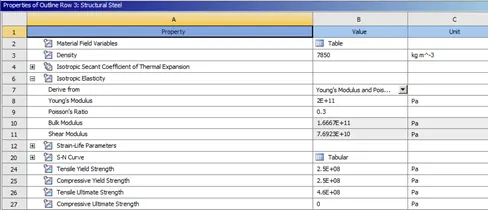

Material Properties.

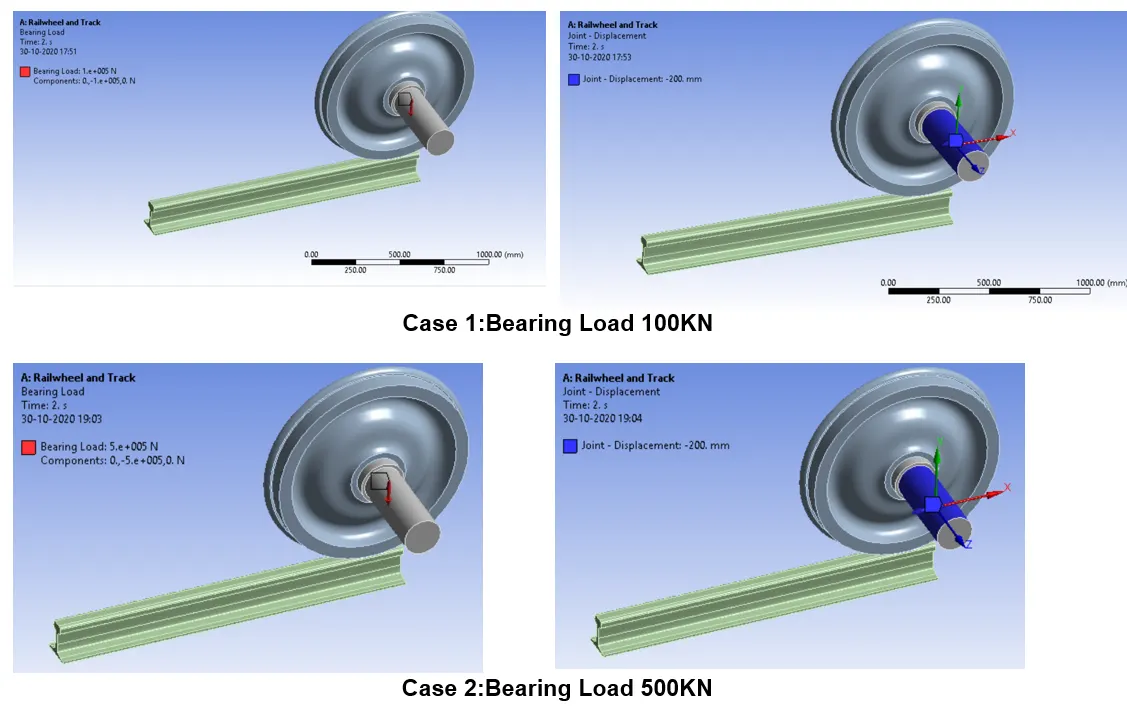

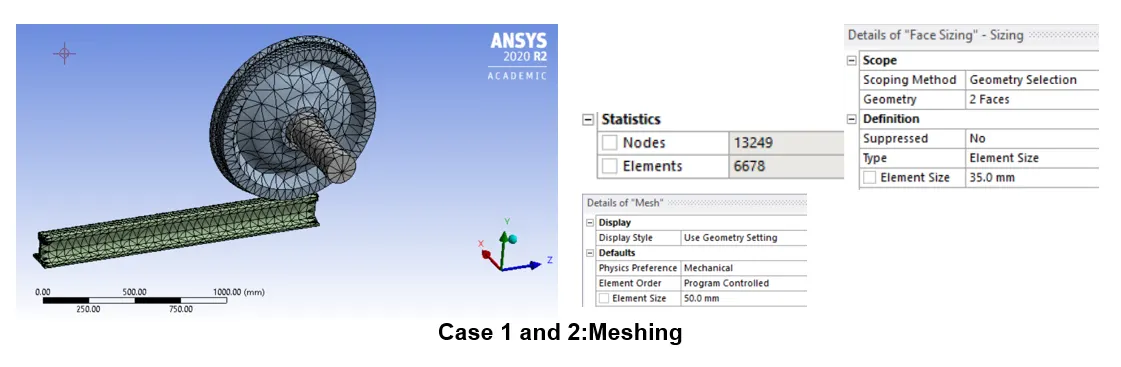

Loading and Meshing.
Post Processing Results

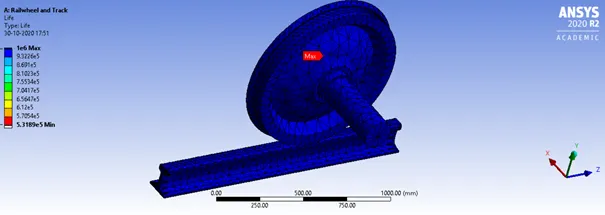

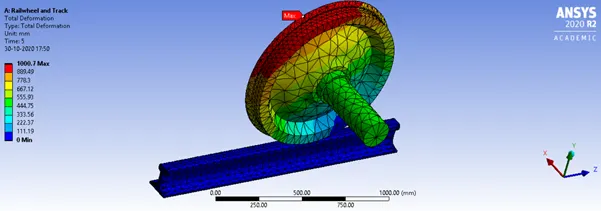

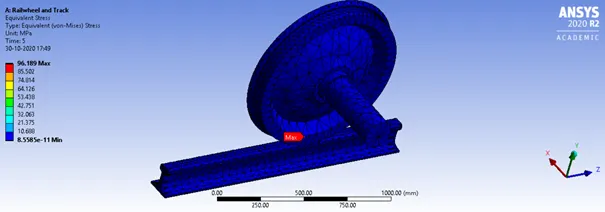

Bearing load - 100KN

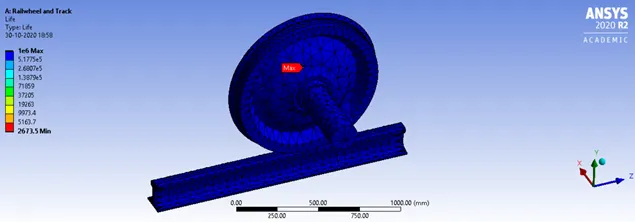

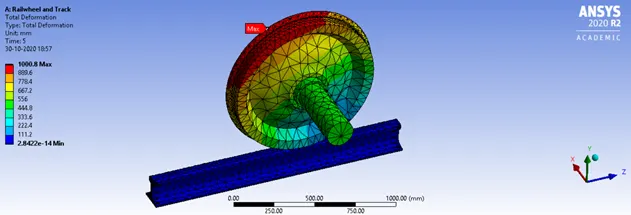

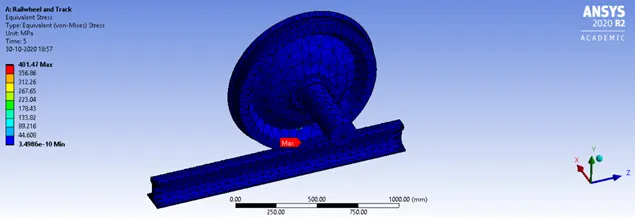

Bearing load - 5×100 KN =500 KN
Conclusion
Stresses are increased by 75% on applying the bearing load by 5 times.(500KN*5)
User defined function results are matching with the actual simulation results from ANSYS.
