Week 2 Challenge : Surface meshing on a Pressure valve

Aim/Objective-

Use the pressure valve geometry to examine the surface meshing.

Procedure-

1. topographical geometry cleanup

2. In the "cons and faces" menu, fill in all gaps and add new surfaces.

3. Eliminate all single cons and reverify any existing triple cons.

4. To prevent mesh failure, eliminate any minor incisions and surfaces.

5. Geometry tests to confirm the existence of single, double, and triple cons.

6. create a PID and assign components based on their names

7. Mesh the components in accordance with the target length and element type.

Learning Outcomes-

Able to mesh and clean up geometry efficiently.

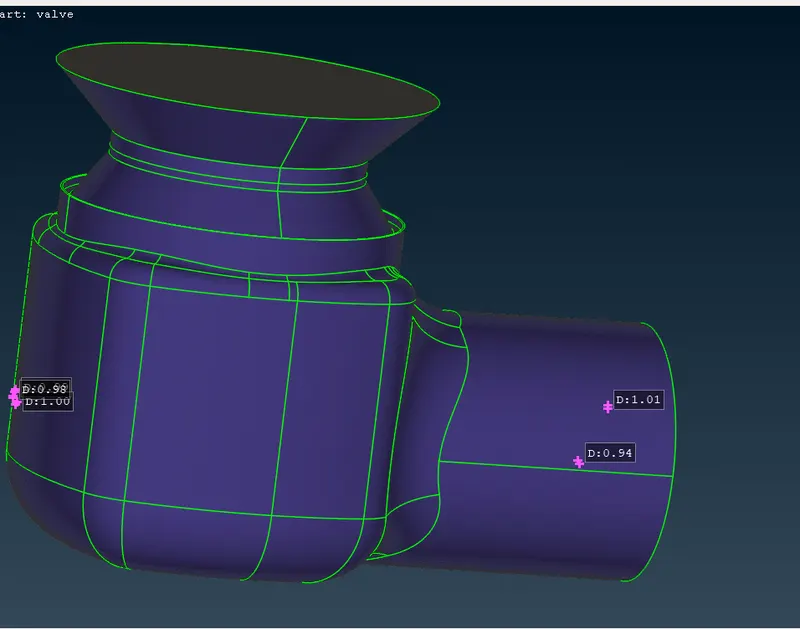

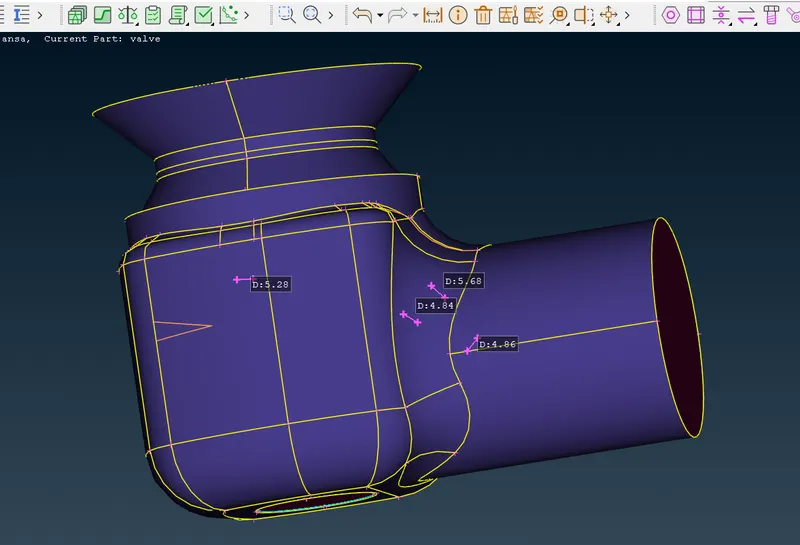

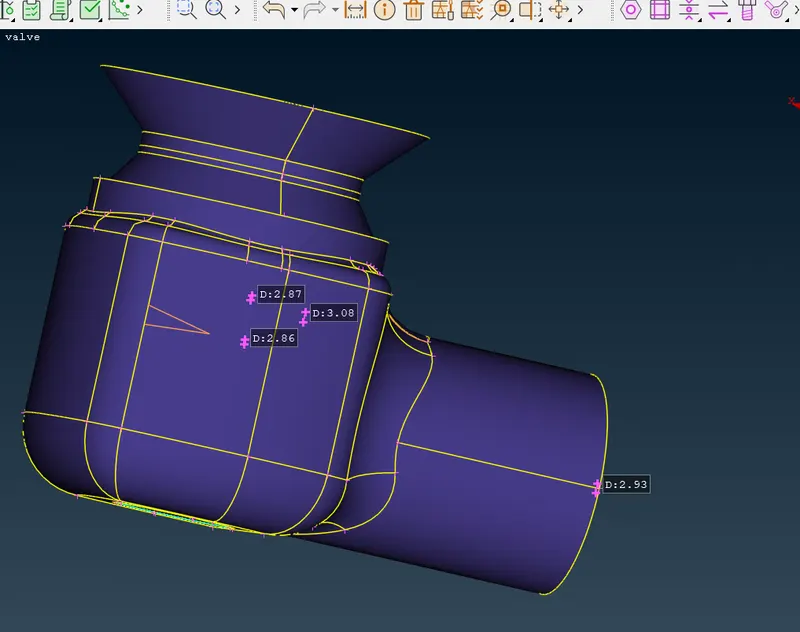

Result/Conclusion- For pressure valve geometry, meshing is carried out with various intended lengths.

.
