Week 2 Challenge : Surface meshing on a Pressure valve

Given Data

To clean up the geometry and mesh with the below criteria

• Target length = 1mm, 3 mm and 5 mm
• Element type = Tria

To Build

so slit the geometry into 3 cases to show the differentiation of mesh output

Case1

Target length-5 mm

Quality criteria

min length- 3mm

max length - 7 mm

mesh length- 5 mm for both macros & length

Case2

Target length-3 mm

Quality criteria

min length- 1mm

max length - 5 mm

mesh length- 3 mm for both macros & length

Case3

Target length-1 mm

Quality criteria

min length- 0.5mm

max length - 3 mm

mesh length- 1 mm for both macros & length

Command Used

View

Topo- to view topology view and different boundary share in geometry i.e- single, double & triple corn, free edges

mesh- to view mesh

geometry check-

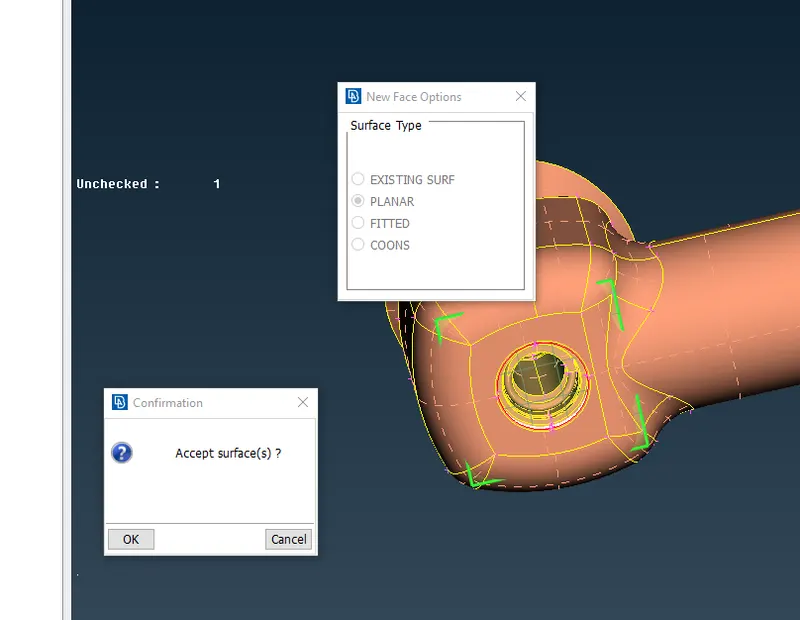

Face-new

Existing Surf

base on the surface selected nearby surface created on edge selected

Planar

selected edge perpendicular surface created as a planar surface

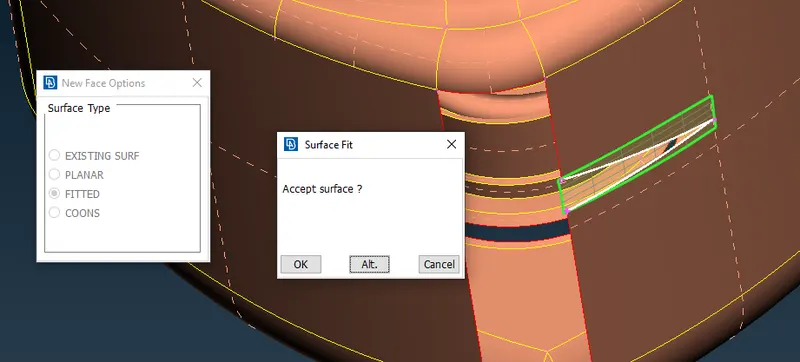

Fitted

selected open edge creates a surface with a profile specify

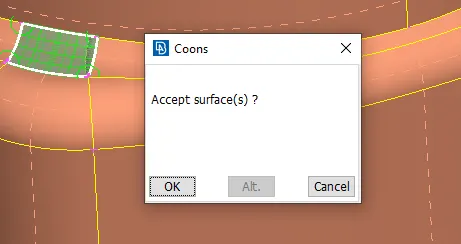

coons

profile on loop edge surface created

cons-fill holes

to close-loop holes

Clean up-

check up cleanup

inital check up of geometry before clean up

tools- check - geomentry

Mesh-

to mesh the specific geometry

mesh quality

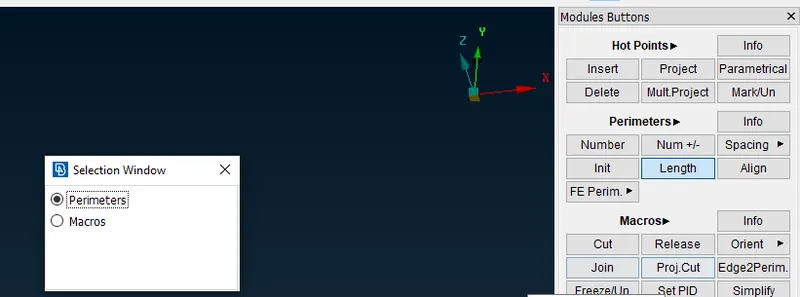

specify minimum & maximum element size

parameters- length

length

select the surface to specify target size assign to it

macros

specify minimum & maximum element size

Specify the target mesh size

Spot mesh

Select the view to mesh the specific region that is applied to cases

Procedure

1. Clean up are done using surface creation tool
2. after clean up unwanted lines are removed using

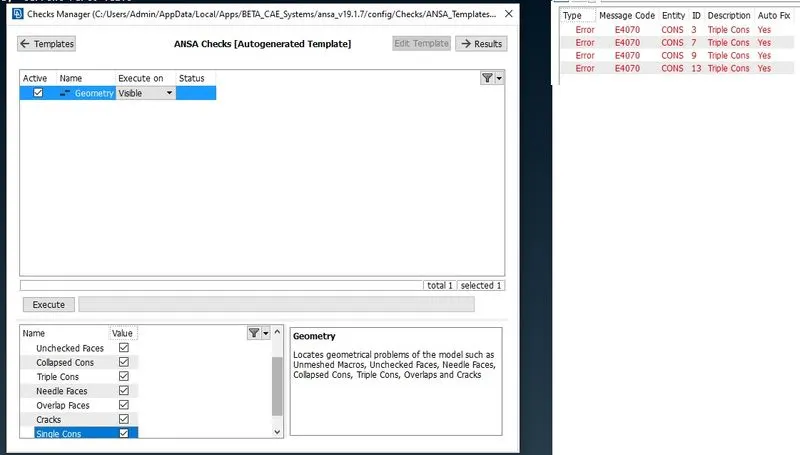

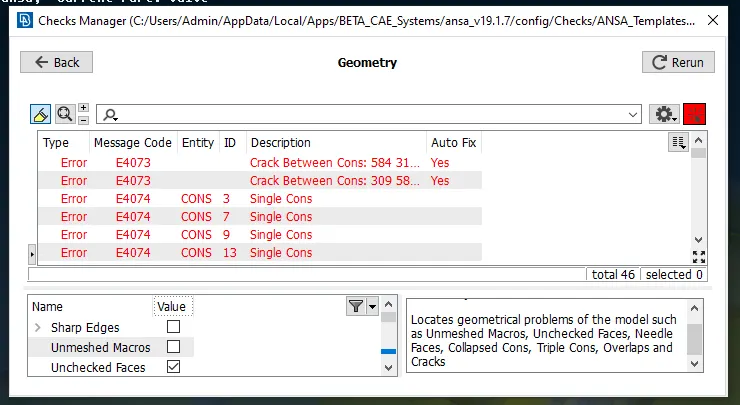

3. check up the clean up status using geometric check comm

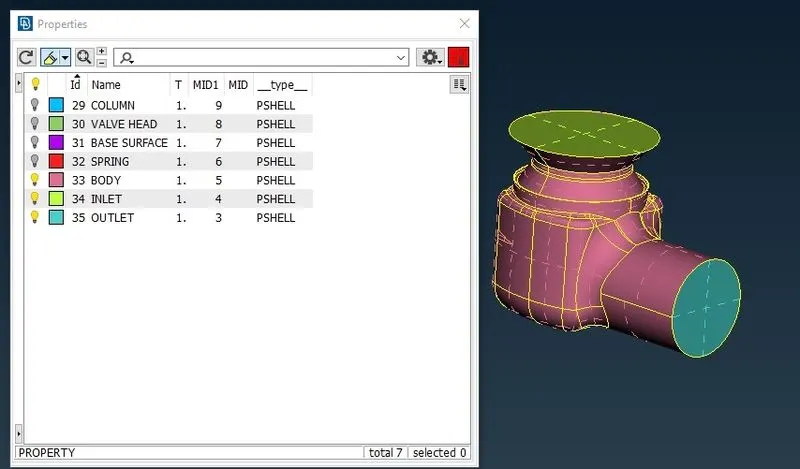

4. name selection are created in property table and assign the name in different PID
5. Assign mesh properties as per cases
6. mesh using PID using spot mesh
7. cross check the size using the measure tool

Output

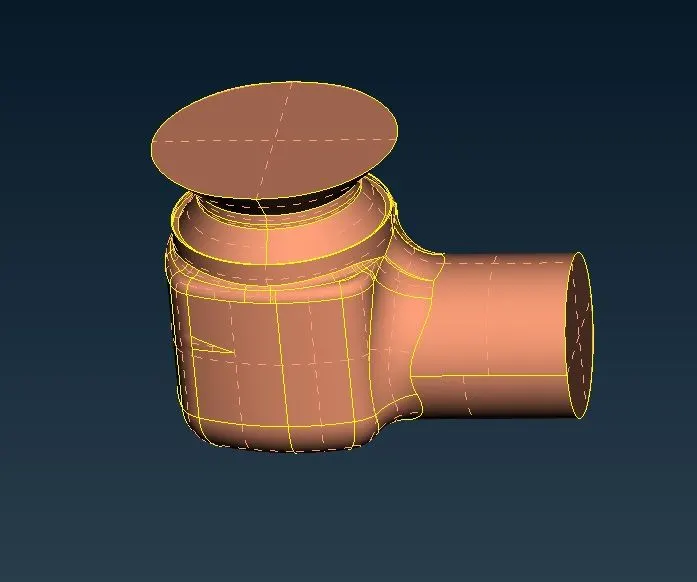

Base model

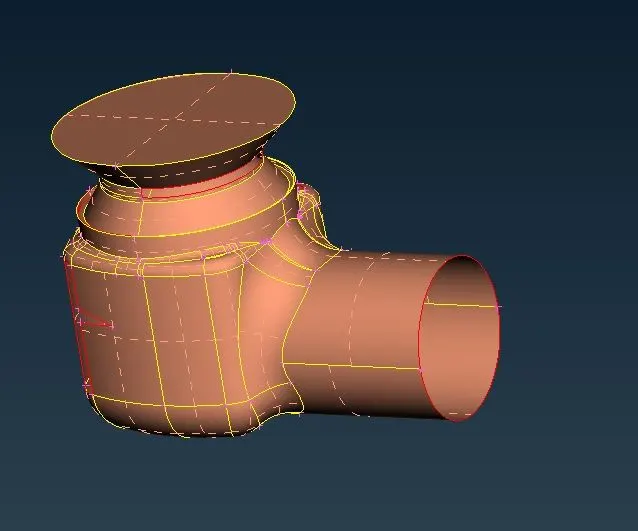

Cleanup

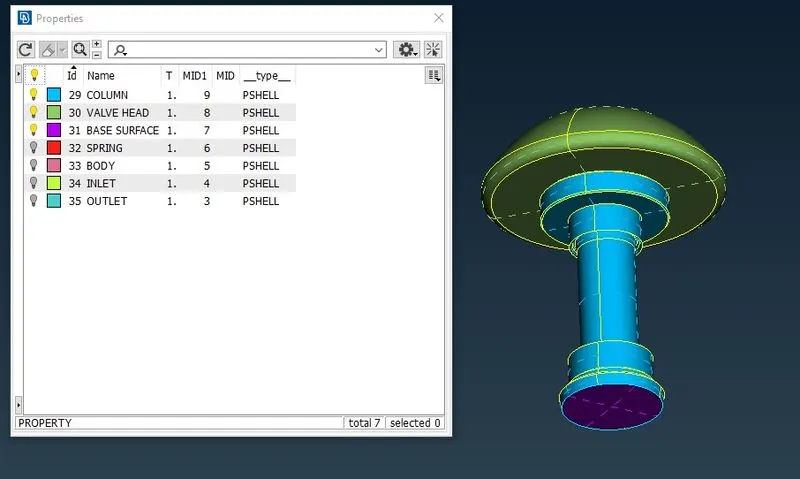

Name selection on PID

specify a name to the body

outer body

Inner body

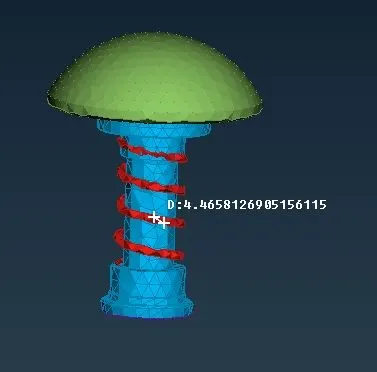

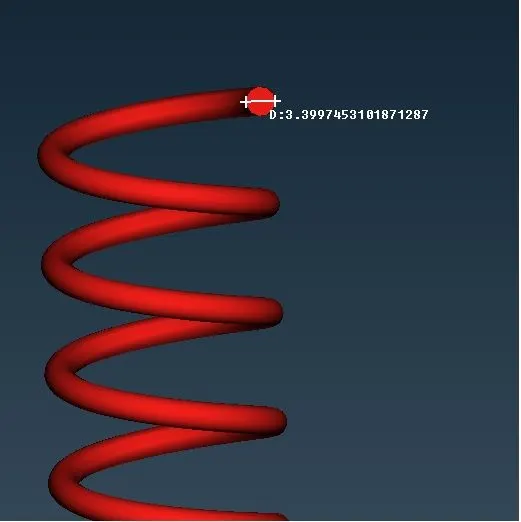

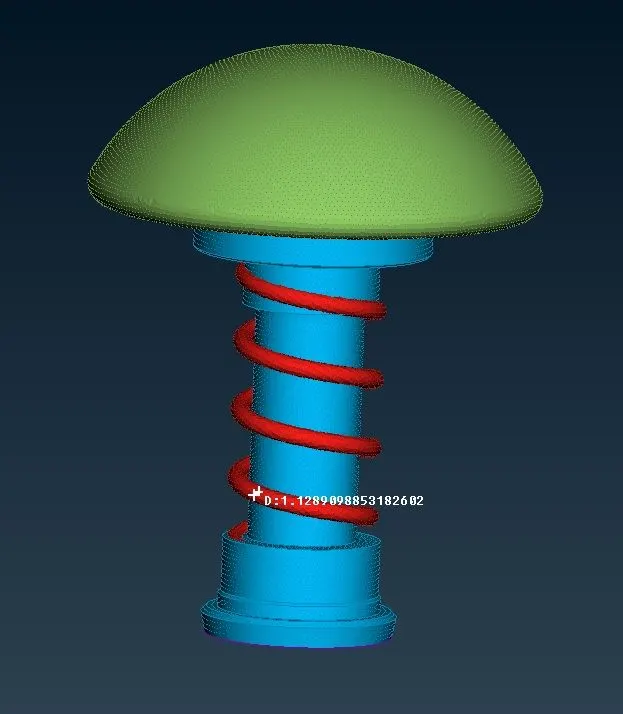

check up of minimal size

Meshing

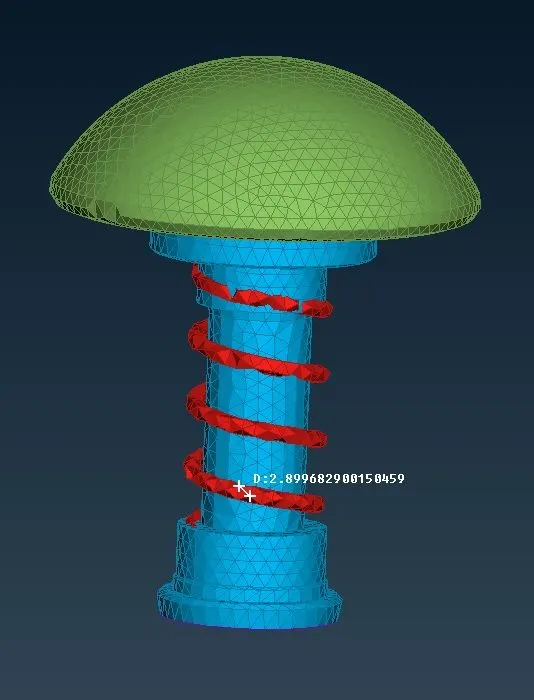

specify element size as targeted with min & max values select the body to mesh for different cases

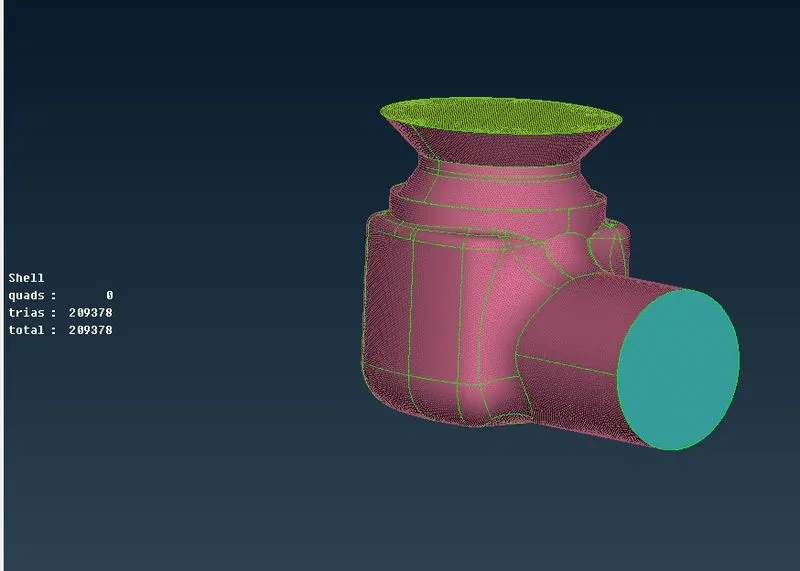

output

case1

outer

inner

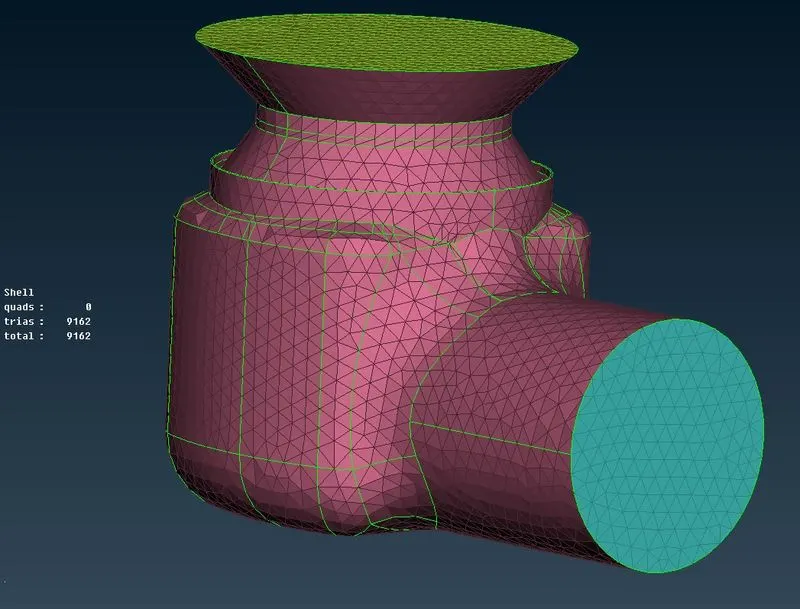

case2

outer

inner

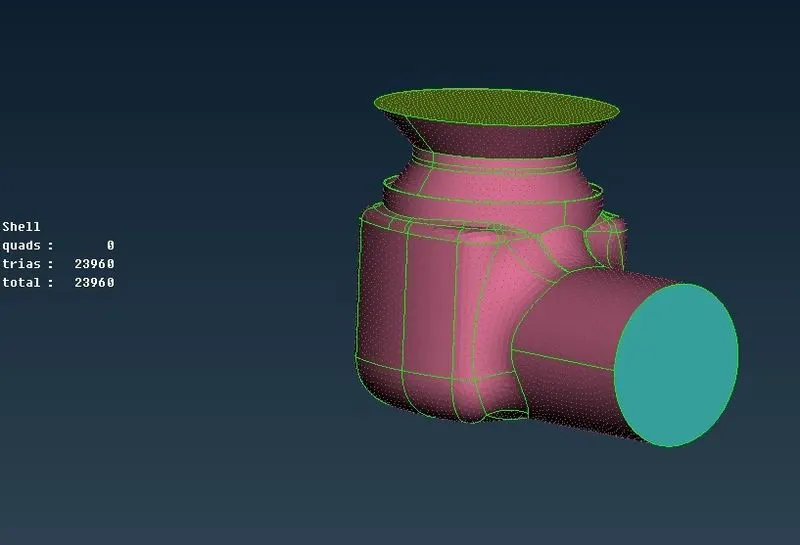

case3

outer

inner

Inferences

case3 gives good mesh compared to the remaining cases due to 1mm element size which is able to capture the spring area but the element count increases higher with all which is tended to have a high solving time with accurate results
