Week 2 Challenge : Surface meshing on a Pressure valve

AIM: To perform the surface Mesh for the Geometry.

Objective: The main objective is to find Geometrical errors & perform Topology cleanup.

Process:

step1:file _open _geometry from directory

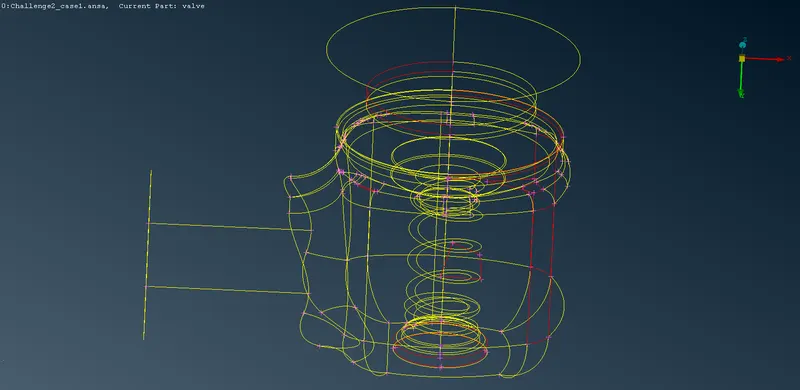

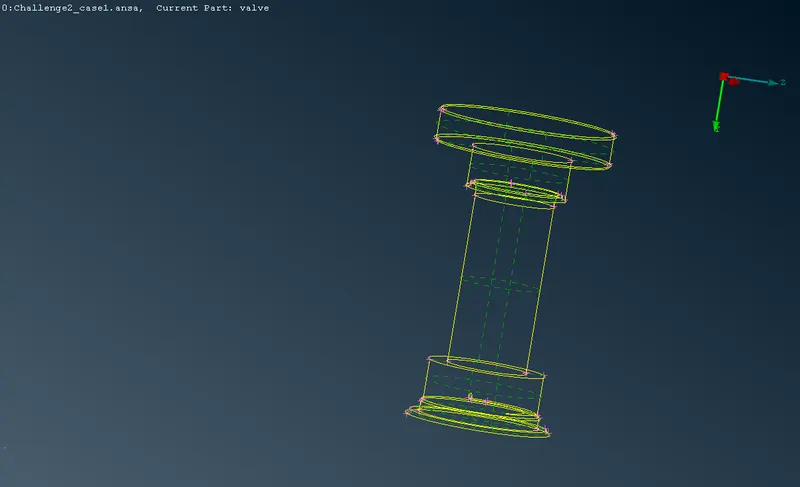

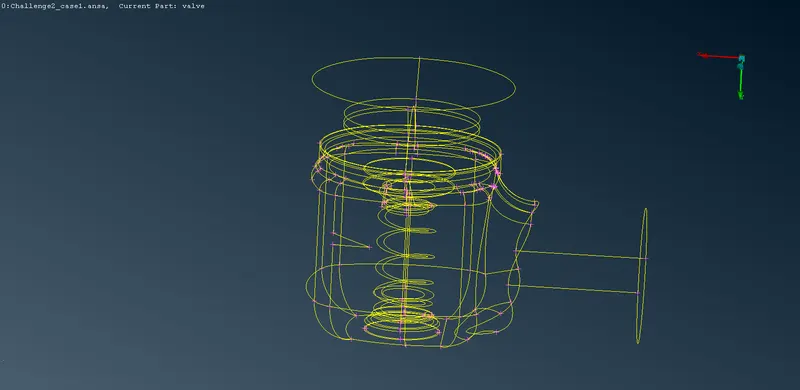

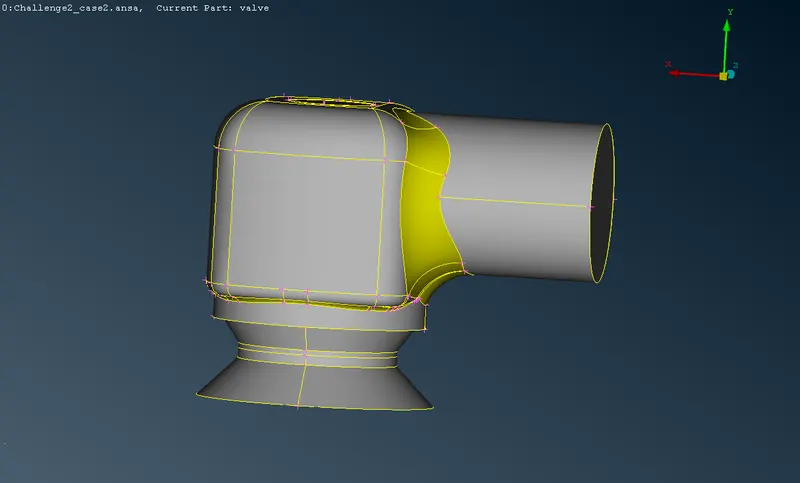

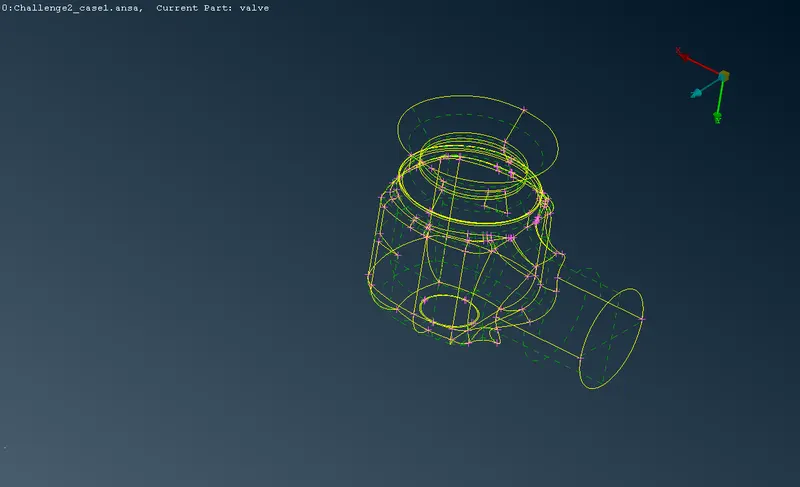

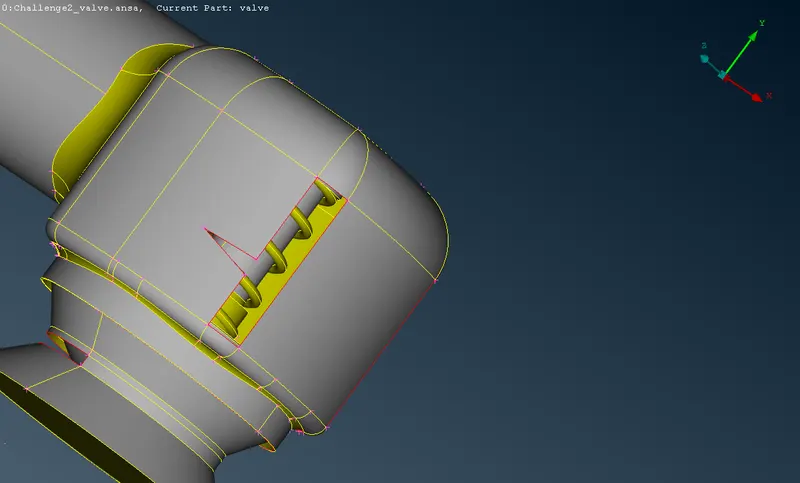

step2:cleanUp geometry

• Topo_faces_New surfaces_create

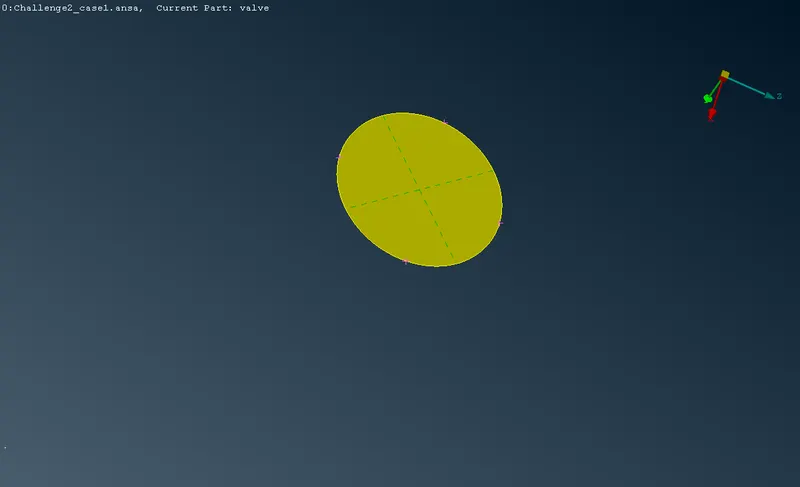

• Topo_CONS_fill hole

step3: To differentiate into NO of PIDs

• Topo_faces_setPID
• Menu_PIDs_open_rightclick_shell/solid property_rename_set.

step:4

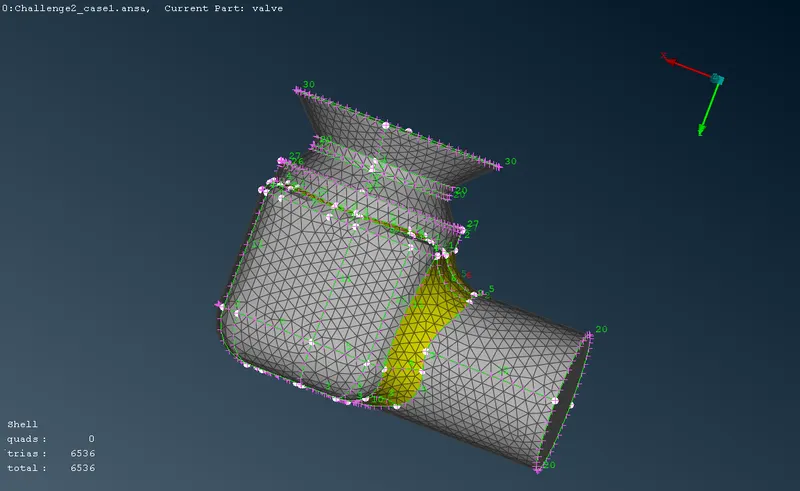

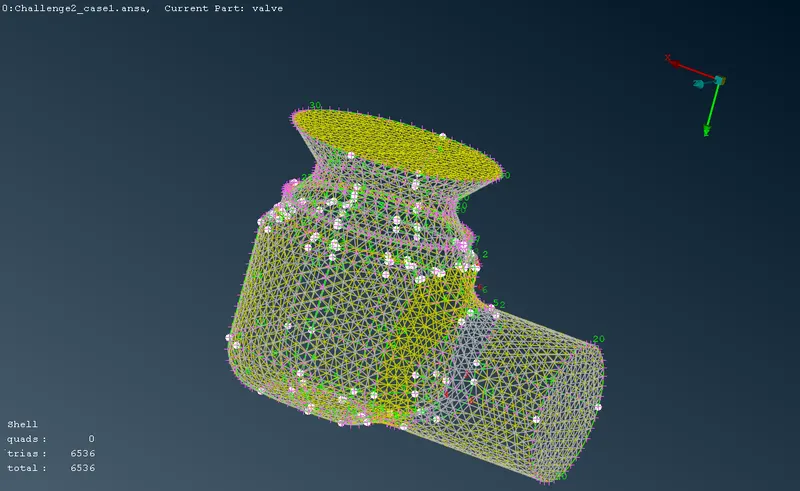

case1: To mesh with 5mm element size

• Mesh_perimeters_length_perimeters _enter_5mm &1mm for spring
• Mesh_perimeters_length_macros_enter_5mm& 1mm for spring.
• Mesh_mesh generation_spot mesh_select the geometry _mesh.

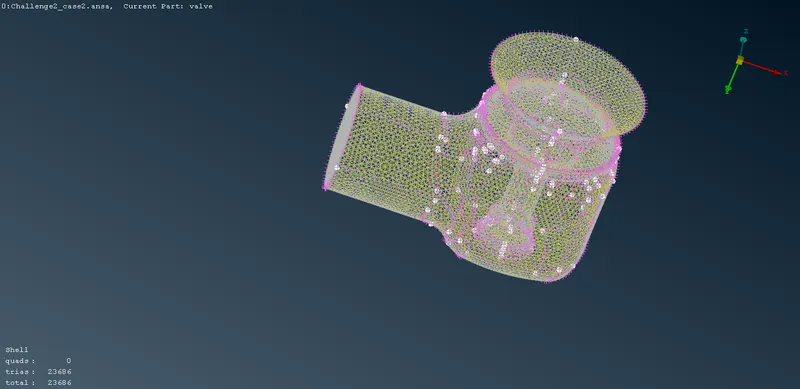

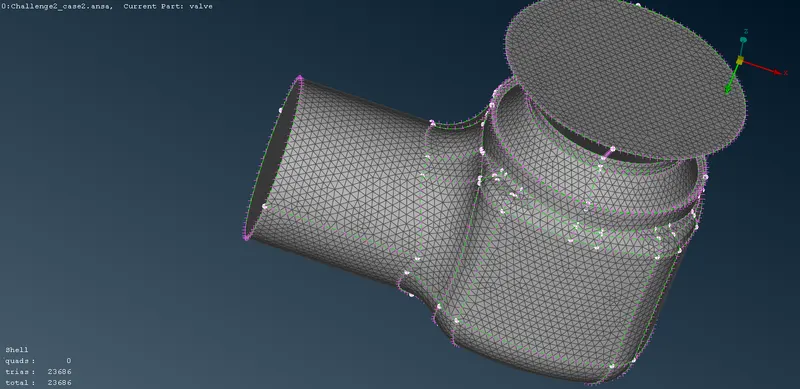

case2: To mesh with 3mm element size

• Mesh_perimeters_length_perimeters _enter_3mm &1mm for spring
• Mesh_perimeters_length_macros_enter_3mm& 1mm for spring.
• Mesh_mesh generation_spot mesh_select the geometry _mesh.

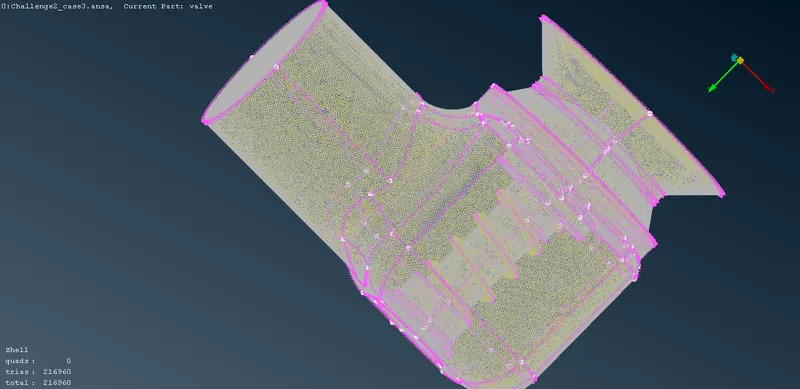

case3: To mesh with 1mm element size

• Mesh_perimeters_length_perimeters _enter_1mm &1mm for spring
• Mesh_perimeters_length_macros_enter_1mm& 1mm for spring.
• Mesh_mesh generation_spot mesh_select the geometry _mesh.

and

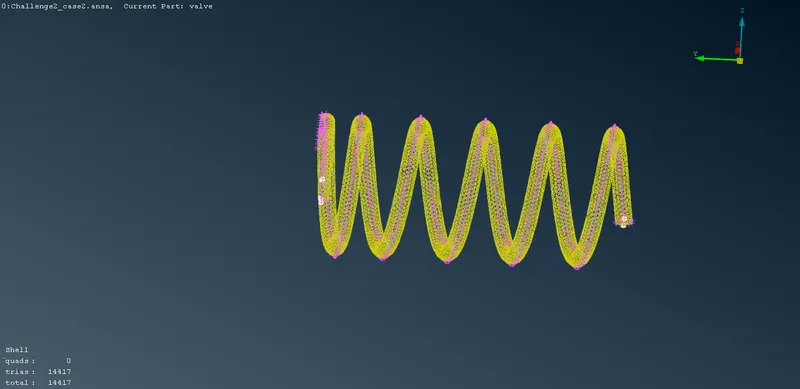

spring:with 1mm

case1:https://drive.google.com/file/d/1MNkO2NraHPPr4pwOkVMQez-iLtU8-xgt/view?usp=sharing

case2:https://drive.google.com/file/d/1dQBd9pNGCj6AH9VSmS2iqbjufdBhVn9d/view?usp=sharing

case3:https://drive.google.com/file/d/1DsRWdip3lBy0SXtQUVbDCCai7RTNyY90/view?usp=sharing
