Week 2 Challenge : Surface meshing on a Pressure valve

CHALLENGE 2 - SURFACE MESHING ON PRESSURE VALVE (VINITH)

AIM

To check for the geometrical errors and perform Topology cleanup accordingly. Set three different target lengths as three different cases and mesh the model.

• Target length = 1mm, 3 mm and 5 mm
• Element type = Tria

Setting of perimeters settings

Faces – topo

Creating faces single cons area

Faces-New-Coons

Cons- Fill Hole

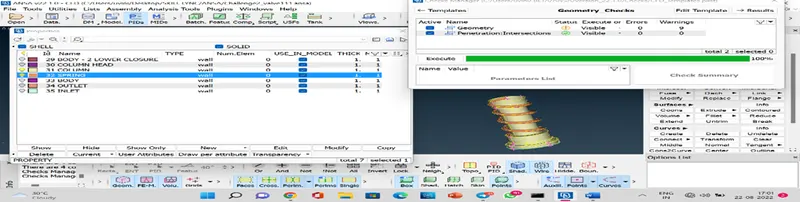

Geometry checkup

Tank-Checks- checks manager-Geometry check- Confirmity of green tick mark

Assigning PID of each individual parts

New – Shell property – Spring

Right click – Apply

Rectification of Intersection Error

Observed in between Spring & Column part

Face – Intersect- Selection First – Selection Second (Delete unwanted portions)

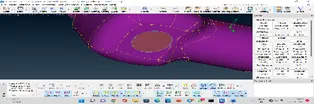

Generating closing face in Lower part of the body

Face – New – Cons

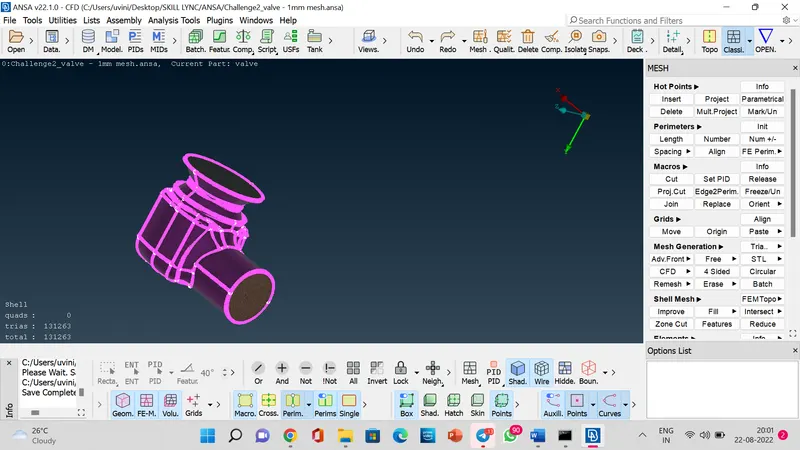

Mesh parameter 1 mm

Min target length - 0.5mm

Max target length - 2mm

Similarlly for Mesh generated 3mm & 5 mm.

RESULT

Thus the geometry check upn and mesh generation has been completed for the given model
