Week 2 Challenge

AIM: TO DETRMINE AND ANALYSIS IRC LIVE ON LOADS ON STADD MODE USING STAAD PRO

INTRODUCTION : TO ANALYSIS IRC LIVE LOAD first learn about it in short

Vehicle loadings are categorized in to three types and they are

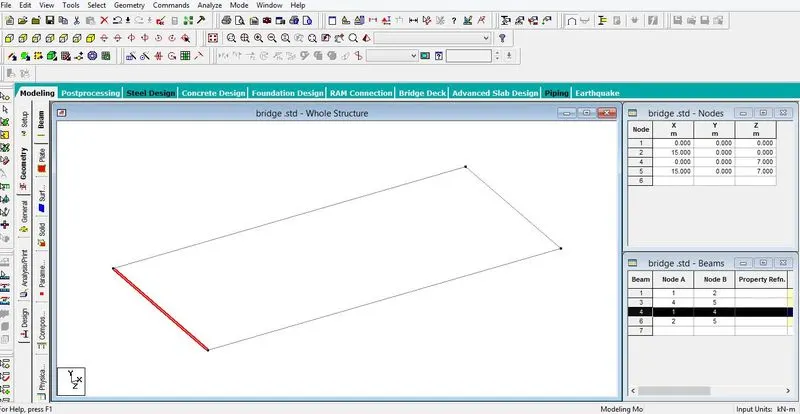

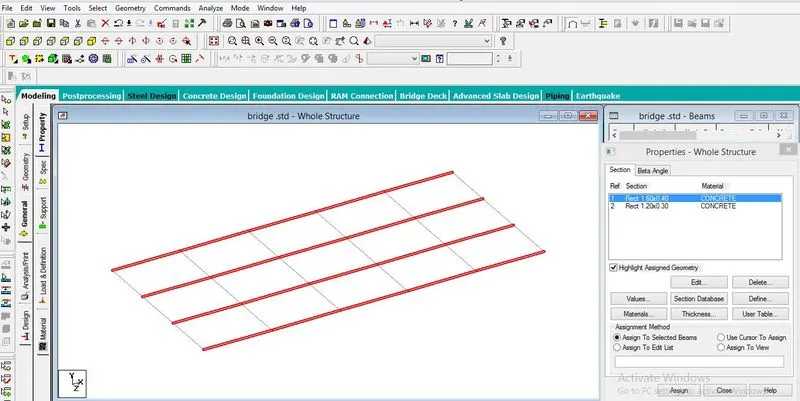

first we create 7m width and 14 m long span model using plate with 4 nos of main beam and cross beam

Let assume cross section beam 0.40x1.60 and cross 0.30x1.20

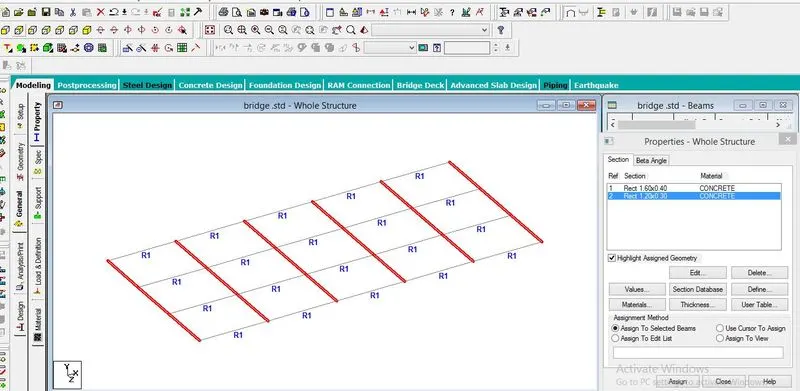

CROSS BEAM

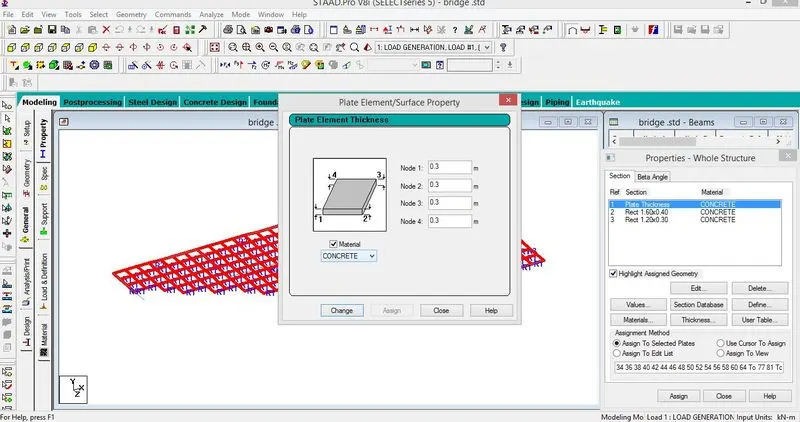

Let assume SLAB THICKNESS 0.3 M FOR PLATES

Assume end support as simply which rested on pier head

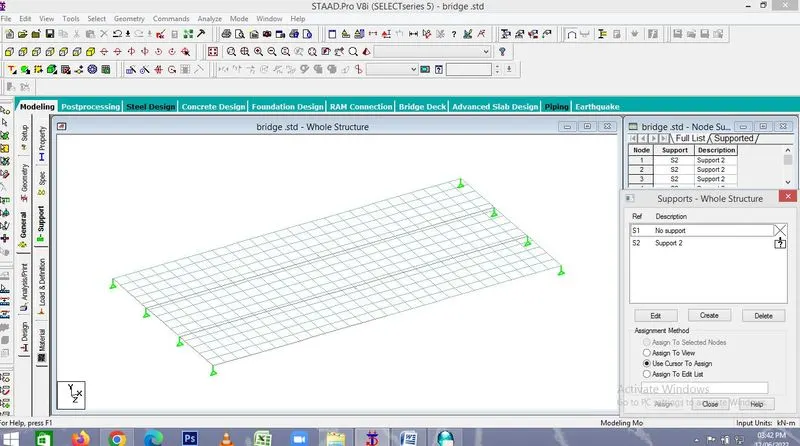

AFTER ASSIGNING THE SUPPORT

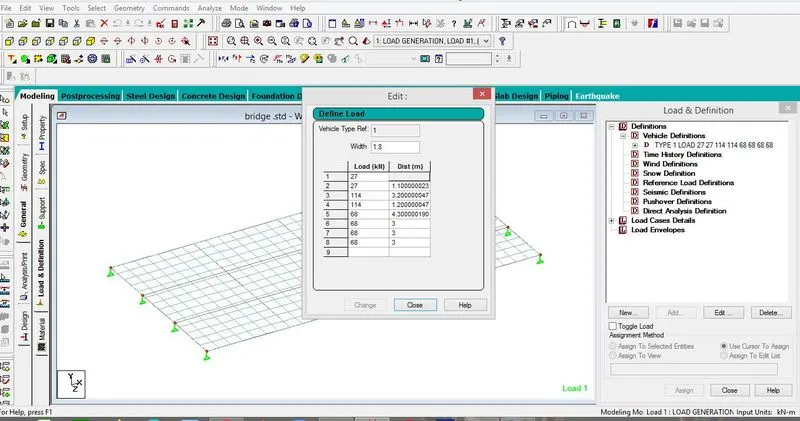

DEFINE VEHICLE LOAD PATTERN

CLASS A LOADING IS APPLY FOR FOR ANALYSIS THE MODEL

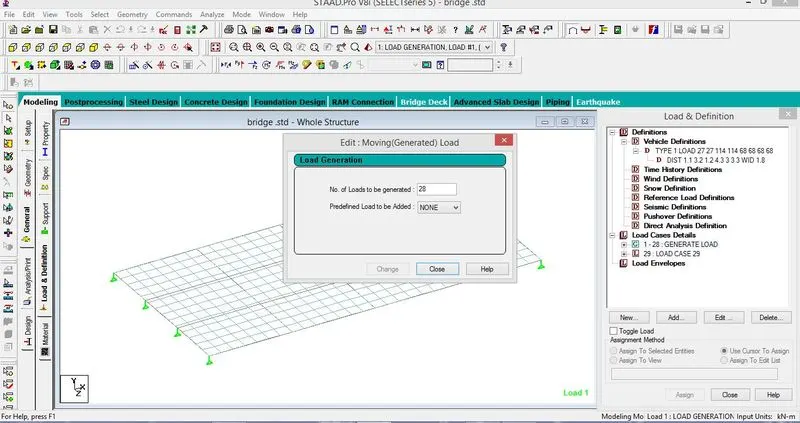

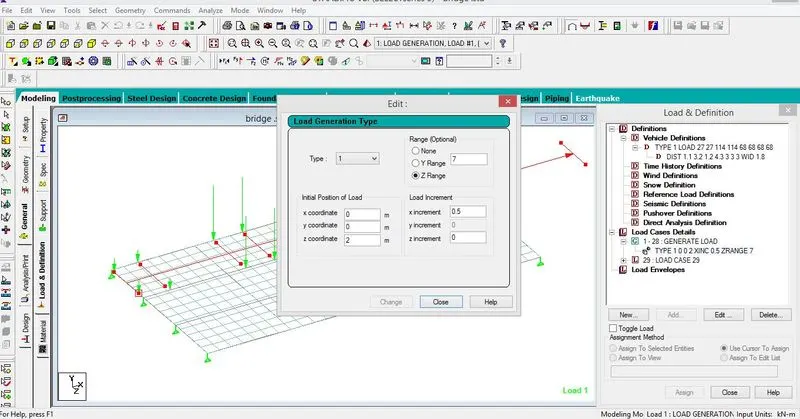

ADD 28 NO LOAD GENRATION FOR ANALYSIS

DEFINE RANGE OF IT

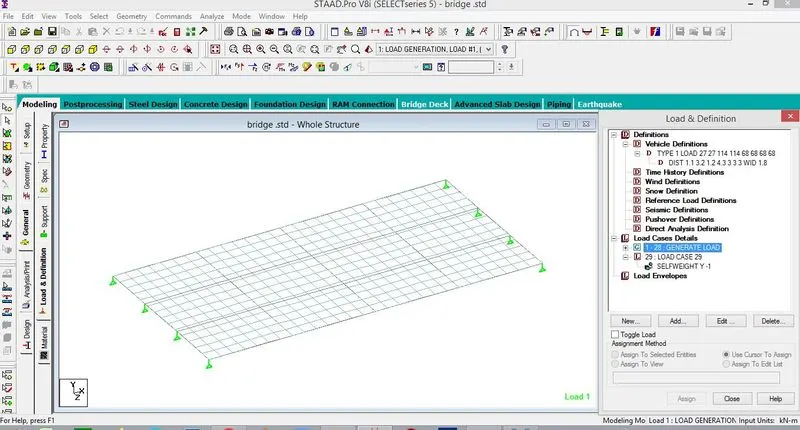

LOAD ADD CASE FOR DEAD LOAD

ONLY SELF WEIGHT HAVE ASSIGN ON IT

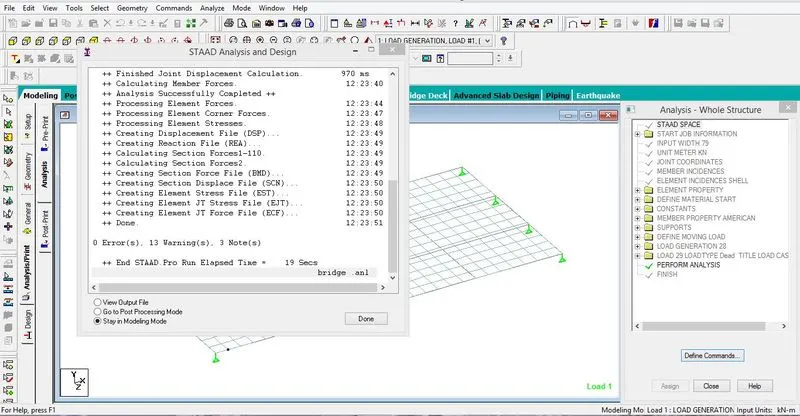

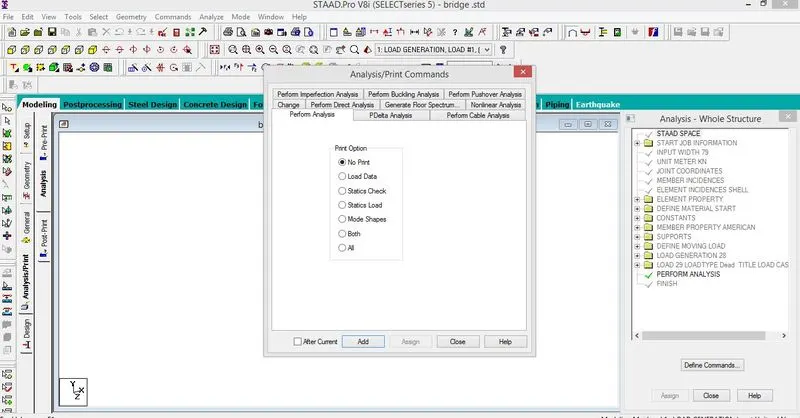

PERFORM ANALYSIS

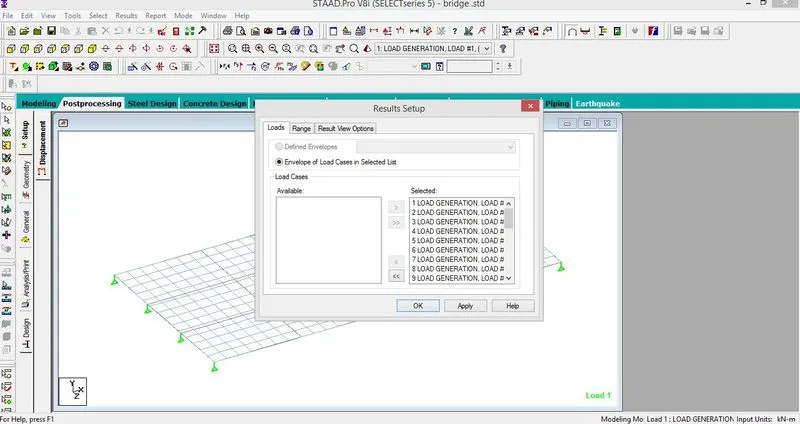

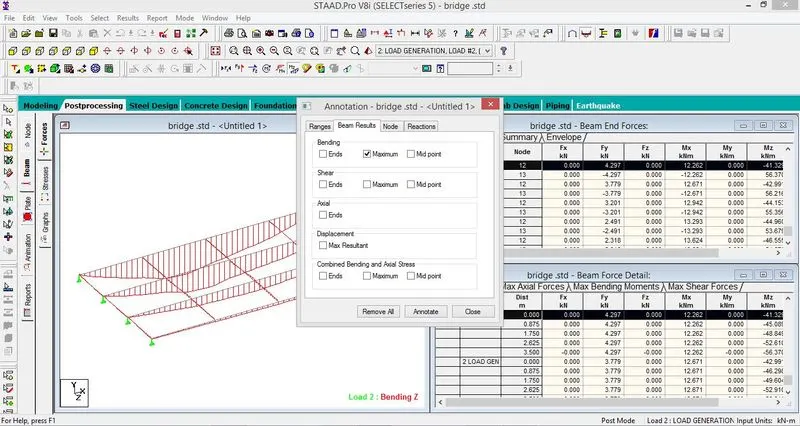

FOR POST PROCESSING

RESULT:- WE GET MAXIMUM BENDING MOMENT FOR BEAM AND ALSO SHEAR FORCE WHIH SEEN IN FOLLOWING FIGURES

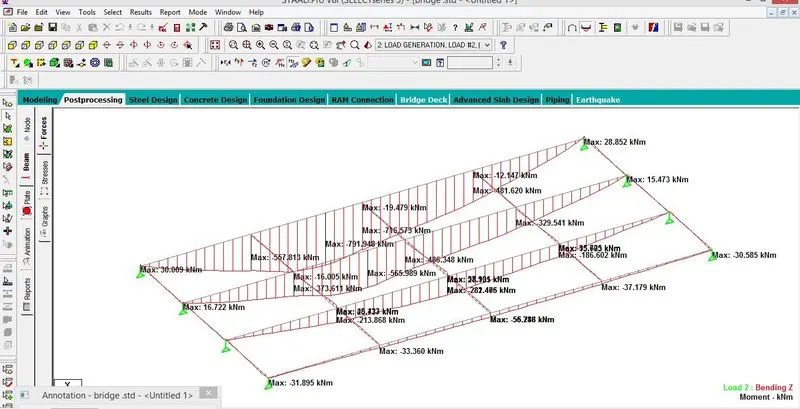

MAXIMUM BENDING

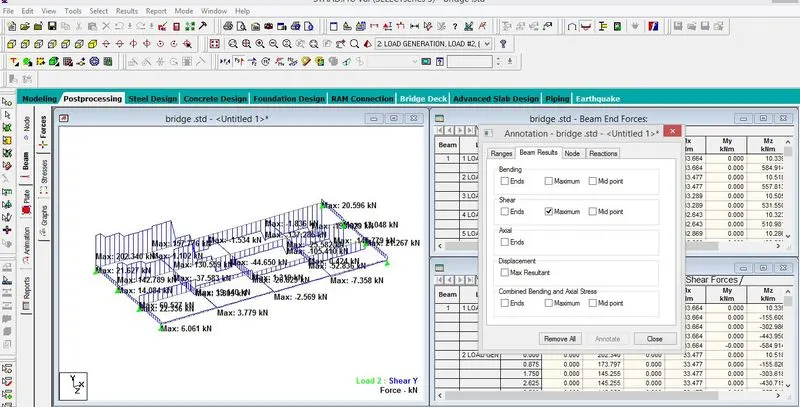

MAXIMUM SHEAR FORCE
