Week -2

QUATION NO.1 DOORBELL USING SOLENOID

CONDITIONS.

THE SWICH CLOSED TIME =2 (SEC)

I HAVE TAKEN STOP TIME =10.0 (SEC)

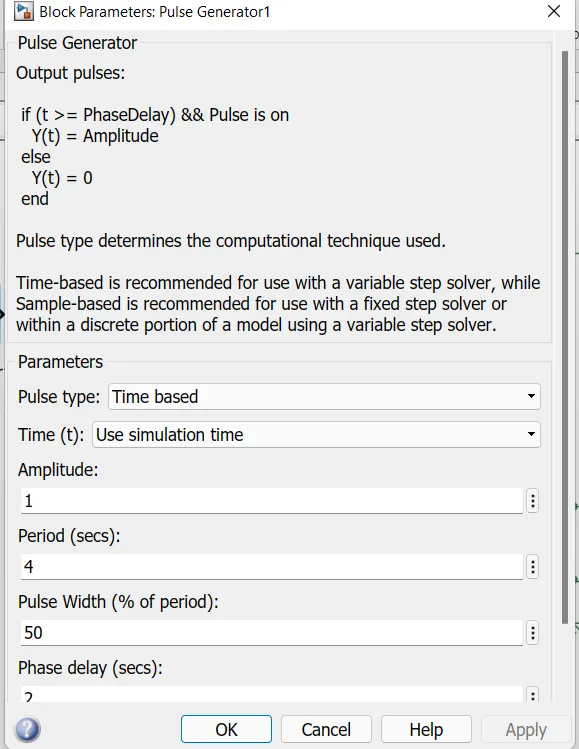

PULSE GENERATOR.PARAMETERS.

AMPLITUDE=1,PULSE TIME 4 SEC'S.50%PULSE WIDTH.PHSE DELY=2 (SEC)

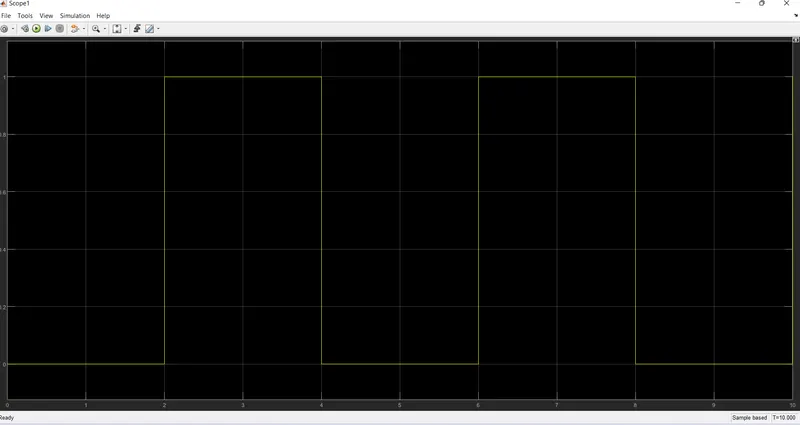

THE INPUT SIGNAL OF PULSE GENERATOR.

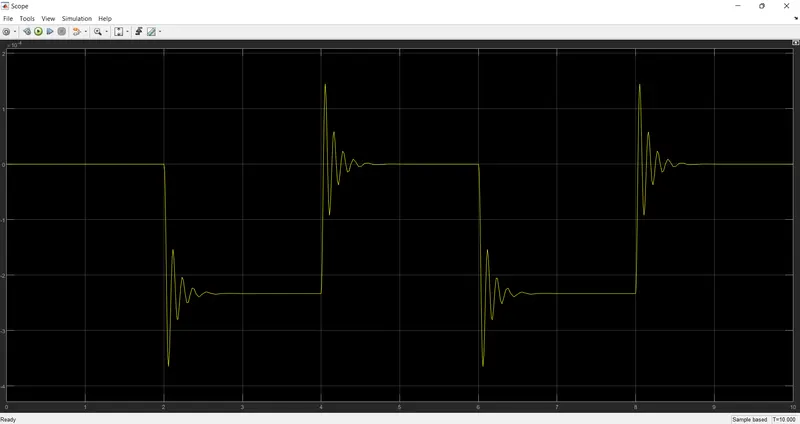

THE OUT PUT SIGNAL OF DOORBELL USING SOLENOID..

QUATION NUMBER .2

THERMISTOR.

CONDITIONS.

0 TO 10 SEC AT 20 DEGREE CELCIOUS.

10 TO 30 SEC AT 27 DEGREE CELCIOUS.

30 TO 50 SEC AT 23 DEGREE CELCIOUS.

STOP TIME =50 SEC.

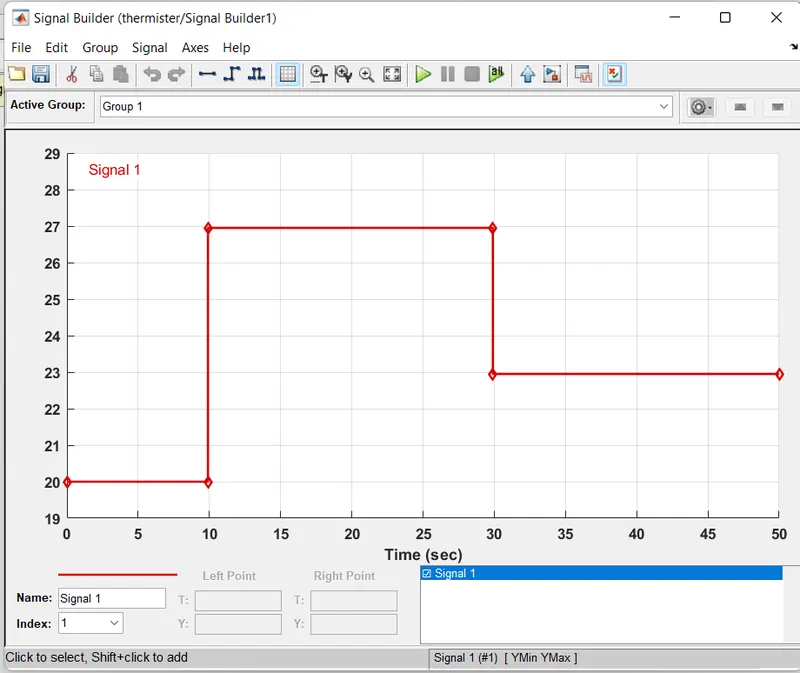

THE INPUT SIGNAL OF SIGNAL BUILDER.

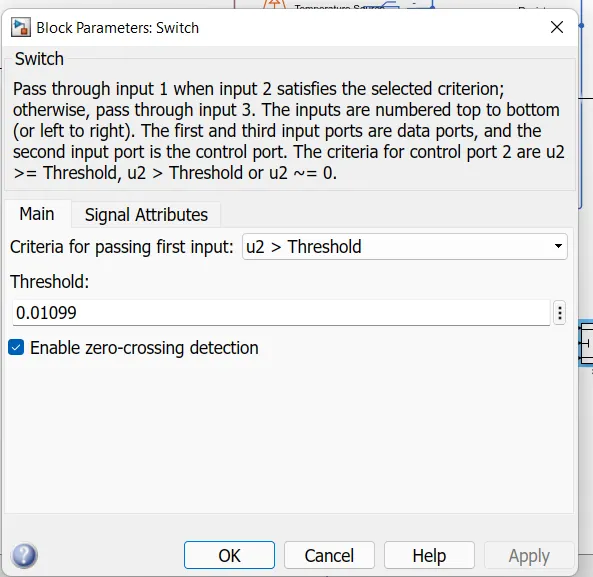

SWITCH PARAMETER.

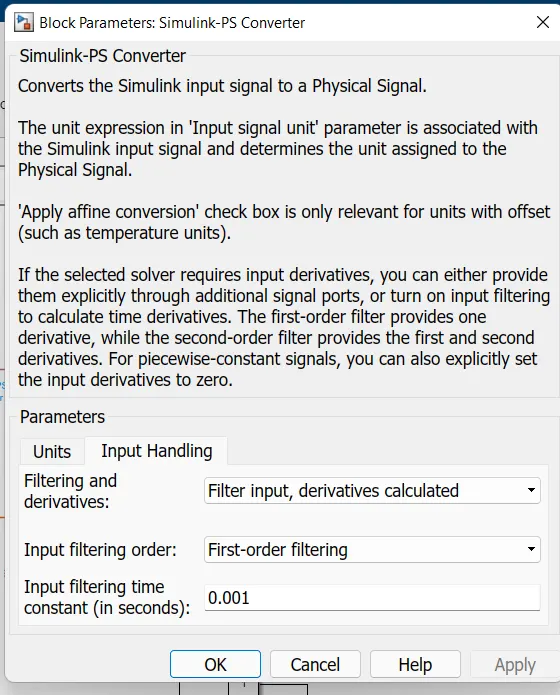

SIMULATOR - PS CONVERTER.

THE OUTPUT OF THERMISTOR.

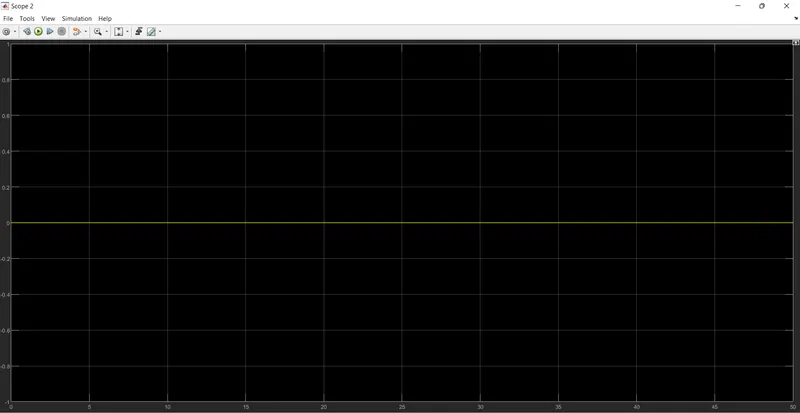

OUTPUT SCOPE.
