Week -2

Aim:- Make a simulink model for the doorbell using solenoid block by observing the plunger where the switch is closed for 2seconds.

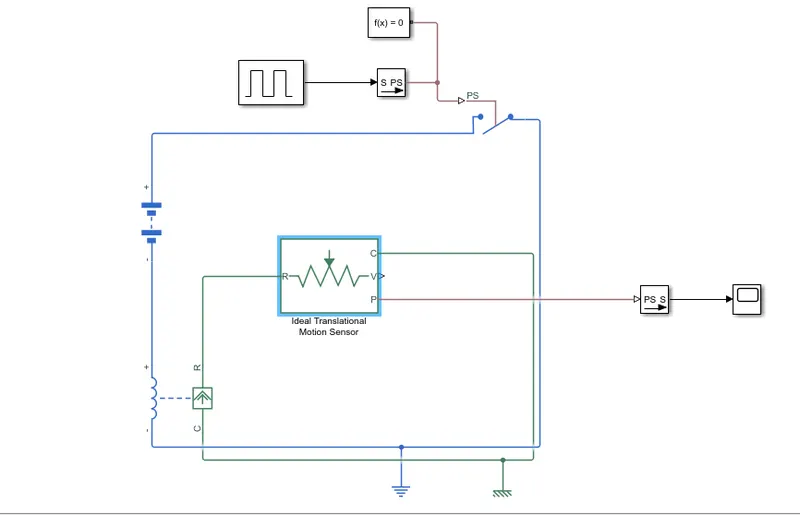

Simulation :-

Procedure:-

1.First the input of pulse generator is given to the switch with a problem solver and simulink to PS converter.

2.connect a solenoid to the battery and then to the switch and make the complete circuit with an electrical reference.

3. connect the ideal translator motion sensor to the soleniod and make complete circuit with the help of the mechanical reference.

4. output of the translational motion sensor is connected to the scope with the help of PS to simulink converter.

5. Battery voltage is defined as 50V.

6.pulse generator is given as 4seconds with 50% duty cycle.

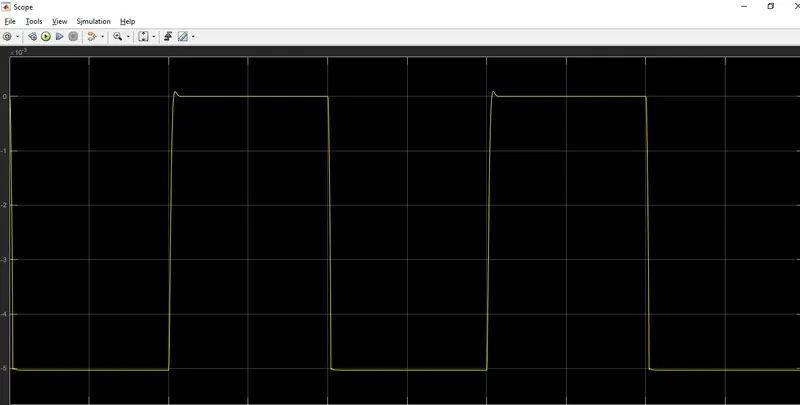

output:-

Hence the result is observed when the switch is closed for 2 seconds.
