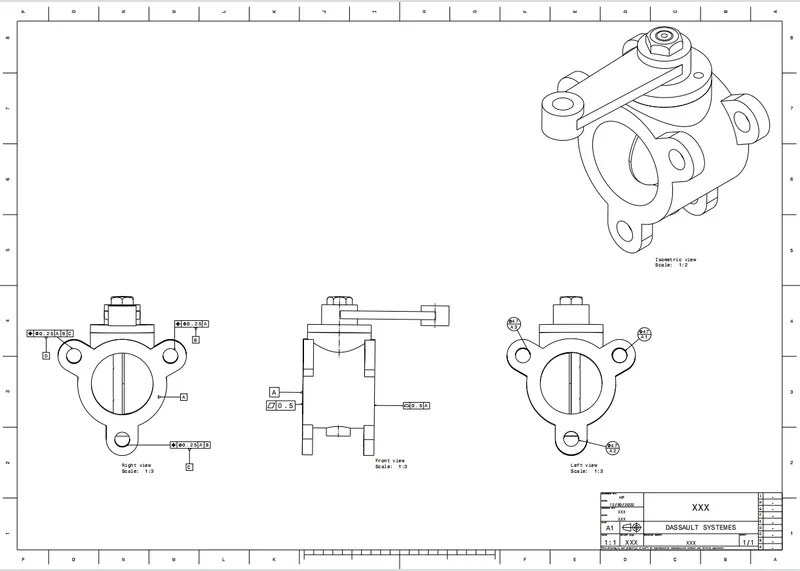

Week 14 challenge

THE 3-2-1 PRINCIPLE:

Locating a part to be machined involves mainly three steps: supporting, positioning and clamping.

Two main intentions when placing a job on a jig/fixture are:

• Precisely positioning the part at the desired coordinates.
• Curbing all six degrees of movement so that the part cannot budge.

An extensively used method for obtaining these objectives is the 3-2-1 principle or six degrees of freedom for part location

The 3-2-1 method is a work-holding principle where three pins are located on the 1st principle plane, i.e., either XY, YZ, ZX. And two pins are located on the 2nd plane perpendicular to the 1st plane, and at last, one pin on the plane is mutually perpendicular to the 1st and 2nd planes. The aim is to constrain the movement of the workpiece along all three axes.

Methodology of 3-2-1 Principle:

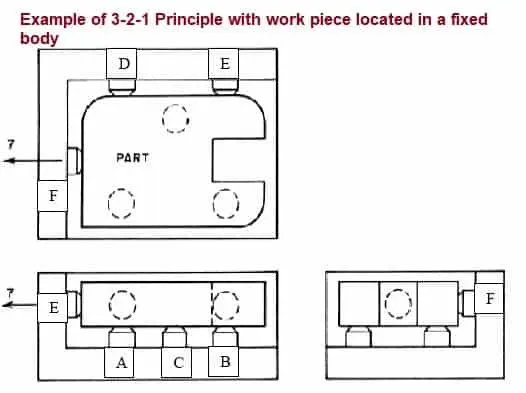

[1] The workpiece is resting on three pins A, B, and C which are inserted in the base of the fixed body.
[2] The workpiece cannot rotate about the axes XX and YY and also cannot move downward.
[3] In this way, the five degrees of freedom 1,2,3,4 and 5 have been arrested.
[4] Two pins D and E are inserted in the fixed body, in a plane perpendicular to the plane containing pins A, B & C.
[5] Now the workpiece cannot rotate about the Z-axis and also it cannot move towards the left.
[6] Hence the addition of pins D and E restrict three more degrees of freedom, namely 6, 7, and 8.
[7] Another pin F in the second vertical face of the fixed body, arrests degree of freedom 9.

The above method of locating a workpiece in a fixture is called the 3-2-1 Principle.
